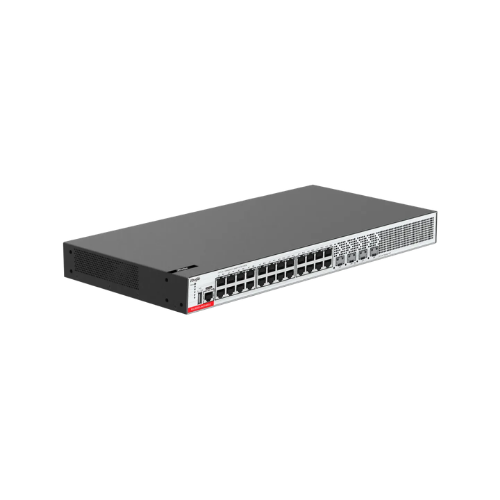

Key Specification
| Fixed service port | 24 x 10/100/1000BASE-T ports
4 x 1GE/2.5GE SFP ports |
Fixed management port | 1 x RJ45 console port and 1 x USB port | |
| System switching capacity | 82 Gbps | System packet forwarding rate | 61 Mpps | |
| MAC address | 16000 | Fan | Fanless | |
| Maximum power consumption | 15.6 W | Unit dimensions (W x D x H) | 440 mm × 220 mm × 43.6 mm (17.32 in. × 8.66 in. × 1.72 in.) | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) | Warranty | 3 years | |
Specifications
Hardware Specifications
| Port specifications | RG-S5000-10GT2MS-E | RG-S5000-24GT4MS-E | RG-S5000-48GT4MS-E | RG-S5000-10GT2MS-P-E | RG-S5000-24GT4MS-P-E |
| Fixed service port | 10 x 10/100/1000BASE-T ports
2 x 1GE/2.5GE SFP ports |
24 x 10/100/1000BASE-T ports
4 x 1GE/2.5GE SFP ports |
48 x 10/100/1000BASE-T ports
4 x 1GE/2.5GE SFP ports |
10 x 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+
2 x 1GE/2.5GE SFP ports |
24 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/2.5GE SFP ports |
| Fixed management port | 1 x RJ45 console port | ||||
| USB | 1 x USB port | ||||
| System Specifications | RG-S5000-10GT2MS-E | RG-S5000-24GT4MS-E | RG-S5000-48GT4MS-E | RG-S5000-10GT2MS-P-E | RG-S5000-24GT4MS-P-E |
| System packet forwarding rate *1 | 27 Mpps | 61 Mpps | 104 Mpps | 27 Mpps | 61 Mpps |
| System switching capacity *2 | 36 Gbps | 82 Gbps | 139 Gbps | 36 Gbps | 82 Gbps |
| CPU | Single-core CPU, with the clock speed of 1.2 GHz | ||||
| Flash memory | 64 MB | 64 MB | 64 MB | 64 MB | 64 MB |
| Memory | 512 MB DDR4 | 512 MB DDR4 | 512 MB DDR4 | 512 MB DDR4 | 512 MB DDR4 |
| Switch buffer | 512 KB | 512 KB | 512 KB | 512 KB | 512 KB |
| MAC address | 16000 | ||||
| ARP table size | 512 | ||||
| ND table size | 256 | ||||
| Number of IPv4 unicast routes | 64 | ||||
| Number of IPv6 unicast routes | 64 | ||||
| Number of ACEs | 500 | ||||
*1 means the system’s packet forwarding rate.
*2 means the system’s switching capacity.
| Dimensions and weight | RG-S5000-10GT2MS-E | RG-S5000-24GT4MS-E | RG-S5000-48GT4MS-E | RG-S5000-10GT2MS-P-E | RG-S5000-24GT4MS-P-E |
| Unit dimensions (W x D x H) | 260.0 mm x 170.0 mm x 43.6 mm (10.24 in. x 6.69 in. x 1.72 in.) | 440.0 mm x 220.0 mm x 43.6 mm (17.32 in. x 8.66 in. x 1.72 in.) | 440.0 mm x 220.0 mm x 43.6 mm (17.32 in. x 8.66 in. x 1.72 in.) | 297.0 mm x 170.0 mm x 43.6 mm (11.69 in. x 6.69 in. x 1.72 in.) | 440.0 mm x 220.0 mm x 43.6 mm (17.32 in. x 8.66 in. x 1.72 in.) |
| Shipping dimensions (W x D x H) | 485 mm x 410 mm x 390 mm (19.04 in. x 16.14 in. x 15.35 in.) | 570 mm x 490 mm x 390 mm (22.44 in. x 19.29 in. x 15.35 in.) | 570 mm x 490 mm x 390 mm (22.44 in. x 19.29 in. x 15.35 in.) | 580 mm x 450 mm x 380 mm (22.83 in. x 17.72 in. x 14.96 in.) | 570 mm x 490 mm x 390 mm (22.44 in. x 19.29 in. x 15.35 in.) |
| Rack height | 1 RU | 1 RU | 1 RU | 1 RU | 1 RU |
| Unit weight | 2.0 kg (4.41 lbs) | 2.5 kg (5.51 lbs) | 2.8 kg (6.17 lbs) | 2.5 kg (5.51 lbs) | 2.8 kg (6.17 lbs) |
| Shipping weight | 2.40 kg (5.25 lbs) | 3.70 kg (8.15 lbs) | 3.60 kg (7.94 lbs) | 3.18 kg (7.01 lbs) | 4.13 kg (9.11 lbs) |
| Mounting | Mounting on a workbench/wall or in a rack (cabinet) | ||||
| Power supply and consumption | RG-S5000-10GT2MS-E | RG-S5000-24GT4MS-E | RG-S5000-48GT4MS-E | RG-S5000-10GT2MS-P-E | RG-S5000-24GT4MS-P-E |
| Power supply | 1 x fixed power supply | ||||
| Power input | AC input
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 0.6 A |
AC input
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 0.6 A |
AC input
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 1.5 A |
AC input
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 3 A |
AC input
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 6 A |
| Maximum output power | Fixed power supply: 16 W | Fixed power supply: 15.6 W | Fixed power supply: 30 W | Fixed power supply: 141 W | Fixed power supply: 430 W |
| PoE port | Not supported | Not supported | Not supported | Ports 1 to 8 support PoE/PoE+ (IEEE802.3af/at) power supply | Ports 1 to 24 support PoE/PoE+ (IEEE802.3af/at) power supply |
| PoE power cable pairs | Not supported | Not supported | Not supported | Mode A (1-2, 3-6 pairs) | Mode A (1-2, 3-6 pairs) |
| PoE output power | Not supported | Not supported | Not supported | Each port of ports 1 to 8 provides up to 30 W of power
The maximum power is 125 W |
Each PoE port provides up to 30 W of power
The maximum power is 370 W |
| Maximum power consumption | 16 W | 15.6 W | 30 W | 16 W (without PoE load)
141 W (full PoE load) |
33 W (without PoE load)
403 W (full PoE load) |
| Energy saving | Energy Efficient Ethernet (EEE) | ||||
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
| Environment and reliability | RG-S5000-10GT2MS-E | RG-S5000-24GT4MS-E | RG-S5000-48GT4MS-E | RG-S5000-10GT2MS-P-E | RG-S5000-24GT4MS-P-E |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
||||
| Humidity | Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
||||
| Altitude | Operating altitude: –500 m to +5,000 m (–1640.42 ft. to +16404.20 ft.)
Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16404.20 ft.) |
||||
| Mean time between failure (MTBF) | 200,000 hours (about 22 years) | ||||
| Fan | Fanless | Fanless | 2 x fixed fan modules | 1 x fixed fan module | 2 x fixed fan modules |
| Heat dissipation | Fanless design, natural heat dissipation | Fanless design, natural heat dissipation | Forced air cooling | Forced air cooling | Forced air cooling |
| Acoustic noise | Fanless | Fanless | 27℃ (80.6°F): 40 dB | 27℃ (80.6°F): 40 dB | 27℃ (80.6°F): 40 dB |
| USB hot swapping | Supported | Supported | Supported | Supported | Supported |
| Cable hot swapping | Supported by all ports | Supported by all ports | Supported by all ports | Supported by all ports | Supported by all ports |
| Fan monitoring | Fanless design | Fanless design | Fan speed control and fan failure alarming | Fan speed control and fan failure alarming | Fan speed control and fan failure alarming |
| Temperature monitoring | Temperature monitoring, over-temperature alarming
If the ambient temperature exceeds a certain value, the device will be reset. |
||||
| ESD | Air discharge: 8 kV/15 kV
Contact discharge: 6 kV/8 kV |
||||
| Surge protection | Service port: 10 kV
Power port: common mode 6 kV, differential mode 2 kV |
||||
| Certifications and regulatory compliance | RG-S5000-10GT2MS-E | RG-S5000-24GT4MS-E | RG-S5000-48GT4MS-E | RG-S5000-10GT2MS-P-E | RG-S5000-24GT4MS-P-E |
| Safety regulation | IEC 62368-1 | ||||
| EMC regulation | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 | ||||
| RoHS | European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863 | ||||
Software Specifications
| Feature | RG-S5000-E Series |
| Ethernet switching | Jumbo frame (maximum length: 9216 bytes) |
| 802.3az EEE | |
| IEEE 802.1Q (4K VLANs) | |
| Voice VLAN | |
| Port-based VLAN assignment | |
| Basic QinQ and selective QinQ | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED | |
| IP service | Static and dynamic ARP |
| DHCP client | |
| DHCP relay | |
| DHCP server | |
| DHCP snooping | |
| DNS client | |
| Neighbor Discovery (ND) | |
| IP routing | Static routing |
| RIP and RIPng | |
| OSPFv2 | |
| Multicast | IGMP snooping v1/v2 |
| IGMP fast leave | |
| ACL and QoS | Standard IP ACLs (IP-based hardware ACLs) |
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | |
| MAC-based extended ACLs (ACLs based on source or destination MAC addresses) | |
| Expert ACLs | |
| IPv6 ACL | |
| ACL 80 | |
| Global ACLs | |
| ACL redirection | |
| Flow-based rate limiting at the ingress | |
| Port rate limiting | |
| Traffic classification based on 802.1p or DSCP priorities | |
| Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop | |
| Eight queues on each port | |
| Rate limiting in each queue | |
| Security | Filtering of invalid MAC addresses |
| RADIUS authentication and authorization | |
| RADIUS and TACACS+ | |
| IEEE 802.1X authentication | |
| MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| SSHv1.5 and SSHv2.0 | |
| ICMPv6 | |
| IP source guard | |
| Proxy ARP and ARP entry aging | |
| Hardware CPP and NFPP | |
| Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types | |
| Reliability | RLDP |
| LACP | |
| Load balancing modes | |
| Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, and unidirectional link detection | |
| NMS and maintenance | RSPAN |
| sFlow (sFlow is a network detection technology based on packet sampling, which is mainly used for traffic statistics analysis in super-heavy network traffic scenarios) | |
| NTP (NTP client and NTP server) | |
| TFTP (TFTP client) | |
| SNMPv1/v2c/v3 | |
| CWMP | |
| SSH v1.5/v2.0 | |
| PoE | RG-S5000-10GT2MS-P-E and RG-S5000-24GT4MS-P-E:
● IEEE 802.3af and 802.3at ● Automatic and energy-saving power supply management mode ● Uninterrupted power supply in hot start mode ● Scheduled powering on or off PoE ports ● Port priority |
| Cloud | WIS |
Order Information
Switches
| Model | Description |
| RG-S5000-10GT2MS-E | 10 x 10/100/1000BASE-T ports with auto-negotiation, 2 x 1GE/2.5GE SFP ports, fixed single AC power supply |
| RG-S5000-24GT4MS-E | 24 x 10/100/1000BASE-T ports with auto-negotiation, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply |
| RG-S5000-48GT4MS-E | 48 x 10/100/1000BASE-T ports with auto-negotiation, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply |
| RG-S5000-10GT2MS-P-E | 10 x 10/100/1000BASE-T ports with auto-negotiation, 2 x 1GE/2.5GE SFP ports, fixed single AC power supply, ports 1 to 8 supporting PoE/PoE+ power supply, and maximum PoE output power of 125 W |
| RG-S5000-24GT4MS-P-E | 24 x 10/100/1000BASE-T ports with auto-negotiation, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply, PoE/PoE+ power supply, and maximum PoE output power of 370 W |
Optical Transceivers and Cables
1GE
| Model | Description |
| Mini-GBIC-GT | 1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation |
| MINI-GBIC-SX-MM850 | 1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF |
| GE-SFP-LX20-SM1310-BIDI | 1000BASE-LX, SFP transceiver, Tx1310/Rx1550, BiDi LC, 20 km over SMF |
| GE-SFP-LX20-SM1550-BIDI | 1000BASE-LX, SFP transceiver, Tx1550/Rx1310, BiDi LC, 20 km over SMF |
| GE-SFP-LH40-SM1310-BIDI | 1000BASE-LH, SFP transceiver, Tx1310/Rx1550, BiDi LC, 40 km over SMF |
| GE-SFP-LH40-SM1550-BIDI | 1000BASE-LH, SFP transceiver, Tx1550/Rx1310, BiDi LC, 40 km over SMF |
| GE-SFP-LX03-SM1310-BIDI-I | 1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF |
| GE-SFP-LX03-SM1550-BIDI-I | 1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF |
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
2.5GE
| Model | Description |
| 2.5G-SFP-LX03-SM1310-BIDI-I | 2.5GBASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF |
| 2.5G-SFP-LX03-SM1550-BIDI-I | 2.5GBASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF |
