Specifications
Hardware Specifications
| Hardware Specifications | RG-RSR77-XA-03 | RG-RSR77-XA-08 |
| Port Specifications | ||
| Module management port | RSR77-XA-03-CM:
● 1 x RJ45 console port ● 1 x 10/100/1000BASE-T RJ45 MGMT port |
RSR77-XA-08-CM:
● 1 x RJ45 console port ● 1 x 10/100/1000BASE-T RJ45 MGMT port RSR77-XA-08-DSF & RSR77-XA-08-DSF II: ● 1 x RJ45 console port |
| Module slot | 2 x supervisor module slots
3 x modular line card slots（A maximum of 12 modular port adapters are supported.） 4 x power module slots 1 x fan module slot |
2 x supervisor module slots
8 x modular line card slots（A maximum of 32 modular port adapters are supported.） 4 x switch fabric module slots 4 x power module slots 2 x fan module slots |
| Module hot swapping | Supported | Supported |
| Supervisor module redundancy | 1+1 redundancy | 1+1 redundancy |
| Switch fabric module | 2 x integrated switch fabric modules | 4 x independent switch fabric modules |
| System Specifications | ||
| Switching capacity | 1.2 Tbps | 3.2 Tbps |
| Packet forwarding rate | 72 Mpps | 192 Mpps |
| ARP table size | 40,000 (Modular port adapter) | 40,000 (Modular port adapter) |
| Number of IPv4 unicast routes | 2,600,000 | 2,600,000 |
| Number of IPv4 multicast routes | 2,048 | 2,048 |
| Number of IPv6 unicast routes | 1,000,000 | 1,000,000 |
| Number of IPv6 multicast routes | 1,024 | 1,024 |
| Number of IGMP Groups | 1,000 | 1,000 |
| Number of MLD Groups | 1,000 | 1,000 |
| Number of ACEs | 32,000 | 32,000 |
| Dimensions and Weight | ||
| Unit dimensions (W x D x H) | 442 mm×500 mm×219.5 mm (17.40 in. x 19.69 in. x 8.64 in)
The depth of the chassis with the cable management bracket is 555 mm (21.85 in.) |
442 mm x 606.7 mm x 442.5 mm (17.40 in. x 23.89 in. x 17.42 in.)
The depth of the device with the cable management bracket is 670.1 mm (26.38 in.). |
| Rack height | 5 RU | 10 RU |
| Unit weight | 12.5 kg (27.56 lbs) | 43.55 kg (96.01 lbs) |
| Power Supply and Consumption | ||
| Power supply | 4 x power modules（N+M redundancy） | 4 x power modules（N+M redundancy） |
| Power input | RG-PA460-RI (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V to 290 V AC, 45 Hz to 65 Hz ● Maximum input current: 6 A |
RG-PA1600I (AC Input)：
● Rated input voltage: 100 V to 240 V AC, 50Hz~60Hz ● Max. input voltage: 90 V to 290V AC, 47Hz to 63Hz ● Max. input current: 16 A RG-PD600I (DC Input)： ● Rated input voltage: -48 V to -60 V DC ● Max. input voltage: -38 V to -75 V DC ● Max. input current: 20 A |
| Power output | RG-PA460-RI (AC input):
● Output voltage: 12 V ● Maximum output current: 36 A |
RG-PA1600I：
● 90V to 176V AC Input： ○ Output Voltage: 12 V DC ○ Maximum output current: 100 A ● 176V to 290V AC Input: ○ Output Voltage: 12 V DC ○ Maximum output current: 133.4 A RG-PD600I： ● DC Input： ○ Output voltage: 12 V DC ○ Maximum output current: 50 A |
| Maximum output power | RG-PA460-RI：
● 90 V AC to 290 V AC：460W |
RG-PA1600I:
90 V AC to 176 V AC, 1200 W 176 V to 290 V AC, 1600 W
RG-PD600I: 600 W |
| Module power consumption | Supervisor module:
● RSR77-XA-03-CM: ＜ 50 W Line card: ● RSR77-XA-SIP3 (modular line card): ＜ 180 W ○ NM-4XS-KB: ＜ 14 W ○ NM-2XS-KA: ＜ 11 W ○ NM-8GT-G: ＜ 7 W ○ NM-8SFP-G: ＜ 16 W ○ DNM-1CQ-KC: ＜ 21 W Fan module: ● FAN: ＜ 216 W |
Supervisor module:
● RSR77-XA-08-CM: < 70 W Switch fabric module: ● RSR77-XA-08-DSF: ＜ 87 W ● RSR77-XA-08-DSF II: ＜ 160 W Line card: ● RSR77-XA-SIP3 (modular line card): ＜ 180 W ○ NM-4XS-KB: ＜ 14 W ○ NM-2XS-KA: ＜ 11 W ○ NM-8GT-G: ＜ 7 W ○ NM-8SFP-G: ＜ 16 W ○ DNM-1CQ-KC: ＜ 21 W Fan module: ● M10C-FAN: ＜ 216 W |
| Environment and Reliability | ||
| Mean time between failure (MTBF) | 216,000 hours (24 years) | 342,000 hours (39 years) |
| Temperature | Operating temperature: 0ºC to 45ºC (32ºC to +113ºC)
Storage temperature: –40ºC to 70ºC (–40ºF to +158ºF) |
|
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
|
| Altitude | ● Maximum operating altitude: 4,000 m (13123.36 ft.)
● Maximum storage altitude: 5,000 m (16404.20 ft.) ● Long-term operating altitude: 45ºC (113ºF) at an altitude of 1800 m (5905.51 ft.) |
|
| Acoustic noise | Noise in room temperature: ≤ 70 dB
Maximum noise: < 77 dB |
35°C (95°F): 60 dB
50°C (122°F): 75 dB |
Software Specifications
| RG-RSR77-XA Series | |
| Model | Description |
| Ethernet switching | Jumbo frame length: 1,578 bytes |
| 802.3az EEE | |
| LLDP/LLDP-MED | |
| IP service | Static and dynamic ARP |
| DHCP server, DHCP relay, and DHCP client | |
| FTP, TFTP, FTPv6, and TFTPv6 | |
| NTP, SNTP, and NTPv6 | |
| NAT | |
| Strict and loose RPF
uRPF ignoring default routes |
|
| ND | |
| FTP, TFTP, FTPv6, and TFTPv6 | |
| DNS | |
| IPv4/IPv6 VRF | |
| DHCP server, DHCPv6 client, and DHCPv6 relay | |
| ND and ND snooping | |
| IPv6 GRE tunnel | |
| IP routing | IPv4 and IPv6 static routing, and static blackhole routes |
| RIP v1/v2 and RIPng | |
| OSPFv2 and OSPFv3 | |
| IS-ISv4 and IS-ISv6 | |
| BGP and BGP4+ | |
| Routing policies | |
| BGP4, BGP4+, and MP-BGP | |
| IPv4 VRRP v2/v3 and IPv6 VRRP v3 | |
| IPv4 and IPv6 PBR | |
| Multicast | IGMP v1/v2/v3 |
| Static multicast routing | |
| PIM-DM, PIM-SM, PIM-SSM, PIM-SSMv6, PIM-SMv6, and other multicast routing protocols | |
| MSDP for inter-domain multicast | |
| MLDv1/v2 | |
| MPLS/SR | Basic MPLS functions |
| MPLS forwarding | |
| 6PE/6VPE interconnection with IPv4/IPv6 MPLS backbone network | |
| MPLS MIB (RFC 1273, 4265, 4382) | |
| L3VPN | |
| LSP | |
| LDP | |
| ACL and QoS | Standard IP ACLs |
| Extended IP ACLs | |
| Extended MAC ACLs | |
| IPv6 ACLs | |
| Applying ACLs to interfaces | |
| MPLS QoS | |
| HQoS | |
| Security | Multiple AAA modes |
| RADIUS authentication, authorization, and accounting | |
| TACACS+ | |
| Attack defense | |
| Password security | |
| RNFP | |
| CPP | |
| FPM | |
| PKI | |
| IPsec VPN(AES-128, AES-256) | |
| VPDN | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| Login authentication and password security | |
| Reliability | BFD |
| GR | |
| DLDP | |
| ECMP | |
| NSR | |
| Hot swapping | |
| NMS and maintenance | SPAN and ERSPAN |
| SNMP v1/v2/v3 | |
| System operation logging | |
| IPFIX | |
| Command line configuration through console, AUX Modem, Telnet, and SSH | |
| RMON (1, 2, 3, 9) | |
| NETCONF | |
| CWMP | |
| gRPC | |
Note: The item marked with the asterisk (*) will be available in the future.
Order Information
Chassis and Supervisor Modules

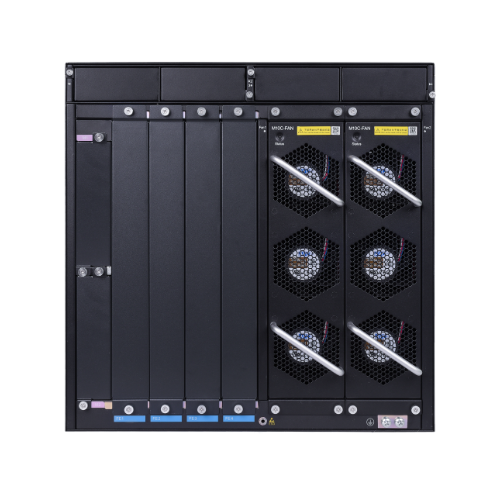

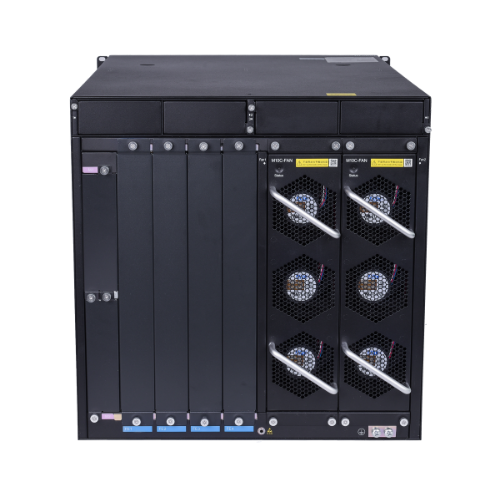

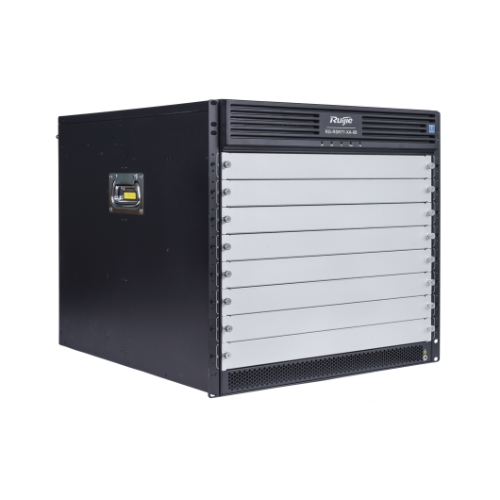

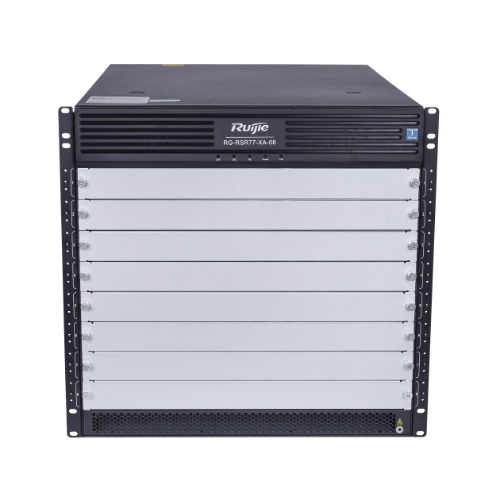

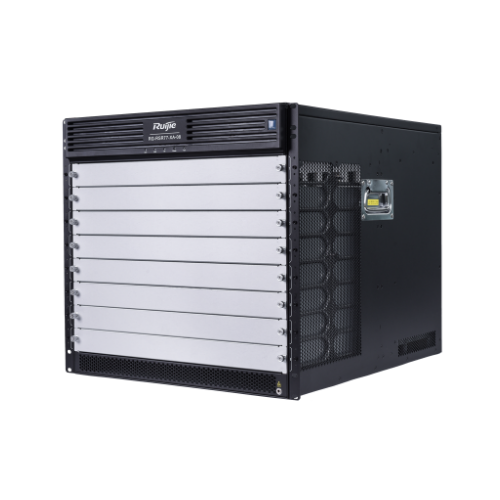

| Model | Description |
| RG-RSR77-XA-03 | RG-RSR77-XA-03 chassis |
| RG-RSR77-XA-08 | RG-RSR77-XA-08 chassis |
| RSR77-XA-03-CM | RG-RSR77-XA-03 routing switching module |
| RSR77-XA-08-CM | RG-RSR77-XA-08 routing module |
| RSR77-XA-08-DSF | RG-RSR77-XA-08 switch fabric module (40 Gbps supported by a single switch fabric module) |
| RSR77-XA-08-DSF II | RG-RSR77-XA-08 switch fabric module (200 Gbps supported by a single switch fabric module) |
Power Modules
| Model | Description |
| RG-PA1600I | RG-RSR77-XA-08, 1600 W AC power module |
| RG-PA460-RI | RG-RSR77-XA-03, 460 W AC power module |
| RG-PD600I | RG-RSR77-XA-08, 600 W DC power module |
Modular Line Cards
| Model | Description |
| RSR77-XA-SIP3 | NM/DNM modular line card (Each modular line card supports up to four NM modular port adapters or two DNM modular port adapters) |
Modular Port Adapters
| Model | Description |
| NM-2XS-KA | 2-port 10GE Ethernet interface module, requiring additional SFP+ modules |
| NM-4XS-KB | 4-port 10GE Ethernet interface module, requiring additional SFP+ modules |
| NM-8SFP-G | 8-port 1GE Ethernet optical interface module, requiring additional SFP modules |
| NM-8GT-G | 8-port 1GE Ethernet electrical interface module |
| DNM-1CQ-KC | 1-port 100GE/40GE Ethernet interface module |
Note: The item marked with the asterisk (*) will be available in the future.
