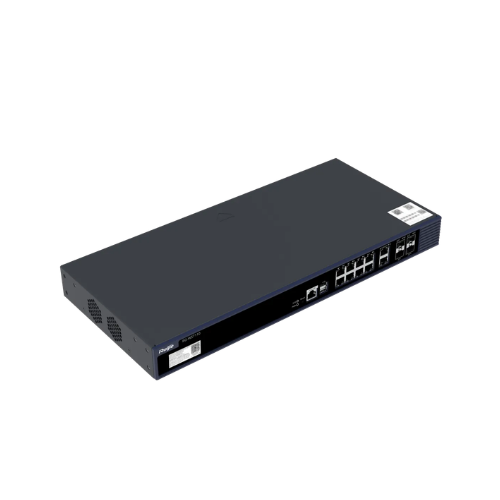

RG-WS7110, Next-Generation High-Performance 10 Gbps Wireless Access Controller

2 x 1GE SFP/RJ45 combo ports

2 x 10GE SFP+ ports

(17.32 in. x 7.87 in. x 1.72 in.)

486.2 mm x 205 mm x 43.6 mm (19.14 in. x 8.07 in. x 1.72 in., including rack-mount brackets)

2 x 1GE SFP/RJ45 combo ports

● RJ45 ports support 10/100/1000BASE-T.

● Port 9/MGMT can also be used as a management port.

2 x 10GE SFP+ ports

2 x USB 3.0 ports, compatibility with USB 2.0

1 x power status LED

8 x 10/100/1000BASE-T port LEDs

2 x 1GE SFP/RJ45 combo port LEDs

2 x 10GE SFP+ port LEDs

● Press the button for shorter than 3 seconds. Then the device restarts.

● Press the button for longer than 3 seconds. Then the device restores to factory settings.

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).

Storage altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.)

Storage humidity: 5% RH to 95% RH (non-condensing)

Note: The default number of APs that can be managed by the RG-WS7110 is subject to the AP model. For details, see the Ordering Information.

Note: The maximum number of clients that can be managed by the RG-WS7110 is subject to the network environment. Contact technical support team for details.

Layer 2 and Layer 3 topology supported between an AP and an AC

An AP can automatically discover the accessible AC.

An AP can be automatically upgraded through the AC.

An AP can automatically download the configuration file from the AC.

CAPWAP through NAT

Inter-AC Layer 2 or Layer 3 roaming

Intra-AC Layer 2 or Layer 3 roaming in local forwarding mode

Inter-AC Layer 2 or Layer 3 roaming in local forwarding mode

Local forwarding

Service-based flexible forwarding

(STA-based rate limit range: 8–261,120 in the unit of 8 kbps. For example, if you set the value to 8, the rate limit is 8 x 8 kbps = 64 kbps.)

Static and intelligent rate limiting based on STA quantity

Fair scheduling

AP-based user isolation

WLAN-based user isolation

AC failover

Multi-AC hot standby (1+1 A/A and A/S hot standby, and N+1 hot standby)

Multi-AC cluster (N-to-N)

Remote intelligent perception technology (RIPT)

Non-stop service during upgrade

Access control based on the number of STAs associated with the SSID

Balanced access control based on the number of STAs associated with the AP

Balanced access control based on the AP traffic

Band steering

Configuration of the RSSI threshold in dBm (range: 0–100)

Configuration of the STA idle timeout period in seconds (range: 60–86,400)

Manual setting of the transmit power

Automatic setting of the transmit power

Manual setting of the operating channel

Automatic setting of the operating channel

Automatic adjustment of the data rate

Coverage Hole Detection

AP load balancing based on traffic and STA quantity

Band selection

Radio frequency interference (RFI) detection and mitigation

Real-time RF configuration changes with minimal user disruption

802.1X authentication

MAB authentication

Web-based authentication

SSID hiding

IEEE 802.11i-compliant PSK authentication

WPA and WPA2

WEP (WEP/WEP128)

TKIP

CCMP

ARP anti-spoofing

DHCP server, DHCP client, DHCP relay, and DHCP snooping

DNS client

NTP

Telnet

TFTP server and TFTP client

FTP server and FTP client

DHCPv6 relay and DHCPv6 server

TFTPv6 client

FTPv6 server and FTPv6 client

IPv6 CAPWAP

ICMPv6

IPv6 ping

Manual tunnels, automatic tunnels, and ISATAP

Manually configured IP addresses and automatically created local addresses

IPv6 traceroute

Neighbor discovery

RMON

Syslog

Remote probe

On-demand diagnosis with packet capture

Remote Packet Capture Protocol (RPCAP) with third-party tools for remote packet review

RG-WIS

Wi-Fi heat map

It supports 32 licenses by default, and up to 512 licenses are available.

The maximum number of APs that can be managed by the RG-WS7110 is subject to the AP model:

● A generic AP occupies one license. The RG-WS7110 can manage up to 512 generic APs.

● A wall plate AP occupies half of the license. The RG-WS7110 can manage up to 1,024 wall plate APs.

● An i-Share micro AP occupies no license. The RG-WS7110 can manage up to 1,024 i-Share micro APs.

● The number of licenses occupied by an i-Share master AP is subject to the model. For details, see the Ordering Information in the datasheet of corresponding i-Share master AP.
