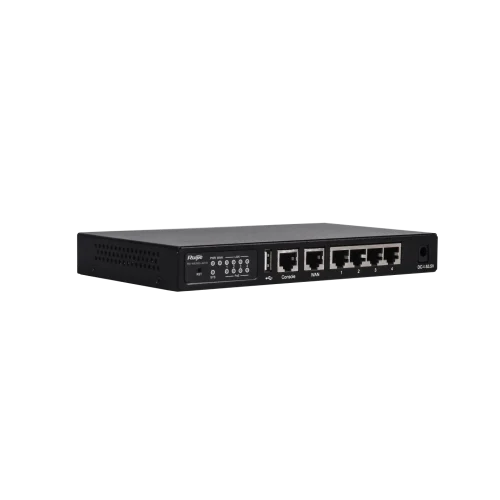

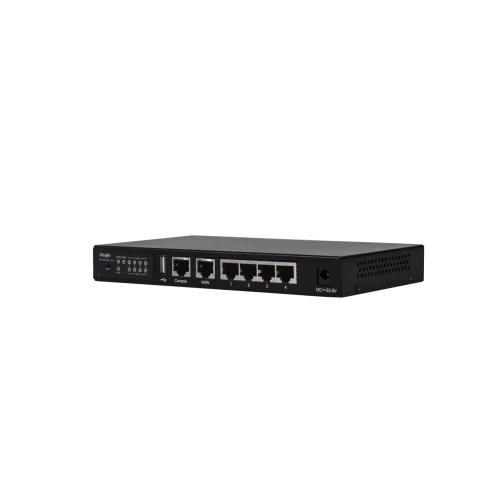

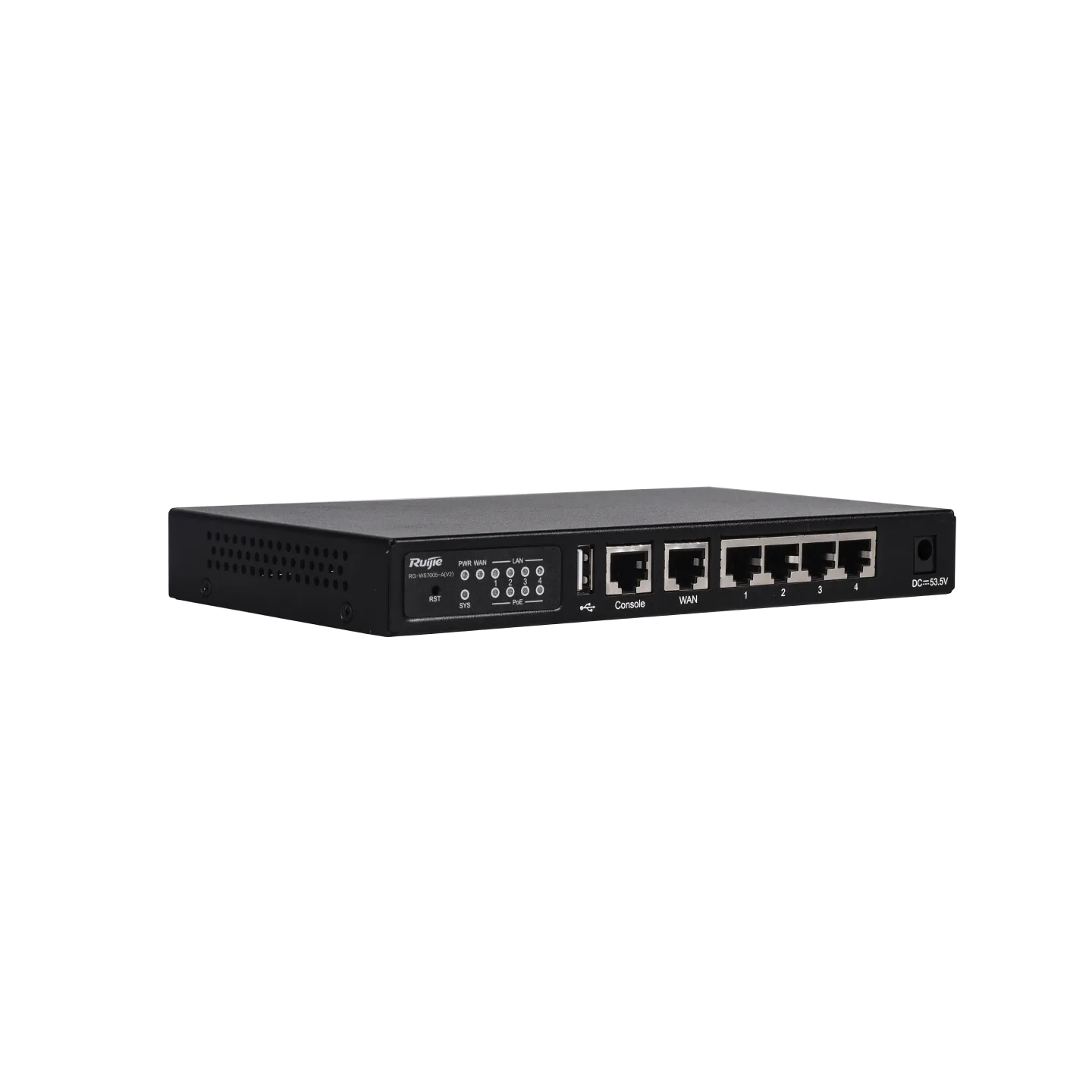

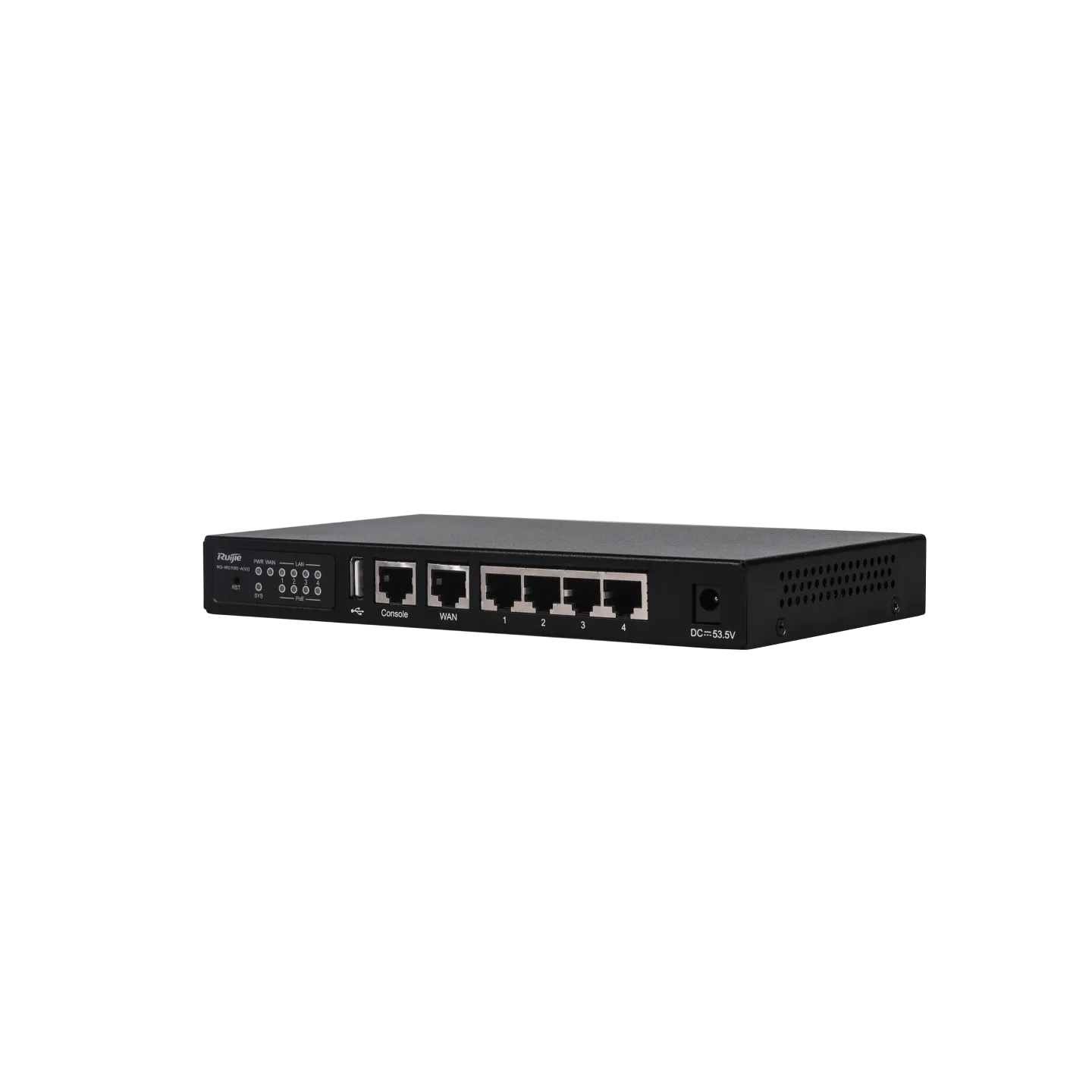

Features

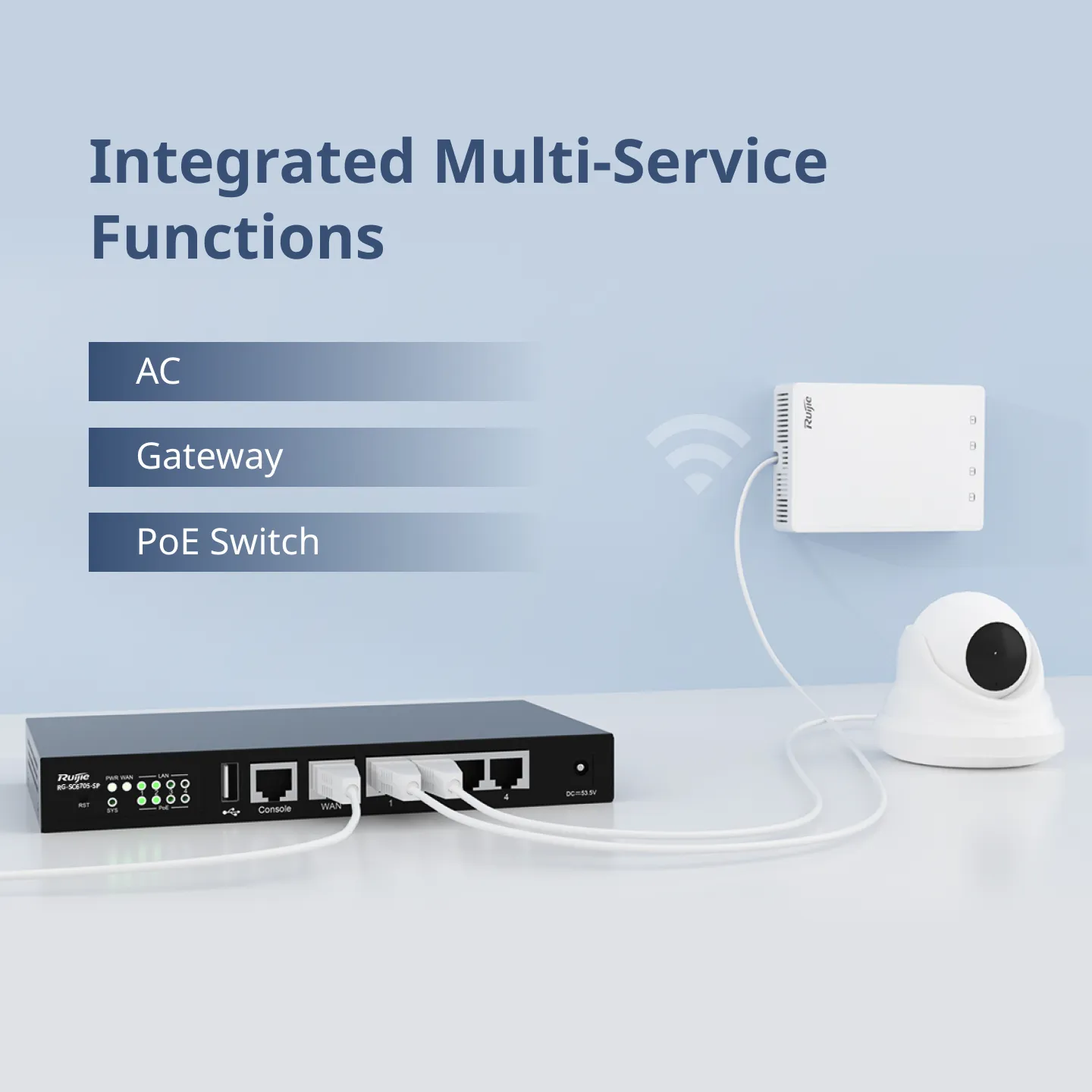

Integrated Multi-Service Functions of AC, PoE Switch, and Gateway
The access controller integrates functions of the AC, PoE switch, and gateway, reducing investment in device procurement, simplifying networking, and streamlining wiring operations. It can directly constitute networking with APs.
- Ruijie Wi-Fi 5/Wi-Fi 6 AP Management
- 802.3af/at-Compliant PoE Output
- NAT, PPPoE, and DHCP
- IPv4 Static Routing

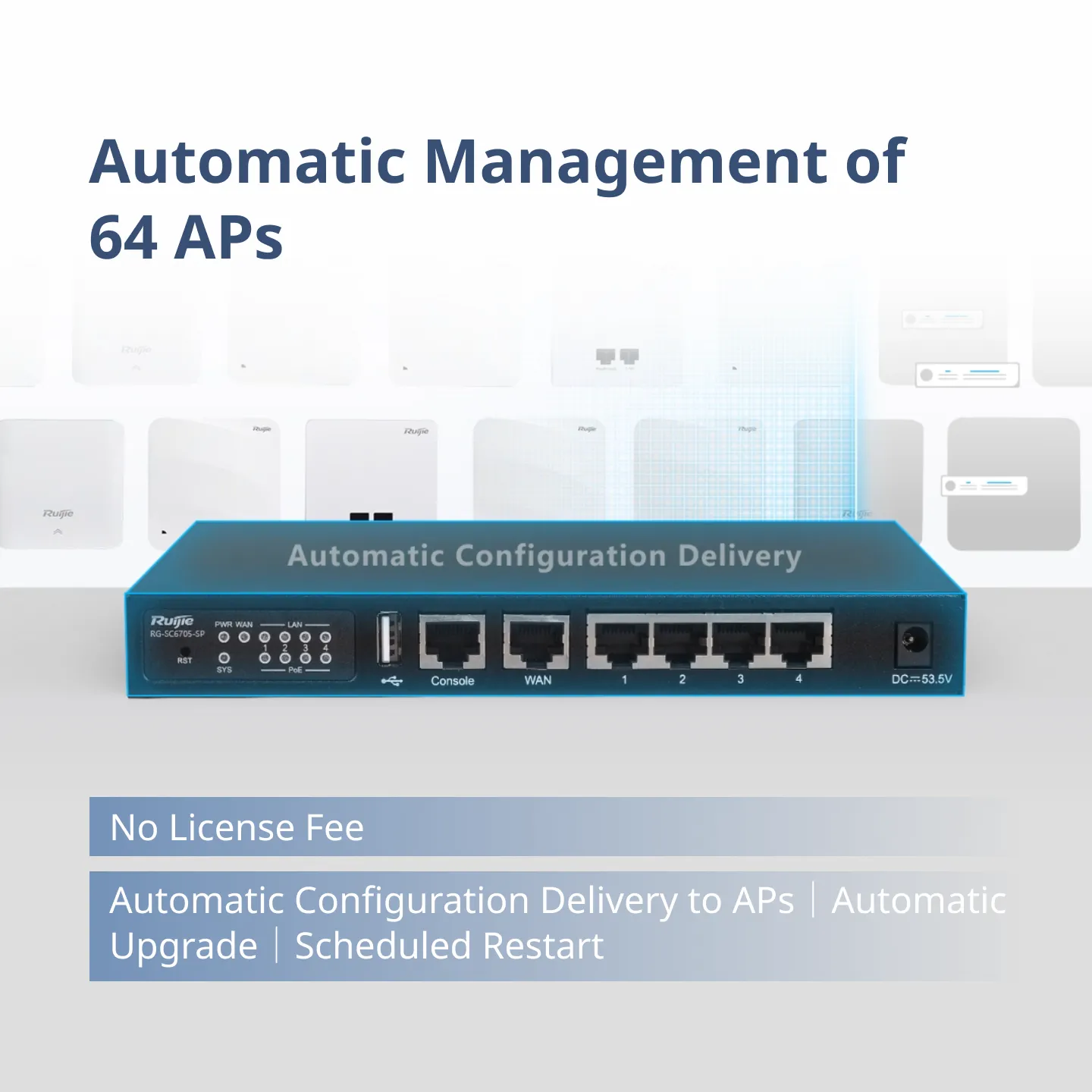

No License Fee, Automatic Management of 64 APs, Reduced O&M Workload
The AC can automatically associate with APs on the network and supports plug-and-play. It manages up to 64 APs in fit mode with built-in licenses. APs can download configuration and upgrade software from the AC, reducing manual operations and easily achieving routine management of multiple APs.

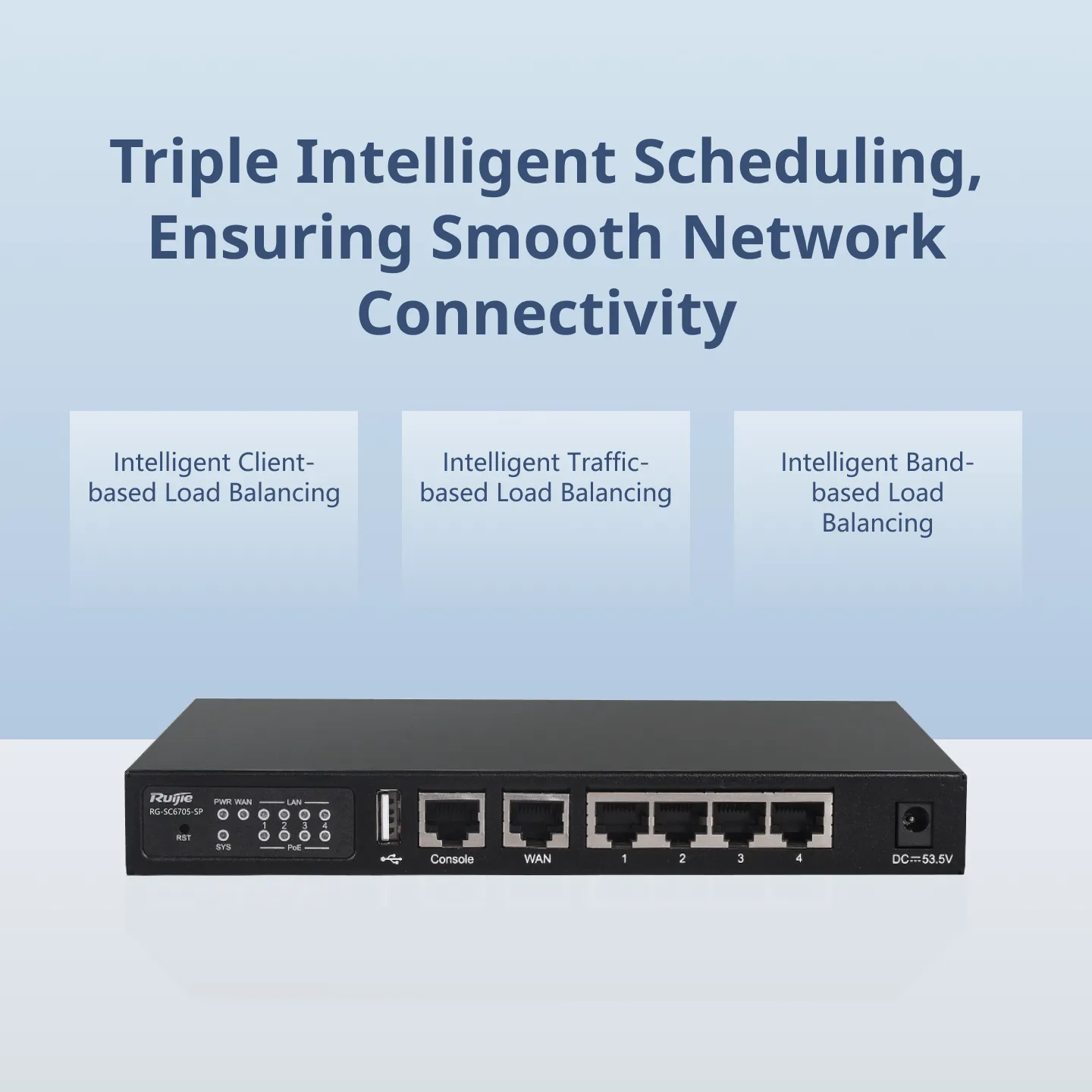

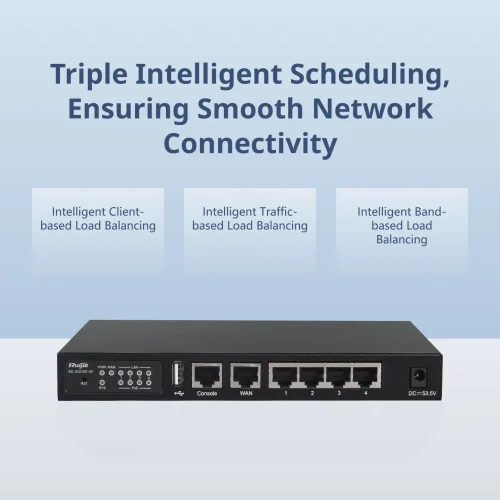

Triple Intelligent Control, Stable and High-Speed Network Experience
- The AC implements intelligent client-based load balancing and preferentially assigns clients to associate with APs that have fewer clients, preventing AP overload.
- The AC conducts intelligent band-based load balancing and steers dual-radio clients to preferentially access the 5 GHz frequency band, reducing band congestion,
- The AC performs intelligent traffic-based load balancing and preferentially assigns clients to associate with APs that have smaller data traffic, enhancing average access bandwidth.

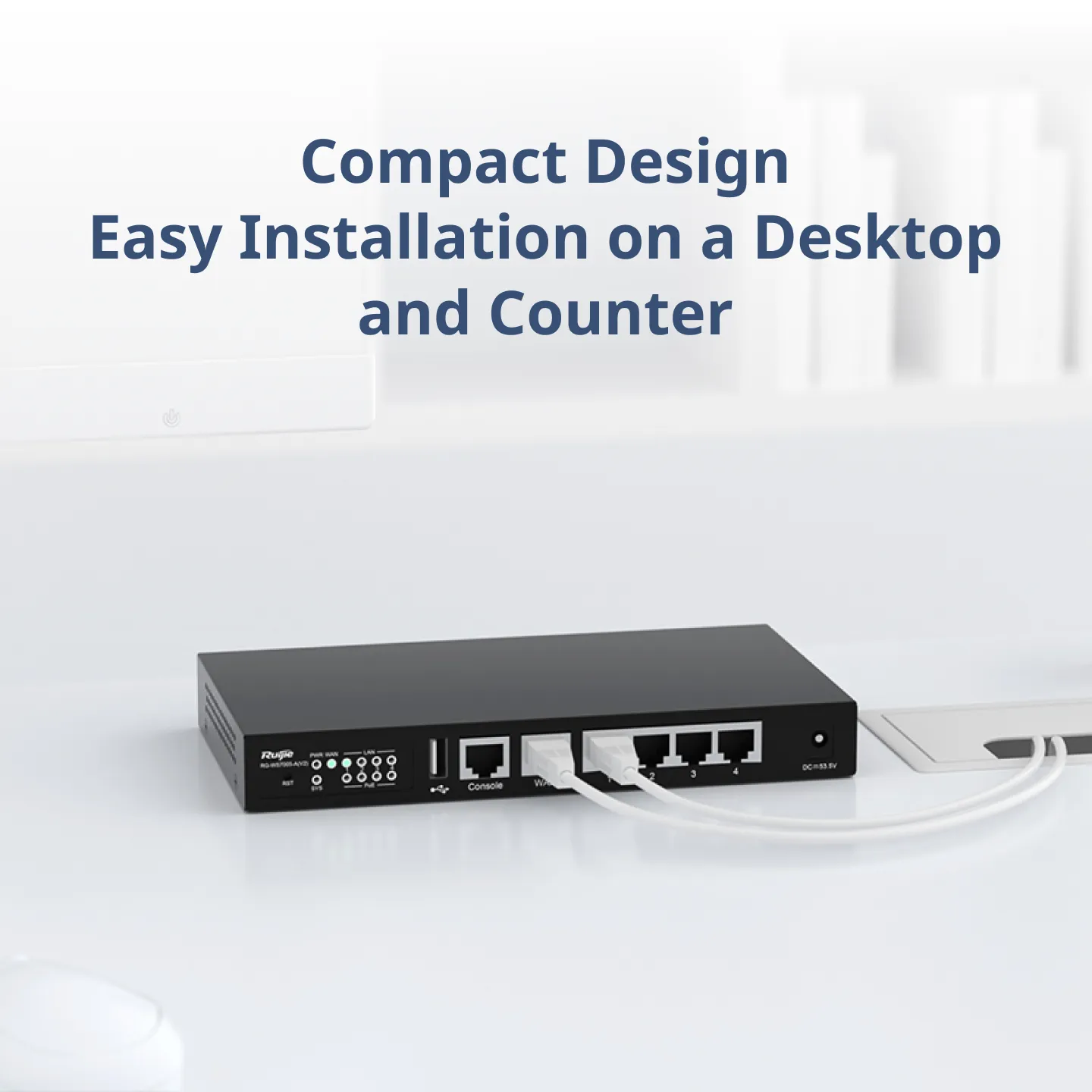

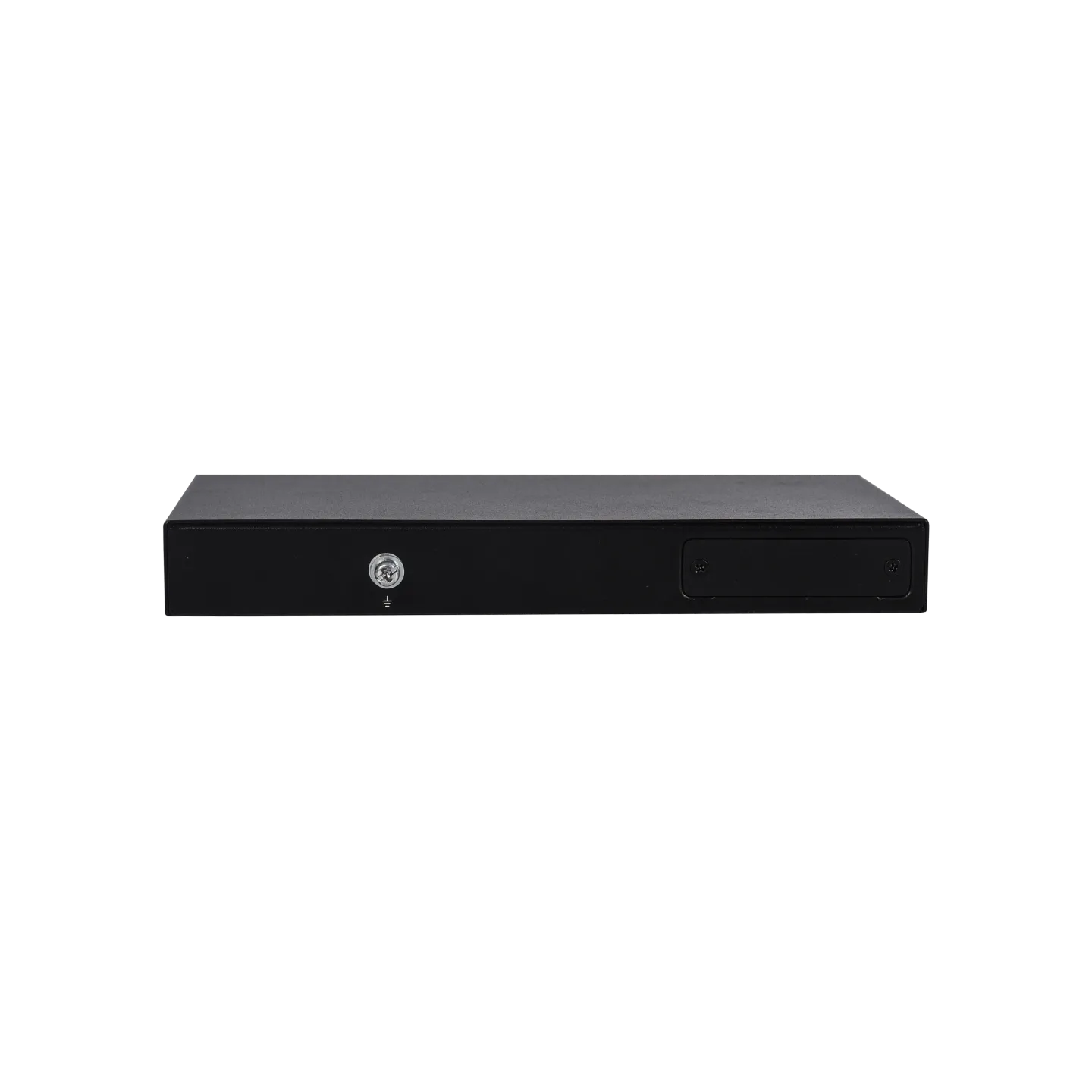

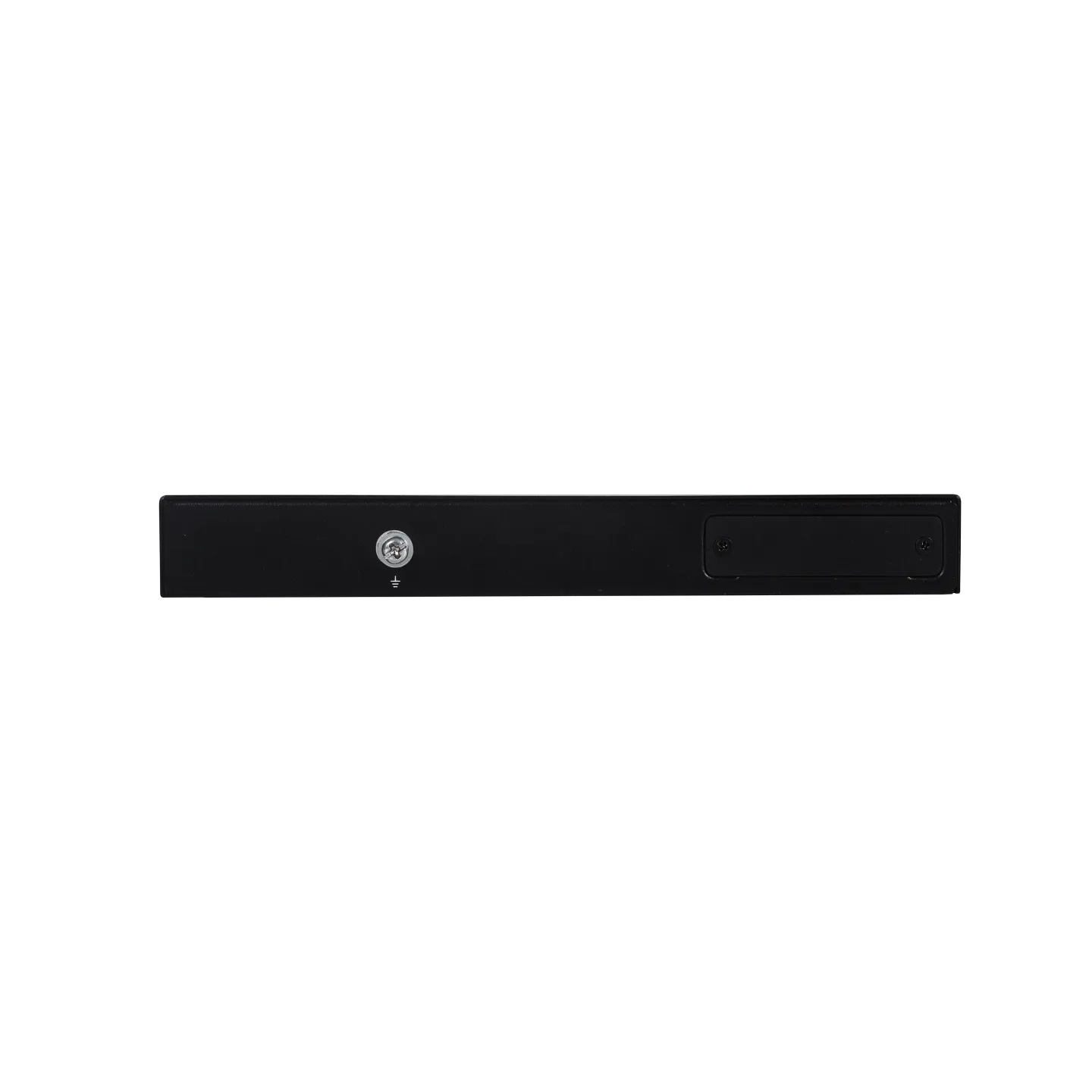

Silent and Compact Design, Easy Installation
- The AC adopts a fanless and compact design, with dimensions of 200 mm x 110 mm x 25 mm (7.87 in. x 3.94 in. x 0.98 in.). It occupies less space, allowing for easy installation on the desktop, counter, or in the ELV box.

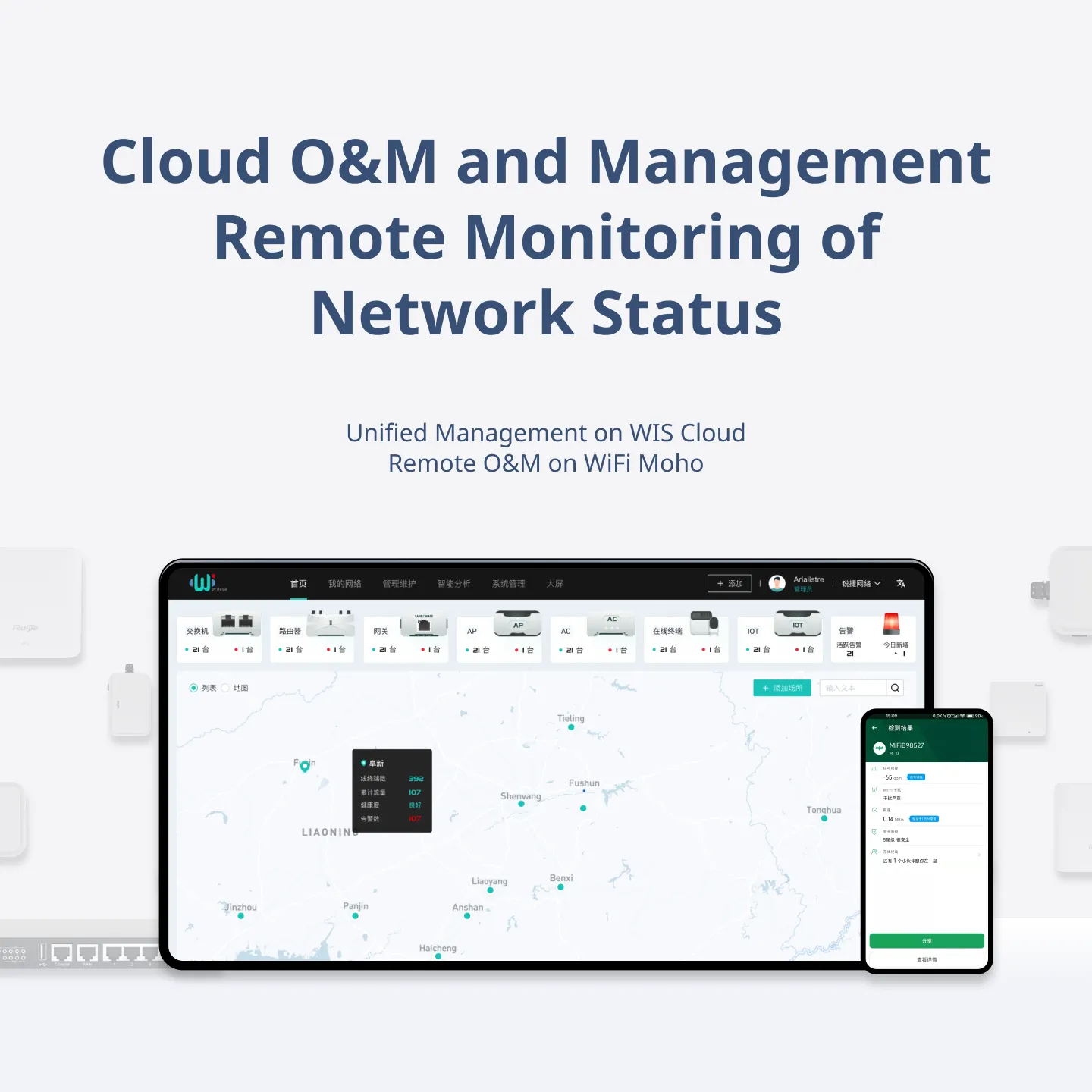

Unified Cloud Management, Intelligent Optimization, Easy O&M
- WIS Cloud enables network-wide configuration and optimization, eliminating the need for on-site operations. Remote O&M can be implemented on WiFi Moho. Network issue warnings allow wireless networks to be monitored anytime and anywhere.
- Cloud O&M
- 24/7 Network Optimization
- Real-Time Warning
- Fault Locating
Specifications
| Key Specification | RG-SC6705-SP |
| Number of Manageable APs | 64 (fixed number, license-based expansion unavailable)
Note: The number of APs that can be managed by the AC is subject to the AP model. See the Ordering Information for details |
| Maximum number of configurable APs | 128 |
| Maximum number of manageable STAs | 2,048
Note: The maximum number of STAs that can be managed by the AC is subject to the network environment. Contact technical support team for details. |
| 802.11 forwarding capacity | 2 Gbps (subject to the wireless network environment) |
| WLAN service | Maximum number of WLAN IDs: 2,048
Maximum number of associated STAs per WLAN: 2,048 |

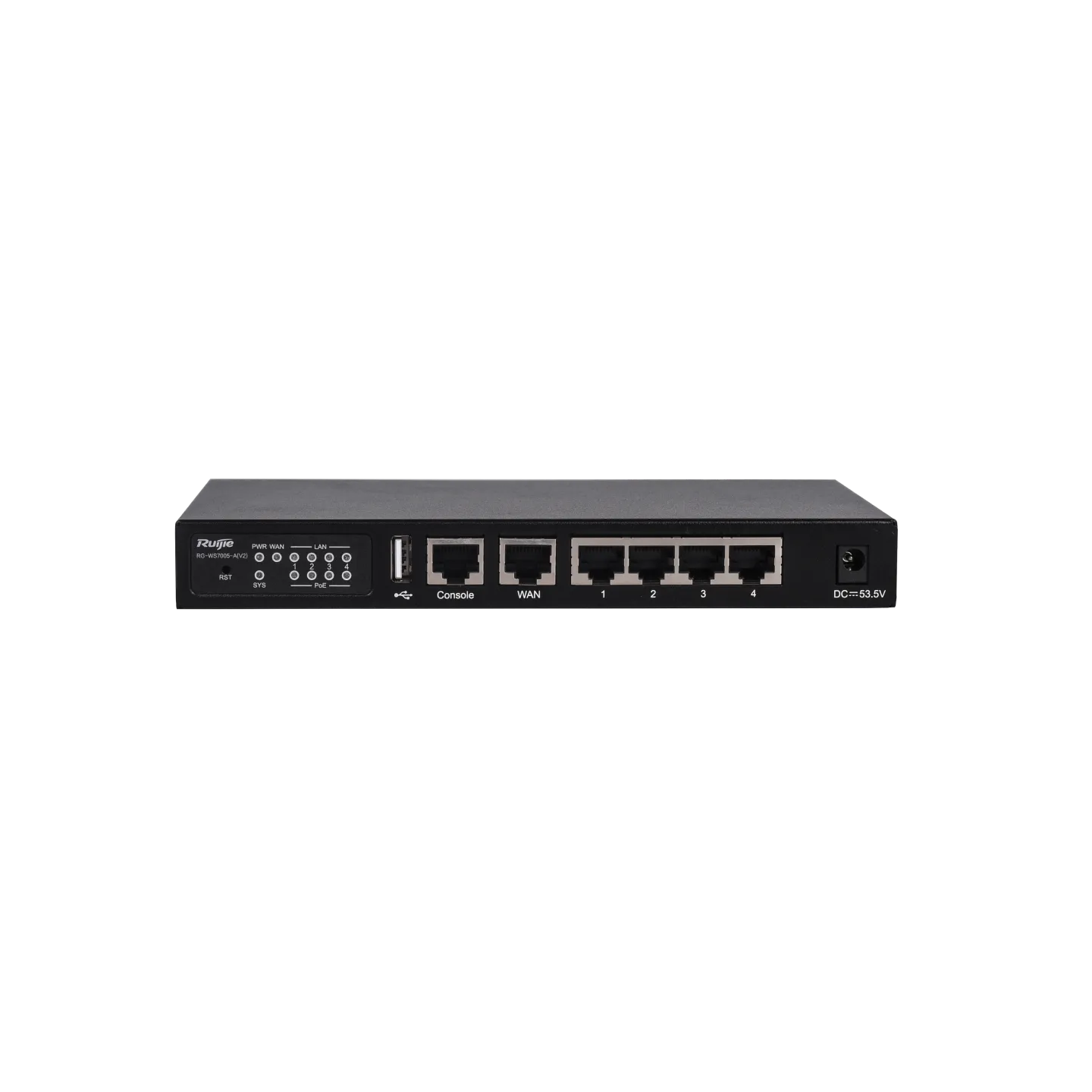

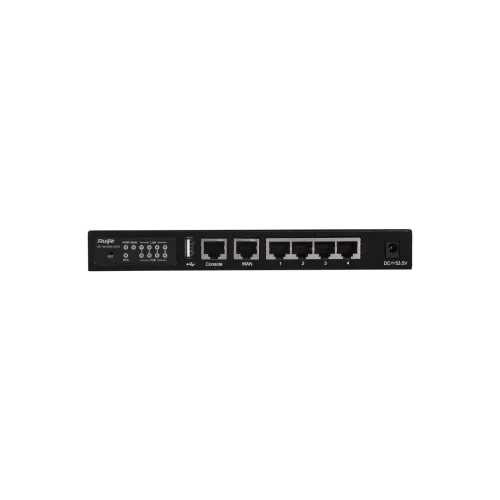

| Number of VLANs | 4,094 |
| Port | 1 x 10/100/1000BASE-T port
4 x 10/100/1000BASE-T ports, compliant with IEEE 802.3af/at standard (PoE/PoE+) 1 x RJ45 console port (serial console port) 1 x USB port (not supporting removable hard disks) |
| Power supply | Input power supply: 1 x 80 W power adapter (the device is powered through the DC power jack)
Power input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 1.5 A (maximum current) Power output: 54 V DC, 1.48 A |
| External power supply | IEEE 802.3af/at-compliant (PoE/PoE+) output
Maximum PoE power consumption: 56 W Two power supply modes: ● Two ports for IEEE 802.3at-compliant (PoE+) output ● Four ports for IEEE 802.3af-compliant (PoE) output |
| Maximum power consumption | 64.2 W |
| Rack height | 1 RU |
| Applicable software version | RGOS11.9(6)B5P9 or later |
| Network management platform | Web-based management (Eweb)
WIS-based management (RG-iData-WIS) |
| Hardware Specification | RG-SC6705-SP |
| Unit dimensions (W x D x H) | 200 mm x 110 mm x 25 mm (7.87 in. x 4.33 in. x 0.98 in.). |
| Weight | Main unit: 1.0 kg (2.20 lbs)
Shipping: 1.1 kg (2.43 lbs) |

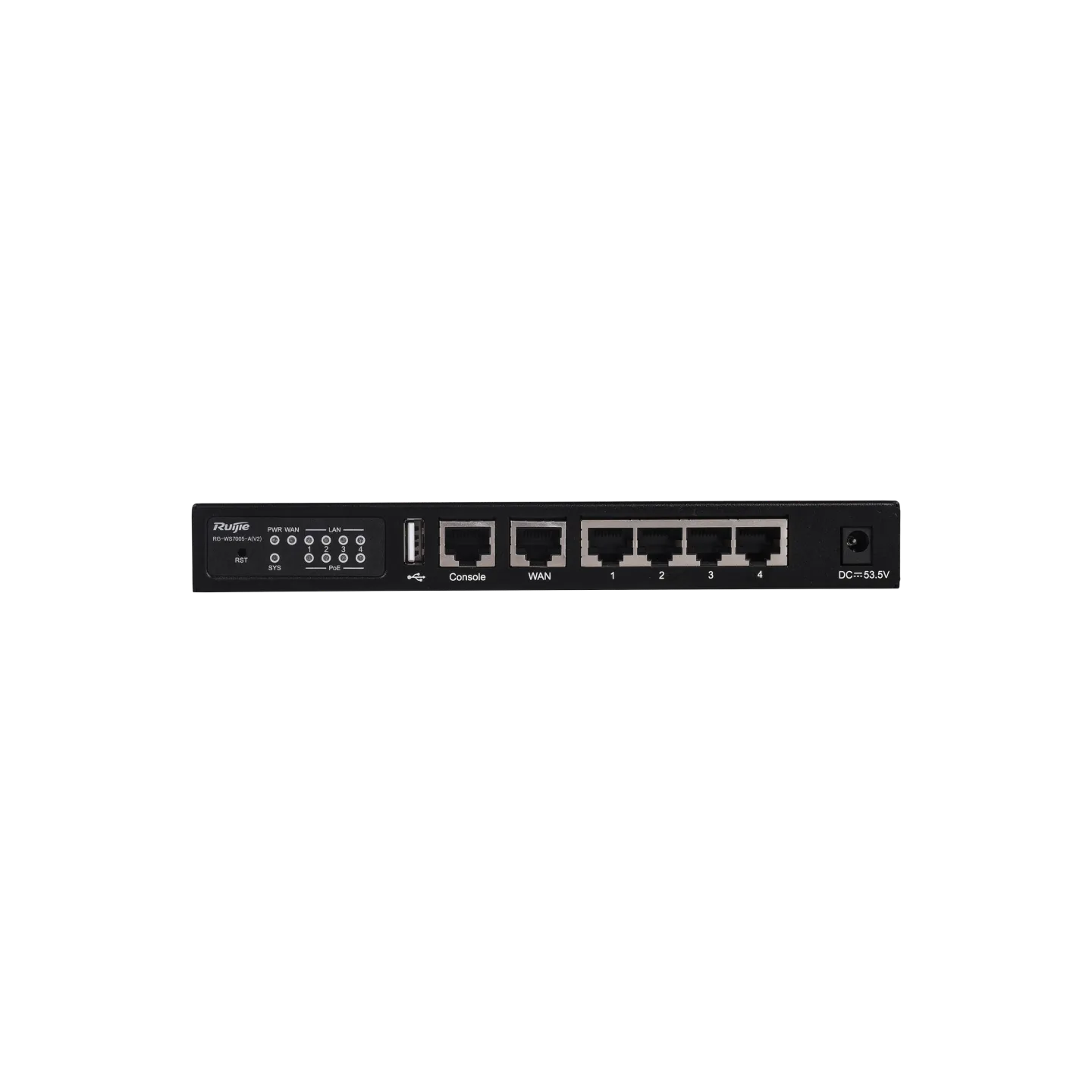

| Mounting | Workbench/Wall-mount |
| Status LEDs | SYS: 1 x system status LED
PWR: 1 x power LED WAN: 1 x WAN port LED LAN: 4 x LAN port LEDs PoE: 4 x PoE LEDs |
| Button | 1 x Reset button
● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Environment | Storage temperature: –40°C to +70°C (–40°F to +158°F)
Storage humidity: 5% RH to 95% RH (non-condensing) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Operating temperature: –10°C to +40°C (14°F to 104°F) Operating humidity: 10% RH to 90% RH (non-condensing) Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
| Fan | Fanless design |
| Mean Time Between Failure (MTBF) | 400,000 hours (44 years) at the operating temperature of 25°C (77°F) |
| System memory | 1 GB DRAM, 512 MB SPI nand flash |
Software Specifications |
RG-SC6705-SP |
| WLAN | |
| IEEE 802.11 Protocols | 802.11, 802.11b, 802.11a, 802.11d, 802.11g, 802.11i, 802.11e, 802.11n, 802.11ac, 802.11ax, 802.11r, 802.11w, 802.11kv |
| CAPWAP | IPv4 CAPWAP
CAPWAP through NAT MTU setting and fragmentation over CAPWAP tunnels Encryption over CAPWAP control channels Number of concurrent CAPWAP data channels: 128 |
| Roaming | Intra-AC Layer 2 or Layer 3 roaming
Intra-AC roaming handoff time: Less than 50 ms Centralized forwarding Local forwarding |
| Forwarding | Local forwarding and centralized forwarding |
| Wireless QoS | AP/WLAN/STA-based rate limiting
WLAN/STA-based rate limit range: 8-261,120 in the unit of 8 Kbps For example, if you set the value to 8, the rate limit is as follows: 8 x 8 kbps = 64 kbps Static and intelligent rate limiting based on STA quantity Fair scheduling |
| User isolation | Layer 2 user isolation in WIDS configuration mode |
| STA management | Access control based on the number of STAs served by each AP
Access control based on the number of STAs served by each SSID Access control for load balancing based on the number of STAs served by each AP Access control for load balancing based on the traffic of each AP Global blacklist/whitelist SSID-based blacklist/whitelist Band steering Configuration of the RSSI threshold in dB (range: 0-100) Configuration of the STA idle timeout period in seconds (range: 60-86,400) |
| AP management | An AC can control an AP to restart as scheduled.
An AP can be registered using a password, certificate, MAC address, or SN. |
| WLAN optimization | Adjustment of the Transmit Power for Beacon and Probe Response |
| RF management | Country or region code setting
Manual setting of the transmit power Automatic setting of the transmit power Manual setting of the operating channel Automatic setting of the operating channel AP load balancing based on traffic and STA quantity Band selection Radio Frequency Interference (RFI) detection and mitigation |
| Security and Authentication | |
| IPv4 security authentication | Web authentication
802.1X authentication MAC address bypass (MAB) authentication Maximum number of STAs supported by the built-in Portal server: 100 |
| IEEE 802.11 security and encryption | Multi-SSID
SSID hiding IEEE 802.11i PSK authentication WPA and WPA2 WPA3: WPA3-Personal and WPA3-Enterprise Anti-ARP spoofing |
| ACL | Maximum number of ACEs: 8,192 |
| CPP | CPU Protect Policy (CPP) |
| NFPP | Network Foundation Protection Policy (NFPP) |
| WIDS | Wireless Intrusion Detection System (WIDS) |
| Application identification | Supported |
| SD-WAN gateway | Multiple WAN uplinks with failover capability
IPSec VPN, L2TP VPN, and PPTP VPN PPPoE NAT and ALG (FTP ALG/DNS ALG) URL or application-based traffic control with Deep Packet Inspection (DPI) Traffic shaping and prioritization Remote management through CWMP (TR-069) for fast provisioning |
| Routing and Switching | |
| MAC | Maximum number of MAC address entries: 4,096 |
| ARP | Maximum number of ARP entries: 3,000 |
| IPv4 protocols | Ping and traceroute
DHCP server, DHCP client , and DHCP relay DHCP address pools ● Maximum number of IPv4 address pools: 2,000 ● Maximum number of IPv4 addresses: 4,096 DNS client GRE tunnel: 4 over 4 IGMPv1/v2/v3 snooping FREE-URL: App-based, URL-based, and WLAN-based authentication-free TFTP server and TFTP client FTP server and FTP client NTP server and NTP client SNTP client |
| IPv4 routing | Static routing
IPv4 routing entries: 512 |
| Management and Maintenance | |
| Network management | Syslog
SNMPv1/v2c/v3 RMON |
| User access management | Console port login, Telnet login, SSH login, and FTP upload |
The following value-added software functions can be achieved with the WIS solution (used with RG-iData-WIS and AP).
| Value-added Software | RG-SC6705-SP |
| Intelligent O&M | |
| Experience | Network operation analysis, such as device stability and signal coverage
Measuring users’ network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters VIP monitoring and alarm, and custom alarm thresholds STA global experience map and experience coverage evaluation based on the time range STA access protocol replay and fine-grained STA fault diagnosis Note: To support the preceding functions, ensure that the AP works in Fit mode. |
| Network optimization | Network performance optimization, including one-click network optimization and scenario-based optimization
Client steering to cope with roaming stickiness, and experience indicator comparison Client steering to cope with remote association, and experience indicator comparison One-click diagnosis – analyzing problems and providing suggestions |
| Big data | Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes
Time capsule – analyzing the device version and configuration change history |
| Regional analysis | Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions |
| One-click report | One-click health report – generating a report on the overall operation of a network |
| Security radar | Unauthorized Wi-Fi signal location, presentation by category, and containment |
| Cloud Management | |
| Management and maintenance | Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions
Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates One-click discovery of the wired and wireless network topology and topology generation |
| Cloud Authentication | |
| Authentication mode | SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes
Authentication implemented in the cloud, without the need to deploy the local authentication server |
| Customized portal | Customized Portal authentication page for mobile phones and PCs |
| SMS gateway | Interconnection with SMS gateways of GUODULINK and Alibaba Cloud |
| Platform Capabilities | |
| Big data capabilities | Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities
Spark-based big data computing capabilities Data warehouse building based on Hive, and data model conversion, integration, and other functions |
| Hierarchy and decentralization | Authorizing different applications for different users to meet service needs of different departments
Granting operation permissions to administrators in different scenarios |
| System management | Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions |
Note: For details, refer to the latest hybrid cloud management solution.
| Regulatory Compliance | RG-SC6705-SP |
| Regulatory Compliance | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, ETSI EN 300 386, IEC 62368-1, and EN 62368-1 |
*For more country-specific regulatory information and approvals, contact your local sales agency.
Note：Ruijie wireless products provide only secure and reliable network protocols and communication ports by default. For details, see Ruijie Default Protocols and Ports for Wireless Products. Proper firewall and security policies can be implemented based on this document to ensure the normal operation of wireless services.
Order Information
Main Unit
| Model | Description |
| RG-SC6705-SP | Multi-service AC with wired and wireless network integration:
● One 10/100/1000 Mbps WAN port, four 10/100/1000 Mbps auto-sensing Ethernet LAN ports. ● 54 V/1.48 A DC local power supply, supporting PoE for external power supply. ● Supporting management of 64 APs (fixed number, license-based expansion unavailable). |
