Key Specification
| Switching capacity | 28.8 Tbps | Packet forwarding rate | 5400 Mpps |
| Module slot | 2 x expansion module slots
4 x power module slots 8 x fan module slots |
Dimensions (W × D × H) | 442 mm x 760 mm x 175 mm (17.40 in. x 29.92 in. x 6.89 in., 4 RU) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Operating humidity | 10% RH to 90% RH (non-condensing) |

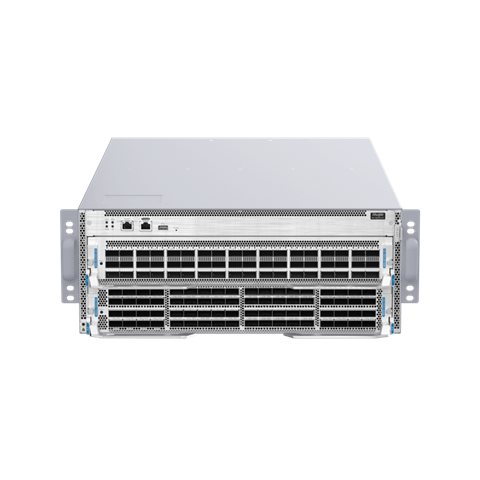

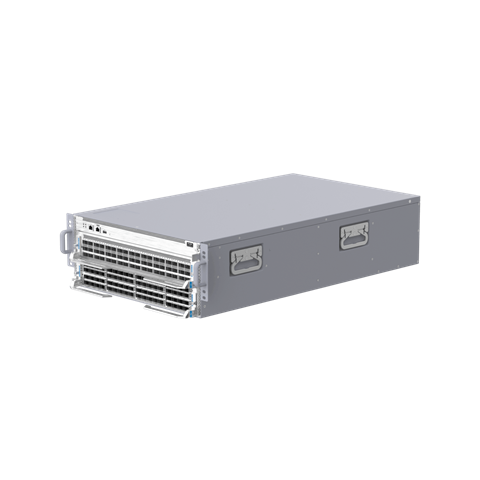

Data Center 100GE/200GE DCI Core Switch RG-S6930-2C

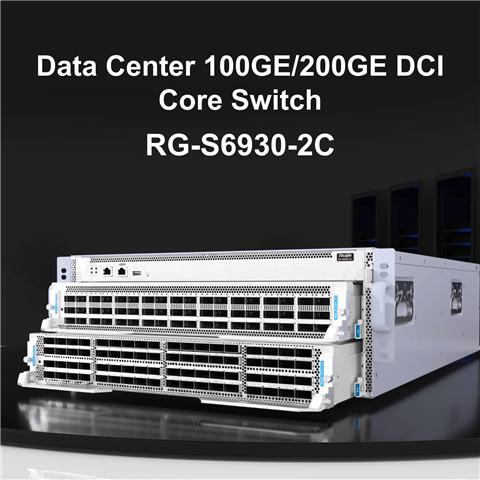

Data center high-density core switch that supports 100GE/200GE line cards and provides 144 x 100GE or 72 x 200GE ports, which can be flexibly configured
Buffer of 16 GB and millions of routing connections due to its high performance, adapting to future expansion requirements on a data center network

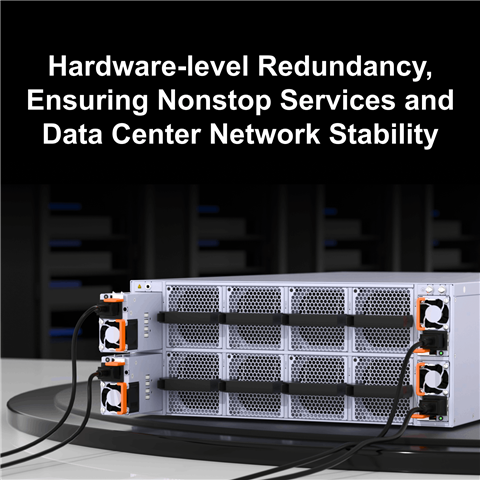

Hardware-level Redundancy, Ensuring Nonstop Services and Data Center Network Stability
Hot-Swappable Redundant Power Modules
Power modules in 2+2 redundancy mode, failover in seconds, and power module replacement without network interruption, providing double protection for links
Hot-Swappable Redundant Fan Modules
modules Fan modules in 7+1 redundancy mode, intelligent fan speed adjustment, and highly-efficient heat dissipation, building low-carbon data centers

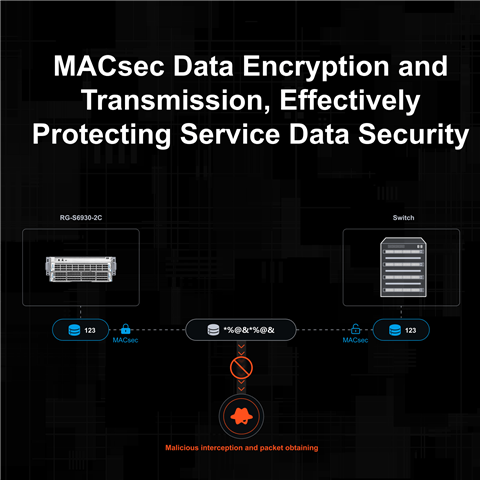

MACsec Data Encryption and Transmission, Effectively Protecting Service Data Security
MACsec provides hardware-level data encryption. With MACsec and 802.1X configured, the switch can strictly identify and verify transmitted data.
With MACsec, the switch achieves interface-based secure line-rate transmission, effectively preventing data from being intercepted and obtained maliciously and
ensuring service data security.

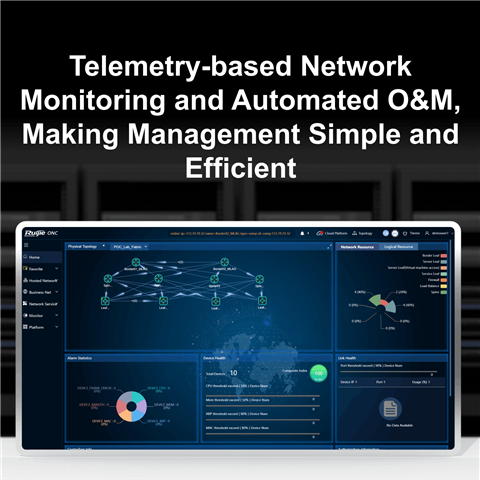

Telemetry-based Network Monitoring and Automated O&M, Making Management Simple and Efficient
The switch enabled with telemetry provides clear data status and hierarchy.
The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time,
making network management more efficient and accurate.
Specifications
Hardware Specifications
| Item | RG-S6930-2C |
| Dimensions (W × D × H) | 442 mm x 760 mm x 175 mm (17.40 in. x 29.92 in. x 6.89 in.) |
| Rack height | 4 RU |
| Unit weight | 23.4 kg (51.59 lbs., empty chassis)
33.6 kg (74.08 lbs., a chassis with four power modules and eight fan modules) |
| Switching capacity | 28.8 Tbps |
| Packet forwarding rate | 5400 Mpps |
| Management port | 1 x RJ45 console port
1 x RJ45 MGMT port |
| USB port | 1 x USB 2.0 port (Type A connector) |
| Module slot | 2 x expansion module slots
4 x power module slots 8 x fan module slots |
| Power consumption | Maximum power consumption: 2934 W
Typical power consumption: 1338 W Static power consumption: 600 W |
| Power input | RG-PA1600II-F (AC input):
Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 12 A (100 V to 127 V AC) 9.5 A (200 V AC to 240 V AC) Power port type: C14
RG-PA1600II-F (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 300 V DC Rated input current: 9.5 A Power port type: C14 |
| Temperature | Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 1800 m (5,905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: ≤ 5,000 m (16,404.20 ft.)
Storage altitude: ≤ 5000 m (16,404.20 ft.) |
| Cooling | Air cooling, front-to-rear airflow (port-side intake) |
Software Specification
| Item | RG-S6930-2C |
| 802.1Q VLAN | 4094 |
| Layer 2 Protocols | IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (basic QinQ and *selective QinQ), and GVRP |
| Layer 3 Protocols
(IPv4) |
BGP4, OSPFv2, IS-IS, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Routing Policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, and Any-RP |
| Basic IPv6 Protocols | Neighbor Discovery, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, and IPv6 QoS |
| IPv6 Features | Static routing, ECMP, PBR, BGP4+, OSPFv3, IS-ISv6, RIPng, MLDv1/v2, PIM-SMv6, manual tunnel, *automatic tunnel, IPv4 over IPv6 tunnel, and * ISATAP tunnel |
| Visualization | gRPC
sFlow and IPFIX sampling |
| QoS | 802.1p, DSCP, and ToS priority mapping
ACL-based traffic classification Priority marking and remarking Queue scheduling mechanisms, including SP, WFQ, and SP+WFQ |
| HA Design | GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching, RLDP unidirectional link detection, 2+2 power redundancy, fan redundancy, and hot swapping for all line cards and power supply modules |
| Security Features | MACSec, Network foundation protection policy (NFPP), CPU Protection Policy (CPP), DDoS attack defense, unauthorized data packet detection, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 authentication for OSPF, RIPv2, and BGPv4 packets, uRPF, broadcast packet suppression, Telnet login and password mechanisms for restricted IP addresses |
| Management Modes | SNMP v1/v2c/v3, Telnet, Console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, and SPAN/RSPAN/ERSPAN |
| Other Protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP Relay, ARP Proxy, and Syslog |
Order Information
Chassis and Supervisor Engine
| Model | Description |
| RG-S6930-2C | RG-S6930-2C chassis equipped with four RG-PA1600II-F power supply modules and eight M2EFAN II-F fan modules
Two expansion slots, four power supply module slots, and eight fan module slots |
Power Supply Modules
| Model | Description |
| RG-PA1600II-F | 1600 W power supply module (AC and 240 V HVDC) |
Fan Modules
| Model | Description |
| M2EFAN II-F | Fan module (port-side intake) |
Line Cards
| Model | Description |
| M6900-72CQ-CES | 72 x 100GE QSFP28 ports |
40GE Optical Transceivers
| Model | Description |
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 optical transceiver, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF |
| 40G-QSFP-LR4-SM1310 | 40G LR4 optical transceiver, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| 40G-QSFP-LSR-MM850 | 40G LSR optical transceiver, QSFP+ form factor, MPO, 400 m (1,312.34 ft.) over MMF |
| 40G-QSFP-SR-MM850 | 40G SR optical transceiver, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF |
| 40G-QSFP-LX4-SM1310 | 40G LX4 optical transceiver, QSFP+ form factor, Duplex LC connector, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF |
| 40G-AOC-30M | 40G QSFP+ AOC, 30 m (98.43 ft.) |
| 40G-AOC-5M | 40G QSFP+ AOC, 5 m (16.40 ft.) |
100GE Optical Transceivers
| Model | Description |
| 100G-QSFP-LR4-SM1310 | 100G LR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-SR-MM850 | 100G SR optical transceiver, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-QSFP-ER4-SM1310 | 100G ER4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF |
| 100G-AOC-10M | 100G QSFP28 AOC cable, 10 m (32.81 ft.) |
| 100G-AOC-5M | 100G QSFP28 AOC cable, 5 m (16.40 ft.) |
200GE Series Optical Transceivers
| Model | Description |
| 200G-Q56-SR4-MM850 | 200G SR4 optical transceiver, QSFP56 form factor, MPO-12 connector, 100 m (328.08 ft.) over OM4 MMF |
