Key Specification
| Switching capacity | 25.6 Tbps | Packet forwarding rate | 8000 Mpps |
| Module slot | 4 x expansion module slots
4 x power module slots 6 x fan module slots |
Dimensions(W × D × H) | 442 mm x 735 mm x 173.6 mm (17.40 in. x 28.94 in. x 6.83 in.) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Operating humidity | 10% RH to 90% RH (non-condensing) |
Features

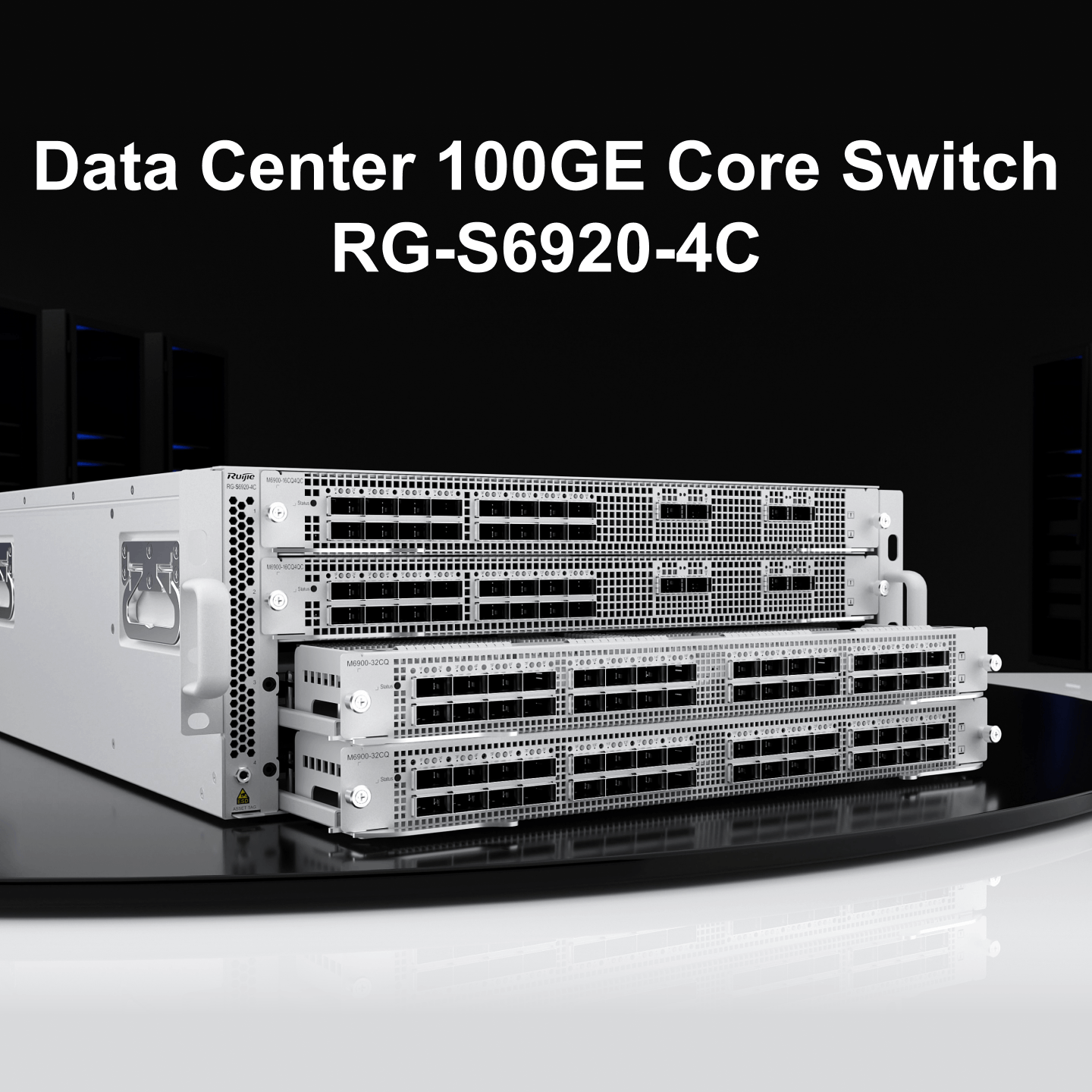

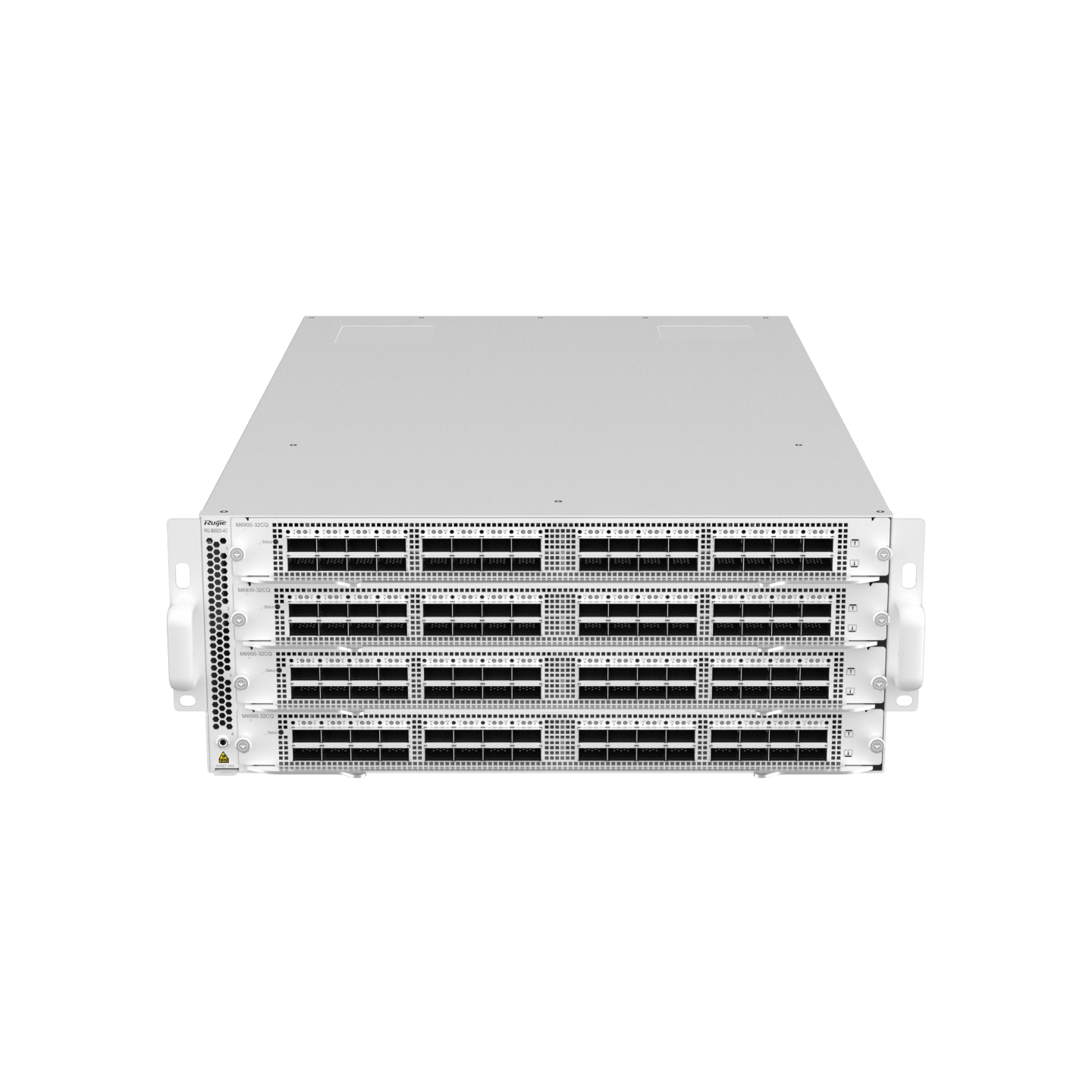

Data Center 100GE Core Switch RG-S6920-4C
Four service slots, with 100GE and 400GE line cards, allowing for easy expansion and satisfying future bandwidth expansion needs
Various ports, up to 128 × 100GE ports or 32 × 400GE QSFP-DD ports., which are fit for different scenarios of data center networks

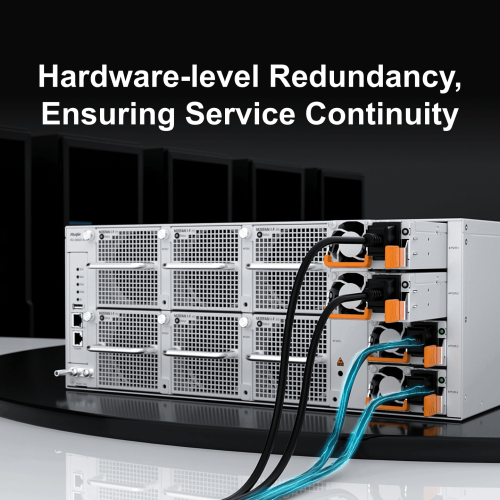

Hardware-level Redundancy, Ensuring Service Continuity
Hot-Swappable Redundant Power Modules
Power modules in 2+2 redundancy mode, failover in seconds, and power module replacement without network interruption, providing double protection for links
Hot-Swappable Redundant Fan Modules
Fan modules in 5+1 redundancy mode, intelligent fan speed adjustment, and highly-efficient heat dissipation, building low-carbon data centers

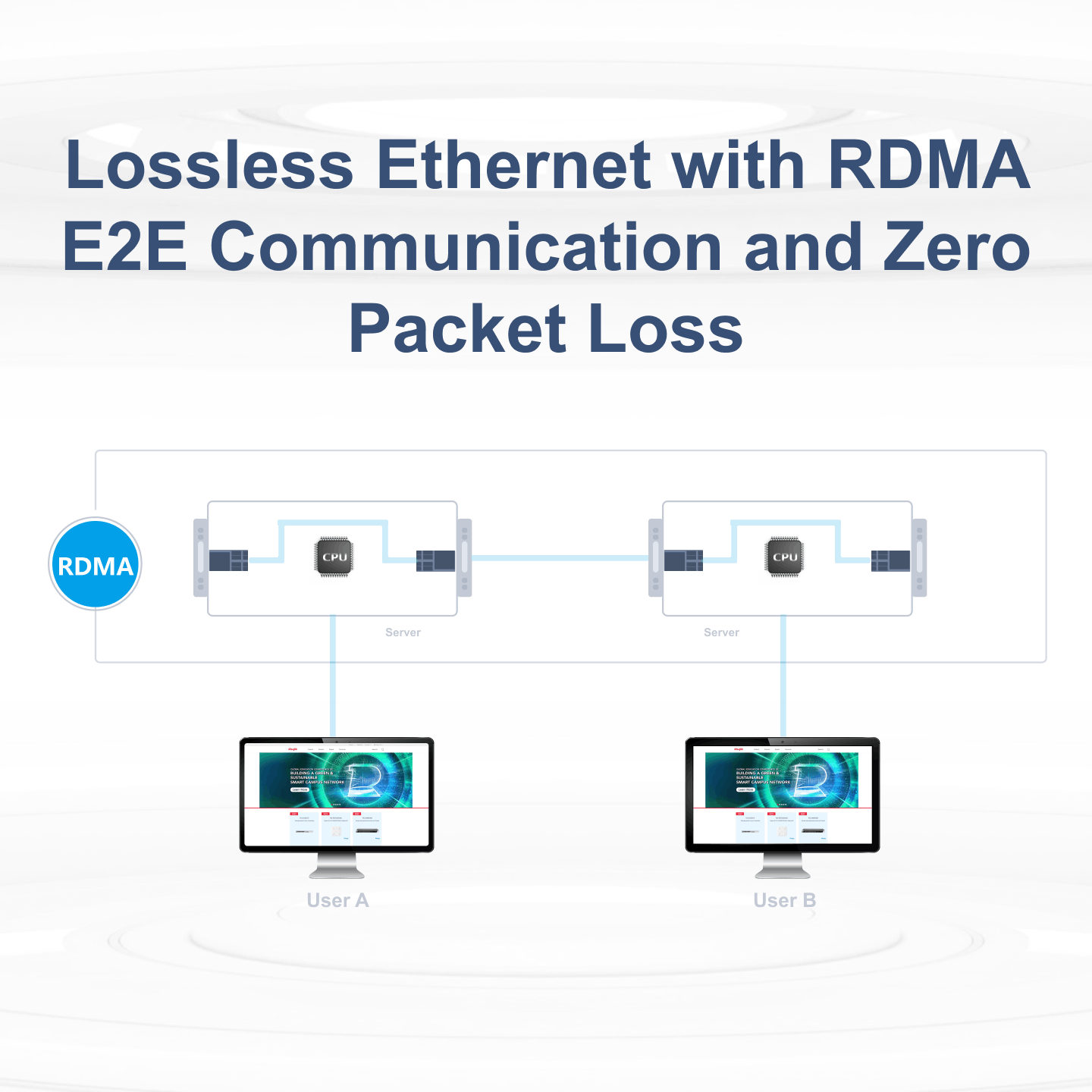

Lossless Ethernet with RDMA E2E Communication and Zero Packet Loss
With RDMA technology, data does not need to be handled by the CPU during device communication. This reduces the CPU burden
and effectively solves the network latency problem.
PFC+ECN, intelligent data exchange, and packet loss prevention, ensuring lossless data transmission

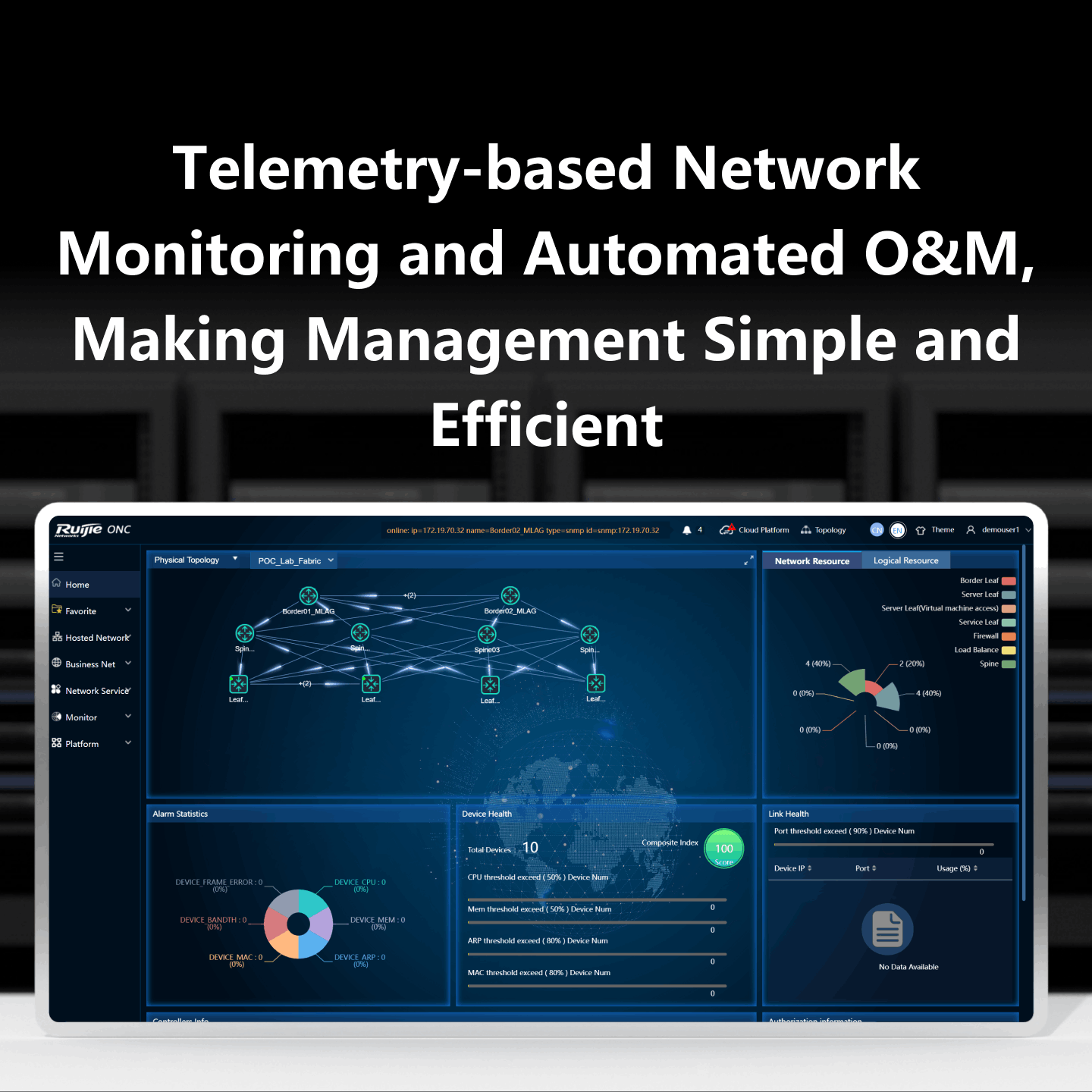

Telemetry-based Network Monitoring and Automated O&M, Making Management Simple and Efficient
The switch enabled with telemetry provides clear data status and hierarchy.
The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time,
making network management more efficient and accurate.
Specifications
Hardware Specifications
| Item | RG-S6920-4C |
| Dimensions (W × D × H) |
442 mm x 735 mm x 173.6 mm (17.40 in. x 28.94 in. x 6.83 in.) |
| Rack height | 4 RU |
| Unit weight | 25.15 kg (55.45 lbs., empty chassis)
34.25 kg (75.51 lbs., a chassis with four power modules and six fan modules) |
| Switching capacity | 25.6 Tbps |
| Packet forwarding rate | 8000 Mpps |
| Management port | 1 x RJ45 console port
1 x RJ45 MGMT port |
| USB port | 1 x USB 2.0 port (Type A connector) |
| Module slot | 4 x expansion module slots
4 x power module slots 6 x fan module slots |
| Power consumption | Maximum power consumption: 1950 W
Typical power consumption: 1469 W Static power consumption: 516 W |
| Power input | RG-PA1200I-F (AC input)
Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 13.8 A (100 V AC to 127 V AC) 8.5 A (200 V AC to 240 V AC) Power port type: C14
RG-PA1200I-F (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 300 V DC Rated current: 6.5 A Power port type: C14 |
| Temperature | Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 2000 m (6561.68 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: ≤ 5,000 m (16,404.20 ft.)
Storage altitude: ≤ 5000 m (16,404.20 ft.) |
| Cooling | Air cooling, front-to-rear airflow (port-side intake) |
Software Specifications
| Item | RG-S6920-4C |
| Layer 2 Protocols | IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and selective QinQ), GVRP |
| Layer 3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), Route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP, IGMP v1/v2/v3, DVMRP, PIM-SSM/SM/DM, MSDP, Any-RP |
| IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS |
| IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel and IPv4 over IPv6 tunnel |
| Data Center Features | PFC, ECN, and other data center features
M-LAG RDMA OpenFlow 1.3 BGP-EVPN Global load balancing technologies such as RALB and AILB |
| Visualization | gRPC
sFLOW sampling INT |
| QoS | Mapping of IEEE 802.1p, DSCP, and ToS priorities ACL-based traffic classification Priority marking/remarking Multiple queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR Congestion avoidance mechanisms such as WRED and tail discarding |
| HA Design | GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules |
| Security Features | Network Foundation Protection Policy (NFPP), CPP, DDoS attack defense, illegitimate data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, ARP spoofing prevention, ARP check, and hierarchical user management |
| Management Mode | SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, Syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm function, temperature alarm function, and configuration rollback |
| Other Protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog |
Order Information
Chassis, Fan, and Power Supply Modules
| Product Model | Description |
| RG-S6920-4C | Four expansion slots, four power supply module slots, and six fan module slots The power supply module model is RG-PA1200I-F and the fan model is M2EFAN I-F. |
| RG-PA1200I-F | Power supply module, supporting 2+2 redundancy, hot swapping, and front-to-rear ventilation design |
| M2EFAN I-F | Fan module, supporting 5+1 redundancy, hot swapping, and front-to-rear ventilation design |
Expansion Modules
| Product Model | Description |
| M6900-32CQ | 32 x 40GE /100GE optical ports (QSFP28) |
| M6900-16CQ4QC | 16 × 100GE optical ports (QSFP28) + 4 × 400GE optical ports (QSFP-DD) |
| M6900-08QC | 8 x 400GE optical ports (QSFP-DD) |
40GE Optical Transceivers
| Model | Description |
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 optical transceiver, QSFP+, Duplex LC, 2 km (6,561.68 ft.) over single-mode fiber (SMF) |
| 40G-QSFP-LR4-SM1310 | 40G LR4 optical transceiver, QSFP+, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| 40G-QSFP-LSR-MM850 | 40G SR optical transceiver, QSFP+ form factor, MPO, 400 m (1312.34 ft.) over multimode fiber (MMF) |
| 40G-QSFP-SR-MM850 | 40G SR optical transceiver, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF |
| 40G-QSFP-LX4-SM1310 | 40G LX4 optical transceiver, QSFP+ form factor, Duplex LC, 150 m (492.13 ft.) over OM3/OM4 MMF, 2 km (6,561.68 ft.) over SMF |
| 40G-AOC-30M | 40G QSFP+ AOC, 30 m (98.43 ft.) |
| 40G-AOC-5M | 40G QSFP+ AOC, 5 m (16.40 ft.) |
100GE Optical Transceivers
| Model | Description |
| 100G-QSFP-SR-MM850 | 100G SR optical transceiver, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-LR4-SM1310 | 100G LR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-ER4-SM1310 | 100GE ER4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.60 ft.) over SMF |
| 100G-AOC-10M | 100G AOC, QSFP28 form factor, 10 m (32.81 ft.) |
| 100G-AOC-5M | 100G AOC, QSFP28 form factor, 5 m (16.40 ft.) |
200GE Optical Transceivers
| Model | Description |
| 200G-Q56-SR4-MM850(D) | 200GE SR4 optical transceiver, QSFP56 form factor, MPO12/APC, 850 nm, 100 m (328.08 ft.) over OM4 MPO MMF, CMIS-compliance |
400GE Optical Transceivers
| Model | Description |
| 400G-QDD-DR4-SM1310 | 400G DR4 optical transceiver, QSFP-DD form factor, MPO-12 APC, 1310 nm, 500 m (1,640.42 ft.) over SMF |
| 400G-QDD-FR4-SM1310 | 400G FR4 optical transceiver, QSFP-DD form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 400G-QDD-SR8-MM850 | 400G SR8 optical transceiver, QSFP-DD form factor, MPO-16 APC, 850 nm, 100 m (328.08 ft.) over MMF |
| 400G-QDD-AOCxM | 400G AOC, QSFP-DD form factor, X = 3 m (9.84 ft.)/5 m (16.40 ft.)/10 m (32.81 ft.)/15 m (49.21 ft.)/20 m (65.62 ft.)/30 m (98.43 ft.)/50 m (164.04 ft.) |
