Key Specification
| Switching capacity | 19.2 Tbps | Packet forwarding rate | 4000 Mpps |
| Module slot | 3 x expansion module slots
4 x power module slots 6 x fan module slots |
Dimensions (W x D x H) | 442 mm x 735 mm × 173.6 mm (17.40 in. x 28.94 in. x 6.83 in.,4 RU) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Operating humidity | 10% RH to 90% RH (non-condensing) |
Features

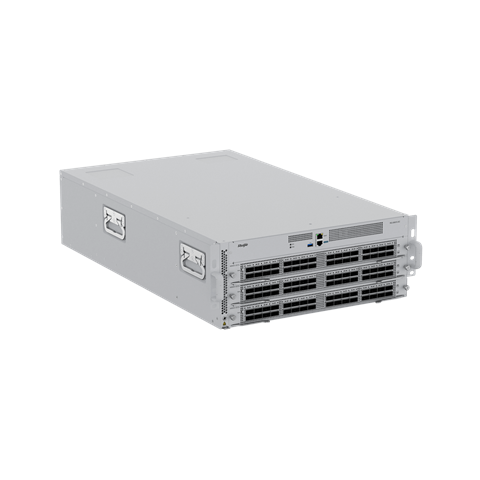

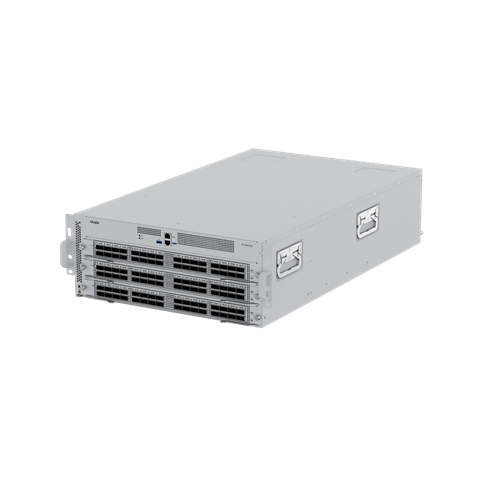

Data Center 100GE DCI Core Switch RG-S6910-3C
16 GB powerful buffer capability and buffer scheduling mechanism, providing a maximum of 96 x 100GE ports within 4 RU height,
which is suitable for DCI core scenarios in data centers
Support of high-performance routing connections, meeting future expansion needs of data center networks

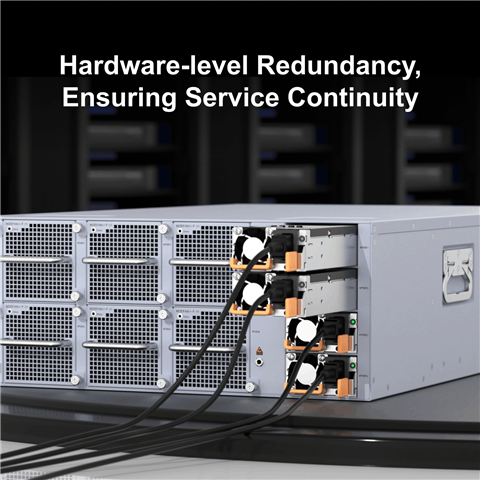

Hardware-level Redundancy, Ensuring Service Continuity
Hot-Swappable Redundant Power Modules
Power modules in 2+2 redundancy mode, hot swapping, and failover in seconds, providing nonstop services

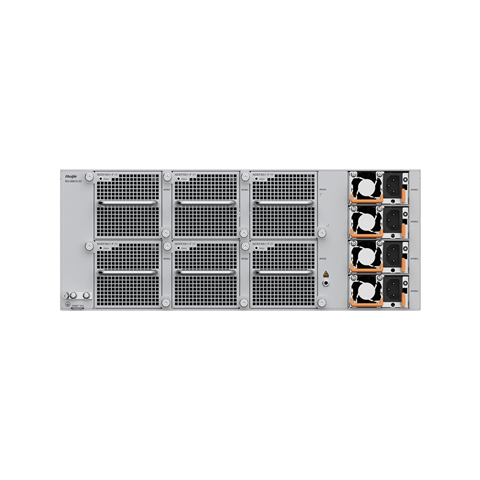

Hot-Swappable Redundant Fan Modules
Fan modules in 5+1 redundancy mode, intelligent fan speed adjustment, and highly-efficient heat dissipation, building low-carbon data centers

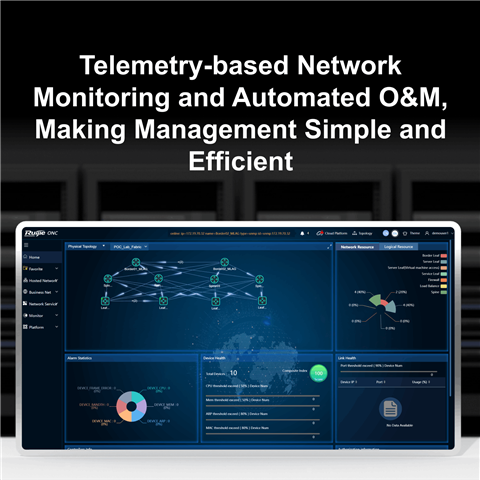

Telemetry-based Network Monitoring and Automated O&M, Making Management Simple and Efficient
The switch enabled with telemetry provides clear data status and hierarchy.
The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time,
making network management more efficient and accurate.
Specifications
Hardware Specifications
| Item | RG-S6910-3C |
| Dimensions (W x D x H) | 442 mm x 735 mm x 173.6 mm (17.40 in. x 28.94 in. x 6.83 in.) |
| Rack height | 4 RU |
| Unit weight | 22.9 kg (50.49 lbs., empty chassis)
32 kg (70.55 lbs., a chassis with four power modules and six fan modules) |
| Switching capacity | 19.2 Tbps |
| Packet forwarding rate | 4000 Mpps |
| Management port | 1 x RJ45 console port
1 x RJ45 MGMT port |
| USB port | 1 x USB 2.0 port (Type A connector) |
| Module slot | 3 x expansion module slots
4 x power module slots 6 x fan module slots |
| Power consumption | Maximum power consumption: 2046 W
Typical power consumption: 1092 W Static power consumption: 760 W |
| Power input | RG-PA1200I-F (AC input)
Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 13.8 A (100 V AC to 127 V AC) 8.5A (200 V AC to 240 V AC) Power port type: C14 RG-PA1200I-F (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 300 V DC Rated current: 6.5 A Power port type: C14 |
| Temperature | Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 2000 m (6561.68 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: ≤ 5,000 m (16,404.20 ft.)
Storage altitude: ≤ 5000 m (16,404.20 ft.) |
| Cooling | Air cooling, front-to-rear airflow (port-side intake) |
Software Specifications
| Item | RG-S6910-3C |
| Layer 2 Protocols | IEEE 802.3ae (10GBase), IEEE 802.3ak, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad (link aggregation), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IGMP Snooping, Jumbo Frame (9 KB), IEEE 802.1ad (QinQ), GVRP |
| Layer 3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Route-policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, Any-RP |
| IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS |
| IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunneling, IPv4 over IPv6 tunneling |
| Visualization | gRPC
sFLOW and IPFIX |
| QoS | Mapping of 802.1p, DSCP, and ToS priorities, ACL-based traffic classification, priority marking/remarking, multiple queue scheduling mechanisms available including SP, WFQ, and SP+WRR |
| HA Design | GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching and RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swap for all cards and power modules |
| Security Features | Network foundation protection policy, CPP, DDoS attack defense, illegitimate packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression |
| Management Mode | SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, and SPAN/RSPAN/ERSPAN |
| Other Protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog |
Order Information
Chassis, Expansion Cards, Fan Modules, and Power Modules
| Model | Description |
| RG-S6910-3C | Three expansion slot, four power module slots, and six fan module slots
The power module model is RG-PA1200I-F and the fan model is M2EFAN I-F. |
| M6900-32CQ | 32-port 100GbE card |
| RG-PA1200I-F | RG-S6910-3C power module, supporting 2+2 redundancy, hot swapping, and front-to-rear ventilation design |
| M2EFAN I-F | RG-S6910-3C fan module, supporting 5+1 redundancy, hot swapping, and front-to-rear ventilation design |
40G Optical Transceivers
| Product Model | Description |
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 module, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF |
| 40G-QSFP-LR4-SM1310 | 40G LR4 module, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| 40G-QSFP-LSR-MM850 | 40G LSR module, QSFP+ form factor, MPO, 400 m (1,312.34 ft.) over MMF |
| 40G-QSFP-SR-MM850 | 40G SR module, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF |
| 40G-QSFP-LX4-SM1310 | 40G LX4 module, QSFP+ form factor, Duplex LC connector, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF |
| 40G-AOC-30M | 40G QSFP+ AOC, 30 m (98.43 ft.) |
| 40G-AOC-5M | 40G QSFP+ AOC, 5 m (16.40 ft.) |
100GBASE Series Optical Modules
| Product Model | Description |
| 100G-QSFP-SR-MM850 | 100G SR module, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-LR4-SM1310 | 100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-ER4-SM1310 | 100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF |
| 100G-AOC-5M | 100G QSFP28 AOC, 5 m (16.40 ft.) |
| 100G-AOC-10M | 100G QSFP28 AOC, 10 m (32.81 ft.) |
