Key Specification
| Switching capacity | 16.0 Tbps | Packet forwarding rate | 5350 Mpps |
| Service port | 48 x 100G DSFP ports
8 x 100G/400G QSFP-DD ports |
Dimensions (W x D x H) | 442 mm x 670 mm x 43.6 mm (17.40 in. x 26.38 in. x 1.72 in.) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Operating humidity | 10% RH to 90% RH (non-condensing) |
Features

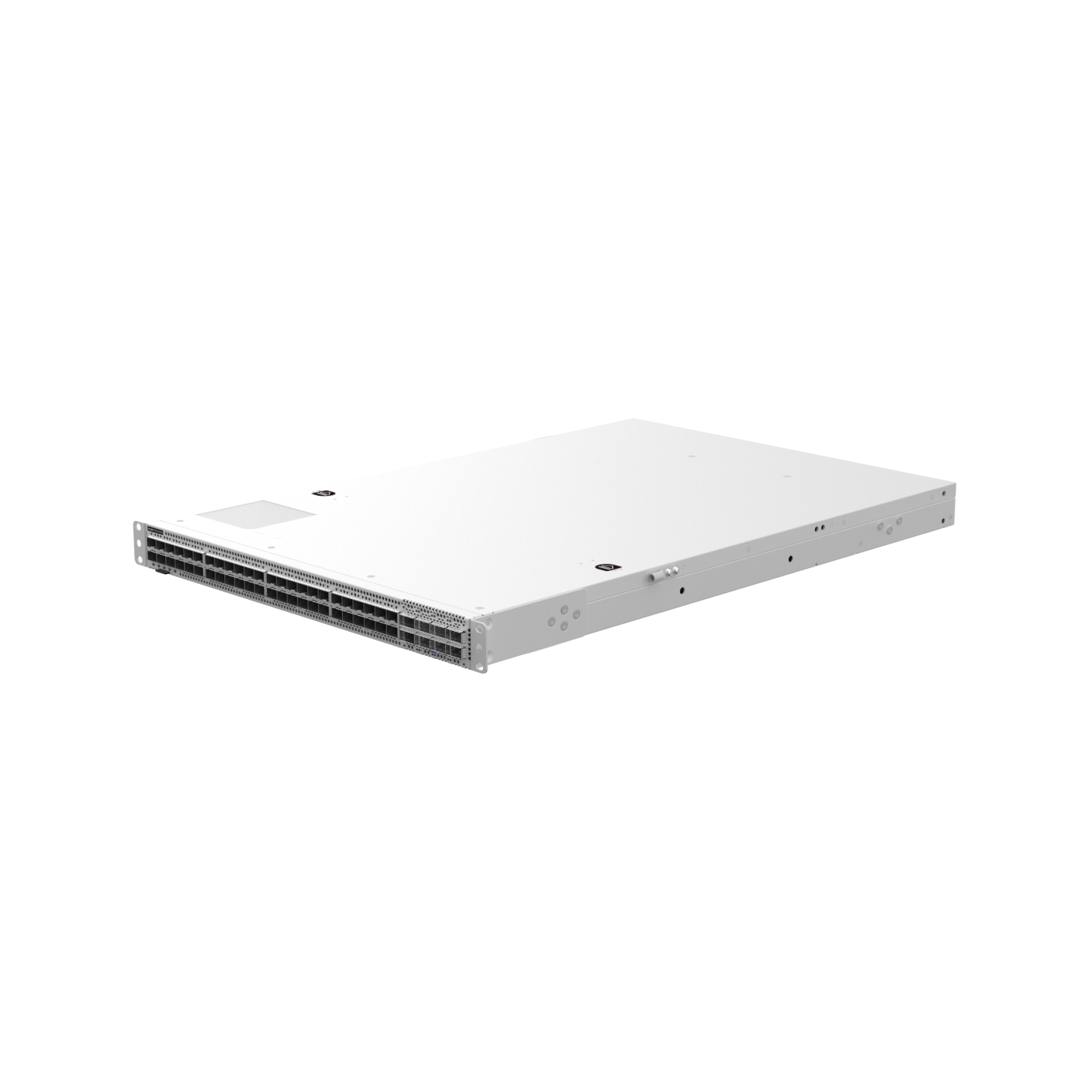

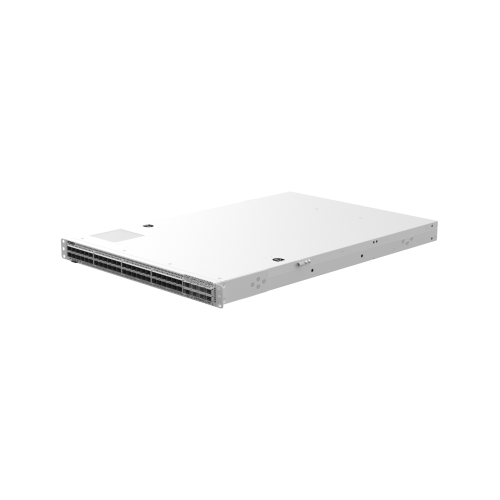

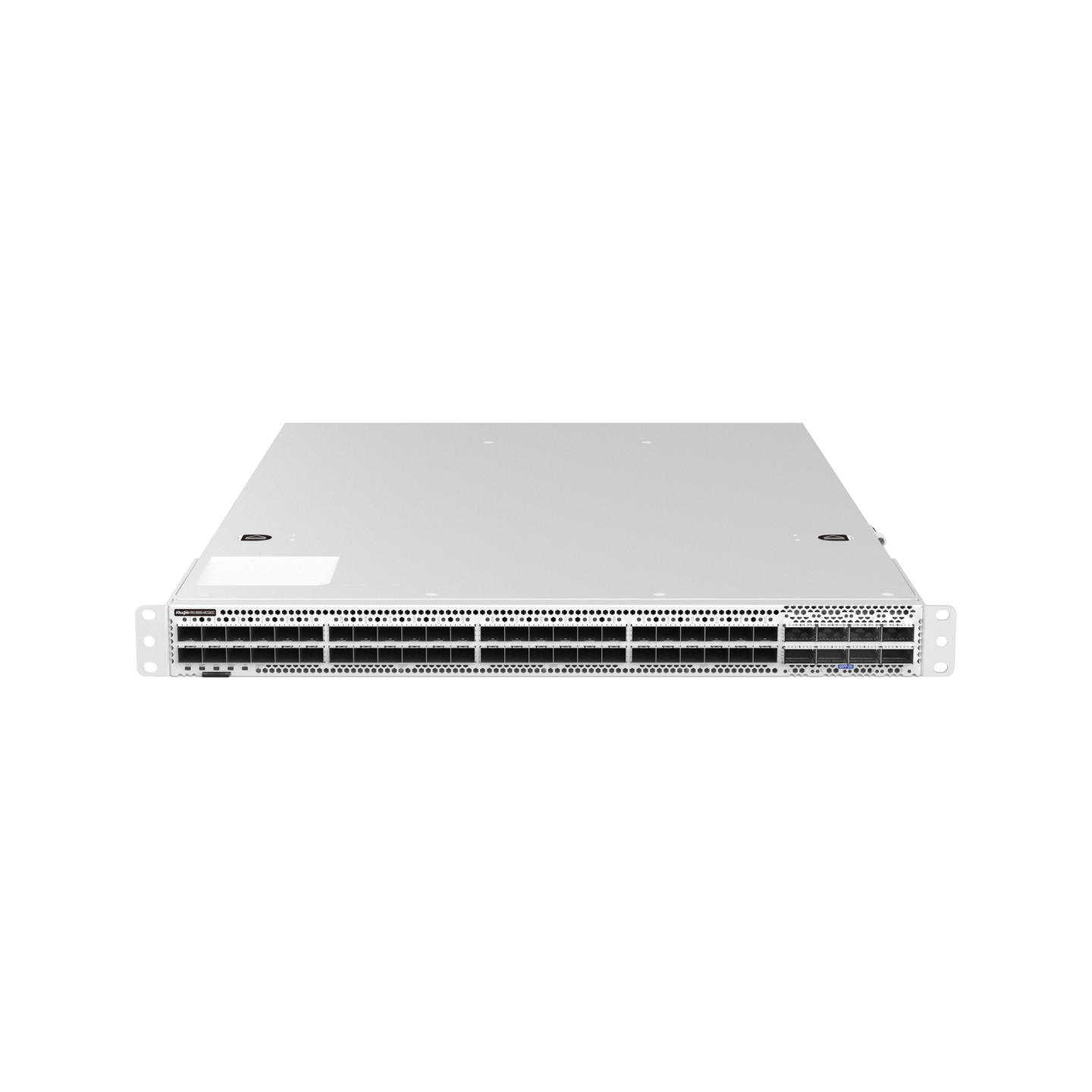

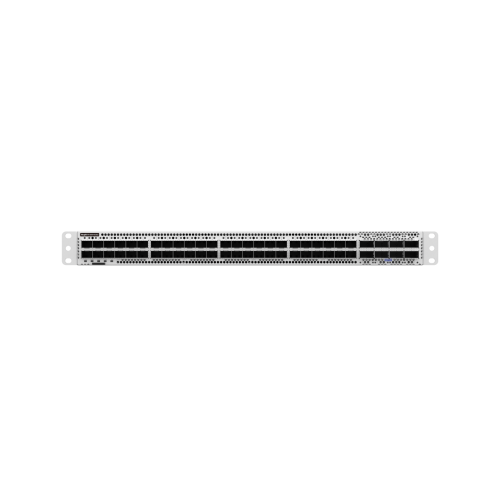

Data Center 100GE Access Switch RG-S6580-48CQ8QC
The RG-S6580-48CQ8QC is a high-density access switch and provides various ports within the space of 1 RU. With improved data forwarding capabilities, it can be flexibly deployed and supports access of 100G servers. It can evolve to 100GE/400GE data centers.
Hardware-Level Redundancy, Ensuring Nonstop Services

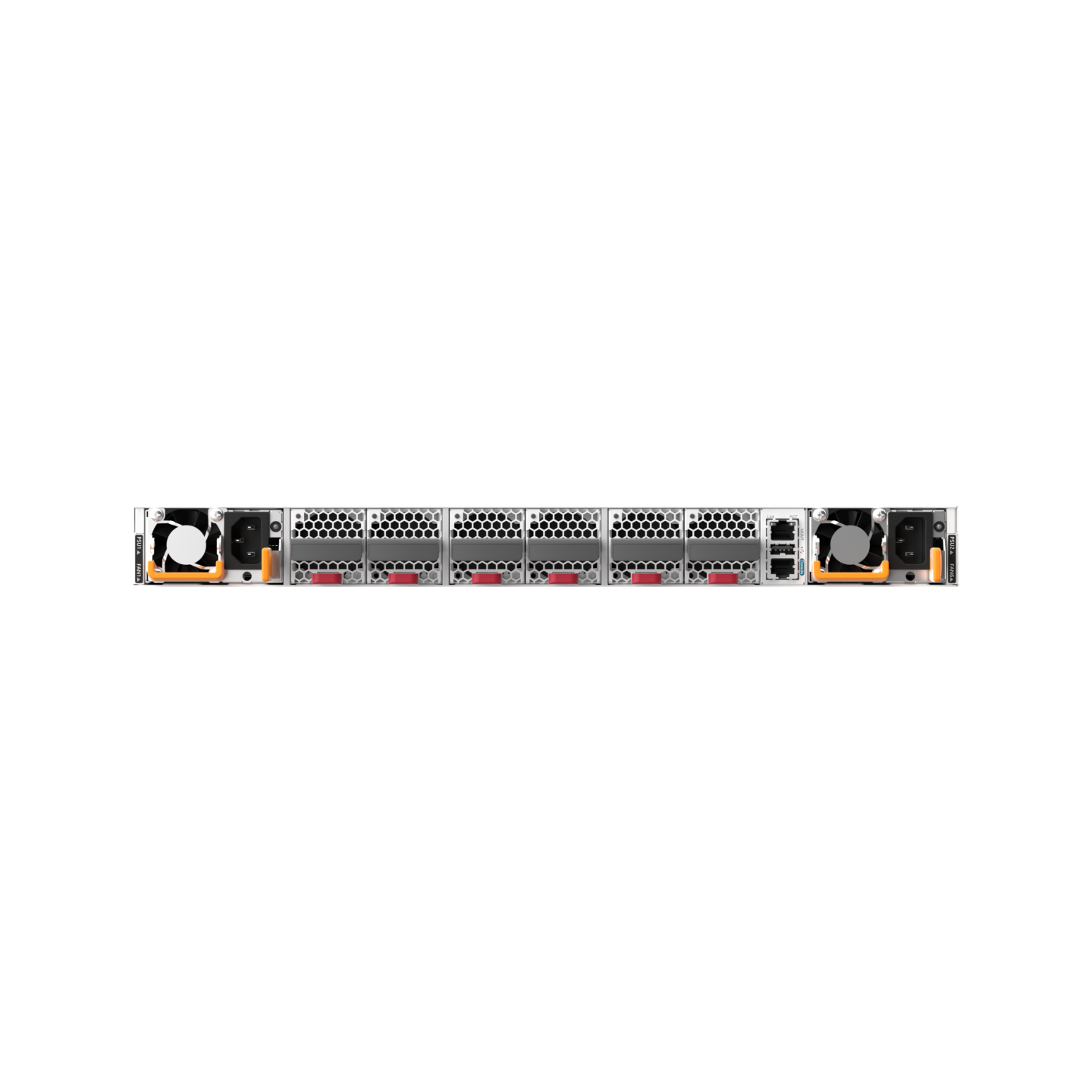

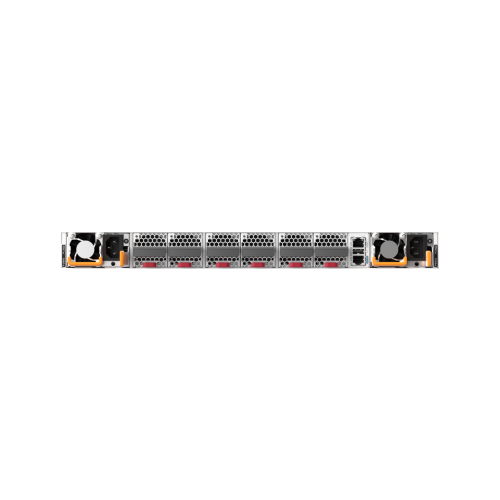

Hot-Swappable Redundant Power Modules
1+1 power modules, hot swapping, and service failover within seconds, ensuing service continuity
Hot-Swappable Redundant Fan Modules
5+1 fan modules, intelligent fan speed adjustment, and highly efficient heat dissipation, building green data centers
Lossless Ethernet, Ensuring Zero Packet Loss in RDMA E2E Communication
With RDMA enabled, communication data on the RG-S6580-48CQ8QC does not need to be handled by the CPU. This reduces the burden of the CPU and effectively resolves the latency problem. Using PFC and ECN, the RG-S6580-48CQ8QC intelligently exchanges data to prevent packet loss and ensures lossless data transmission.
Telemetry Network Monitoring and Automatic O&M, Making Management Simple and Efficient
RG-S6580-48CQ8QC enabled with Telemetry uses the push mode to proactively collect and push information and provides sub-second-level network monitoring in real time, making network management more efficient and accurate.
Specifications
Hardware Specifications
| Item | RG-S6580-48CQ8QC | RG-S6580-24DC8QC |
| Dimensions (W x D x H) | 442 mm x 670 mm x 43.6 mm (17.40 in. x 26.38 in. x 1.72 in.) | 442 mm x 670 mm x 43.6 mm (17.40 in. x 26.38 in. x 1.72 in.) |
| Rack height | 1 RU | 1 RU |
| Unit weight | 11.5 kg (25.35 lbs., a chassis with two power modules and six fan modules) | 11 kg (24.25 lbs., a chassis with two power modules and six fan modules) |
| Switching capacity | 16.0 Tbps | 16.0 Tbps |
| Packet forwarding rate | 5350 Mpps | 5350 Mpps |
| Service port | 48 x 100G DSFP ports
8 x 100G/400G QSFP-DD ports |
24 x 100G/200G QSFP56 ports
8 x 100G/400G QSFP-DD ports |
| Management port | 1 x RJ45 console port
1 x RJ45 MGMT port |
1 x RJ45 console port
1 x RJ45 MGMT port |
| USB port | 1 x USB 2.0 port (Type A connector) | 1 x USB 2.0 port (Type A connector) |
| Module slot | 2 x power module slots
6 x fan module slots |
2 x power module slots
6 x fan module slots |
| Power consumption | Maximum power consumption: 742 W
Typical power consumption: 633 W Static power consumption: 178 W |
Maximum power consumption: 850 W
Typical power consumption: 700 W Static power consumption: 300 W |
| Power input | RG-PA1200I-F (AC input)
Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60Hz Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 13.8 A(100 V AC to 127 V AC) 8.5 A (200 V AC to 240 V AC) Power port type: C14
RG-PA1200I-F (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 300 V DC Rated current: 6.5 A Power port type: C14 |
RG-PA1200I-F (AC input)
Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60Hz Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 13.8 A(100 V AC to 127 V AC) 8.5 A (200 V AC to 240 V AC) Power port type: C14
RG-PA1200I-F (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 300 V DC Rated current: 6.5 A Power port type: C14 |
| Temperature | Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 1800 m (5,905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 1800 m (5,905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: ≤ 5,000 m (16,404.20 ft.)
Storage altitude: ≤ 5000 m (16,404.20 ft.) |
Operating altitude: ≤ 5,000 m (16,404.20 ft.)
Storage altitude: ≤ 5000 m (16,404.20 ft.) |
| Cooling | Air cooling, front-to-rear airflow (port-side intake) | Air cooling, front-to-rear airflow (port-side intake) |
Software Specifications
| Item | RG-S6580-48CQ8QC | RG-S6580-24DC8QC |
| Layer 2 Protocols | IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 KB) | |
| Layer 3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, LPM routing, Policy-based Routing (PBR), route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP | |
| IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS | |
| IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+ | |
| Data Center Features | PFC, ECN, and other data center features
RDMA VXLAN bridge VXLAN gateway IPv6 VXLAN over IPv4 IPv4 VXLAN over IPv4 ECN over VXLAN PFC over VXLAN |
|
| Visualization | gRPC
sFlow sampling IPFIX |
|
| QoS | Mapping of IEEE 802.1p, DSCP, and ToS priorities ACL-based traffic classification Priority marking/remarking Multiple queue scheduling mechanisms, including SP, WRR, WFQ, DRR, SP+WRR, SP+WFQ, and SP+DRR Congestion avoidance mechanisms such as WRED and tail discarding |
|
| HA Design | GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules | |
| Security Features | Network foundation protection policy (NFPP), CPP, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, broadcast packet suppression, hierarchical user management | |
| Management Mode | SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, and temperature alarm | |
| Other Protocols | DHCP client, DHCP relay, DHCP server, DNS client, ARP proxy, and Syslog | |
Order Information
Chassis, Fan Module
| Product Model | Description |
| RG-S6580-48CQ8QC | 48 × 100GE DSFP ports + 8 × 400GE QSFP-DD ports
Two power slots and six fan slots The chassis is installed with two RG-PA1200I-F modules and six M1HFAN II-F fan modules. |
| RG-S6580-24DC8QC | 24 × 200GE QSFP56 ports + 8 × 400GE QSFP-DD ports
Two power slots and six fan slots The chassis is installed with two RG-PA1200I-F modules and six M1HFAN II-F fan modules. |
Power Supply Module
| Product Model | Description |
| RG-PA1200I-F | 1200 W AC module (AC/240 V HVDC) |
Fan Module
| Product Model | Description |
| M1HFAN II-F | Fan module (front-to-rear ventilation) |
100GE Optical Transceivers
| Model | Description |
| 100G-AOC-5M | 100G AOC, QSFP28 form factor, 5 m (16.40 ft.) |
| 100G-AOC-10M | 100G AOC, QSFP28 form factor, 10 m (32.81 ft.) |
| 100G-QSFP-SR-MM850 | 100G SR optical transceiver, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over multimode fiber (MMF) |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-LR4-SM1310 | 100G LR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-ER4-SM1310 | 100GE ER4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.60 ft.) over SMF |
400GE Optical Transceivers
| Model | Description |
| 400G-QDD-SR8-MM850 | 400G optical transceiver, QSFP-DD form factor, MPO-16 APC, 850 nm, 100 m (328.08 ft.) over MMF |
| 400G-QDD-DR4-SM1310 | 400G optical transceiver, QSFP-DD form factor, MPO-12 APC, 1310 nm, 500 m (1,640.42 ft.) over SMF |
| 400G-QDD-FR4-SM1310 | 400G FR4 module, QSFP-DD form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| *400G-QDD-ZR-SM1550 | 400G ZR optical transceiver, QSFP-DD, Duplex LC, 1550 nm, 80 km (262,467.19 ft.) over SMF |
