Key Specification
| Switching capacity | 6.4 Tbps | Packet forwarding rate | 2030 Mpps |
| Service port | 32 x 100G QSFP28 ports | Dimensions (W × D × H) | 442 mm x 560 mm x 44 mm (17.40 in. x 22.05 in. x 1.73 in.) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | Operating humidity | 10% RH to 90% RH (non-condensing) |
Features

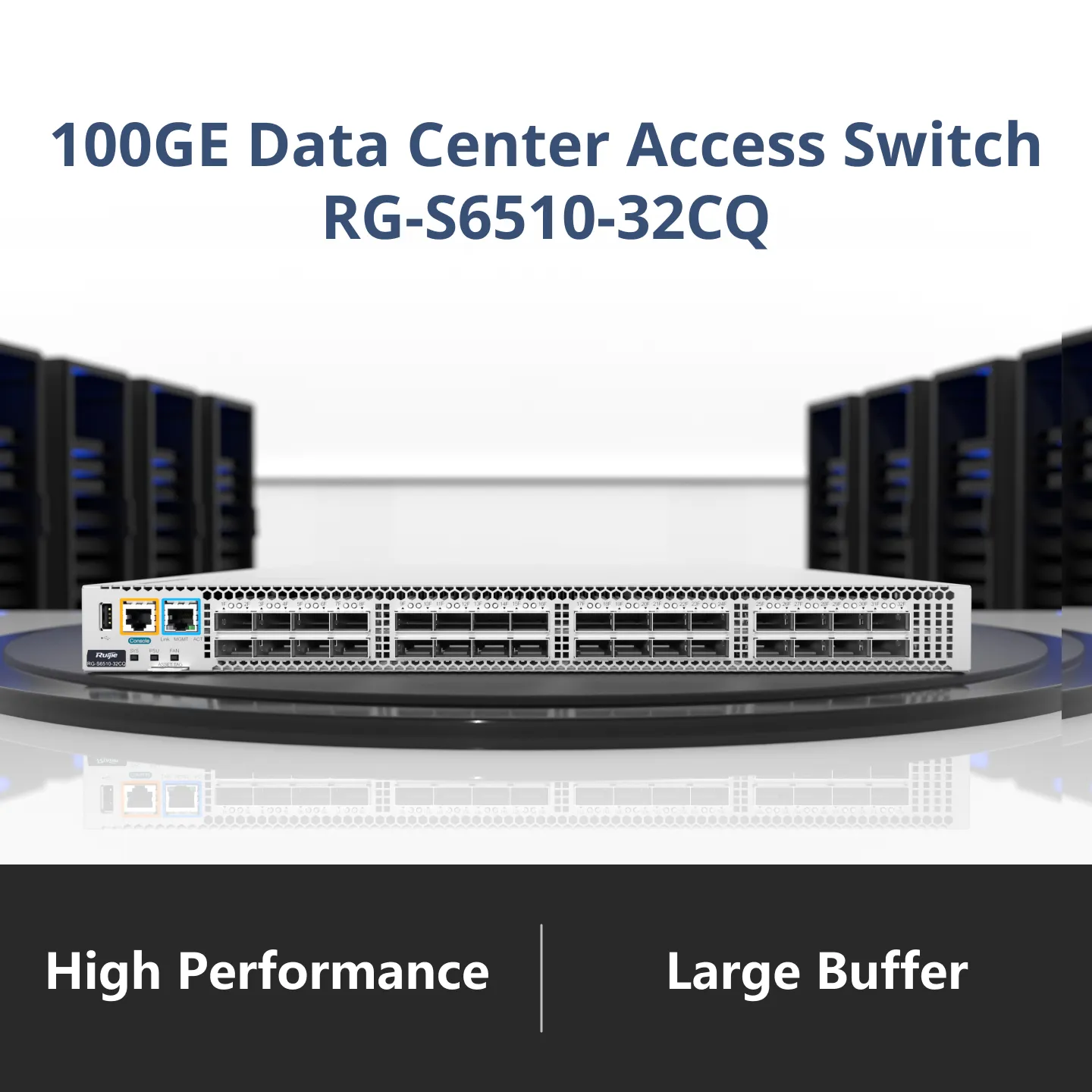

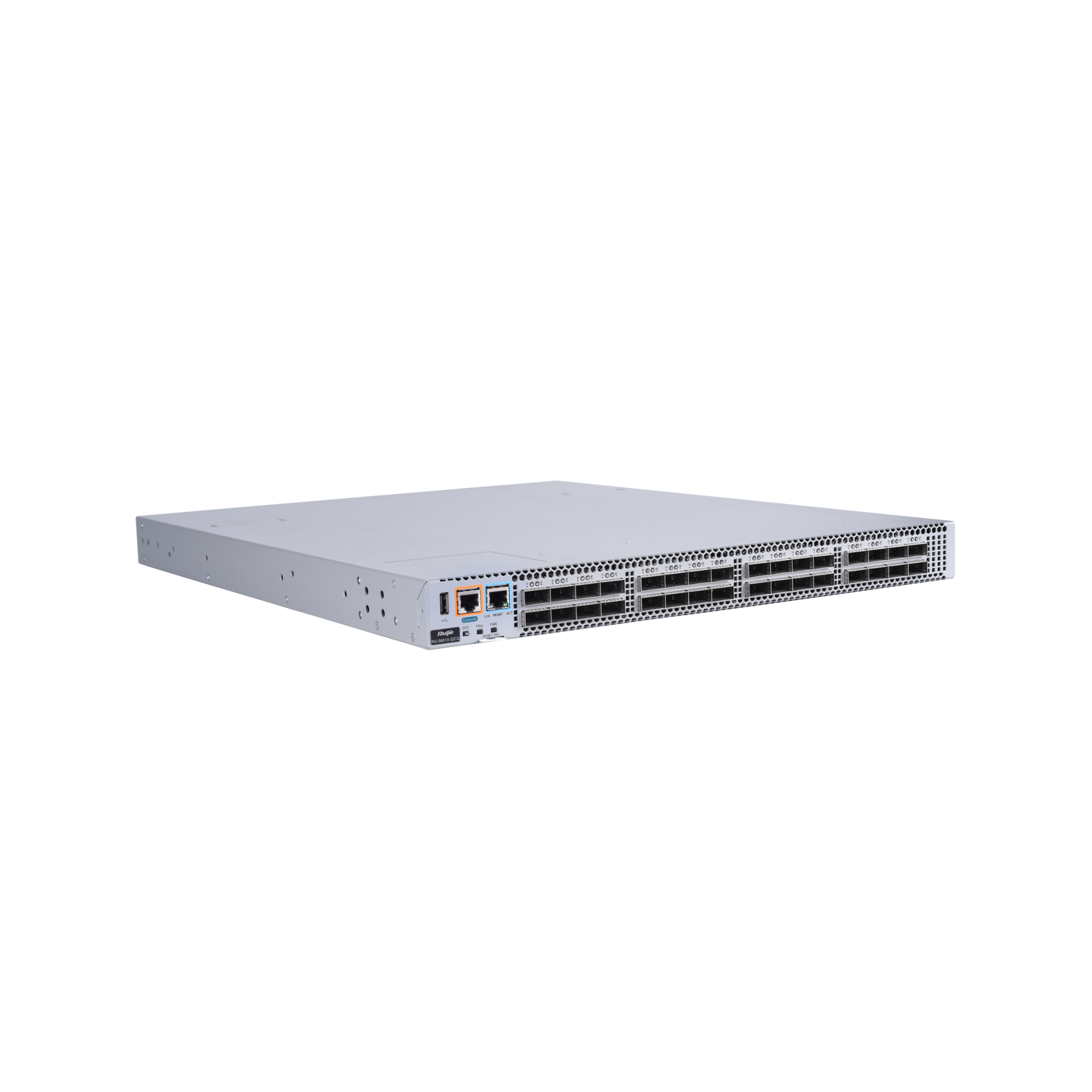

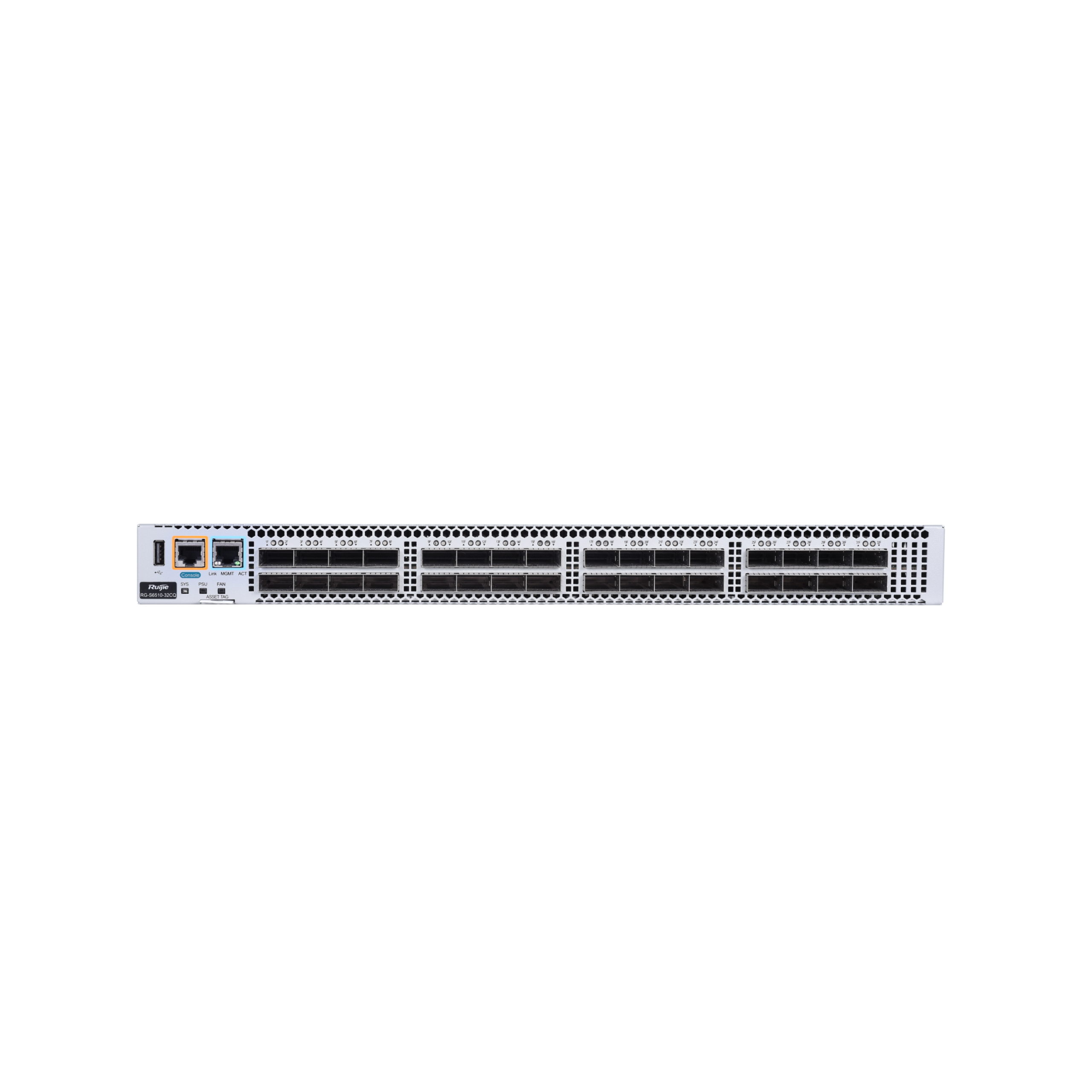

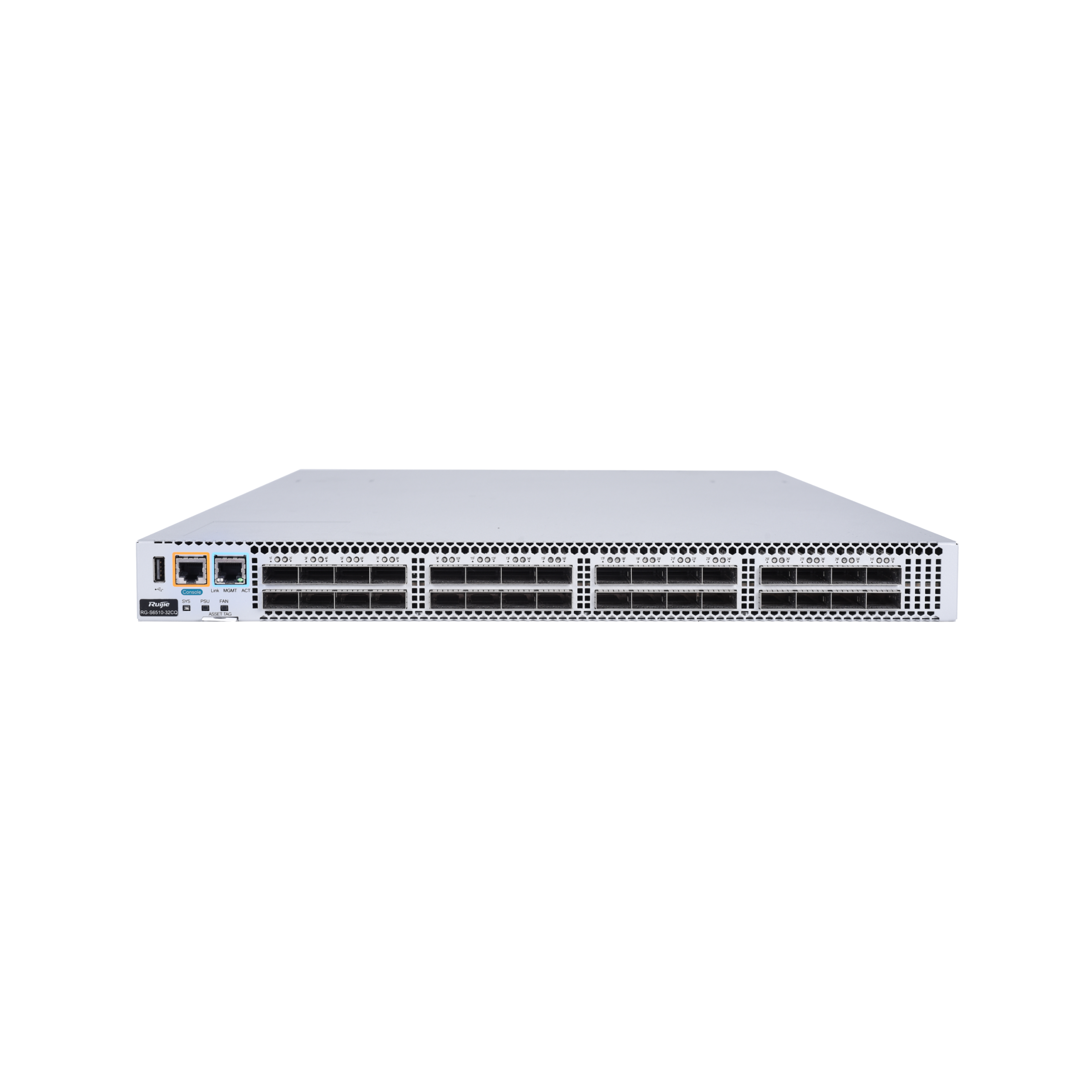

Data Center 100GE Access Switch RG-S6510-32CQ

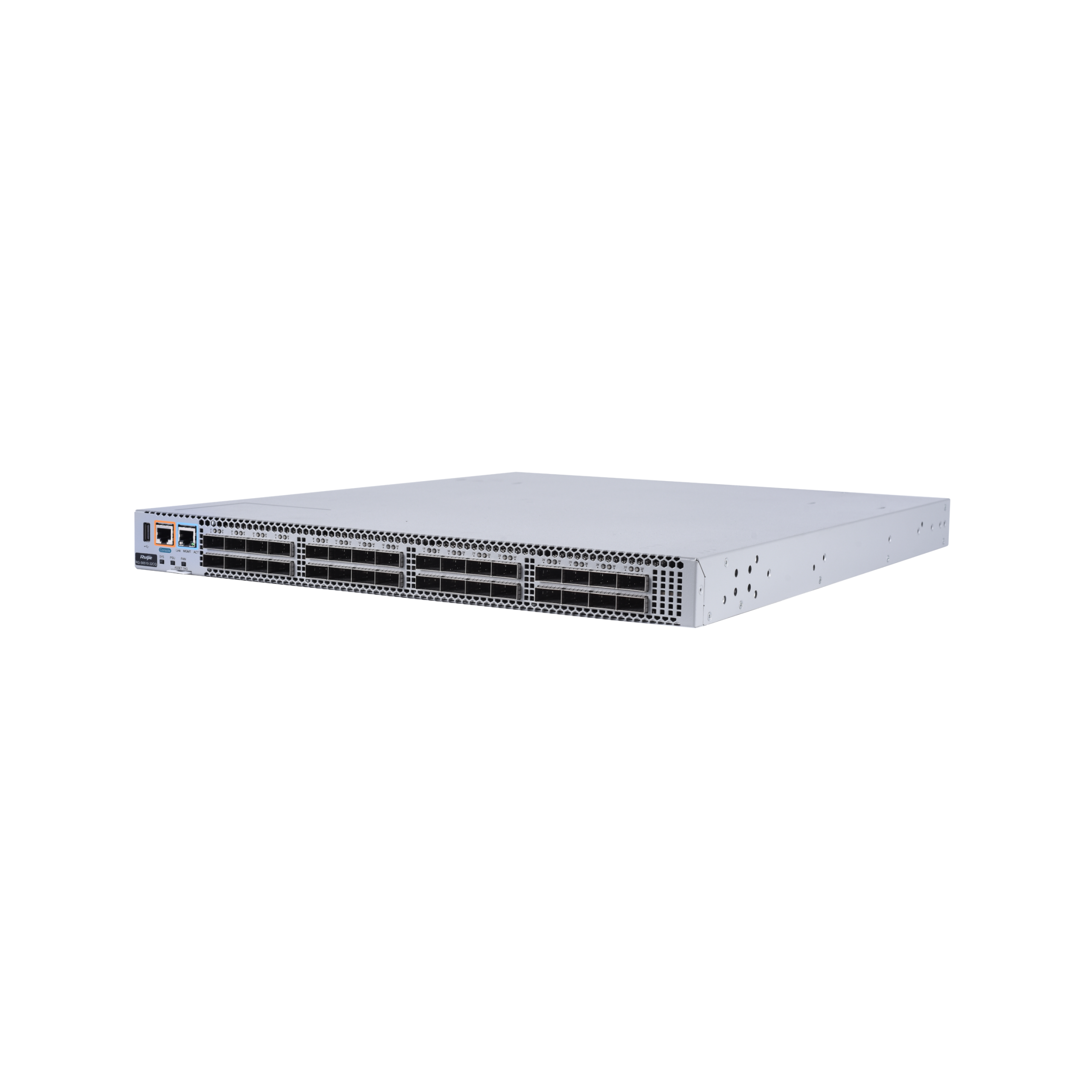

32 x 100GE QSFP28 ports, delivering line-rate forwarding capacity, multiple forms of split interfaces, and adaptation to different scenarios
32 MB buffer and advanced buffer scheduling mechanism, providing fast data processing and easily coping with burst traffic

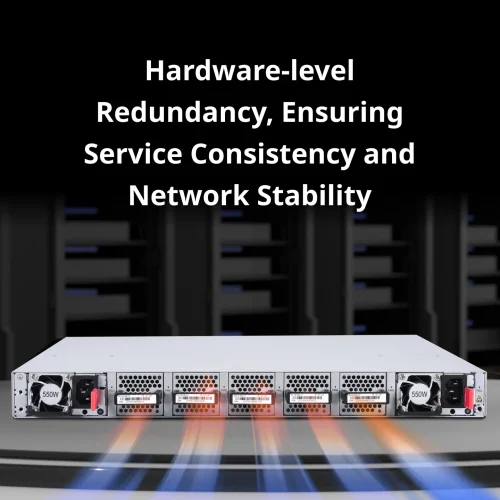

Hardware-level Redundancy, Ensuring Service Continuity

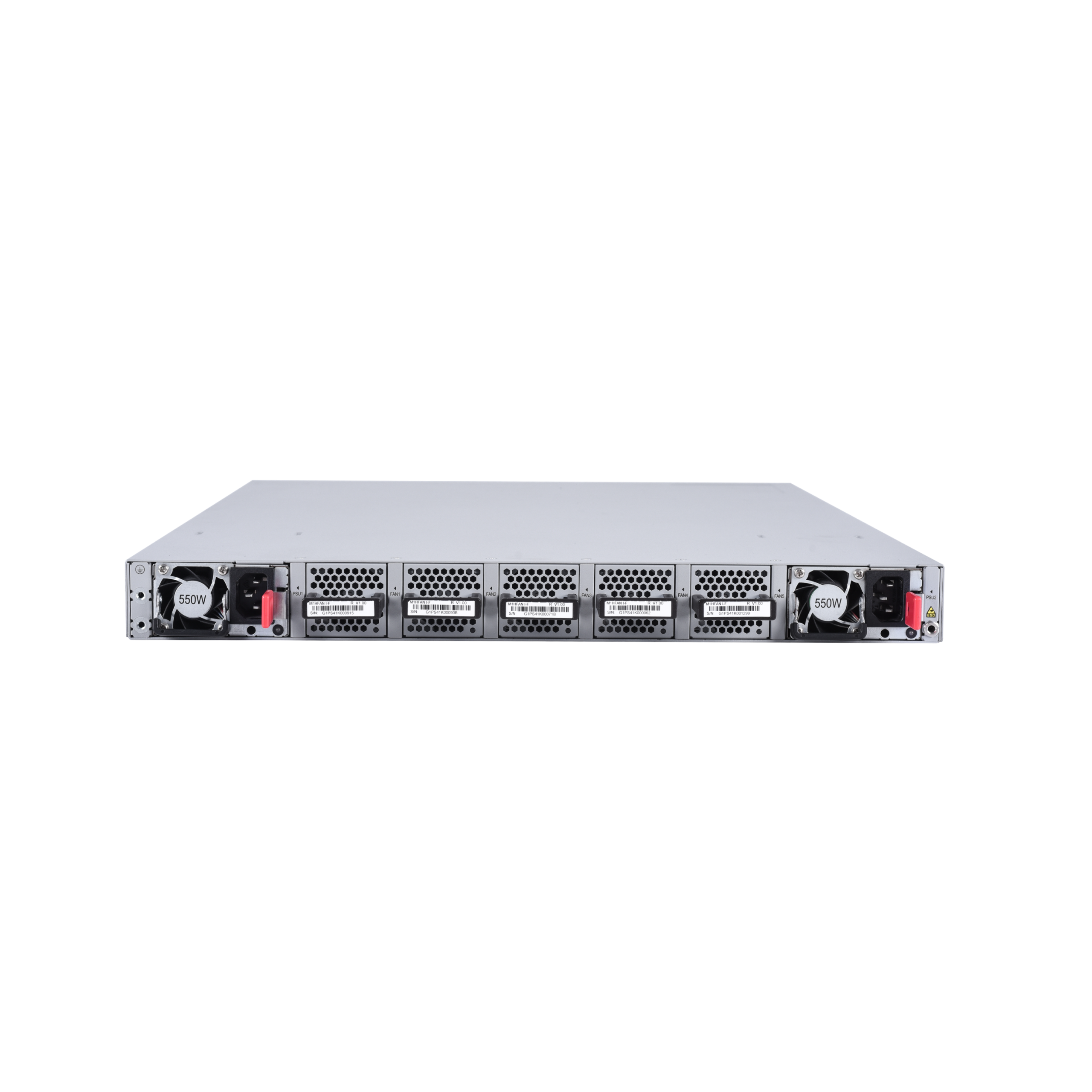

Hot-swappable redundant power modules
Power modules in 1+1 redundancy mode, and failover in seconds, providing nonstop services
Hot-swappable redundant fan modules
Fan modules in 3+1 redundancy mode, intelligent fan speed adjustment, and highly-efficient heat dissipation, building low-carbon data centers
Cross-device Link Aggregation, Implementing Device-level Redundancy, Flexible Networking, and High Reliability
De-stacking
De-stacking technology logically aggregates multiple switches through LACP to allow servers on the same network segment or on different network segments to communicate. This eliminates the need to synchronize data between switches, without affecting service transmission.

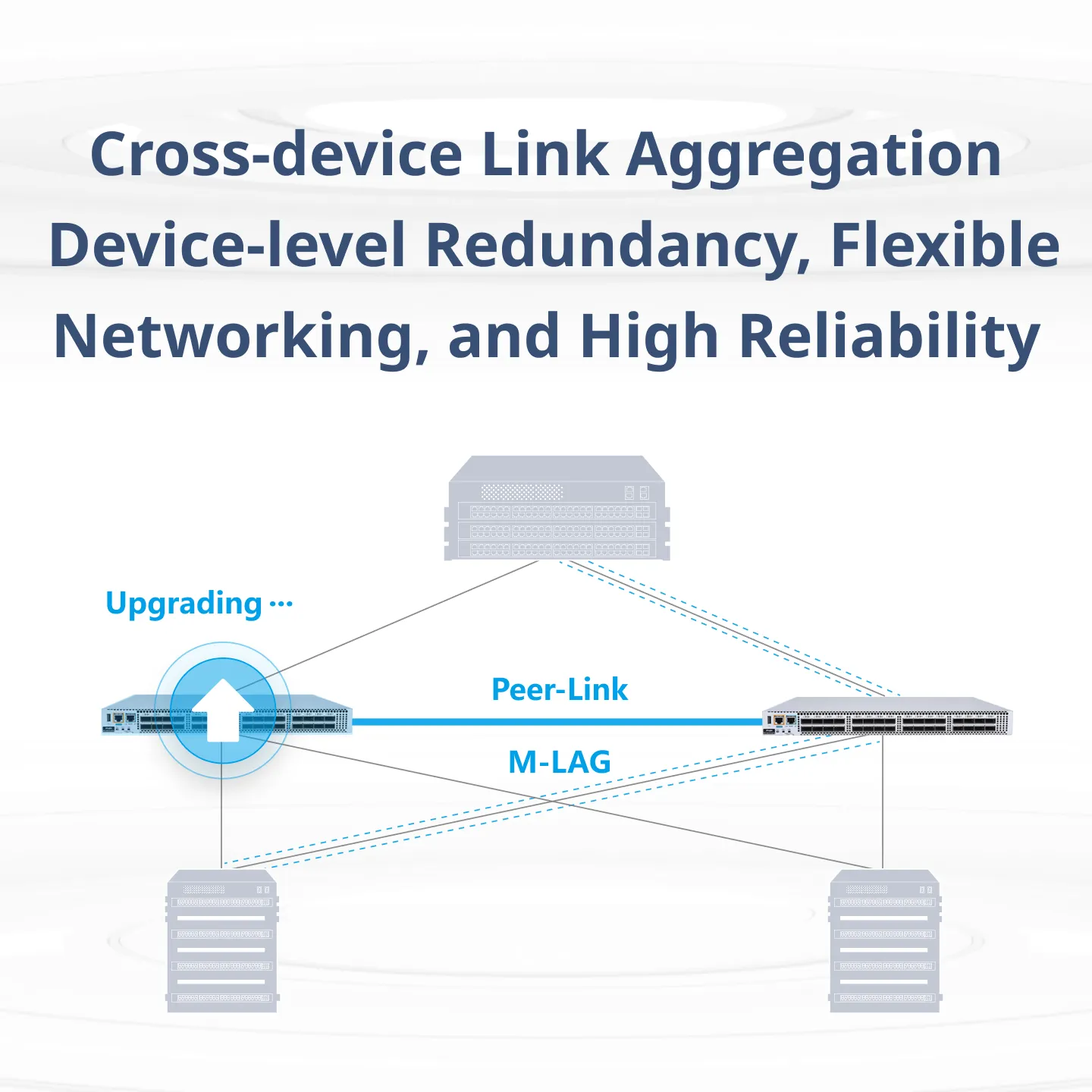

M-LAG
M-LAG technology implements load sharing between links and improves link reliability. The independent control plane supports independent device upgrade, realizing service upgrade within seconds and consistent user experience.
VSU
VSU technology can virtualize multiple physical devices into one logical device, simplifying network configuration and architecture, eliminating loops, and improving reliability.

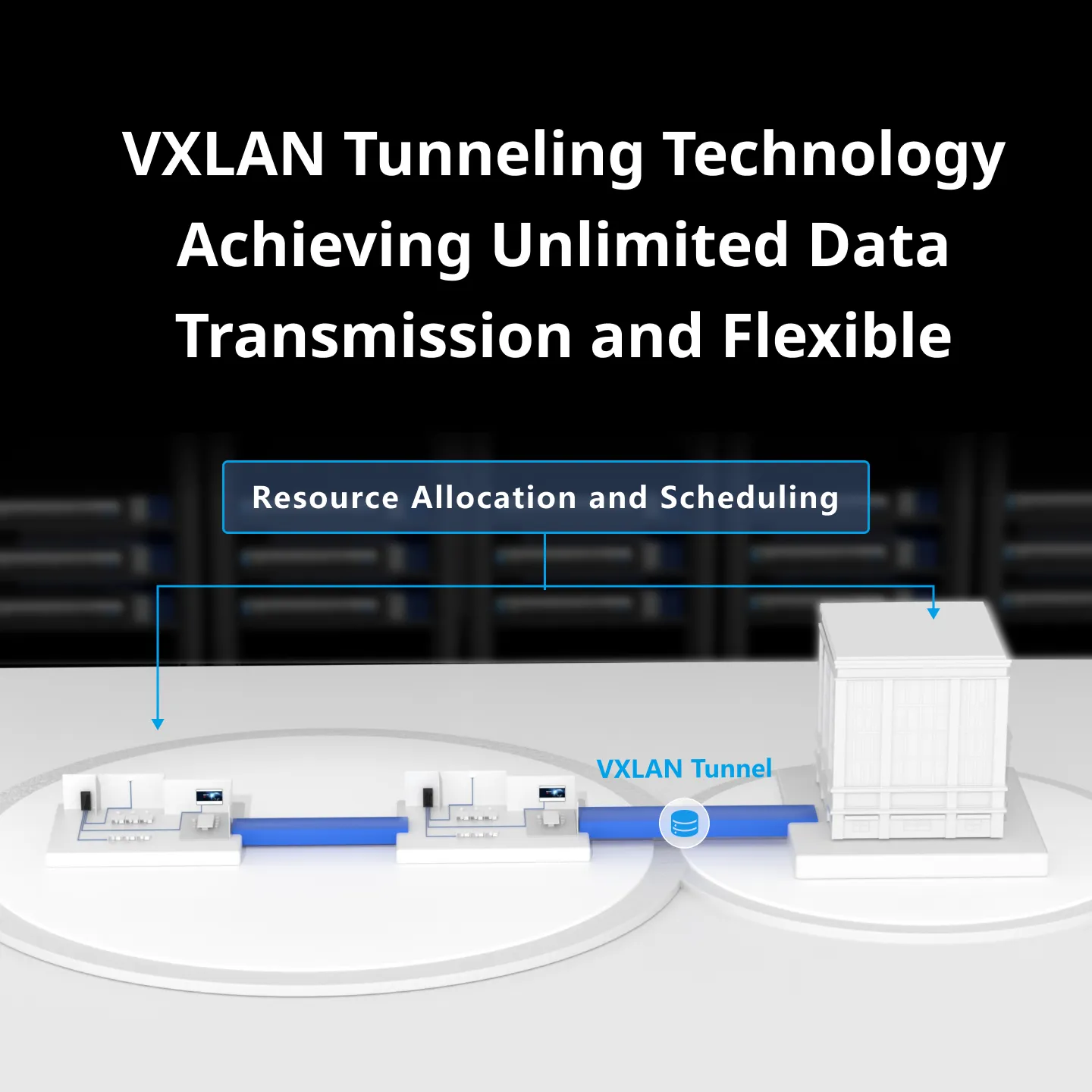

VXLAN Tunneling Technology, Achieving Unlimited Data Transmission and Flexible Resource Allocation and Scheduling
VXLAN technology creates virtual tunnels on an IP network by building a virtual Layer 2 network, implementing cross-region and cross-DC data migration, and flexible resource allocation and scheduling. The switch supports EVPN VXLAN to enhance the number of tenants, meeting requirements of identification and isolation between different networks on a large scale.
PFC- and ECN-based Lossless Ethernet with High Throughput and Low Latency in RDMA Scenarios
With RDMA technology, data does not need to be handled by the CPU during device communication. This reduces the CPU burden and effectively solves the network latency problem.
PFC+ECN, intelligent data exchange, and packet loss prevention, ensuring lossless data transmission

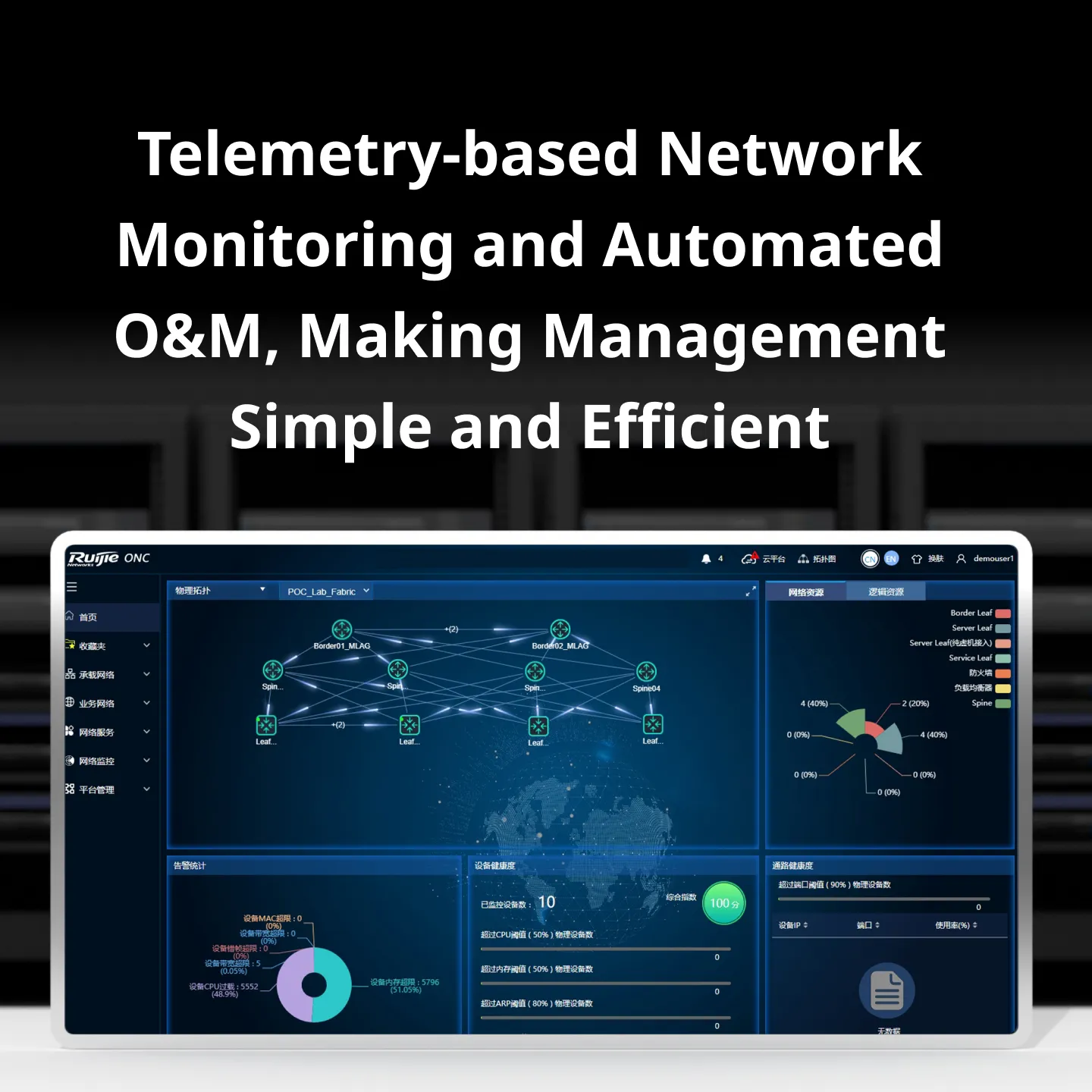

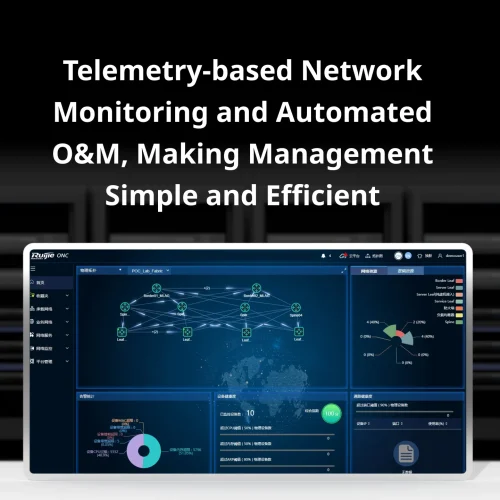

Telemetry-based Network Monitoring and Automated O&M, Making Management Simple and Efficient
The switch enabled with Telemetry/gRPC/sFlow/SPAN provides clear data status and hierarchy.
The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time, making network management more efficient and accurate.
Specifications
Hardware Specifications
| Item | RG-S6510-48VS8CQ | RG-S6510-32CQ |
| Dimensions (W x D x H) | 442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.) | 442 mm x 560 mm x 44 mm (17.40 in. x 22.05 in. x 1.73 in.) |
| Rack height | 1 RU | 1 RU |
| Unit weight | 5.6 kg (12.35 lbs., empty chassis)
8.2 kg (18.08 lbs., a chassis with two power modules and four fan modules) |
8.4 kg (18.52 lbs., empty chassis)
11.4 kg (25.13 lbs., a chassis with two power modules and five fan modules) |
| Switching capacity | 4.0 Tbps | 6.4 Tbps |
| Packet forwarding rate | 2000 Mpps | 2030 Mpps |
| Service port | 48 x 10G/25G SFP28 ports
8 x 40G/100G QSFP28 ports |
32 x 100G QSFP28 ports |
| Management port | 1 x RJ45 console port
1 x RJ45 MGMT port |
1 x RJ45 console port
1 x RJ45 MGMT port |
| USB port | 1 x USB 2.0 port (Type A connector) | 1 x USB 2.0 port (Type A connector) |
| Module slot | 2 x power module slots
4 x fan module slots |
2 x power module slots
5 x fan module slots |
| Power consumption | Maximum power consumption: 300 W
Typical power consumption: 172 W Static power consumption: 98 W |
Maximum power consumption: 450 W
Typical power consumption: 270 W Static power consumption: 150 W |
| Power input | RG-PA550I-F (AC input):
Rated input voltage: 100V AC to 240V AC, 50 Hz/60Hz Maximum input voltage: 90 V AC to140 V AC, 180 V to 264 V AC, 47 Hz to 63 Hz Rated input current: 7.2 A to3.5 A(100 V AC to 240 V AC) Power port type: C14
RG-PA550I-F (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 310 V DC Rated current: 3.6 A Power port type: C14
RG-PA550I-R (AC input): Rated input voltage: 100 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 7.2 A to 3.5 A(100 V AC to 240 V AC) Power port type: C14
RG-PA550I-R (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 310 V DC Rated current: 3.6 A Power port type: C14
RG-PHD550I-F (AC input): Rated input voltage: 100 V AC to240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 10 A Power port type: C14
RG-PHD550I-F (HVDC input): Rated input voltage: 336 V DC Maximum input voltage: 160 V DC to 400 V DC Rated input current: 10 A Power port type: C14
RG-PD800I-F (DC input): Rated input voltage: –48 V DC Maximum input voltage: –36 V DC to –72 V DC Rated input current: 23 A Power port: three-pin power connector |
RG-PA550I-F (AC input):
Rated input voltage: 100 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 7.2 A to 3.5 A (100 V AC to 240 V AC) Power port type: C14
RG-PA550I-F (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 310 V DC Rated current: 3.6 A Power port type: C14
RG-PD800I-F (DC input): Rated input voltage: –48 V DC Maximum input voltage: –36 V DC to –72 V DC Rated input current: 23 A Power port: three-pin power connector |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 1800 m (5905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 3000 m (9842.52 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: ≤ 5,000 m (16,404.20 ft.)
Storage altitude: ≤ 5000 m (16,404.20 ft.) |
Operating altitude: ≤ 5,000 m (16,404.20 ft.)
Storage altitude: ≤ 5000 m (16,404.20 ft.) |
| Cooling | Air cooling, front-to-rear airflow (port-side intake): used with the RG-PA550I-F, RG-PD800I-F, and RG-PHD550I-F power modules
Air cooling, rear-to-front airflow (port-side exhaust): used with the RG-PA550I-R power module |
Air cooling, front-to-rear airflow (port-side intake) |
Software Specifications
| Item | RG-S6510-48VS8CQ | RG-S6510-32CQ |
| Layer 2 Protocols | IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and Selective QinQ), GVRP | |
| Layer 3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), Route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP, IGMP v1/v2/v3, DVMRP, PIM-SSM/SM/DM, MSDP, Any-RP | |
| IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS | |
| IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel | |
| Data Center Features | VXLAN routing and VXLAN bridging
IPv6 VXLAN over IPv4 and EVPN VXLAN PFC, ECN, and RDMA M-LAG OpenFlow 1.3 |
|
| Visualization | gRPC
sFLOW sampling INT |
|
| QoS | Mapping of IEEE 802.1p, DSCP, and ToS priorities ACL-based traffic classification Priority marking/remarking Multiple queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR Congestion avoidance mechanisms such as WRED and tail discarding |
|
| Virtualization | Virtual Switching Unit | |
| Buffer Management | Buffer status monitoring and management, and identification of burst traffic | |
| HA Design | GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules | |
| Security Features | Network Foundation Protection Policy (NFPP), CPP, DDoS attack defense, illegitimate data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, ARP spoofing prevention, ARP check, and hierarchical user management | |
| Management Mode | SNMP v1/v2c/v3, Netconf, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, Syslog, SPAN/RSPAN/ERSPAN, Telemetry, ZTP, Python, fan and power alarm, and temperature alarm | |
| Other Protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog | |
Order Information
Chassis
| Product Model | Description |
| RG-S6510-48VS8CQ | 48 × 25GE ports and 8 × 100GE ports. Two power supply module slots and four fan module slots. The power module model is RG-PA550I-F, and the fan model is M6510-FAN-F. |
| RG-S6510-32CQ | Provides 32 × 100G ports. Two power supply module slots and five fan module slots. The power module model is RG-PA550I-F, and the fan model is M1HFAN I-F. |
Fan and Power Supply Modules
| Product Model | Description |
| RG-PA550I-F | 550 W power supply module (AC and 240 V HVDC) |
| RG-PA550I-R | 550 W power supply module (port-side exhaust, supporting AC and 240 V HVDC), applicable only to RG-S6510-48VS8CQ |
| RG-PHD550I-F | 550 W power supply module (336 V HVDC), applicable only to RG-S6510-48VS8CQ |
| RG-PD800I-F | 800 W AC power module (48 V LVDC) |
| M6510-FAN-F | Fan module of RG-S6510-48VS8CQ, supporting 3+1 redundancy, hot swapping, and front-to-rear ventilation design. |
| M1HFAN I-F | Fan module of RG-S6510-32CQ, supporting 4+1 redundancy, hot swapping, and front-to-rear ventilation design. |
25GE Optical Transceivers
| Model | Description |
| VG-SFP-AOC5M | 25G AOC, SFP28 form factor, 5 m (16.40 ft.) |
| VG-SFP-LR-SM1310 | 25G LR optical transceiver, SFP28 form factor, LC, 1310 nm, 10 km (32,808.40 ft.) over single-mode fiber (SMF) |
| VG-SFP-SR-MM850 | 25G SR optical transceiver, SFP28 form factor, LC, 850 nm, 100 m (328.08 ft.) over multimode fiber (MMF) |
40G Optical Transceivers
| Model | Description |
| 40G-QSFP-SR-MM850 | 40G SR optical transceiver, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF |
| 40G-QSFP-LR4-SM1310 | 40G LR4 optical transceiver, QSFP+, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| 40G-QSFP-LSR-MM850 | 40G SR optical transceiver, QSFP+ form factor, MPO, 400 m (1312.34 ft.) over MMF |
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 optical transceiver, QSFP+, Duplex LC, 2 km (6,561.68 ft.) over SMF |
| 40G-QSFP-LX4-SM1310 | 40G LX4 optical transceiver, QSFP+, Duplex LC, 150 m (492.13 ft.) over OM3/OM4 MMF, 2 km (6,561.68 ft.) over SMF |
| 40G-AOC-30M | 40G QSFP+ AOC, 30 m (98.43 ft.) |
| 40G-AOC-5M | 40G QSFP+ AOC, 5 m (16.40 ft.) |
100G Optical Transceivers
| Model | Description |
| 100G-QSFP-SR-MM850 | 100G SR optical transceiver, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-QSFP-LR4-SM1310 | 100G LR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-ER4-SM1310 | 100GE ER4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.60 ft.) over SMF |
| 100G-AOC-10M | 100G AOC, QSFP28 form factor, 10 m (32.81 ft.) |
| 100G-AOC-5M | 100G AOC, QSFP28 form factor, 5 m (16.40 ft.) |
GE Optical Transceivers
| Model | Description |
| GE-SFP-LH40-SM1310-BIDI | 1G LH optical transceiver, SFP form factor, BIDI LC, 40 km (131,233.60 ft.) over SMF |
| GE-SFP-LX20-SM1310-BIDI | 1G LX optical transceiver, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF |
| GE-SFP-LX20-SM1550-BIDI | 1G LX optical transceiver, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF |
| MINI-GBIC-LH40-SM1310 | 1G LH optical transceiver, SFP form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF |
| MINI-GBIC-LX-SM1310 | 1G LX optical transceiver, SFP form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| MINI-GBIC-SX-MM850 | 1G SR optical transceiver, SFP form factor, Duplex LC, 550 m (1,804.46 ft.) over MMF |
| MINI-GBIC-ZX80-SM1550 | 1G ZX optical transceiver, SFP form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF |
GE Copper Transceivers
| Model | Description |
| Mini-GBIC-GT(F) | 1G copper transceiver, SFP form factor, RJ45, 100 m (328.08 ft.) over Cat 5e/6/6a. For RG-S6510 series products, the Mini-GBIC-GT(F) transceiver is applicable only to RG-S6510-48VS8CQ. |
| Mini-GBIC-GT | 1G copper transceiver, SFP form factor, RJ45, 100 m (328.08 ft.) over Cat 5e/6/6a |
10GE Optical Transceivers
| Model | Description |
| XG-LR-SM1310 | 10G LR optical transceiver, SFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| XG-SR-MM850 | 10G SR optical transceiver, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF |
| XG-SFP-AOC1M | 10G AOC, SFP+ form factor, 1 m (3.28 ft.) |
| XG-SFP-AOC3M | 10G AOC, SFP+ form factor, 3 m (9.84 ft.) |
| XG-SFP-AOC5M | 10G AOC, SFP+ form factor, 5 m (16.40 ft.) |
| XG-SFP-SR-MM850 | 10G SR optical transceiver, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF |
| XG-SFP-LR-SM1310 | 10G LR optical transceiver, SFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| XG-SFP-ER-SM1550 | 10G ER optical transceiver, SFP+ form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF |
| XG-SFP-ZR-SM1550 | 10G ZR optical transceiver, SFP+ form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF |
