Key Specification
| Switching capacity | 2.56 Tbps | Packet forwarding rate | 1920 Mpps |
| Service port | 48 x 1G/10G SFP+ ports
8 x 40G/100G QSFP28 ports |
Dimensions (W x D x H) | 442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.） |
| Operating temperature | 0°C to 45°C (32°F to 113°F) | Operating humidity | 10% RH to 90% RH (non-condensing) |
Features

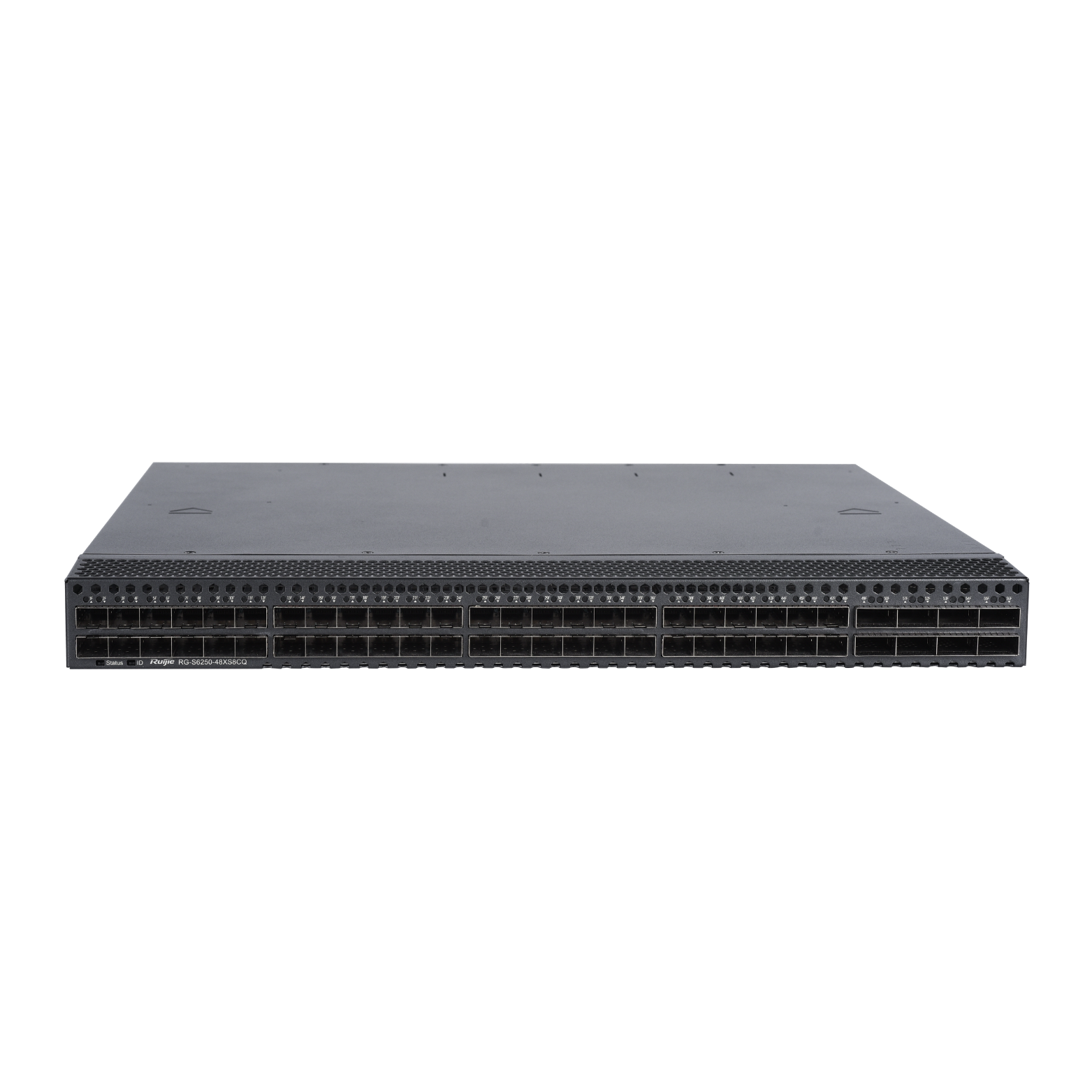

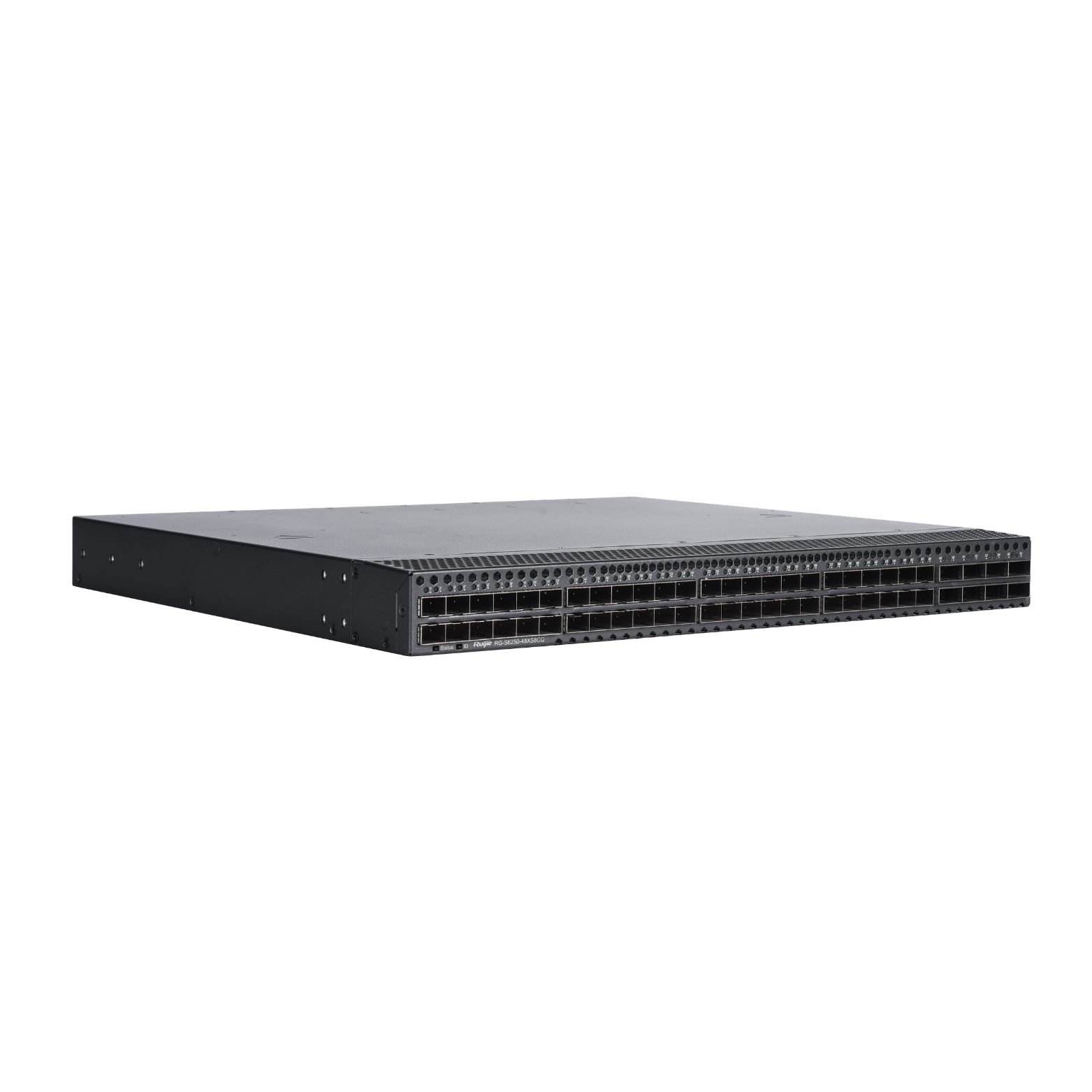

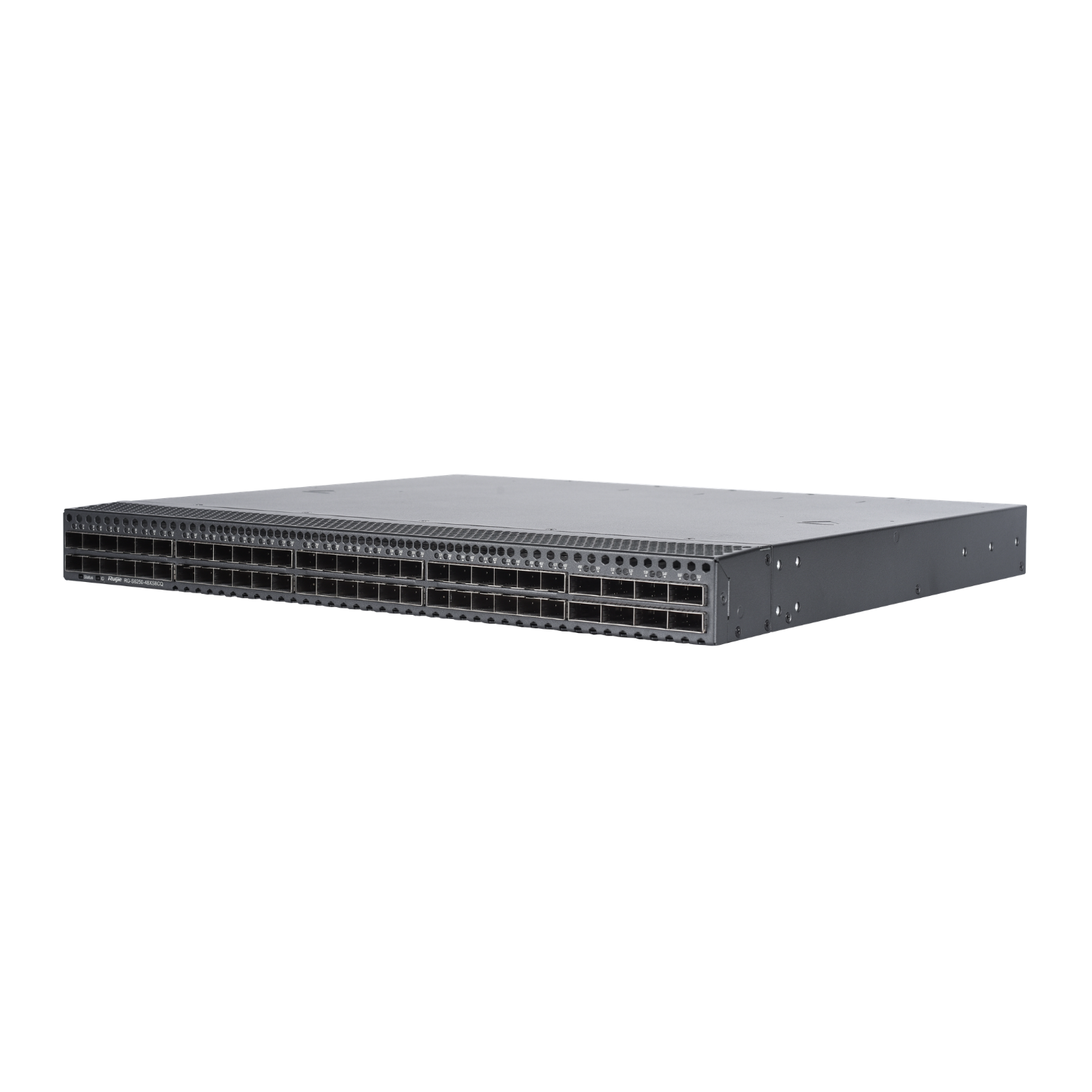

Data Center 10GE Access Switch RG-S6250-48XS8CQ
10GE high-density access switch with 10GE/100GE downlink ports and 100GE uplink ports backward compatible with 40GE for adaptation to different scenarios
Large buffer and advanced buffer scheduling mechanism, providing fast data processing and easily coping with burst traffic
Cross-device Link Aggregation, Implementing Device-level Redundancy, Flexible Networking, and High Reliability
De-stacking
De-stacking technology logically aggregates multiple switches through LACP to allow servers on the same network segment or on different network segments to communicate. This eliminates the need to synchronize data between switches, without affecting service transmission.
M-LAG
M-LAG technology implements load sharing between links and improves link reliability. The independent control plane supports independent device upgrade, realizing service upgrade within seconds and consistent user experience.
VSU
VSU technology can virtualize multiple physical devices into one logical device, simplifying network configuration and architecture, eliminating loops, and improving reliability.
PFC- and ECN-based Lossless Ethernet with High Throughput and Low Latency in RDMA Scenarios
With RDMA technology, data does not need to be handled by the CPU during device communication. This reduces the CPU burden
and effectively solves the network latency problem.
PFC+ECN, intelligent data exchange, and packet loss prevention, ensuring lossless data transmission
Telemetry-based Network Monitoring and Automated O&M, Making Management Simple and Efficient
The switch enabled with telemetry provides clear data status and hierarchy.
The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time, making network management more efficient and accurate.
Specifications
Hardware Specifications
| Item | RG-S6250-48XS8CQ |
| Dimensions (W x D x H) | 442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.） |
| Rack height | 1 RU |
| Unit weight | 5.6 kg (12.35 lbs., empty chassis)
8.2 kg (18.08 lbs., a chassis installed with two power modules and four fan modules) |
| Switching capacity | 2.56 Tbps |
| Packet forwarding rate | 1920 Mpps |

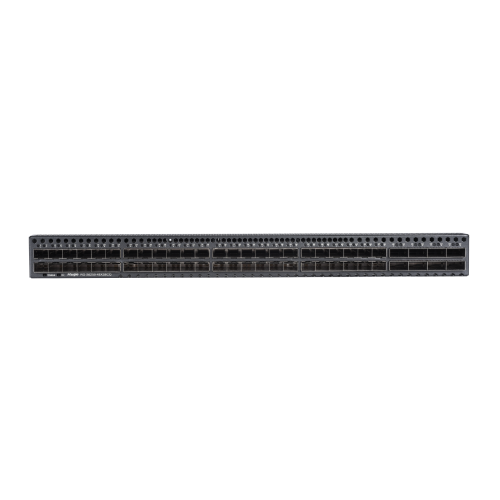

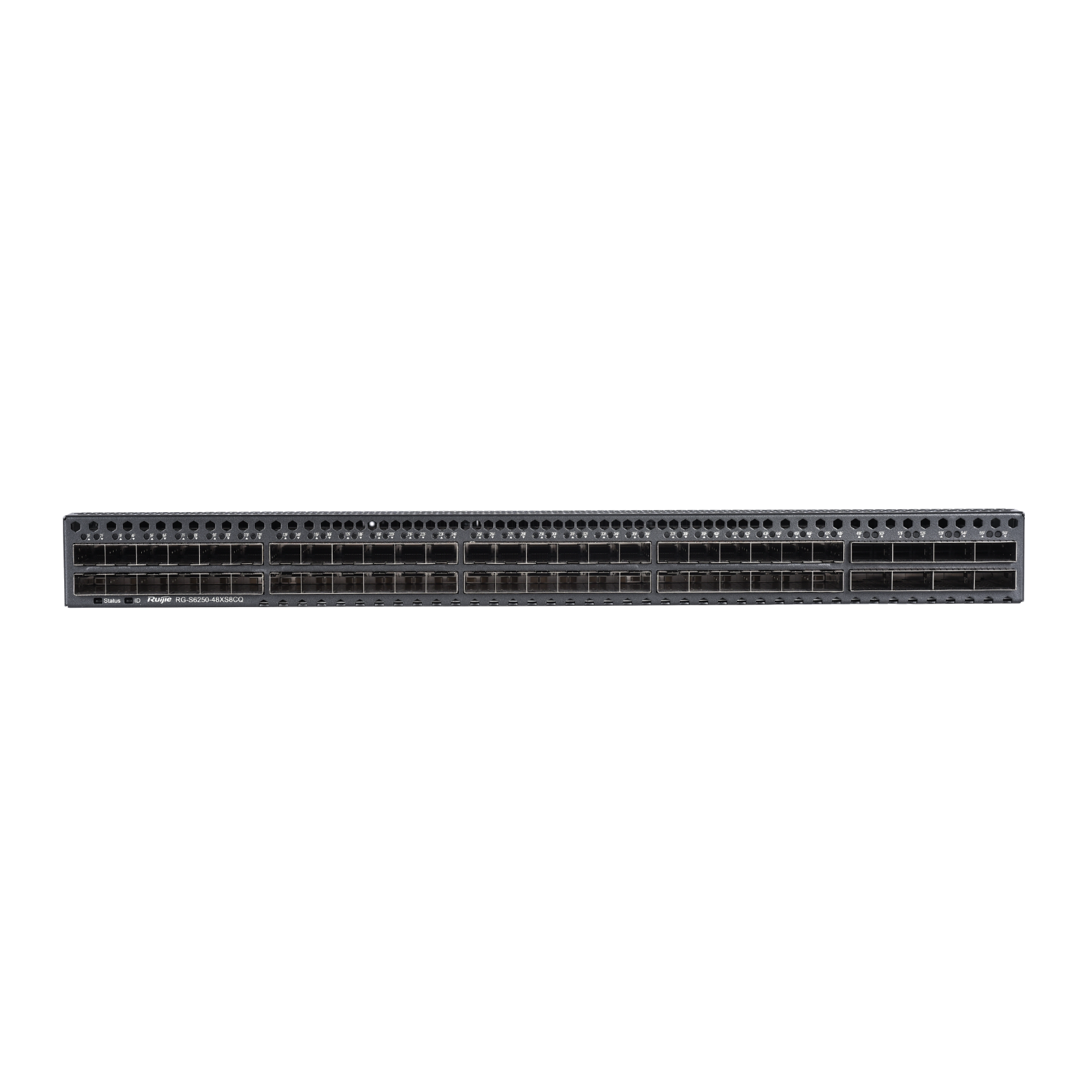

| Service port | 48 x 1G/10G SFP+ ports
8 x 40G/100G QSFP28 ports |
| Management port | 1 x RJ45 console port
1 x RJ45 MGMT port |
| USB port | 1 x USB 2.0 port (Type A connector) |

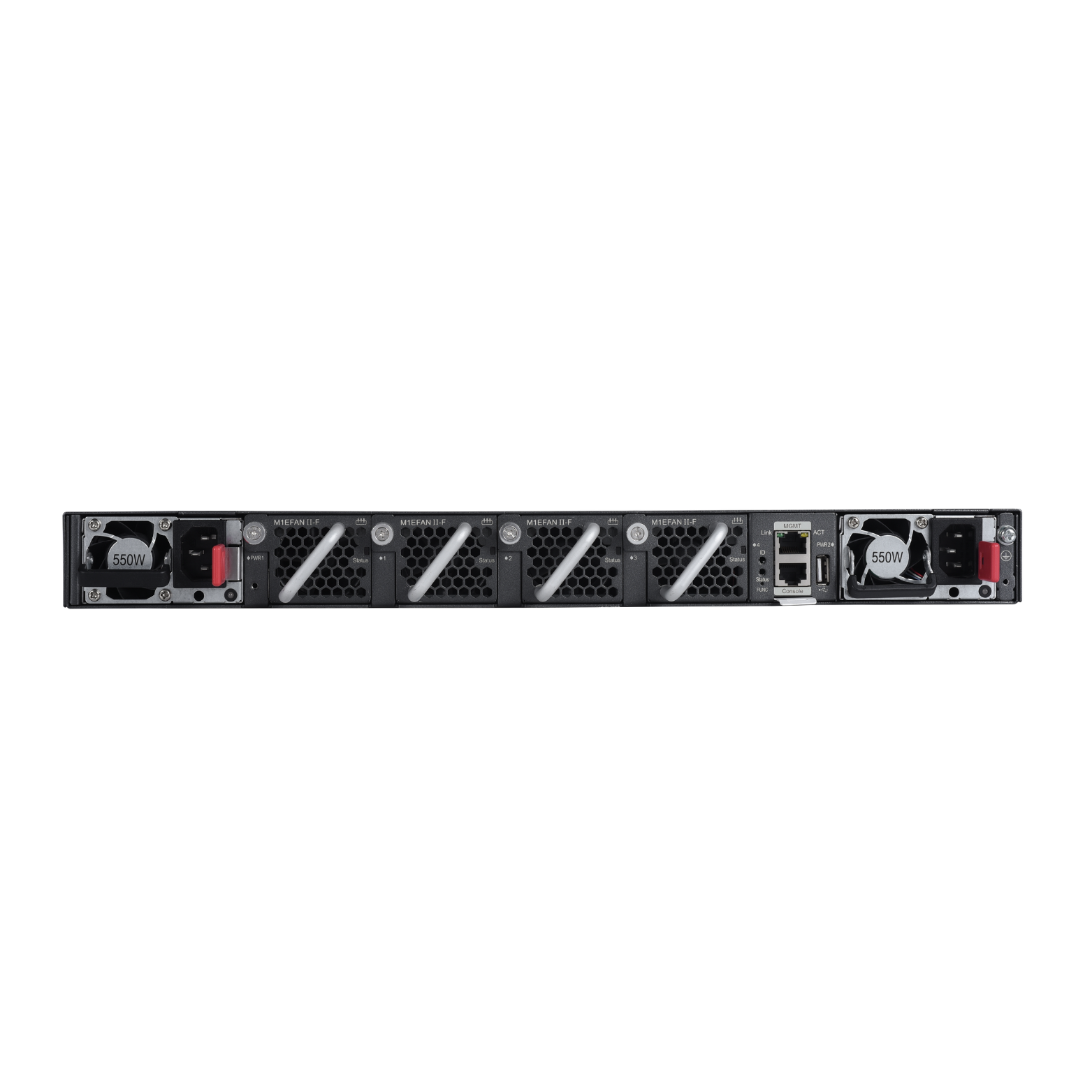

| Module slot | 2 x power module slots
4 x fan module slots |
| Power consumption | Maximum power consumption: 300 W
Typical power consumption: 165 W Static power consumption: 98 W |
| Power input | RG-PA550I-F (AC input):
Rated input voltage: 100 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 7.2 A to 3.5 A (100 V AC to 240 V AC) Power port type: C14
RG-PA550I-F (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 310 V DC Rated current: 3.6 A Power port type: C14
RG-PHD550I-F (AC input): Rated input voltage: 100 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 10 A Power port type: C14
RG-PHD550I-F (HVDC input): Rated input voltage: 336 V DC Maximum input voltage: 160 V DC to 400 V DC Rated input current: 10 A Power port type: C14
RG-PD800I-F (DC input): Rated input voltage: –48 V DC Maximum input voltage: –36 V DC to –72 V DC Rated input current: 23 A Power port: three-pin power port |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 1800 m (5,905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: ≤ 5,000 m (16,404.20 ft.)
Storage altitude: ≤ 5000 m (16,404.20 ft.) |
| Cooling | Air cooling, front-to-rear airflow (port-side intake) |
Software Specifications
| Item | RG-S6250-48XS8CQ |
| Layer 2 protocols | IEEE802.3ae (10GBase), IEEE802.3ak, IEEE802.3an, IEEE802.3x, IEEE802.3ad (static link aggregation, LACP, M-LAG), IEEE802.1p, IEEE802.1Q,
IEEE802.1D (STP), STP root guard, and BPDU guard IEEE802.1w(RSTP), IEEE802.1s(MSTP) IGMP Snooping v1/v2, MLD Snooping, Jumbo Frame(9Kbytes) IEEE 802.1ad (QinQ and selective QinQ), GVRP, Three modes (access, trunk, and hybrid), LLDP, static MAC address, MAC address filtering, MAC address quantity limit |
| N/A | |
| Layer 3 protocols (IPv4) | Static routing, BGP4, OSPFv2, IS-IS, RIPv1, RIPv2, MBGP, LPM routing, policy-based routing (PBR), route-policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, and Any-RP, BFD for BGP/IS-IS/OSPF/static routing, manual tunnel, GRE tunnel |
| Basic IPv6 protocols | Neighbor discovery, ICMPv6, path MTU discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, IS-ISv6, ACLv6, IPv6 TCP/UDP, SNMPv6, IPv6 Ping/Traceroute, IPv6 RADIUS, IPv6 Telnet/SSH, IPv6 FTP/TFTP, NTPv6, IPv6 MIB for SNMP, IPv6 VRRP, IPv6 QoS |
| IPv6 features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, IS-ISv6, IPv6 VRRP, MLDv1/v2, PIM-SMv6, manual tunnel, GRE tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel |
| Data center features | VXLAN routing and VXLAN bridging
EVPN VXLAN VXLAN mapping IPv4 VXLAN over IPv4 IPv6 VXLAN over IPv4 IPv6 VXLAN over IPv6 IPv6 VXLAN over IPv6 VXLAN over IPv6 M-LAG OpenFlow 1.3 RDMA, RoCEv2, PFC, and ECN |
| Process | gRPC
sFlow sampling IPFIX sampling |
| QoS | IEEE 802.1p, ToS, and DSCP priority mapping
ACL traffic classifier, and priority tagging Mark/Remark Various queue scheduling mechanisms such as SP (PQ), WRR, DRR, SP (PQ)+WRR, and SP (PQ)+DRR Flexible queue scheduling algorithms based on ports or queues Congestion avoidance mechanisms such as WRED and tail discarding Ingress/egress port-based rate limiting and CAR |
| MPLS | MPLS VPN |
| Virtualization | Virtual switching unit (VSU) |
| Buffer management | Buffer usage monitoring and traffic microburst detection |
| High availability | GR for RIP/OSPF/BGP, BFD, DLDP, VRRP, VRRP load balancing/dual-active, BFD for VRRP, REUP, RLDP, 1+1 power redundancy and fan redundancy, and hot swappable line cards and power modules |
| Security features | Network Foundation Protection Policy (NFPP), CPU Protection Policy (CPP), DDoS/DoS attack defense, ICMP attack defense, unauthorized packet detection, data encryption, source IP spoofing defense, IP scanning attack defense, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL, port-based ACL, or VLAN-based ACL, cleartext and MD5-based authentication for OSPF, RIPv2, and BGPv4 packets, Telnet login from specified IP addresses, uRPF, broadcast packet suppression, DHCP snooping, ARP spoofing defense (ARP anti-spoofing), ARP check, and hierarchical user management |
| Management mode | SNMP v1/v2c/v3, Telnet, Console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, Syslog, SPAN/RSPAN/ERSPAN, Telemetry, ZTP, NETCONF, Python, fan and power alarm, temperature alarm, and configuration rollback |
| Other protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP Relay, Proxy ARP, and Syslog |
Order Information
Chassis
| Model | Description |
| RG-S6250-48XS8CQ | RG-S6250-48XS8CQ chassis, 48 x 10GE SFP+ ports, 8 x 100GE QSFP28 ports, 2 x power module slots, 4 x fan module slots. The chassis is equipped with two power modules (RG-PA550I-F) and four fan modules (M1EFAN II-F). |
Power Modules
| Model | Description |
| RG-PA550I-F | 550 W power module (supporting AC and 240 V HVDC) |
| RG-PD800I-F | 800 W power module (supporting 48 V LVDC) for the RG-S6250-48XS8CQ and the RG-S6510-48VS8CQ |
| RG-PA550I-R | 550 W AC power module (rear-to-front airflow, supporting AC and 240 V HVDC), used with rear-to-front airflow fan module M1EFAN IV-R |
| RG-PHD550I-F | 550 W AC power module (supporting 336 V HVDC) |
Fan Modules
| Model | Description |
| M1EFAN II-F | Fan module (port-side intake) for the RG-S6250-48XS8CQ |
| M1EFAN III-F | Fan module (port-side intake) for the RG-S6231-48XT8CQ, the RG-S6231-48XS8CQ, the RG-S6232-48XS8CQ, and the RG-S6501-48VS8CQ |
| M1EFAN IV-R | Fan module (fan-side intake), applicable to the RG-S6231-48XS8CQ and the RG-S6231-48XT8CQ |
40G Optical Transceivers
| Model | Description |
| 40G-AOC-5M | 40G QSFP+ active optical cable (AOC), 5 m (16.40 ft.) |
| 40G-AOC-30M | 40G QSFP+ active optical cable, 30 m (98.43 ft.) |
| 40G-QSFP-SR-MM850 | 40G SR optical transceiver, QSFP+ form factor, MPO, 150 m (492.13 ft.) over multimode fiber (MMF) |
| 40G-QSFP-LSR-MM850 | 40G SR optical transceiver, QSFP+ form factor, MPO, 400 m (1,312.34 ft.) over MMF |
| 40G-QSFP-LR4-SM1310 | 40G LR4 optical transceiver, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over single-mode fiber (SMF) |
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 optical transceiver, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF |
| 40G-QSFP-LX4-SM1310 | 40G LX4 optical transceiver, QSFP+ form factor, Duplex LC, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF |
100G Optical Transceivers
| Model | Description |
| 100G-AOC-5M | 100G AOC, QSFP28 form factor, 5 m (16.40 ft.) |
| 100G-AOC-10M | 100G AOC, QSFP28 form factor, 10 m (32.81 ft.) |
| 100G-QSFP-SR-MM850 | 100G SR optical transceiver, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-LR4-SM1310 | 100G LR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-ER4-SM1310 | 100G ER4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.60 ft.) over SMF |
GE Optical Transceivers
| Model | Description |
| GE-SFP-LH40-SM1310-BIDI | 1G LH optical transceiver, SFP form factor, BIDI LC, 40 km (131,233.60 ft.) over SMF |
| GE-SFP-LX20-SM1310-BIDI | 1G LX optical transceiver, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF |
| GE-SFP-LX20-SM1550-BIDI | 1G LX optical transceiver, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF |
| MINI-GBIC-LH40-SM1310 | 1G LH optical transceiver, SFP form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF |
| MINI-GBIC-LX-SM1310 | 1G LX optical transceiver, SFP form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| MINI-GBIC-SX-MM850 | 1G SR optical transceiver, SFP form factor, Duplex LC, 550 m (1,804.46 ft.) over MMF |
| MINI-GBIC-ZX80-SM1550 | 1G ZX optical transceiver, SFP form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF |
GE Copper Transceivers
| Model | Description |
| Mini-GBIC-GT(F) | 1G copper transceiver, SFP form factor, RJ45, used with Cat5e, Cat 6, and Cat6a, transmission distance of up to 100 m (328.08 ft.) For the RG-S6200 series products, the Mini-GBIC-GT(F) transceiver is applicable only to the RG-S6250-48XS8CQ. |
| Mini-GBIC-GT | 1G copper transceiver, SFP form factor, RJ45, used with Cat5e, Cat 6, and Cat6a, transmission distance of up to 100 m (328.08 ft.) |
10GE Optical Transceivers
| Model | Description |
| XG-SFP-SR-MM850 | 10G SR optical transceiver, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF |
| XG-SFP-LR-SM1310 | 10G LR optical transceiver, SFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| XG-SFP-ER-SM1550 | 10G ER optical transceiver, SFP+ form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF |
| XG-SFP-ZR-SM1550 | 10G ZR optical transceiver, SFP+ form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF |
| XG-LR-SM1310 | 10G LR optical transceiver, SFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| XG-SFP-AOC1M | 10G AOC, SFP+ form factor, 1 m (3.28 ft.) |
| XG-SFP-AOC3M | 10G AOC, SFP+ form factor, 3 m (9.84 ft.) |
| XG-SFP-AOC5M | 10G AOC, SFP+ form factor, 5 m (16.40 ft.) |
| XG-SR-MM850 | 10G SR optical transceiver, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF |
