Features

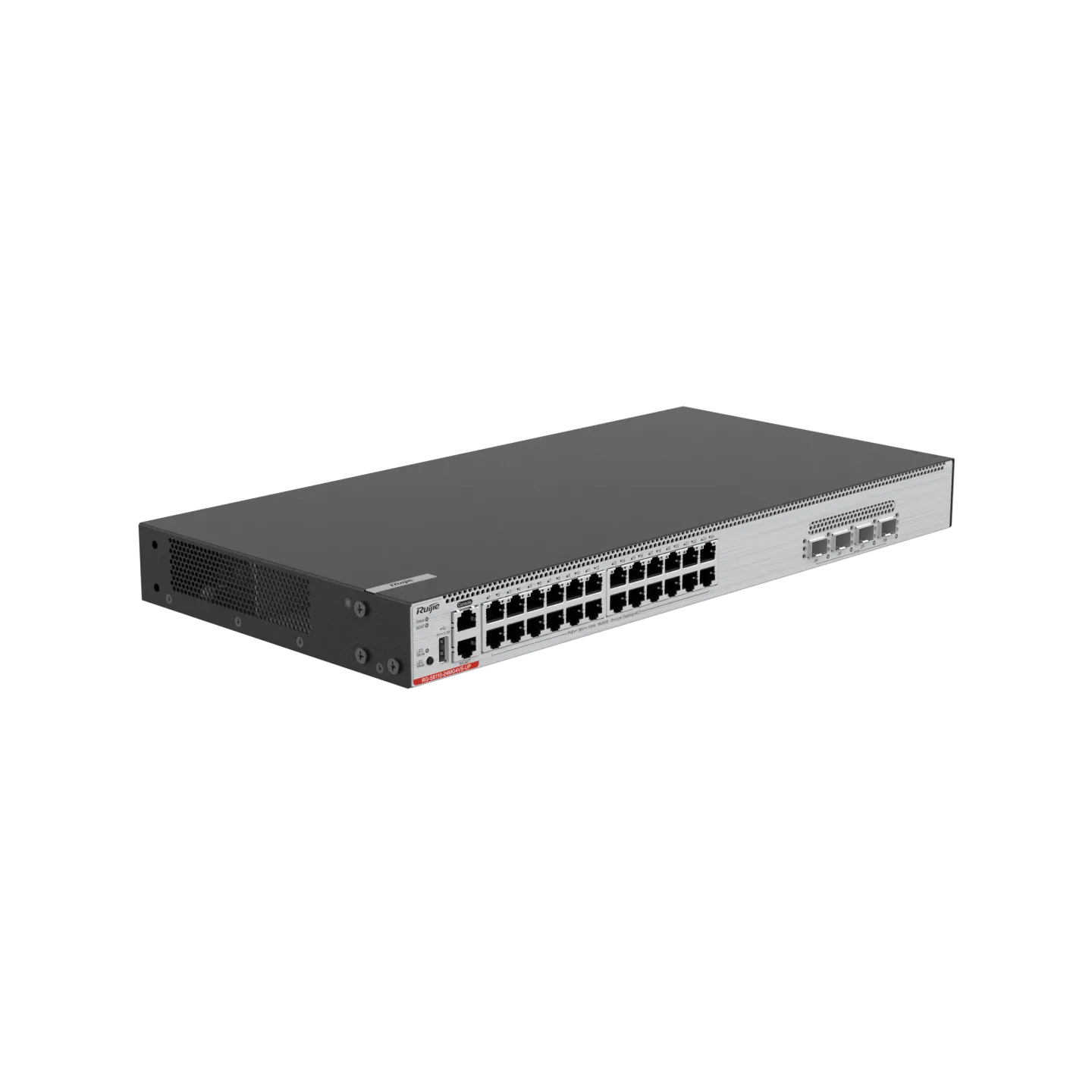

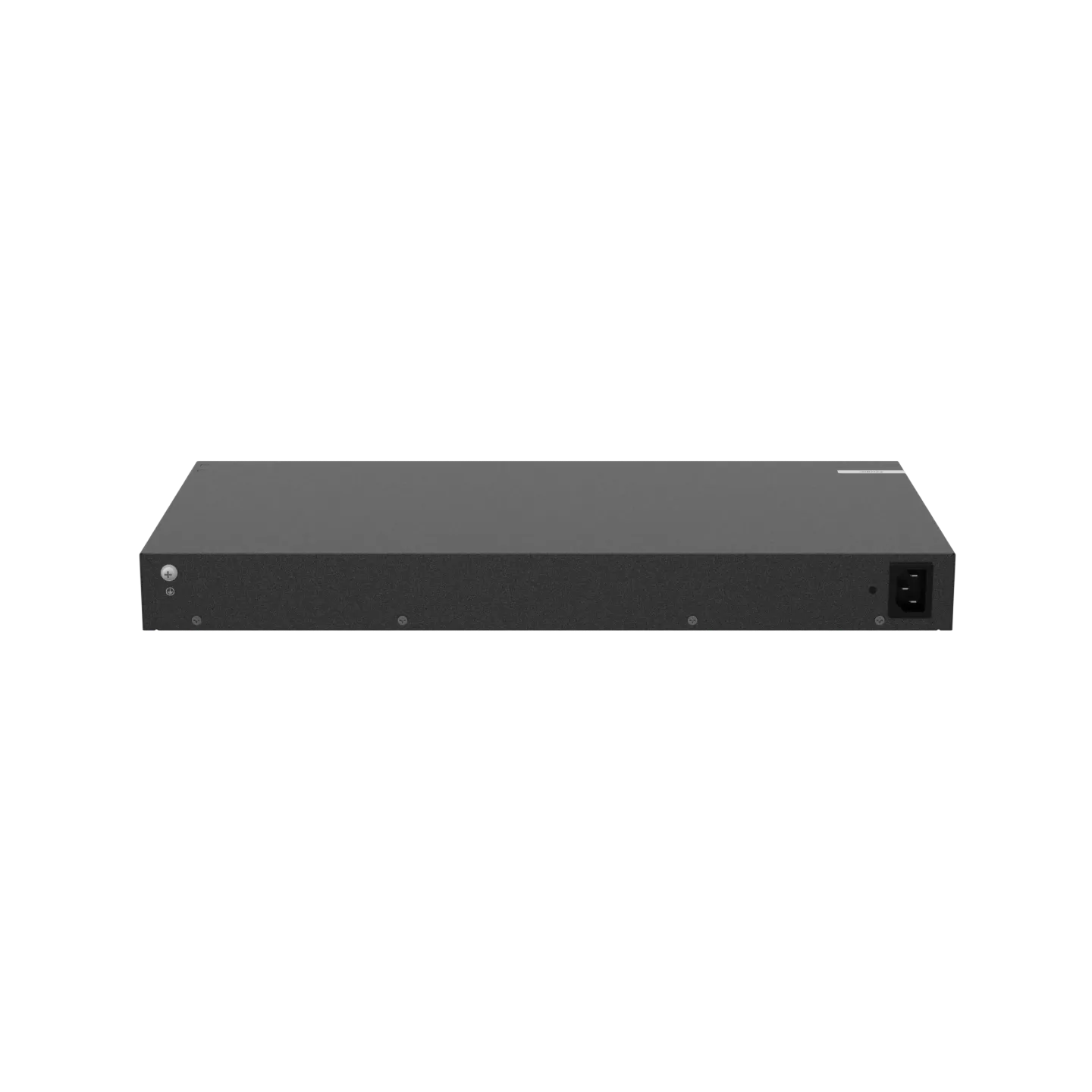

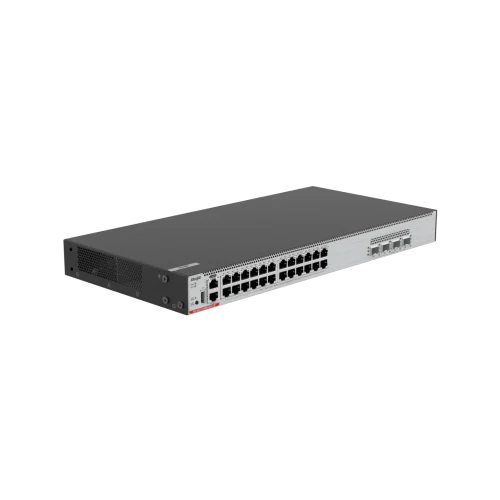

RG-S6110-24MG4VS-UP 5G Multi-GE Access Switches
Port
- 24 x 100/1000/2.5G/5GBASE-T ports and 4 x 10GE/25GE SFP28 uplink ports are provided to realize flexible networking.
- High-power PoE++ is provided and a maximum of 90 W PoE power supply meets different terminal needs.
Dimensions
- 24 x 100/1000/2.5G/5GBASE-T ports and 4 x 10GE/25GE SFP28 uplink ports are provided to realize flexible networking.
- High-power PoE++ is provided and a maximum of 90 W PoE power supply meets different terminal needs.
Hardware Redundancy, Guaranteed Service Continuity and Network Connectivity
Hardware-Level Boot Redundancy
- Two Flash chips are used to store the system Boot program for hardware-level Boot redundancy, avoiding device failure caused by a failed Flash chip.
Optical Port Fault Isolation
- The innovative isolated chip design ensures that short-circuit current cannot reach the power supply chip directly. Failure of one optical module will not affect the normal operation of other optical ports, thus effectively ensuring service stability.
VSU Virtualization, Flexible Networking and High Performance
Millisecond Failover
- Connected by an aggregate link, the VSU virtual system and peripherals switch links in milliseconds to ensure service continuity in case of a failure.
High Scalability
- VSU virtualization technology is supported to increase bandwidth through link aggregation, which greatly improves forwarding capabilities of the switch.
Simplified Networking
- Multiple physical switches can be virtualized into one logical unit to simplify network configuration and architecture, eliminating loops, and improving reliability.
Network Security Policies and Real-Time Monitoring, Delivering Enhanced Network Robustness
CPP
- CPP protects the CPU from data attacks to ensure CPU stability under high usage, achieving significant improvement in the device’s security performance.
NFPP
- NFPP protects CPU from high load damage to guarantee device management and operation, thus improving network security and stability.
Intelligent Speed Regulation and Auto Sleeping, Reducing Energy Consumption and Noise
- Intelligent fan speed regulation based on monitored component temperatures, saving energy
- Auto service port sleeping, reducing device power consumption.
Ruijie Unified Networking Central (RG-UNC) Visualized Management, Automated and Effortless Operations
- RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.
Specifications
Hardware Specifications
| Port specifications | RG-S6110-24MG4VS-UP | RG-S6120-24XMG4XS4VS-UP-H | RG-S6110-48MG4VS2QXS-UP | RG-S6120-48XMG4VS2QXS-UP-H |
| Fixed service port | 24 x 100/1000/2.5G/5GBASE-T ports, supporting PoE/PoE+/PoE++
4 x 10GE/25GE SFP28 ports |
24 x 100/1000/2.5G/5G/10GBASE-T ports, supporting PoE/PoE+/PoE++
4 x 1GE/10GE SFP+ ports 4 x 10GE/25GE SFP28 ports |
48 x 100/1000/2.5G/5GBASE-T ports
● Ports 1 to 24 support PoE/PoE+/PoE++ ● Ports 25 to 48 support PoE/PoE+ 4 x 10GE/25GE SFP28 ports 2 x 40GE QSFP+ ports |
48 x 100/1000/2.5G/5G/10GBASE-T ports
● Ports 1 to 24 support PoE/PoE+/PoE++ ● Ports 25 to 48 support PoE/PoE+ 4 x 10GE/25GE SFP28 ports 2 x 40GE QSFP+ ports |
| Module slot | Not Supported | 2 x power module slots
3 x fan module slots |
||
| Power module | Not Supported | RG-PA600I-P-F
RG-PA1000I-P-F |
||
| Fan module | Not Supported | M2SFAN I-F (pre-installed 3) | ||
| Fixed management port | 1 x RJ45 console port
1 x RJ45 MGMT port |
|||
| USB | 1 x USB 2.0 port | |||
| System specifications | RG-S6110-24MG4VS-UP | RG-S6120-24XMG4XS4VS-UP-H | RG-S6110-48MG4VS2QXS-UP | RG-S6120-48XMG4VS2QXS-UP-H |
| System packet forwarding rate *1 | 392 Mpps | 678 Mpps | 750 Mpps | 982 Mpps |
| System switching capacity *2 | 528 Gbps | 912 Gbps | 1008 Gbps | 1320 Gbps |
| CPU | Single-core CPU, with the clock speed of 1.2 GHz | |||
| Real-time clock (RTC) | Supported | |||
| BootROM | 16 MB (storing boot software for 1+1 boot redundancy) | |||
| Flash memory | 1 GB (storing boot software for 1+1 boot redundancy) | |||
| Memory | 1 GB DDR4 (32-bit width, 4-bit ECC) | 1 GB DDR4 (32-bit width, 4-bit ECC) | 2 GB DDR4 (32-bit width, 4-bit ECC) | 2 GB DDR4 (32-bit width, 4-bit ECC) |
| Switch buffer | 4 MB | |||
| Number of MAC addresses | Number of global MAC addresses: 32,768
Number of static MAC addresses: 1,000 |
|||
| ARP table size | 16,000 | |||
| ND table size | 4,000 | |||
| Number of IPv4 unicast routes | 16,000 | |||
| Number of IPv4 multicast routes | 4,000 | |||
| Number of IPv6 unicast routes | 16,000 | |||
| Number of IPv6 multicast routes | 2,000 | |||
| Number of IGMP groups | 4,000 | |||
| Number of MLD groups | 1,000 | |||
| Number of ACEs | Ingress: 2,500
Egress: 1,000 |
|||
| Number of VSU members | 4 | |||
*1 means the system’s packet forwarding rate.
*2 means the system’s switching capacity.
| Power supply and consumption | RG-S6110-24MG4VS-UP |
| Power supply | 1 x fixed power supply |
| Power input | AC input:
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 6 A |
| Maximum output power | Fixed power supply: 460 W |
| PoE port | Ports 1 to 24 support PoE/PoE+/PoE++ (IEEE802.3af/at/bt) power supply |
| PoE power cable pairs | Four pairs (1-2, 3-6, 4-5, and 7-8 pairs) |
| PoE output power | Each PoE port provides up to 90 W of power.
The maximum power is 370 W. Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device. |
| Maximum power consumption | 90 W (without PoE)
460 W (full PoE load) |
| Power supply and consumption | RG-S6120-24XMG4XS4VS-UP-H | RG-S6110-48MG4VS2QXS-UP | RG-S6120-48XMG4VS2QXS-UP-H |
| Power supply | 2 x pluggable power modules | ||
| Power input | RG-PA600I-P-F (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A RG-PA1000I-P-F (AC input 1): ● Rated input voltage: 100 V AC to 130 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz ● Maximum input current: 12 A RG-PA1000I-P-F (AC input 2): ● Rated input voltage: 200 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A |
||
| Maximum output power | RG-PA600I-P-F: 600 W
RG-PA1000I-P-F: ● 100 V AC to 130 V AC: 930 W ● 200 V AC to 240 V AC: 1000 W |
||
| PoE port | Ports 1 to 24 support PoE/PoE+/PoE++ (IEEE802.3af/at/bt) power supply | Ports 1 to 24 support PoE/PoE+/PoE++ (IEEE802.3af/at/bt) power supply
Ports 25 to 48 support PoE/PoE+ (IEEE 802.3af/at) power supply |
|
| PoE power cable pairs | Four pairs (1-2, 3-6, 4-5, and 7-8 pairs) | ||
| PoE output power | Each PoE port provides up to 90 W of power
The maximum power depends on the configured power supply ● 1 x RG-PA600I-P-F：450 W ● 1 x RG-PA1000I-P-F: 760 W (100 V AC to 130 V AC) ● 1 x RG-PA1000I-P-F: 850 W (200 V AC to 240 V AC) ● 2 x RG-PA600I-P-F：930 W ● 1 x RG-PA600I-P-F + 1 x RG-PA1000I-P-F：1200 W (100 V AC to 130 V AC) ● 1 x RG-PA600I-P-F + 1 x RG-PA1000I-P-F：1290 W (200 V AC to 240 V AC) ● 2 x RG-PA1000I-P-F: 1470 W (100 V AC to 130 V AC) ● 2 x RG-PA1000I-P-F: 1650 W (200 V AC to 240 V AC) |
Each port of ports 1 to 24 provides up to 90 W of power
Each port of ports 25 to 48 provides up to 30 W of power The maximum power depends on the configured power supply ● 1 x RG-PA600I-P-F：400 W ● 1 x RG-PA1000I-P-F: 710 W (100 V AC to 130 V AC) ● 1 x RG-PA1000I-P-F: 800 W (200 V AC to 240 V AC) ● 2 x RG-PA600I-P-F：880 W ● 1 x RG-PA600I-P-F + 1 x RG-PA1000I-P-F：1150 W (100 V AC to 130 V AC) ● 1 x RG-PA600I-P-F + 1 x RG-PA1000I-P-F：1240 W (200 V AC to 240 V AC) ● 2 x RG-PA1000I-P-F: 1420 W (100 V AC to 130 V AC) ● 2 x RG-PA1000I-P-F: 1600 W (200 V AC to 240 V AC) |
|
| Maximum power consumption | 150 W (without PoE load)
1,800 W (full PoE load) |
200 W (without PoE load)
1,800 W (full PoE load) |
|
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
| Dimensions and weight | RG-S6110-24MG4VS-UP | RG-S6120-24XMG4XS4VS-UP-H | RG-S6110-48MG4VS2QXS-UP | RG-S6120-48XMG4VS2QXS-UP-H |
| Unit dimensions (W x D x H) | 442.0 mm x 220.0 mm x 43.6 mm (17.40 in. x 8.66 in. x 1.72 in.) | 442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) | ||
| Shipping dimensions (W x D x H) | 568 mm x 366 mm x 226 mm (22.36 in. x 14.41 in. x 8.90 in.) | 563 mm x 563 mm x 210 mm (22.17 in. x 22.17 in. x 8.27 in.) | ||
| Rack height | 1 RU | 1 RU | ||
| Unit weight | 3.71 kg (8.18 lbs) | 5.86 kg (12.92 lbs, with 3 fan modules) | 6.18 kg (13.62 lbs, with 3 fan modules) | 6.18 kg (13.62 lbs, with 3 fan modules) |
| Shipping weight | 5.37 kg (11.84 lbs) | 8.12 kg (17.90 lbs, with 3 fan modules) | 8.42 kg (18.56 lbs, with 3 fan modules) | 8.42 kg (18.56 lbs, with 3 fan modules) |
| Environment and reliability | RG-S6110-24MG4VS-UP | RG-S6120-24XMG4XS4VS-UP-H | RG-S6110-48MG4VS2QXS-UP | RG-S6120-48XMG4VS2QXS-UP-H |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F) Note: At an altitude between 3,000 m (9,842.52 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
|||
| Humidity | Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
|||
| Altitude | Operating altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.)
Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.) |
|||
| Mean time between failure (MTBF) | 194,296 hours (about 22 years) | 194,296 hours (about 22 years) | 236,695 hours (about 27 years) | 236,695 hours (about 27 years) |
| Fan | 2 x fixed fan modules | 3 x pluggable fan modules | ||
| Heat dissipation | Fan cooling, left-to-right and front-to-right airflow | Fan cooling, left-to-rear and front-to-rear airflow | ||
| Acoustic noise | 27°C (80.6°F): 40 dB
Maximum value: < 78 dB |
27°C (80.6°F): 60 dB
Maximum value: < 78 dB |
||
| Power module redundancy | Not supported | 1+1 redundancy | 1+1 redundancy | 1+1 redundancy |
| Fan redundancy | Not supported | 2+1 redundancy | 2+1 redundancy | 2+1 redundancy |
| Power module hot swapping | Supported | |||
| USB hot swapping | Supported | |||
| Cable hot swapping | Supported | |||
| Power supply monitoring | Not supported | Monitoring of the power supply model and status
Power supply failure alarming |
||
| Fan monitoring | Automatic speed adjustment
Fan failure alarming |
|||
| Temperature monitoring | Supported | |||
| ESD | ESD contact/air discharge: 6 kV/8 kV
ESD susceptibility contact/air discharge: 8 kV/15 kV |
|||
| Surge protection | MGMT port: 4 kV
Service port: 8 kV Power port: common mode 6 kV, differential mode 6 kV |
|||
| Certifications and regulatory compliance | RG-S6110-24MG4VS-UP | RG-S6120-24XMG4XS4VS-UP-H | RG-S6110-48MG4VS2QXS-UP | RG-S6120-48XMG4VS2QXS-UP-H |
| Safety regulation | IEC 62368-1 | |||
| EMC regulation | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 | |||
| RoHS | European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863 | |||
Software Specifications
| Feature | RG-S6100 Series |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.1Q (supporting 4K VLANs) | |
| Maximum number of VLANs that can be created: 4,094 | |
| Voice VLAN | |
| Super-VLAN and private VLAN | |
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
| GVRP | |
| Basic QinQ and selective QinQ | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| ERPS (G.8032) | |
| LACP (IEEE 802.3ad) | |
| LLDP/LLDP-MED | |
| IP service | Static and dynamic ARP |
| DHCP server, DHCP client, DHCP relay, and DHCP snooping | |
| DNS | |
| DHCPv6 server, DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping | |
| Neighbor Discovery (ND) and ND snooping | |
| IP routing | Static routing |
| RIP and RIPng | |
| OSPFv2 and OSPFv3 | |
| GR | |
| IS-ISv4 and IS-ISv6 | |
| BGP4 and BGP4+ | |
| Equal and Weighted Cost Multi-Path (ECMP) | |
| Packet-based and flow-based load balancing | |
| Stateless Auto Configuration | |
| IPv4/IPv6 VRF | |
| IPv4/IPv6 PBR | |
| Multicast | IGMPv1/v2/v3 and IGMP proxy |
| IGMPv1/v2/v3 snooping | |
| IGMP filtering and IGMP fast leave | |
| PIM-DM, PIM-SM, and PIM-SSM | |
| PIM-SSM for IPv4 and IPv6 | |
| MSDP to achieve inter-domain multicast | |
| MLDv1/v2 | |
| MLD snooping | |
| MSDP | |
| PIM-SMv6 | |
| Multicast source IP address check
Multicast source port check |
|
| Multicast querier | |
| ACL and QoS | Standard IP ACLs (hardware ACLs based on IP addresses) |
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | |
| Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) | |
| Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| Time-based ACLs | |
| ACL80 and IPv6 ACL | |
| Applying ACLs globally (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| ACL redirection | |
| Port traffic identification | |
| Port traffic rate limiting | |
| 802.1p/DSCP/ToS traffic classification | |
| Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences | |
| Traffic classification based on ToS values | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| Eight queues on each port | |
| Rate limiting in each queue | |
| Security | Multi-AAA |
| RADIUS and TACAS+ | |
| Filtering of invalid MAC addresses
Broadcast storm suppression Hierarchical management of administrators and password protection BPDU guard |
|
| RADIUS authentication and authorization | |
| Port- and MAC address-based 802.1x authentication | |
| IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| ICMPv6 | |
| Port security | |
| IP source guard | |
| SAVI | |
| ARP spoofing prevention | |
| CPP and NFPP | |
| Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types | |
| Loose and strict RPF
uRPF ignoring default routes |
|
| Reliability | REUP |
| ERPS (G.8032) | |
| Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control | |
| Data Link Detection Protocol (DLDP) | |
| IPv4 VRRP v2/v3 and IPv6 VRRP | |
| BFD | |
| GR for RIP, OSPF, and BGP | |
| Power modules in 1+1 redundancy mode | |
| Hot swapping of power modules and fan modules (not supported by the RG-S6110-24MG4VS-UP) | |
| Device virtualization | VSU |
| NMS and maintenance | SPAN, RSPAN, and ERSPAN |
| sFlow | |
| NTP and SNTP | |
| FTP and TFTP | |
| SNMP v1/v2/c3 | |
| RMON (1, 2, 3, 9) | |
| Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups
RMON used to implement Ethernet statistics, historical statistics, and alarm functions |
|
| NETCONF | |
| Flow-based mirroring, and N:1 and 1:N port mirroring | |
| CWMP | |
| gRPC | |
| OpenFlow Special 1.3
Flow table analysis defined by all protocols Transmission of specified packets to the controller Configuring the controller’s IP address and port Notifying port status changes to the controller |
|
| CLI (Telnet/console), SSH, Syslog, SNMP over IPv6, Telnet v6, FTP/TFTP v6, DNS v6, and NTP for IPv6 | |
| Ruijie Could-based management |
Order Information
The switch, expansion module, power module, and other components can be ordered as needed. Before ordering an expansion module or power module, contact the online customer service personnel for the latest support information about the module.
Switches and Power Modules
| Model | Description |
| RG-S6110-24MG4VS-UP | 24 x 100/1000/2.5G/5GBASE-T ports, 4 x 10GE/25GE SFP28 ports |
| RG-S6120-24XMG4XS4VS-UP-H | 24 x 100/1000/2.5G/5G/10GBASE-T ports, supporting PoE/PoE+/PoE++, 4 x 1GE/10GE SFP+ ports, 4 x 10GE/25GE SFP28 ports |
| RG-S6110-48MG4VS2QXS-UP | 48 x 100/1000/2.5G/5GBASE-T ports, 4 x 10GE/25GE SFP28 ports, 2 x 40GE QSFP+ ports |
| RG-S6120-48XMG4VS2QXS-UP-H | 48 x 100/1000/2.5G/5G/10GBASE-T ports, 4 x 10GE/25GE SFP28 ports, 2 x 40GE QSFP+ ports |
| RG-PA600I-P-F | 600 W AC power module |
| RG-PA1000I-P-F | 1000 W AC power module |
Note:
- 4x 1GE/10GE SFP+ ports support 1GE SFP transceivers, 10GE SFP+ transceivers.
- 4 x10GE/25GE SFP28 ports support 10GE SFP+ transceivers and 25GE SFP28 transceivers. All 10GE/25GE SFP28 ports must work at the same rate, either 25G or 10G.
- 2 x 40GE QSFP+ ports support 40GE QSFP+ transceivers. The port can work in 4 x 10GE mode.
Optical Transceivers and Cables
1GE
| Model | Description |
| Mini-GBIC-GT | 1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation |
| MINI-GBIC-SX-MM850 | 1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF |
| GE-SFP-LX20-SM1310-BIDI | 1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF |
| GE-SFP-LX20-SM1550-BIDI | 1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF |
| GE-SFP-LH40-SM1310-BIDI | 1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF |
| GE-SFP-LH40-SM1550-BIDI | 1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF |
| GE-SFP-LX03-SM1310-BIDI-I | 1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF |
| GE-SFP-LX03-SM1550-BIDI-I | 1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF |
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
10GE
| Model | Description |
| XG-SFP-SR-MM850 | 10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF |
| XG-SFP-LR-SM1310 | 10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF |
| XG-SFP-ER-SM1550 | 10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF |
| XG-SFP-ZR-SM1550 | 10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF |
| XG-SFP-LR10-SM1270-BIDI-I | 10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF |
| XG-SFP-LR10-SM1330-BIDI-I | 10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF |
| XG-SFP-AOC1M | 10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers |
| XG-SFP-AOC3M | 10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers |
| XG-SFP-AOC5M | 10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers |
25GE
| Model | Description |
| VG-SFP-SR-MM850 | 25GBASE-SR, SFP28 transceiver, 850 nm, Duplex LC, 100 m over OM4 MMF, 70 m over OM3 MMF |
| VG-SFP-AOC7M(M) | 25GBASE, SFP28 active optical cable (AOC), 7 m, including one cable and two optical transceivers |
40GE
| Model | Description |
| 40G-QSFP-LSR-MM850 | 40GBASE-LSR, QSFP+ transceiver, 850 nm, MPO 1 x 12, 400 m over OM4 MMF, 300 m over OM3 MMF |
| 40G-QSFP-LR4-SM1310 | 40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| 40G-QSFP-iLR4-SM1310 | 40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF |
| 40G-QSFP-LX4-SM1310 | 40GBASE-LX4, QSFP+ transceiver, 1310 nm, Duplex LC, 150 m over OM3/OM4 MMF, 2 km over SMF |
| 40G-AOC-5M | 40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers |
