Key Specification
| Fixed service port | 48 x 10/100/1000BAST-T ports
4 x 1GE/10GE SFP+ ports |
Fixed management port | 1 x RJ45 console port
1 x RJ45 MGMT port |
| Fan | 2 x fixed fan modules | System switching capacity | 787 Gbps |
| System packet forwarding rate | 586 Mpps | Unit dimensions (W x D x H) | 440 mm x 340 mm x 44 mm (17.32 in. x 13.39 in. x 1.73 in.) |
| Operating temperature | 0°C to 45°C (32°F to 113°F), without expansion modules
0ºC to 40ºC (32°F to 104°F), with expansion modules |
Warranty duration | 3 years |
Features

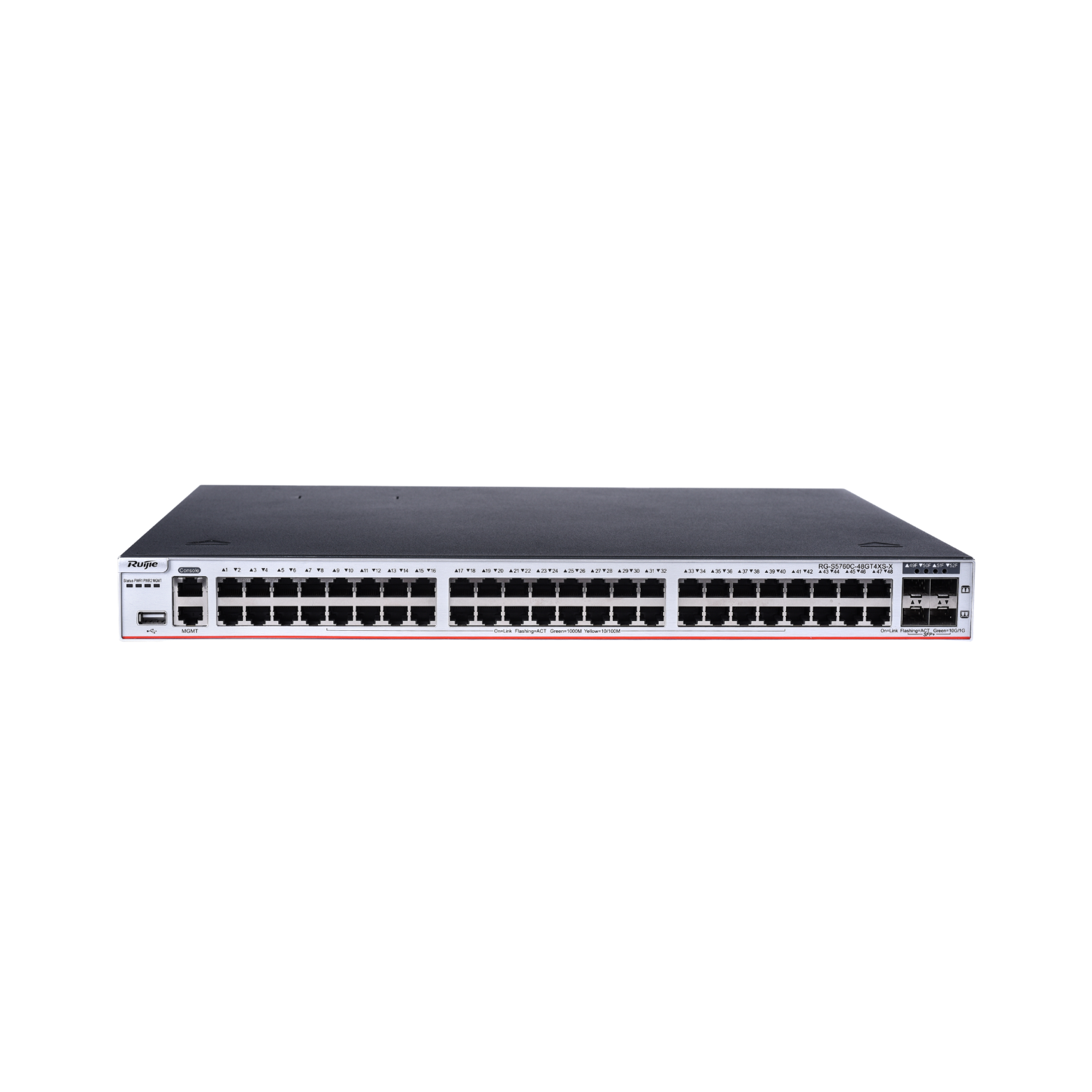

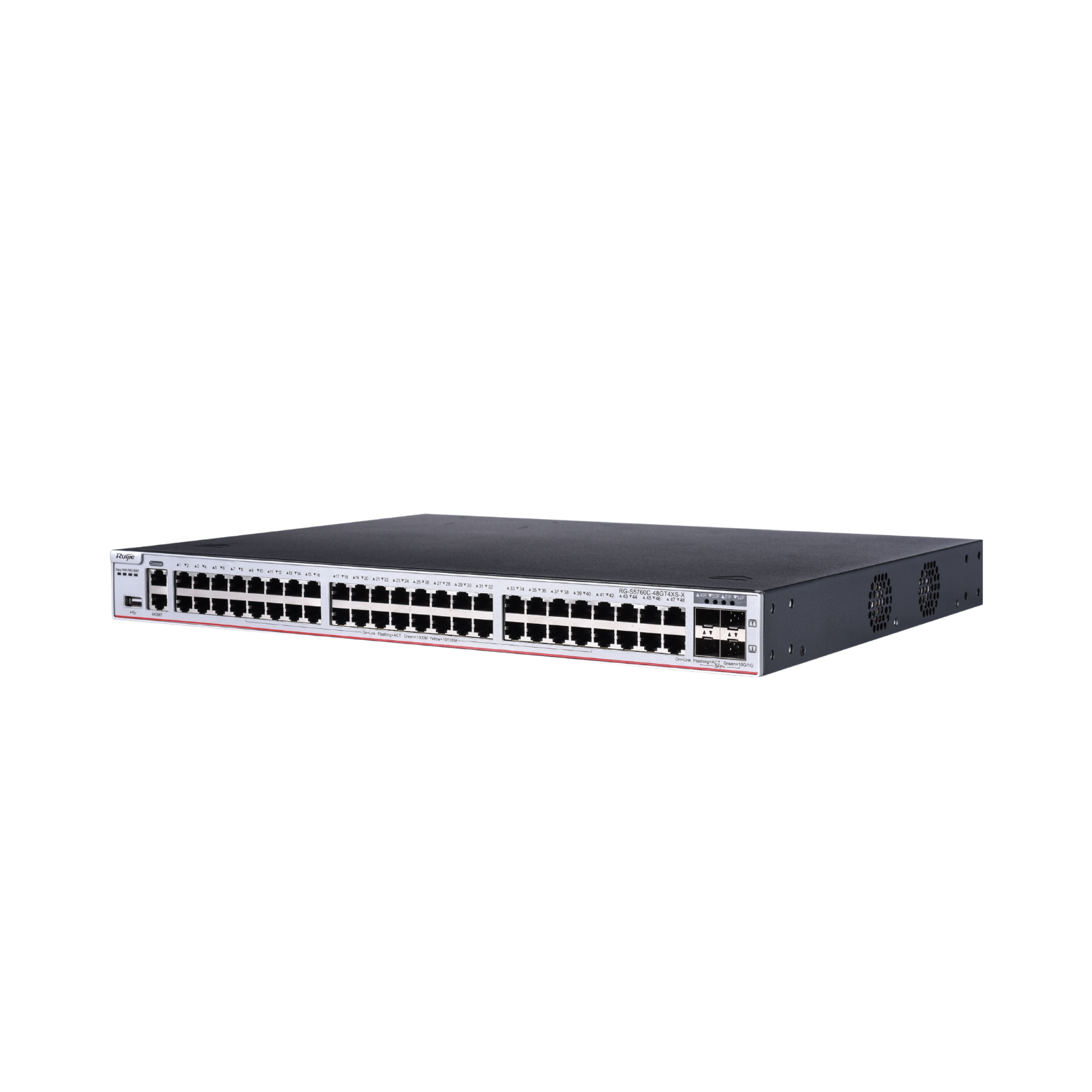

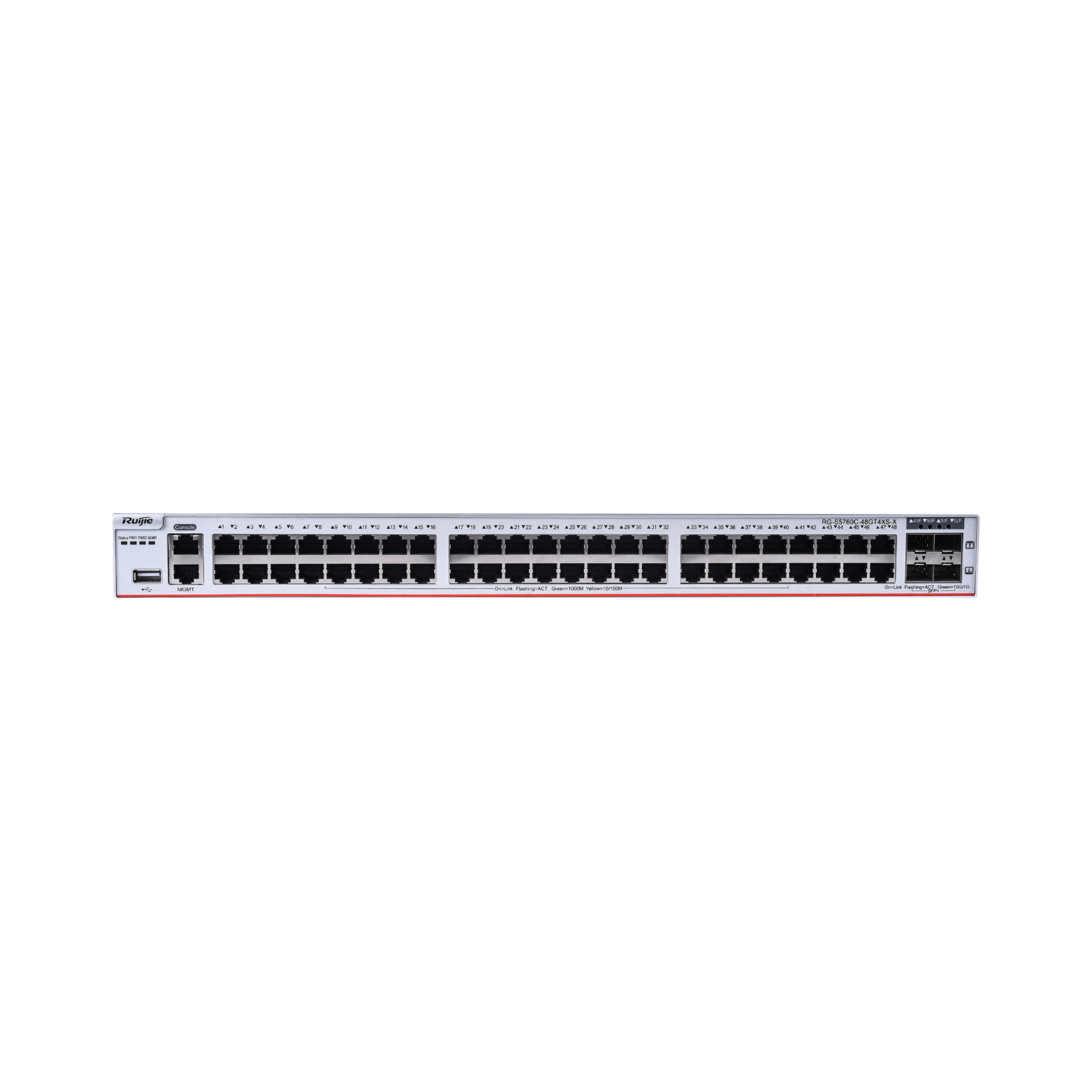

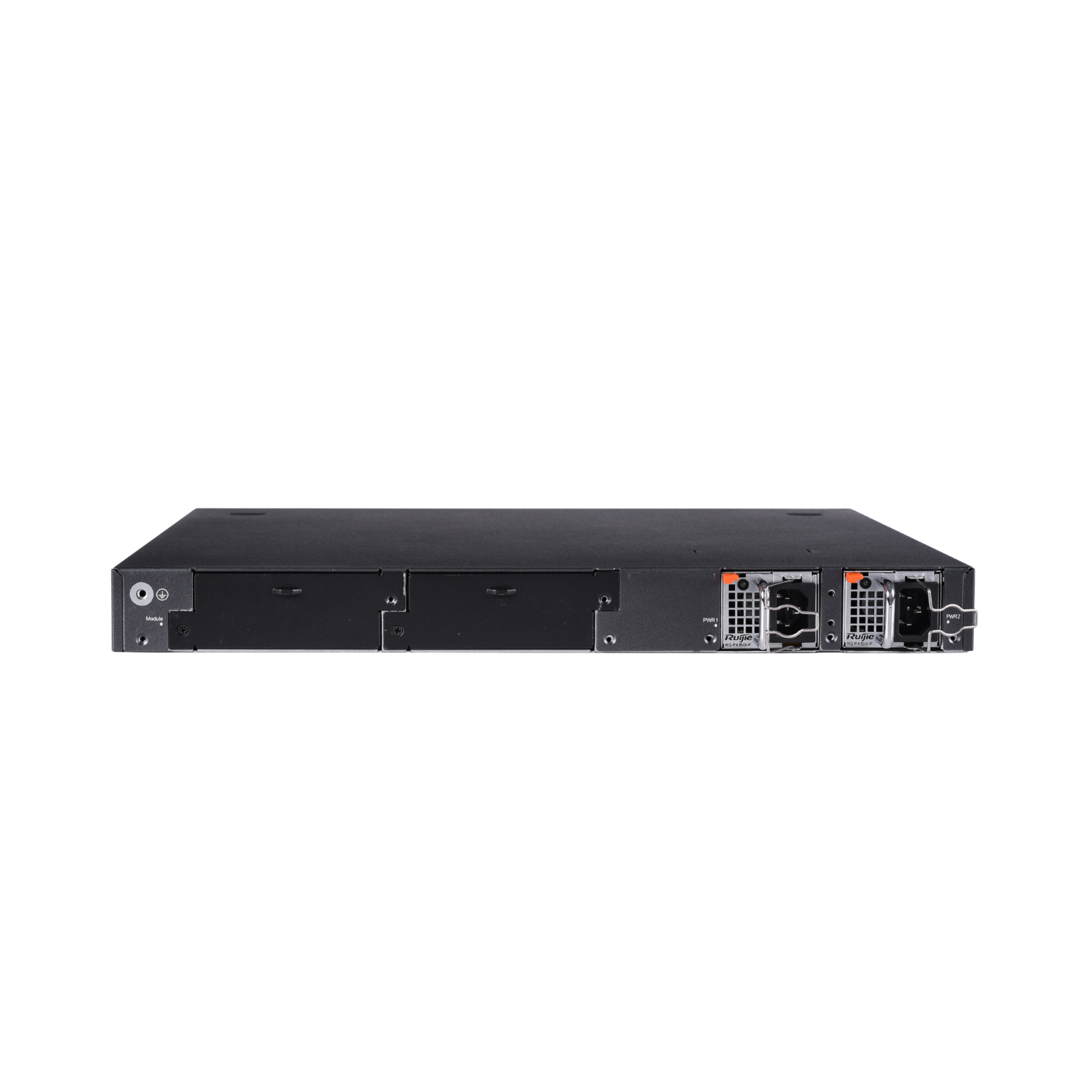

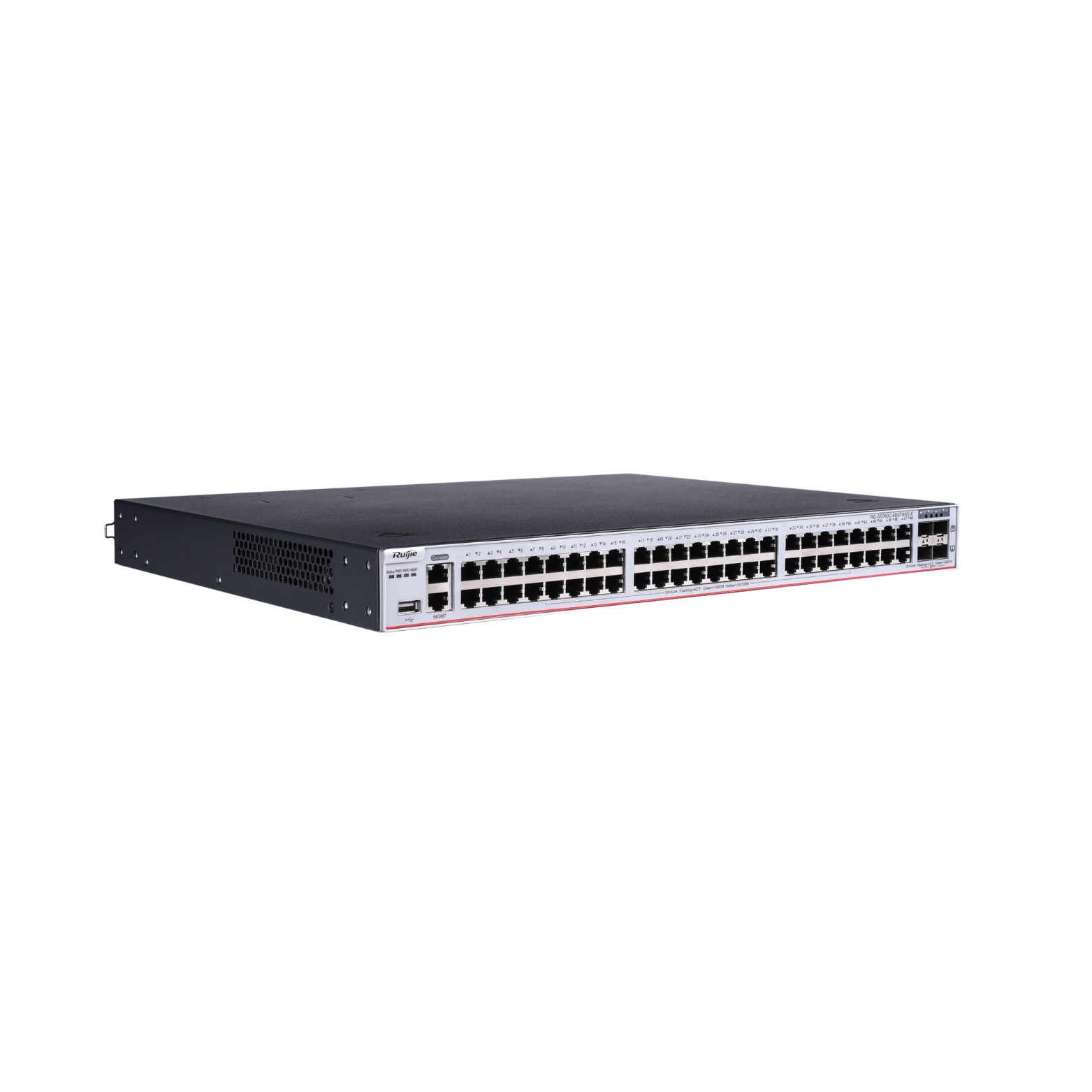

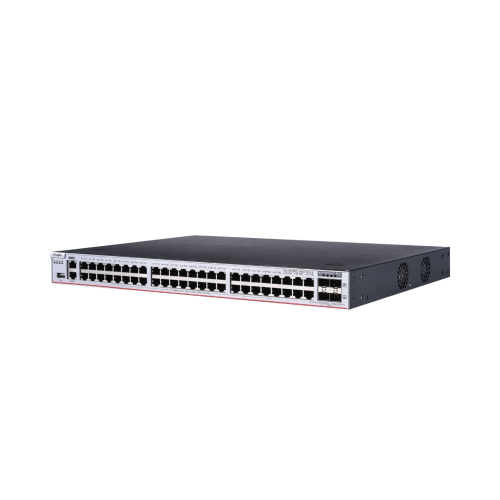

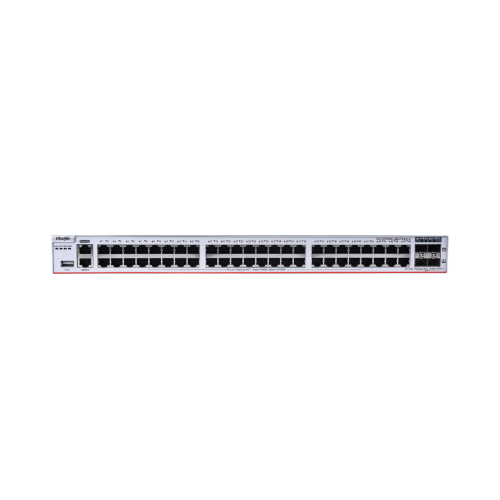

Layer 3 GE Core & Aggregation Switch S5760C-48GT4XS-X
Aggregation switch for small and medium-sized campus networks, with 4 x 1GE/10GE SFP+ uplink ports for high-speed data transmission; 48 x 10/100/1000BAST-T ports, providing high-speed network experience for short-distance services. Core switch for small and medium-sized enterprise networks, with high scalability, efficiency, and manageability, and device-level and link-level reliabilities for stable connectivity.
Hardware Redundancy, Guaranteed Service Continuity and Network Connectivity
Hardware-level Boot Redundancy
Two Flash chips are used to store the system boot program for hardware-level boot redundancy, avoiding device failure caused by a failed Flash chip.
Hot-Swappable Power Modules
Power module failover can be achieved in a few seconds. Power modules can be replaced without affecting device operation, providing dual protection for the network.
VSU Virtualization, Flexible Networking and High Performance
Millisecond Failover
The VSU connects to peripherals through an aggregate link, realizing service switching in milliseconds upon a failure.
High Scalability
VSU virtualization technology is supported to increase bandwidth through link aggregation, which greatly improves forwarding capabilities of the switch.
Simplified Networking
Multiple physical switches can be virtualized into one logical unit to simplify network configuration and architecture, eliminating loops, and improving reliability.
Layer 3 Routing Control, Adaptive to Multiple Services, Efficient and Guaranteed Data Transmission
IPv4 and IPv6 Protocols
The hardware supports dual stack for high-speed switching, catering to the requirements of campus network transition from IPv4 protocol to IPv6 protocol, with significant improvement in address table capacity and network security.
Abundant Multicast Protocols
Point-to-multipoint directional communication can avoid data redundancy on the network, realizing safe and efficient data transmission.
Static and Dynamic Routing
In simple campus scenarios, the switch can achieve easy configuration and high information security, while in large-scale interconnecting scenarios, the switch can realize auto-negotiated update of transmission paths to improve transmission quality.
Network Security Policies and Real-Time Monitoring, Delivering Enhanced Network Robustness
CPP
Large amounts of data from different sources are handled by CPP first to prevent direct attacks on the CPU, ensuring CPU stability under high usage, and achieving significant improvement in the device’s security performance.
NFPP
NFPP detects and controls malicious data in real time to protect CPU from high load damage, guaranteeing device management and operation, and improving network security and stability.
Ruijie Unified Networking Central (RG-UNC) Visualized Management, Automated and Effortless Operations
RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.
Specifications
Hardware Specifications
Port Specifications
| Port specifications | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X | RG-S5760C-48GT4XS-HP-X |
| Fixed service port | 24 x 10/100/1000BASE-T ports
8 x 1GE/10GE SFP+ ports |
48 x 10/100/1000BAST-T ports
4 x 1GE/10GE SFP+ ports |
24 x 1GE SFP ports
● Ports 1 to 16 support the rate of 100Mbps, ports 17 to 24 do not support the rate of 100Mbps ● Ports 1 to 8 are 10/100/1000BASE-T combo ports 8 x 1GE/10GE SFP+ ports |
48 x 1GE SFP ports
4 x 1GE/10GE SFP+ ports |
48 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/10GE SFP+ ports |
| Module slot | 1 x expansion module slot
2 x power module slots |
1 x expansion module slot
2 x power module slots |
1 x expansion module slot
2 x power module slots |
1 x expansion module slot
2 x power module slots 3 x fan module slots |
1 x expansion module slot
2 x power module slots 2 x fan module slots |
| Expansion module | M5000X-4XS2CQ
Note: The V1.X switch needs to be upgraded to version 12.5(4)B0701 or later to support the expansion module. |
||||
| Power module | RG-PA150IB-F
RG-PD150IB-F |
RG-PA150IB-F
RG-PD150IB-F |
RG-PA150IB-F
RG-PD150IB-F |
RG-PA150IB-F
RG-PD150IB-F |
RG-PA600I-P-F
RG-PA1000I-P-F |
| Fan module | Not Supported | Not Supported | Not Supported | M2SFAN I-F (pre-installed 3) | M2SFAN I-F (pre-installed 2) |
| Fixed management port | 1 x RJ45 console port
1 x RJ45 MGMT port |
||||
| USB | 1 x USB 2.0 port | ||||
System Specifications
| System specifications | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X | RG-S5760C-48GT4XS-HP-X |
| System packet forwarding rate *1 | 614 Mpps | 586 Mpps | 614 Mpps | 586 Mpps | 586 Mpps |
| System switching capacity *2 | 826 Gbps | 787 Gbps | 826 Gbps | 787 Gbps | 787 Gbps |
| CPU | Dual-core CPU, each core with the clock speed of 1.2 GHz | ||||
| Real-time clock (RTC) | Supported | ||||
| BootROM | 16 MB (2 flash chips for 1+1 boot redundancy) | ||||
| Flash memory | 4 GB eMMC | ||||
| Memory | 1 GB | 1 GB | 1 GB | 2 GB | 2 GB |
| Switch buffer | 4 MB | 4 MB | 4 MB | 4 MB | 4 MB |
| Number of MAC addresses | 64,000 | 64,000 | 64,000 | 64,000 | 64,000 |
| ARP table size | 24,000 | 24,000 | 24,000 | 24,000 | 24,000 |
| Number of IPv4 unicast routes | 24,000 | 24,000 | 24,000 | 24,000 | 24,000 |
| Number of IPv4 multicast routes | 4,000
MMU-enhance: 3,000 |
4,000
MMU-enhance: 3,000 |
4,000
MMU-enhance: 3,000 |
4,000
MMU-enhance: 3,000 |
4,000
MMU-enhance: 3,000 |
| Number of IPv6 unicast routes | 14,000 | 14,000 | 14,000 | 14,000 | 14,000 |
| Number of IPv6 multicast routes | 2,000
MMU-enhance: 1,500 |
2,000
MMU-enhance: 1,500 |
2,000
MMU-enhance: 1,500 |
2,000
MMU-enhance: 1,500 |
2,000
MMU-enhance: 1,500 |
| Number of ACEs | In: 7,000
Out:1,500 |
||||
| Number of IGMP groups | 4,000 | ||||
| Number of MLD groups | 1,000 | ||||
| Number of VSU members | 8 | ||||
*1 means the system’s packet forwarding rate.
*2 means the system’s switching capacity.
Power Supply and Consumption
| Power supply and consumption | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X |
| Power supply | 2 x pluggable power modules | |||
| Power input | RG-PA150IB-F (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 3 A RG-PD150IB-F (DC input): ● Rated input voltage: –48 V DC to –60 V DC ● Maximum input voltage: –36 V DC to –75 V DC ● Maximum input current: 5 A |
|||
| Maximum output power | RG-PA150IB-F: 150 W
RG-PD150IB-F: 150 W |
|||
| Maximum power consumption | 60 W (excluding expansion modules)
85 W (including expansion modules) |
70 W (excluding expansion modules)
95 W (including expansion modules) |
77 W (excluding expansion modules)
102 W (including expansion modules) |
105 W (excluding expansion modules)
125 W (including expansion modules) |
| Power supply and consumption | RG-S5760C-48GT4XS-HP-X |
| Power supply | 2 x pluggable power modules |
| Power input | RG-PA600I-P-F (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A RG-PA1000I-P-F (AC input 1): ● Rated input voltage: 100 V AC to 130 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz ● Maximum input current: 12 A RG-PA1000I-P-F (AC input 2): ● Rated input voltage: 200 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A |
| Maximum output power | RG-PA600I-P-F: 600 W
RG-PA1000I-P-F: ● 100 V AC to 130 V AC: 930 W ● 200 V AC to 240 V AC: 1000 W |
| PoE port | Ports 1 to 48 support PoE/PoE+ (IEEE 802.3af/at) power supply |
| PoE power cable pairs | Mode A (1-2, 3-6 pairs) |
| PoE output power | Each PoE port provides up to 30 W of power
The maximum power depends on the configured power supply ● 1 x RG-PA600I-P-F: 370 W ● 2 x RG-PA600I-P-F: 740 W ● 1 x RG-PA1000I-P-F: 740 W ● 2 x RG-PA1000I-P-F: 1480 W, a maximum output of 1440 W over 48 ports (30 W x 48) Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device. |
| Maximum power consumption | 120 W (without PoE load)
1,600 W (full PoE load) |
Dimensions and Weight
| Dimensions and weight | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X | RG-S5760C-48GT4XS-HP-X |
| Unit dimensions (W x D x H) | 440 mm x 340 mm x 44 mm (17.32 in. x 13.39 in. x 1.73 in.) | 442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) | |||
| Shipping dimensions (W x D x H) | 593 mm x 497 mm x 192 mm (23.35 in. x 19.57 in. x 7.56 in.) | 563 mm x 563 mm x 210 mm (22.17 in. x 22.17 in. x 8.27 in.) | |||
| Rack height | 1 RU | 1 RU | |||
| Unit weight | 4.4 kg (9.70 lbs) | 4.5 kg (9.92 lbs) | 4.3 kg (9.48 lbs) | 5.3 kg (11.68 lbs) | 5.5 kg (12.13 lbs) |
| Shipping weight | 6.20 kg (13.67 lbs) | 6.30 kg (13.89 lbs) | 6.30 kg (13.89 lbs) | 7.80 kg (17.20 lbs) | 7.70kg (16.98 lbs) |
Environment and Reliability
| Environment and reliability | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X | RG-S5760C-48GT4XS-HP-X |
| Temperature | Operating temperature:
● 0°C to 45°C (32°F to 113°F), V1.X without expansion modules or V2.X ● 0ºC to 40ºC (32°F to 104°F), V1.X with expansion modules Storage temperature: –40°C to +70°C (–40°F to +158°F) |
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) |
|||
| Note: At an altitude between 1,800 m ( 5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). | |||||
| Humidity | Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
||||
| Altitude | Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
||||
| Mean time between failure (MTBF) | 1,025,280 hours (about 120 years) | 939,840 hours (about 110 years) | 803,136 hours (about 94 years) | 768,960 hours (about 90 years) | 811,680 hours (about 95 years) |
| Fan | 2 x fixed fan modules | 2 x fixed fan modules | 2 x fixed fan modules | 3 x pluggable fan modules | 2 x pluggable fan modules |
| Heat dissipation | Fan cooling, left-to-right airflow | Fan cooling, front-to-rear airflow | |||
| Acoustic noise | 45°C (113°F): 56.2 dB | 45°C (113°F): 57.9 dB | 45°C (113°F): 56.2 dB | 27°C (80.6°F): 50 dB
45°C (113°F): 65 dB |
27°C (80.6°F): 53 dB
45°C (113°F): 68 dB |
| Power module redundancy | 1+1 redundancy | 1+1 redundancy | 1+1 redundancy | 1+1 redundancy | 1+1 redundancy |
| Fan redundancy | Not supported | Not supported | Not supported | 2+1 redundancy | 1+1 redundancy |
| Power module hot swapping | Supported | ||||
| USB hot swapping | Supported | ||||
| Cable hot swapping | Supported | ||||
| Power supply monitoring | Monitoring of the power supply model and status
Power supply failure alarming |
||||
| Fan monitoring | Fan speed adjustment: 3 levels
Fan failure alarming |
||||
| Temperature monitoring | Temperature monitoring, over-temperature alarming | ||||
| ESD | ESD contact/air discharge: 6 kV/8 kV
ESD susceptibility contact/air discharge: 8 kV/15 kV |
||||
| Surge protection | MGMT port: 4 kV
Service port: 10 kV Power port: common mode 6 kV, differential mode 6 kV |
||||
Certifications and Regulatory Compliance
| Certifications and regulatory compliance | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X | RG-S5760C-48GT4XS-HP-X |
| Safety regulation | IEC 62368-1 | ||||
| EMC regulation | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 | ||||
| RoHS | European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863 | ||||
Software Specifications
| Feature | RG-S5760C-X Series |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.1Q (supporting 4K VLANs) | |
| Voice VLAN | |
| Super-VLAN and private VLAN | |
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
| GVRP | |
| Basic QinQ and selective QinQ | |
| STP, RSTP, and MSTP | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED | |
| LACP (IEEE 802.3ad) | |
| IP service | ARP |
| DHCP client, DHCP relay, and DHCP server | |
| DHCP snooping | |
| DNS | |
| DHCPv6 client, DHCPv6 server, and DHCPv6 relay | |
| DHCPv6 snooping | |
| Neighbor Discovery (ND) and ND snooping | |
| IPV6 addressing, ICMPv6, Stateless Address Auto-configuration (SLAAC), and path MTU discovery | |
| IP routing | Static routing |
| RIP and RIPng | |
| OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6 | |
| BGP4 and BGP4+ | |
| ECMP | |
| IPv4 and IPv6 VRF | |
| IPv4 and IPv6 PBR | |
| Multicast | IGMP v1/v2/v3 and IGMP proxy |
| IGMP v1/v2/v3 snooping | |
| IGMP filtering and IGMP fast leave | |
| PIM-DM, PIM-SM, and PIM-SSM | |
| MSDP | |
| MLD snooping v1/v2 | |
| PIM-SMv6 and PIM-SSM v6 | |
| MPLS | MPLS L3VPN |
| ACL and QoS | Standard IP ACLs
Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL |
| ACL redirection | |
| Port traffic identification | |
| Port traffic rate limiting | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| 802.1p/DSCP/ToS traffic classification
Eight priority queues per port |
|
| Security | AAA |
| RADIUS and TACAS+ | |
| Port-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| HTTPS | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| Port isolation and port security | |
| IP source guard | |
| SAVI | |
| CPP and NFPP | |
| Strict and loose RPF
uRPF ignoring default routes |
|
| 3-tuple binding (IP address, MAC address, and port)
3-tuple binding (IPv6 address, MAC address, and port) Filtering of unauthorized MAC addresses MAC address bypass (MAB) authentication Portal authentication and Portal 2.0 authentication ARP check Dynamic ARP Inspection (DAI) ARP packet rate limiting Gateway ARP anti-spoofing Broadcast storm suppression Hierarchical management of administrators and password protection AAA for device login management MAC Authentication Bypass (SSH) BPDU guard Port protection |
|
| Reliability | REUP, RLDP, and DLDP |
| IPv4 VRRP v2/v3 and IPv6 VRRP | |
| GR for RIP, OSPF, BGP, and other routing protocols | |
| BFD | |
| Link tracing, fault notification, and remote loopback based on 802.3ah (EFM) | |
| 1+1 power module redundancy | |
| Hot swapping of power modules and cables | |
| 3-level fan speed adjustment
Fan fault alarm |
|
| Device virtualization | VSU |
| NMS and maintenance | SPAN, RSPAN, and ERSPAN |
| sFlow | |
| NTP and SNTP | |
| FTP and TFTP | |
| SNMP v1/v2c/v3 | |
| RMON (1, 2, 3, 9) | |
| SSHv1 and SSHv2 | |
| Syslog | |
| NETCONF | |
| CWMP (TR-069) | |
| gRPC | |
| CLI (Telnet/Console), SNMP over IPv6, IPv6 MIB support for SNMP, SSHv6, Telnet v6, FTP/TFTP v6, DNS v6, NTP for IPv6, and Traceroute v6 | |
| PoE | RG-S5760C-48GT4XS-HP-E:
IEEE 802.3af and 802.3at, uninterruptible power supply upon hot start, and port priority |
| VXLAN | With VXLAN, a Layer 2 logical network can be built based on a Layer 3 network through software upgrade. |
Order Information
Order switches, expansion modules, power modules, and other components as needed. Before ordering an expansion module or power module, contact our online customer service team for the latest support information about the module.
Switches and Power Modules
| Model | Description |
| RG-S5760C-24GT8XS-X | 24 x 10/100/1000BASE-T ports, 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots.
Purchase at least one RG-PA150IB-F module. |
| RG-S5760C-48GT4XS-X | 48 x 10/100/1000BAST-T ports，4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots.
Purchase at least one RG-PA150IB-F module. |
| RG-S5760C-24SFP/8GT8XS-X | 24 x 1GE SFP ports (ports 1 to 16 support the rate of 100Mbps, ports 17 to 24 do not support the rate of 100Mbps, ports 1 to 8 are 10/100/1000BASE-T combo ports), 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fans, 2 x power module slots.
Purchase at least one RG-PA150IB-F module. |
| RG-S5760C-48SFP4XS-X | 48 x 1GE SFP ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x modular fans, 2 x power module slots.
Purchase at least one RG-PA150IB-F module. |
| RG-PA150IB-F | 150 W AC power module |
| RG-PD150IB-F | 150 W DC power module |
| Model | Description |
| RG-S5760C-48GT4XS-HP-X | 48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x modular fans, 2 x power module slots
Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module. |
| RG-PA600I-P-F | 600 W AC power module |
| RG-PA1000I-P-F | 1000 W AC power module |
Expansion module
| Model | Description |
| M5000X-4XS2CQ | 4 x 1GE/10GE SFP+ ports, 2 x 40GE/100GE QSFP28 ports |
Note:
- 1GE/10GE SFP+ ports support 1GE SFP transceivers, 10GE SFP+ transceivers.
- 40GE QSFP+ ports support 40GE QSFP+ transceivers. The port can work in 4 x 10GE mode.
- 40GE/100GE QSFP28 ports support 40GE QSFP+ transceivers and 100GE QSFP28 transceivers.
Optical Transceivers and Cables
1GE
| Model | Description |
| Mini-GBIC-GT | 1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation |
| MINI-GBIC-SX-MM850 | 1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF |
| GE-SFP-LX20-SM1310-BIDI | 1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF |
| GE-SFP-LX20-SM1550-BIDI | 1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF |
| GE-SFP-LH40-SM1310-BIDI | 1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF |
| GE-SFP-LH40-SM1550-BIDI | 1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF |
| GE-SFP-LX03-SM1310-BIDI-I | 1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF |
| GE-SFP-LX03-SM1550-BIDI-I | 1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF |
10GE
| Model | Description |
| XG-SFP-SR-MM850 | 10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF |
| XG-SFP-LR-SM1310 | 10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF |
| XG-SFP-ER-SM1550 | 10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF |
| XG-SFP-ZR-SM1550 | 10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF |
| XG-SFP-LR10-SM1270-BIDI-I | 10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF |
| XG-SFP-LR10-SM1330-BIDI-I | 10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF |
| XG-SFP-AOC1M | 10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers |
| XG-SFP-AOC3M | 10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers |
| XG-SFP-AOC5M | 10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers |
40GE
| Model | Description |
| 40G-QSFP-LR4-SM1310 | 40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| 40G-QSFP-iLR4-SM1310 | 40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF |
| 40G-AOC-5M | 40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers |
100GE
| Model | Description |
| 100G-QSFP-SR-MM850 | 100GBASE-SR, QSFP28 transceiver, 850 nm, MPO 1 x 12, 100 m over OM4 MMF, 70 m over OM3 MMF |
| 100G-QSFP-LR4-SM1310 | 100GBASE-LR4, QSFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| 100G-AOC-10M | 100GBASE, QSFP28 active optical cable (AOC), 10 m, including one cable and two optical transceivers |
