Features

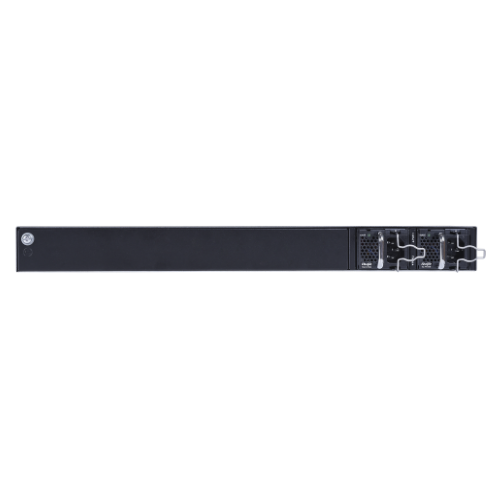

Layer 3 Compact Access Switch for 10GE Uplink RG-S5360-24GT4XS-E
Next-gen gigabit Ethernet switches with secure, high-efficiency, and energy-saving features, providing full gigabit access, 10GE uplink support, and enhanced performance through the latest RGOS12.X modular OS.
Nano Coating Protection for Enhanced Durability
Feature advanced nano-coating on PCBs, offering 30% improved durability with anti-corrosion, salt tolerance, and anti-sulfurization, making them ideal for coastal and industrial environments.
Hot-pluggable Dual Power Modules for Higher Reliability
Equipped with two pluggable power modules that work in 1+1 redundancy backup mode, and can operates continuously without interruption, ensuring stable performance.
Stronger Interference Resistance with Wide Temperature Range & 10kV Surge Protection
Support a temperature range from –40°C to +65°C and feature 10kV surge protection, providing consistent performance and improved protection against interference in extreme conditions.
RG-UNC for Visualized Management, Automated & Effortless Operations
RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.
Specifications
Hardware Specifications
| Port specifications | RG- S5360-24GT4XS-E | RG- S5360-48GT4XS-E | RG- S5360-24GT4XS-P-E | RG- S5360-48GT4XS-P-E |
| Fixed service port | 24 x 10/100/1000BASE-T ports
4 x 1GE/2.5GE/10GE SFP+ ports |
48 x 10/100/1000BASE-T ports
4 x 1GE/2.5GE/10GE SFP+ ports |
24 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/2.5GE/10GE SFP+ ports |
48 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/2.5GE/10GE SFP+ ports |
| Module slot | 2 x power module slots | |||
| Power module | PA70IB | PA600IP-F
PA1000IP-F (supporting mixed insertion) |
||
| Fixed management port | 1 x RJ45 console port | |||
| USB | 1 x USB 2.0 port | |||
| System specifications | RG- S5360-24GT4XS-E | RG- S5360-48GT4XS-E | RG- S5360-24GT4XS-P-E | RG- S5360-48GT4XS-P-E |
| System packet forwarding rate*1 | 115 Mpps | 158 Mpps | 115 Mpps | 158 Mpps |
| Switching capacity*2 | 128 Gbps / 336 Gbps | 176 Gbps / 336 Gbps | 128 Gbps / 336 Gbps | 128 Gbps / 336 Gbps |
| CPU | Dual-core CPU, each core with the clock speed of 1.0 GHz | |||
| Real-time clock (RTC) | Supported | |||
| BootROM | 16 MB (storing boot software for 1+1 boot redundancy) | |||
| Flash memory | 512 MB | |||
| Memory | 1GB DDR4 | |||
| Switch buffer | 4 MB | |||
| Number of MAC addresses | 16,000 | |||
| ARP table size | 4,000 | |||
| ND table size | 4,000 | |||
| Number of IPv4 unicast routes | 6,000 | |||
| Number of IPv4 multicast routes | 1,000 | |||
| Number of IPv6 unicast routes | 2,000 | |||
| Number of IPv6 multicast routes | 750 | |||
| Number of ACEs | Ingress: 1,750
Egress: 800 |
|||
| Number of IGMP groups | 1,000 | |||
| Number of MLD groups | 750 | |||
| Number of VSU members | 8 | |||
*1 means the system’s packet forwarding rate.
*2 means that the value before the slash (/) refers to the port’s switching capability, while the value after the slash (/) refers to the system’s switching capability.
| Power supply and consumption | RG- S5360-24GT4XS-E | RG- S5360-48GT4XS-E |
| Power supply | 2 x pluggable power modules | |
| Power module redundancy | 1+1 redundancy | |
| Power input | RG-PA70IB (AC input):
Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz Maximum input current: 2 A |
|
| Maximum output power | RG-PA70IB: 70 W | |
| Maximum power consumption | 25 W | 30 W |
| Energy saving | Supported | |
| Power supply and consumption | RG- S5360-24GT4XS-P-E | RG- S5360-48GT4XS-P-E |
| Power supply | 2 x pluggable power modules | |
| Power module redundancy | Only when the PoE load of the whole device is less than PoE output power of single power supply and dual power supplies are used, redundancy is supported. | |
| Power input | RG-PA600I-P-F (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A RG-PA1000I-P-F (AC input 1): ● Rated input voltage: 100 V AC to 130 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz ● Maximum input current: 12 A RG-PA1000I-P-F (AC input 2): Rated input voltage: 200 V AC to 240 V AC, 50/60 Hz Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz Maximum input current: 8 A |
|
| Maximum output power | RG-PA600I-P-F: 600 W
RG-PA1000I-P-F: 100 V AC to 130 V AC: 930 W 200 V AC to 240 V AC: 1000 W Note: When the ambient temperature is higher than 55°C (131°F), the maximum output power is reduced by 50%. |
|
| PoE port | Ports 1 to 24 support PoE/PoE+ (IEEE802.3af/at) power supply | Ports 1 to 48 support PoE/PoE+ (IEEE802.3af/at) power supply |
| PoE power cable pairs | Mode A (1-2, 3-6 pairs) | |
| PoE output power | Each PoE port provides up to 30 W of power.
The maximum power depends on the configured power supply. 1 x RG-PA600I-P-F: 370 W 2 x RG-PA600I-P-F: 740 W; 1 x RG-PA1000I-P-F: 740 W; 2 x RG-PA1000I-P-F: 1480 W; a maximum output of 720 W over 24 ports (30 W x 24) Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device. |
Each PoE port provides up to 30 W of power.
The maximum power depends on the configured power supply. 1 x RG-PA600I-P-F: 370 W 2 x RG-PA600I-P-F: 740 W; 1 x RG-PA1000I-P-F: 740 W; 2 x RG-PA1000I-P-F: 1480 W; a maximum output of 1440 W over 48 ports (30 W x 48) Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device. |
| Maximum power consumption | 35 W (without PoE load)
750 W (full PoE load) |
45 W (without PoE load)
1485 W (full PoE load) |
| Energy saving | Supported | |
| Dimensions and weight | RG- S5360-24GT4XS-E | RG- S5360-48GT4XS-E | RG- S5360-24GT4XS-P-E | RG- S5360-48GT4XS-P-E |
| Unit dimensions (W x D x H) | 442mm x 420 mm x 43.6 mm (17.40 in. x 16.53 in. x 1.72 in.) | |||
| Rack height | 1 RU | |||
| Unit weight | 4.4 kg (9.70 lbs) | 4.4 kg (9.70 lbs) | 4.2 kg (9.26 lbs) | 4.9 kg (10.80 lbs) |
| Mounting | Mounting on a workbench or in a rack (cabinet) | |||
| Environment and reliability | RG- S5360-24GT4XS-E | RG- S5360-48GT4XS-E | RG- S5360-24GT4XS-P-E | RG- S5360-48GT4XS-P-E |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F) at an altitude range of 0 m to 1,800 m (0 ft. to 5,905.51 ft.)
Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
Storage temperature: –40°C to +70°C (–40°F to +158°F)
|
Operating temperature: -40°C to +65°C (-40°F to +149°F) at an altitude range of 0 m to 1,800 m (0 ft. to 5,905.51 ft.)
Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
Storage temperature: –40°C to +70°C (–40°F to +158°F)
|
Operating temperature: -40°C to +65°C (-40°F to +149°F) at an altitude range of 0 m to 1,800 m (0 ft. to 5,905.51 ft.)
Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). When three or four 80-km long-reach optical transceivers are configured, the operating temperature range is –40°C to +50°C (–40°F to +122°F).
Storage temperature: –40°C to +70°C (–40°F to +158°F)
|
|
| Humidity | Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
|||
| Altitude | Operating altitude: -500 m to +5,000 m (-1640.42 ft. to +16,404.20 ft.)
Storage altitude: -500 m to +5,000 m (-1640.42 ft. to +16,404.20 ft.) |
|||
| Mean time between failure (MTBF) | 207,962 hours (about 23 years) | 208,926 hours (about 23 years) | 209,714 hours (about 23 years) | 200,253 hours (about 22 years) |
| Fan | Fanless | 2x fixed fan module | ||
| Heat dissipation | Fanless design, natural cooling | Left-to-rear, front-to-rear | ||
| Acoustic noise | SPL: fanless, quiet, < 20 dB | SPL at ambient temperature of 27°C (80.6°F): 36 dB | SPL at ambient temperature of 27°C (80.6°F): 36 dB (30% PoE load, 2 RG-PA1000I-P-F power modules, adjusted fan speed) | SPL at ambient temperature of 27°C (80.6°F): 36 dB (30% PoE load, 2 RG-PA1000I-P-F power modules, adjusted fan speed) |
| Power module hot swapping | Supported | |||
| USB hot swapping | Supported | |||
| Cable hot swapping | Supported by all ports | |||
| Fan monitoring | Fanless design | PID-based multi-level speed adjustment
Fan speed control (manual configuration not supported) Fan failure alarming |
||
| Temperature monitoring | Supported | |||
| ESD | ESD contact/air discharge: 6 kV/8 kV
ESD susceptibility contact/air discharge: 8 kV/15 kV |
|||
| Surge protection | Service port: common mode 10 kV
Power port: common mode 6 kV, differential mode 6 kV |
|||
| Certifications and regulatory compliance | RG- S5360-24GT4XS-E | RG- S5360-48GT4XS-E | RG- S5360-24GT4XS-P-E | RG- S5360-48GT4XS-P-E |
| Safety regulation | IEC 62368-1 | |||
| EMC regulation | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 | |||
| RoHS | European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863 | |||
Software Specifications
| RG-S5360-E Series | |
| Feature | Description |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.3az EEE | |
| IEEE 802.1Q (4,000 VLANs) | |
| Voice VLAN | |
| Super VLAN and private VLAN | |
| MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN | |
| GVRP | |
| Basic QinQ
Selective QinQ |
|
| STP, RSTP, and MSTP | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED | |
| IP service | ARP |
| DHCP client, DHCP relay, and DHCP server | |
| DHCP snooping | |
| DNS | |
| DHCPv6 client, DHCPv6 relay, and DHCPv6 server | |
| DHCPv6 snooping | |
| Neighbor Discovery (ND) and ND snooping | |
| IP routing | Static routing |
| RIP and RIPng | |
| OSPFv2 and OSPFv3 | |
| BGP4 and BGP4+ | |
| IPv4 and IPv6 VRF | |
| IPv4 and IPv6 PBR | |
| Multicast | IGMP v1/v2/v3, and IGMP proxy |
| IGMP v1/v2 snooping | |
| PIM-DM, PIM-SM, and PIM-SSM | |
| MSDP | |
| MLD v1/v2 | |
| MLD snooping v1/v2 | |
| PIM-SMv6 and PIM-SSM v6 | |
| ACL and QoS | Standard IP ACLs
Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL |
| ACL redirection | |
| Traffic rate limiting on an interface | |
| Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop | |
| 802.1p/DSCP/ToS traffic classification
Eight priority queues per interface |
|
| Security | Multiple AAA modes |
| RADIUS and TACACS+ | |
| Interface-based and MAC address-based 802.1x authentication | |
| Web authentication | |
| HTTPS | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| Port isolation and port security | |
| IP source guard | |
| SAVI | |
| CPP and NFPP | |
| Reliability | REUP, RLDP, DLDP |
| IPv4 VRRP v2/v3 and IPv6 VRRP | |
| BFD | |
| Link tracing, fault notification, and remote loopback based on 802.3ah (EFM) | |
| Dual-boot redundancy | |
| Fan speed adjustment
Fan fault alarm |
|
| Device virtualization | Virtual Switching Unit (VSU) |
| NMS and maintenance | SPAN, RSPAN |
| sFlow | |
| NTP and SNTP | |
| FTP and TFTP | |
| SNMP v1/v2/v3 | |
| RMON (1, 2, 3, 9) | |
| NETCONF | |
| CWMP (TR-069) | |
| gRPC | |
| PoE | RG-S5360-E-24GT4XS-P-E, and RG-S5360-E-48GT4XS-P-E:
IEEE 802.3af and 802.3at Warm start Interface priority |
Order Information
Follow the steps to order the RG-S5360-E series switches.
- Select a switch and expansion modules based on port requirements.
- Select optical transceivers based on port requirements.
Models marked with asterisks (*) in the ordering information are available later.
Switches
| Model | Description |
| RG-S5360-24GT4XS-E | 24 x 10/100/1000BASE-T ports, 4 x 1GE/2.5GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured) |
| RG-S5360-48GT4XS-E | 48 x 10/100/1000BASE-T ports, 4 x 1GE/2.5GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured) |
| RG-S5360-24GT4XS-P-E | 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+ and the maximum PoE output power of 720 W, 4 x 1GE/2.5GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured, only when the PoE load of the whole device is less than PoE output power of single power supply and dual power supplies are used, redundancy is supported.) |
| RG-S5360-48GT4XS-P-E | 48 x 10/100/1000BASE-T ports, supporting PoE/PoE+ and the maximum PoE output power of 1440 W, 4 x 1GE/2.5GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured, only when the PoE load of the whole device is less than PoE output power of single power supply and dual power supplies are used, redundancy is supported.) |
Note:
4 x 1GE/2.5GE/10GE SFP+ ports support 1GE SFP transceivers, 2.5GE SFP transceivers and 10GE SFP+ transceivers.
Power Module
| Model | Description |
| RG-PA70IB | 70 W AC power module |
| RG-PA600I-P-F | 600 W AC power module |
| RG-PA1000I-P-F | 1000 W AC power module |
Optical Transceivers
1GE
| Model | Description |
| Mini-GBIC-GT | 1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation |
| MINI-GBIC-SX-MM850 | 1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF |
| GE-SFP-LX20-SM1310-BIDI | 1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF |
| GE-SFP-LX20-SM1550-BIDI | 1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF |
| GE-SFP-LH40-SM1310-BIDI | 1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF |
| GE-SFP-LH40-SM1550-BIDI | 1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF |
| GE-SFP-LX03-SM1310-BIDI-I | 1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF |
| GE-SFP-LX03-SM1550-BIDI-I | 1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF |
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
2.5GE
| Model | Description |
| 2.5G-SFP-LX03-SM1310- BIDI-I | 2.5GBASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF |
| 2.5G-SFP-LX03-SM1550- BIDI-I | 2.5GBASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF |
10GE
| Model | Description |
| XG-SFP-SR-MM850 | 10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF |
| XG-SFP-LR-SM1310 | 10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF |
| XG-SFP-ER-SM1550 | 10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF |
| XG-SFP-ZR-SM1550 | 10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF |
| XG-SFP-LR10-SM1270-BIDI-I | 10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF |
| XG-SFP-LR10-SM1330-BIDI-I | 10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF |
| XG-SFP-AOC1M | 10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers |
| XG-SFP-AOC3M | 10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers |
| XG-SFP-AOC5M | 10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers |
