Key Specification
| Fixed service port | 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/10GE SFP+ ports |
Fixed management port | 1 x RJ45 console port
1 x RJ45 MGMT port |
|
| Module slot | 2 x power module slots | System switching capacity | 154 Gbps | |
| System packet forwarding rate | 115 Mpps | Maximum power consumption | 65 W (without PoE load)
810 W (full PoE load) |
|
| Unit dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) | Flash Memory | 2GB | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) | Warranty duration | 3 years | |
Features

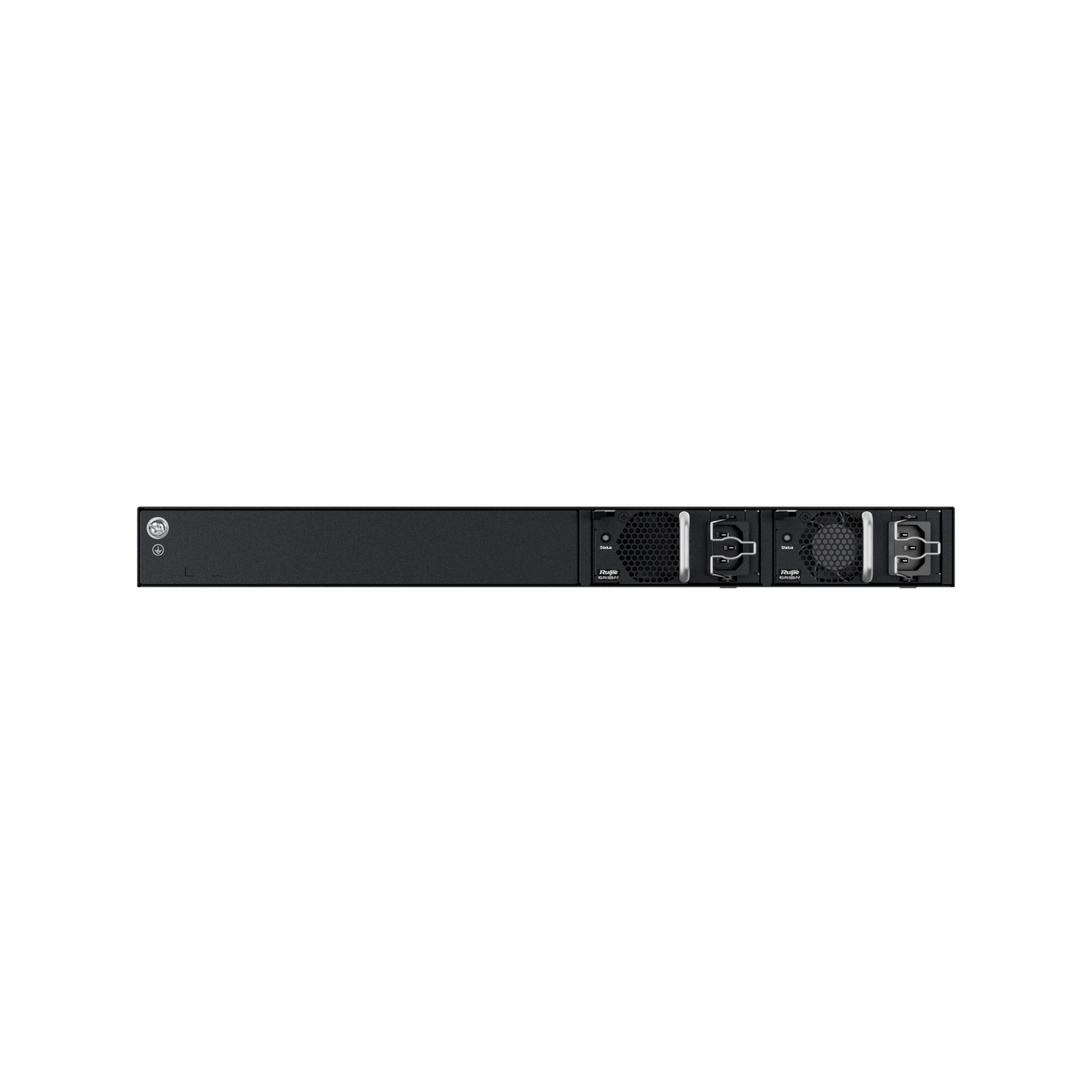

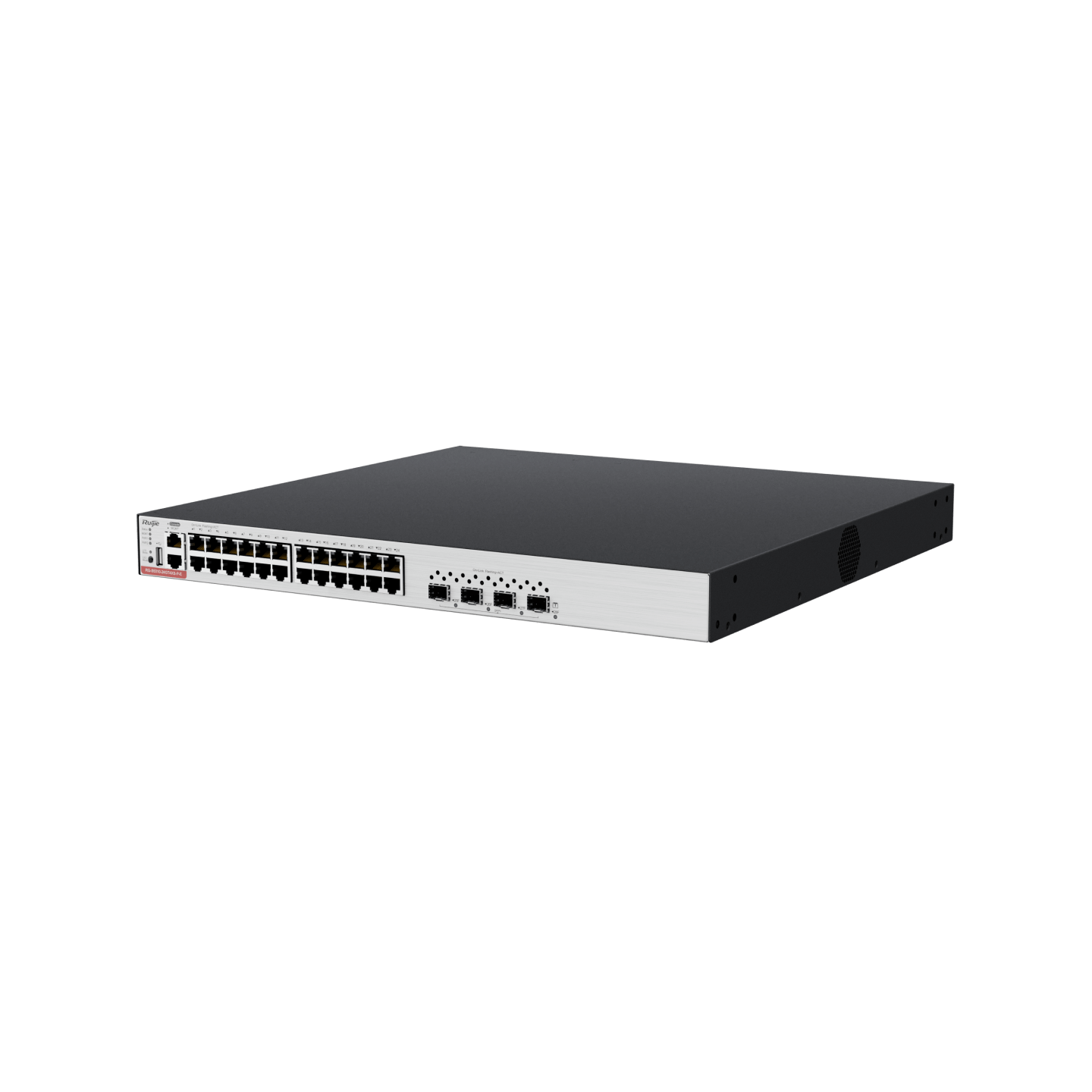

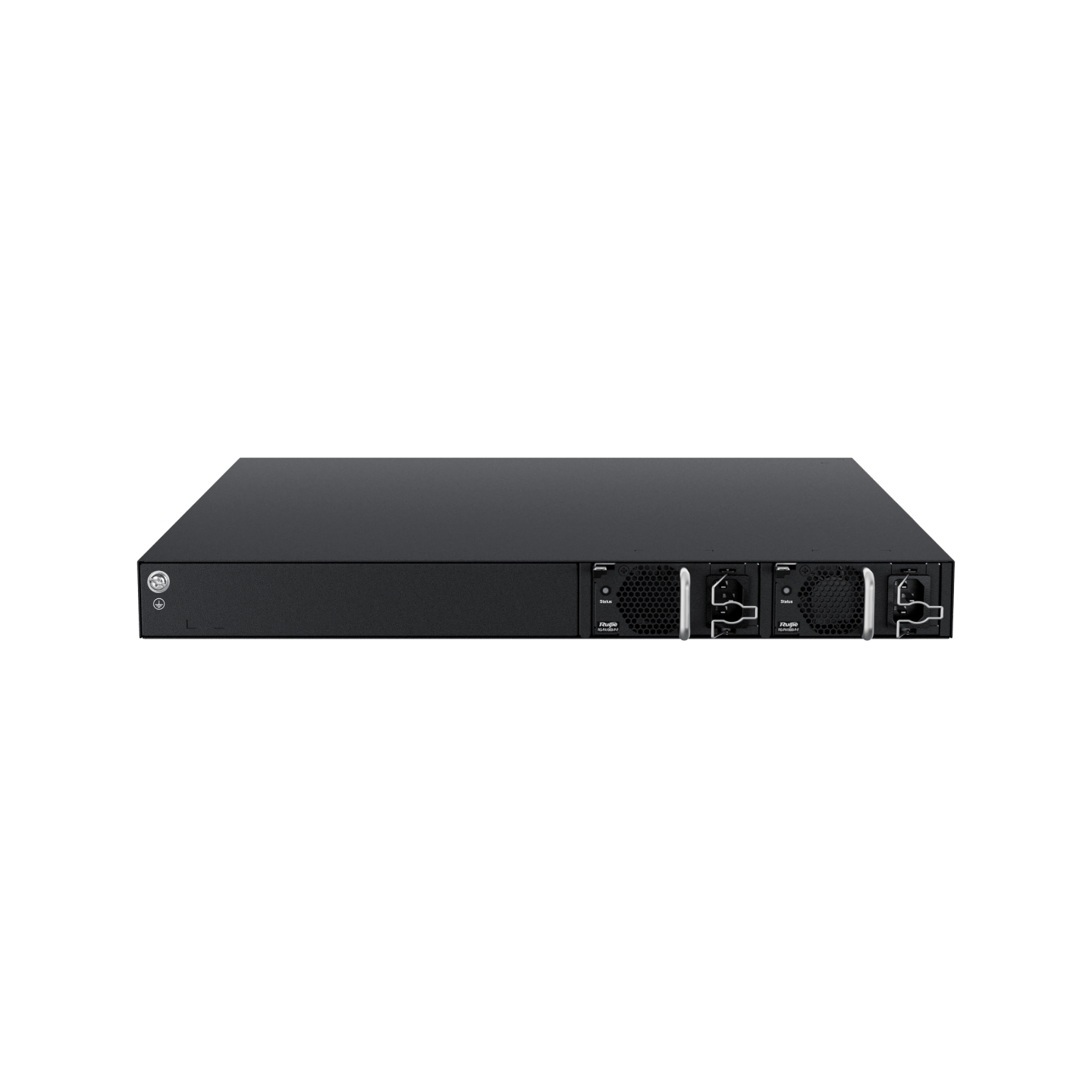

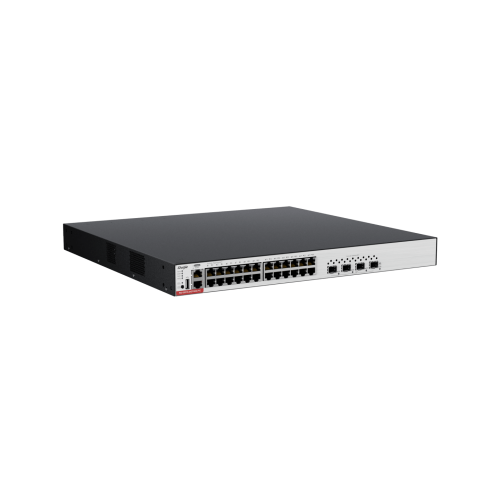

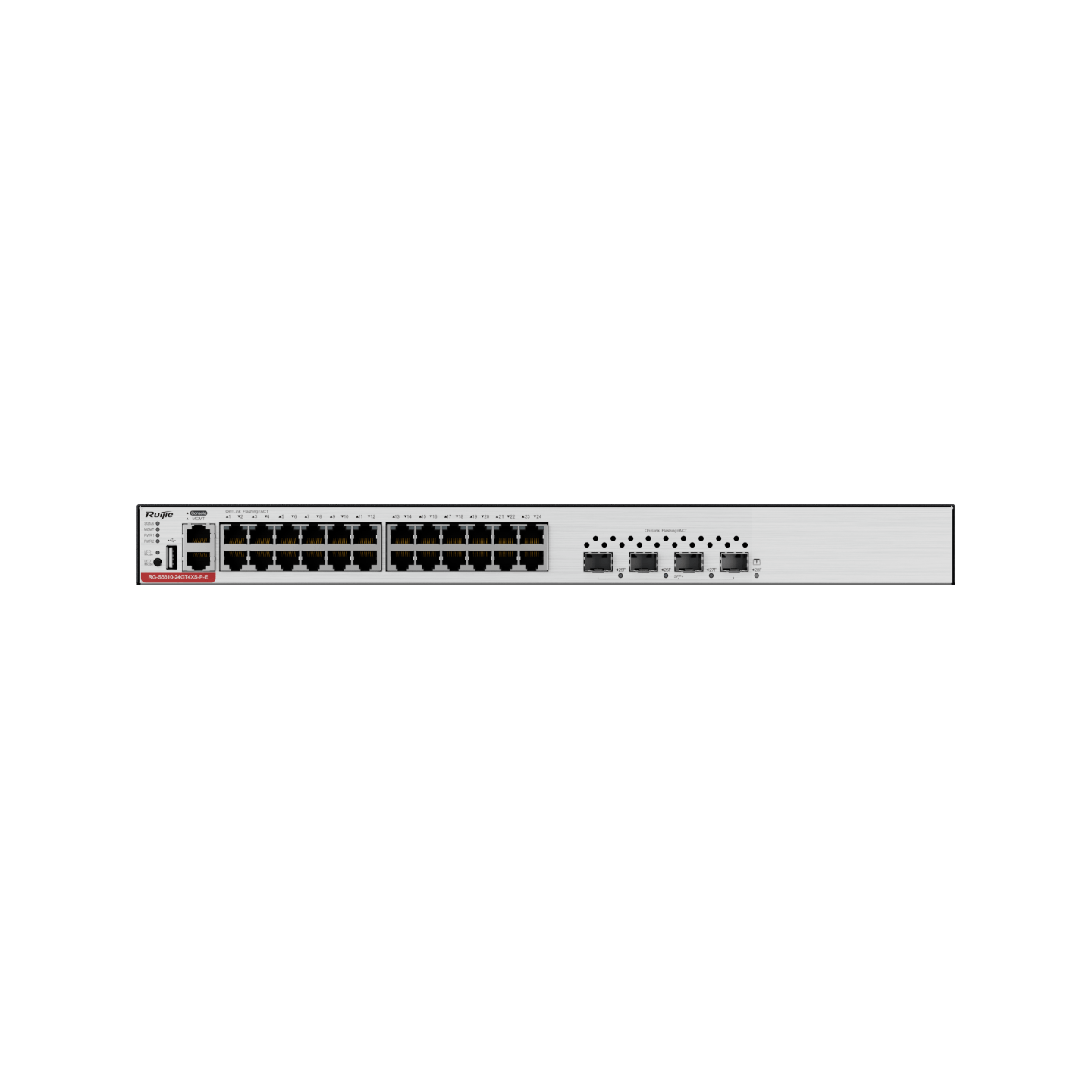

Layer 3 Access Switch for 10G Uplink RG-S5310-24GT4XS-P-E
Full-gigabit access switch for large-sized enterprise and campus LANs, with 4 x 1GE/10GE SFP+ uplink ports for high-speed data transmission,
24 x 10/100/1000BASE-T ports, PoE/PoE+ supported, providing high-speed network experience for short-distance services
PoE+ Supported, Powering Different Terminal Devices
The switch automatically detects and supplies the required power for powered devices, providing up to 15.4 W for IEEE 802.3af-compliant devices, or up to 30 W for IEEE 802.3at-compliant devices, meeting the requirements of common PoE applications such as security surveillance, teleconferencing, and wireless coverage.
VSU Virtualization, Flexible Networking and High Performance
Millisecond Failover
The VSU connects to peripherals through an aggregate link, realizing service switching in milliseconds upon a failure.
High Scalability
VSU virtualization technology is supported to increase bandwidth through link aggregation, which greatly improves forwarding capabilities of the switch.
Simplified Networking
Multiple physical switches can be virtualized into one logical unit to simplify network configuration and architecture, eliminating loops, and improving reliability.
Network Security Policies and Real-Time Monitoring, Delivering Enhanced Network Robustness
CPU Protect Policy (CPP) is supported to control the packet type and traffic volume sent to the CPU to prevent high CPU usage. Network Foundation Protection Policy (NFPP) is supported to isolate users with attacker behaviors to ensure network security and stability.
Ruijie Unified Networking Central (RG-UNC) Visualized Management, Automated and Effortless Operations
RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.
Specifications
Hardware Specifications
| Port specifications | RG-S5310-24GT4XS-E | RG-S5310-48GT4XS-E | RG-S5310-24SFP4XS-E | RG-S5310-48SFP4XS-E | RG-S5310-24GT4XS-P-E | RG-S5310-48GT4XS-P-E |
| Fixed service port | 24 x 10/100/1000BASE-T ports
4 x 1GE/10GE SFP+ ports |
48 x 10/100/1000BASE-T ports
4 x 1GE/10GE SFP+ ports |
24 x 1GE SPF ports
4 x 1GE/10GE SFP+ ports |
48 x 1GE SPF ports
4 x 1GE/10GE SFP+ ports |
24 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/10GE SFP+ ports |
48 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/10GE SFP+ ports |
| Module slot | 2 x power module slots | |||||
| Power module | RG-PA150IB-F
RG-PD150IB-F RG-PA70IB |
RG-PA150IB-F
RG-PD150IB-F RG-PA70IB |
RG-PA150IB-F
RG-PD150IB-F RG-PA70IB |
RG-PA150IB-F
RG-PD150IB-F |
RG-PA600I-P-F
RG-PA1000I-P-F |
RG-PA600I-P-F
RG-PA1000I-P-F |
| Fixed management port | 1 x RJ45 console port
1 x RJ45 MGMT port |
|||||
| USB | 1 x USB 2.0 port | |||||
| System Specifications | RG-S5310-24GT4XS-E | RG-S5310-48GT4XS-E | RG-S5310-24SFP4XS-E | RG-S5310-48SFP4XS-E | RG-S5310-24GT4XS-P-E | RG-S5310-48GT4XS-P-E | |
| System packet forwarding rate *1 | 115 Mpps | 158 Mpps | 115 Mpps | 158 Mpps | 115 Mpps | 158 Mpps | |
| System switching capacity *2 | 154 Gbps | 211 Gbps | 154 Gbps | 211 Gbps | 154 Gbps | 211 Gbps | |
| CPU | Dual-core CPU, each core with the clock speed of 1.2 GHz | ||||||
| Real-time clock (RTC) | Supported | ||||||
| BootROM | 16 MB | ||||||
| Flash memory | 2 GB | ||||||
| Memory | 1 GB | ||||||
| Switch buffer | 3 MB | ||||||
| Number of MAC addresses | 32,000 | ||||||
| ARP table size | 4,000/16,000 (authorized) | ||||||
| ND table size | 2,000/8,000 (authorized) | ||||||
| Number of IPv4 unicast routes | 8,000/12,000 (authorized) | ||||||
| Number of IPv4 multicast routes | 2,500 | ||||||
| Number of IPv6 unicast routes | 4,000 | ||||||
| Number of IPv6 multicast routes | 1,200 | ||||||
| Number of ACEs | Ingress: 3,500
Egress: 1,500 |
||||||
| Number of IGMP groups | 2,500 | ||||||
| Number of MLD groups | 1,000 | ||||||
| Number of VSU members | 4 | ||||||
*1 means the system’s packet forwarding rate.
*2 means the system’s switching capacity.
| Dimensions and weight | RG-S5310-24GT4XS-E | RG-S5310-48GT4XS-E | RG-S5310-24SFP4XS-E | RG-S5310-48SFP4XS-E | RG-S5310-24GT4XS-P-E | RG-S5310-48GT4XS-P-E |
| Unit dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) | |||||
| Shipping dimensions (W x D x H) | 570.0 mm x 565.0 mm x 172.0 mm (22.44 in. x 22.24 in. x 6.77 in.) | |||||
| Rack height | 1 RU | |||||
| Unit weight | 4.0 kg (8.82 lbs) |
4.3 kg (9.48 lbs) |
4.2 kg (9.26 lbs) |
4.5 kg (9.92 lbs) |
4.3 kg (9.48 lbs) |
4.6 kg (10.14 lbs) |
| Shipping weight | 6.20 kg (13.67 lbs) | 6.50 kg (14.33 lbs) | 6.38 kg (14.07 lbs) | 6.58 kg (14.51 lbs) | 6.78 kg (14.95 lbs) | 6.69 kg (14.75 lbs) |
| Power supply and consumption | RG-S5310-24GT4XS-E | RG-S5310-48GT4XS-E | RG-S5310-24SFP4XS-E | RG-S5310-48SFP4XS-E |
| Power supply | 2 x pluggable power modules | |||
| Power input | RG-PA150IB-F (AC input)
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AV to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 3 A RG-PD150IB-F (DC input): ● Rated input voltage: –48 V DC to –60 V DC ● Maximum input voltage: –36 V DC to –75 V DC ● Maximum input current: 5 A |
|||
| RG-PA70IB (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 2 A |
/ | |||
| Maximum output power | RG-PA70IB: 70 W
RG-PA150IB-F: 150 W RG-PD150IB-F: 150 W |
RG-PA150IB-F: 150 W
RG-PD150IB-F: 150 W |
||
| Maximum power consumption | 40 W | 55 W | 85 W | 108 W |
| Power supply and consumption | RG-S5310-24GT4XS-P-E | RG-S5310-48GT4XS-P-E |
| Power supply | 2 x pluggable power modules | |
| Power input | RG-PA600I-P-F (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A RG-PA1000I-P-F (AC input 1): ● Rated input voltage: 100 V AC to 130 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz ● Maximum input current: 12 A RG-PA1000I-P-F (AC input 2): ● Rated input voltage: 200 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A |
|
| Maximum output power | RG-PA600I-P-F: 600 W
RG-PA1000I-P-F: ● 100 V AC to 130 V AC: 930 W ● 200 V AC to 240 V AC: 1000 W |
|
| PoE port | Ports 1 to 24 support PoE/PoE+ (IEEE802.3af/at) power supply | Ports 1 to 48 support PoE/PoE+ (IEEE802.3af/at) power supply |
| PoE power cable pairs | Mode A (1-2, 3-6 pairs) | |
| PoE output power | Each PoE port provides up to 30 W of power.
The maximum power depends on the configured power supply. ● 1 x RG-PA600I-P-F: 370 W ● 2 x RG-PA600I-P-F: 740 W; 1 x RG-PA1000I-P-F: 740 W; 2 x RG-PA1000I-P-F: 1480 W; a maximum output of 720 W over 24 ports (30 W x 24) |
Each PoE port provides up to 30 W of power.
The maximum power depends on the configured power supply. ● 1 x RG-PA600I-P-F: 370 W ● 2 x RG-PA600I-P-F: 740 W ● 1 x RG-PA1000I-P-F: 740 W ● 2 x RG-PA1000I-P-F: 1480 W; a maximum output of 1440 W over 48 ports (30 W x 48) |
| Maximum power consumption | 65 W (without PoE load)
810 W (full PoE load) |
75 W (without PoE load)
1,570 W (full PoE load) |
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
| Environment and reliability | RG-S5310-24GT4XS-E | RG-S5310-48GT4XS-E | RG-S5310-24SFP4XS-E | RG-S5310-48SFP4XS-E | RG-S5310-24GT4XS-P-E | RG-S5310-48GT4XS-P-E |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
|||||
| Humidity | Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
|||||
| Altitude | Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
|||||
| Mean time between failure (MTBF) | 385,440 hours (about 44 years, dual power modules)
210,240 hours (about 24 years, single power module) |
350,400 hours (about 40 years, dual power modules)
201,480 hours (about 23 years, single power module) |
306,600 hours (about 35 years, dual power modules)
183,960 hours (about 21 years, single power module) |
289,080 hours (about 33 years, dual power modules)
175,200 hours (about 20 years, single power module) |
350,400 hours (about 40 years, dual power modules)
201,480 hours (about 23 years, single power module) |
306,600 hours (about 35 years, dual power modules)
183,960 hours (about 21 years, single power module) |
| Fan | 1 x fixed fan module | 2 x fixed fan modules | 1 x fixed fan module | |||
| Heat dissipation | Fan cooling, left-to-right and front-to-right airflow | |||||
| Acoustic noise | 27°C (80.6°F): 34.3 dB
45°C (113°F): 56.5 dB |
27°C (80.6°F): 40.8 dB
45°C (113°F): 52.4 dB |
27°C (80.6°F): 38.9 dB
45°C (113°F): 53.7 dB |
27°C (80.6°F): 38.9 dB
45°C (113°F): 53.7 dB |
27°C (80.6°F): 51.6 dB
45°C (113°F): 57.4 dB |
27°C (80.6°F): 51.6 dB
45°C (113°F): 58.3 dB |
| Power module redundancy | 1+1 redundancy | Only when the PoE load of the whole device is less than PoE output power of single power supply and dual power supplies are used, redundancy is supported. | ||||
| Power module hot swapping | Supported | |||||
| USB hot swapping | Supported | |||||
| Cable hot swapping | Supported by all ports | |||||
| Power supply monitoring | Monitoring of power supply model and status
Power supply failure alarming |
|||||
| Fan monitoring | Fan speed adjustment: 3 levels
Fan failure alarming |
|||||
| Temperature monitoring | Temperature monitoring, over-temperature alarming
If the ambient temperature exceeds a certain value, the device will be reset. |
|||||
| ESD | Air discharge: 8 kV
Contact discharge: 6 kV |
|||||
| Surge protection | MGMT port: 4 kV
Service port: 10 kV Power port: common mode 6 kV, differential mode 6 kV |
|||||
| Certifications and regulatory compliance | RG-S5310-24GT4XS-E | RG-S5310-48GT4XS-E | RG-S5310-24SFP4XS-E | RG-S5310-48SFP4XS-E | RG-S5310-24GT4XS-P-E | RG-S5310-48GT4XS-P-E |
| Safety regulation | IEC 62368-1 | |||||
| EMC regulation | EN 300386, EN 55032 Class A, EN 55035,
EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
|||||
| RoHS | European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863 | |||||
Software Specifications
| Feature | RG-S5310-E Series |
| Ethernet Switching | IEEE 802.1Q (supporting 4K VLANs) |
| *802.3az EEE（Specialized software version） | |
| Jumbo frame (maximum length: 9,216 bytes) | |
| Maximum number of VLANs that can be created: 4,094 | |
| Voice VLAN | |
| Super VLAN and private VLAN | |
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
| GVRP | |
| Basic QinQ and selective QinQ | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| Auto errdisable recovery
BPDU filter Port fast Root guard |
|
| ERPS (G.8032) | |
| LLDP/LLDP-MED, LLDP IPv6, and LLDP-POE | |
| IP Service | Static and dynamic ARP, ARP proxy, and ARP entry timeout |
| DHCP client, DHCP relay, DHCP server, and DHCP snooping | |
| DHCPv6 client, DHCPv6 relay, DHCPv6 server, and DHCPv6 snooping | |
| DNS client, DNS proxy, and DNSv6 client | |
| MAC address filtering
Setting the MAC address aging time |
|
| Neighbor Discovery (ND), ND proxy, and ND snooping | |
| GRE tunnel | |
| IP Routing | IPv4 and IPv6 static routing |
| RIP and RIPng | |
| OSPFv2, OSPFv3, and GR | |
| IS-ISv4 and IS-ISv6 | |
| BGP4 and BGP4+ | |
| IPv4/IPv6 VRF | |
| IPv4/IPv6 PBR | |
| Multicast | IGMPv1/v2/v3 |
| IGMPv1/v2 snooping | |
| IGMP fast leave | |
| PIM-DM, PIM-SM, PIM-SSM, PIM SMv6, and PIM-SSMv6 | |
| MSDP for inter-domain multicast | |
| MLDv1/v2 and MLD proxy | |
| MLDv1/v2 snooping | |
| PIM-SMv6 | |
| Multicast source IP address check
Multicast source port check |
|
| Multicast querier | |
| ACL and QoS | Standard IP ACLs (hardware ACLs based on IP addresses) |
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | |
| Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) | |
| Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| Time based ACLS, ACL 80, and IPv6 ACL | |
| Global ACLs | |
| ACL redirection | |
| Port traffic identification | |
| Port traffic rate limiting | |
| 802.1p/DSCP/ToS traffic classification | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| Eight priority queues per port | |
| Rate limiting in each queue | |
| Security | Multiple AAA modes |
| RADIUS authentication and authorization | |
| RADIUS and TACACS+ | |
| IEEE802.1X authentication, MAC address bypass (MAB) authentication, and port-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| ICMPv6 | |
| Port security | |
| IP source guard | |
| SAVI | |
| ARP spoofing prevention | |
| CPP and NFPP | |
| Multiple attack defense functions | |
| 3-tuple binding (IP address, MAC address, and port)
3-tuple binding (IPv6 address, MAC address, and port) Filtering of invalid MAC addresses Port- and MAC address-based 802.1x authentication MAB authentication Portal authentication and Portal 2.0 authentication ARP check DAI ARP packet rate limiting Gateway ARP spoofing prevention Broadcast storm suppression Hierarchical management of administrators and password protection Port protection |
|
| Reliability | REUP |
| RLDP | |
| RLDP, Layer 2 link connectivity detection, and unidirectional link detection | |
| DLDP | |
| IPv4 VRRP v2/v3, IPv6 VRRP, and super-VLAN for VRRP | |
| BFD, RAS, NSR, VRRR, VRRP+, and SDN loop detection | |
| Basic LACP
Inter-VSU AP |
|
| Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM) | |
| Hot swapping of power modules | |
| Device virtualization | VSU
Local and remote stacking Inter-chassis link binding in a stack Virtualization through standard service interfaces |
| NMS and maintenance | SPAN, RSPAN and ERSPAN
1:1 mirroring, N:1 mirroring, 1:N mirroring Flow-based local and remote mirroring |
| sFlow | |
| NTP client, NTP server, NTPv6 client, and NTPv6 server | |
| SNTP | |
| CLI (Telnet/Console) | |
| FTP client, FTP server, FTPv6 client, and FTPv6 server | |
| TFTP client, TFTP server, TFTPv6 client, and TFTPv6 server | |
| FTP and TFTP | |
| SNMP v1/v2/c3 | |
| Web | |
| Syslog/Debug | |
| RMON (1, 2, 3, 9)
Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups RMON used to implement Ethernet statistics, historical statistics, and alarm functions |
|
| NETCONF | |
| MACC | |
| CWMP | |
| gRPC | |
| OpenFlow Special 1.3
Flow table analysis defined by all protocols Transmission of specified packets to the controller Configuring the controller’s IP address and port Notifying port status changes to the controller |
|
| RNS, configuration rollback, and 802.3ah | |
| VXLAN | VXLAN (authorized) |
| PoE | RG-S5310-24GT4XS-P-E and RG-S5310-48GTXS-P-E:
IEEE 802.3af and 802.3at power supply standards Automatic and energy-saving power supply management modes Uninterrupted power supply in hot start mode Scheduled power-on or power-off of PoE ports based on the time policy Port priority |
Order Information
Switches
| Model | Description |
| RG-S5310-24GT4XS-E | 24 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured) |
| RG-S5310-48GT4XS-E | 48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured) |
| RG-S5310-24SFP4XS-E | 24 x 1GE SFP ports, 4 x 1GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured) |
| RG-S5310-48SFP4XS-E | 48 x 1GE SFP ports, 4 x 1GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured) |
| RG-S5310-24GT4XS-P-E | 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+ and the maximum PoE output power of 740 W, 4 x 1GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured, only when the PoE load of the whole device is less than PoE output power of single power supply and dual power supplies are used, redundancy is supported) |
| RG-S5310-48GT4XS-P-E | 48 x 10/100/1000BASE-T ports, supporting PoE/PoE+ and the maximum PoE output power of 1440 W, 4 x 1GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured, only when the PoE load of the whole device is less than PoE output power of single power supply and dual power supplies are used, redundancy is supported) |
Note:
- 4 x 1GE/10GE SFP+ ports support 1GE SFP transceivers and10GE SFP+ transceivers.
Power Module
| Model | Description |
| RG-PA70IB | 70 W AC power module |
| RG-PA150IB-F | 150 W AC power module |
| RG-PD150IB-F | 150W DC power module |
| RG-PA600I-P-F | 600 W AC power module, PoE power module |
| RG-PA1000I-P-F | 1,000 W AC power module, PoE power module |
License
| Model | Description |
| RG-VXLAN-MPLS-ENTRY-LIC | S5310E series, software license for VXLAN, MPLS, routing table, and ARP table |
Optical Transceivers
1GE
| Model | Description |
| Mini-GBIC-GT | 1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation |
| MINI-GBIC-SX-MM850 | 1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF |
| GE-SFP-LX20-SM1310-BIDI | 1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF |
| GE-SFP-LX20-SM1550-BIDI | 1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF |
| GE-SFP-LH40-SM1310-BIDI | 1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF |
| GE-SFP-LH40-SM1550-BIDI | 1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF |
| GE-SFP-LX03-SM1310-BIDI-I | 1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF |
| GE-SFP-LX03-SM1550-BIDI-I | 1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF |
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
10GE
| Model | Description |
| XG-SFP-SR-MM850 | 10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF |
| XG-SFP-LR-SM1310 | 10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF |
| XG-SFP-ER-SM1550 | 10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF |
| XG-SFP-ZR-SM1550 | 10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF |
| XG-SFP-LR10-SM1270-BIDI-I | 10GBASE-LR, SFP+ transceiver, Tx1270/Rx1330, BiDi LC, 10 km over SMF |
| XG-SFP-LR10-SM1330-BIDI-I | 10GBASE-LR, SFP+ transceiver, Tx1330/Rx1270, BiDi LC, 10 km over SMF |
| XG-SFP-AOC1M | 10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers |
| XG-SFP-AOC3M | 10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers |
| XG-SFP-AOC5M | 10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers |
