Key Specification
| Forwarding performance | 1Gbps | Fixed interfaces | WAN: GE * 2, LAN: GE * 8 |
| PoE ports | Ports 2-9 support PoE/PoE+ | Wi-Fi | 802.11 b/g/n/ac/ax |
| Dimensions (W × D × H) | 260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) | Power consumption | < 150 W (including PoE power and module power) |
| Dimensions (W × D × H) | IP30 | Operating temperature | 0°C to 45°C (32°F to 113°F) |
Features

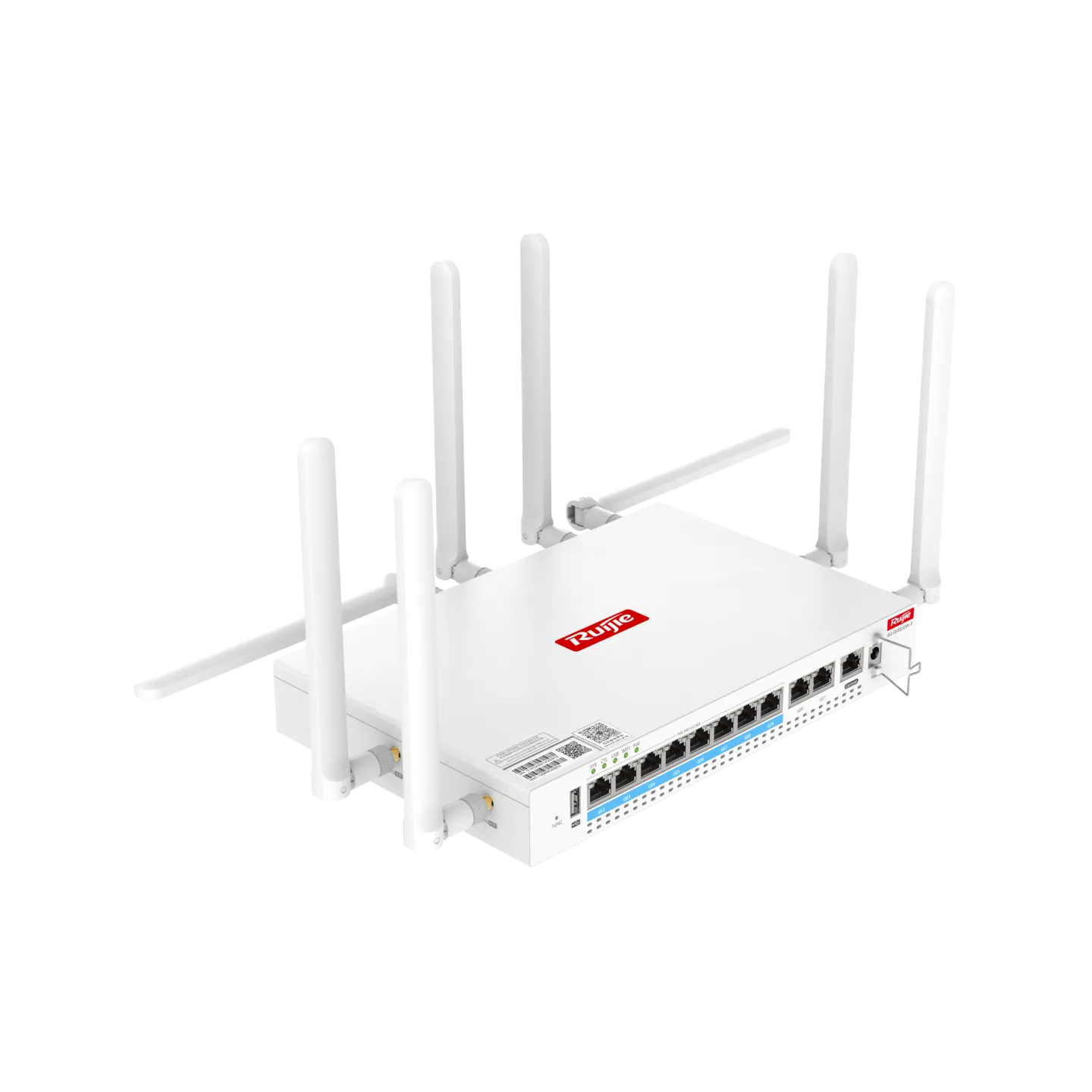

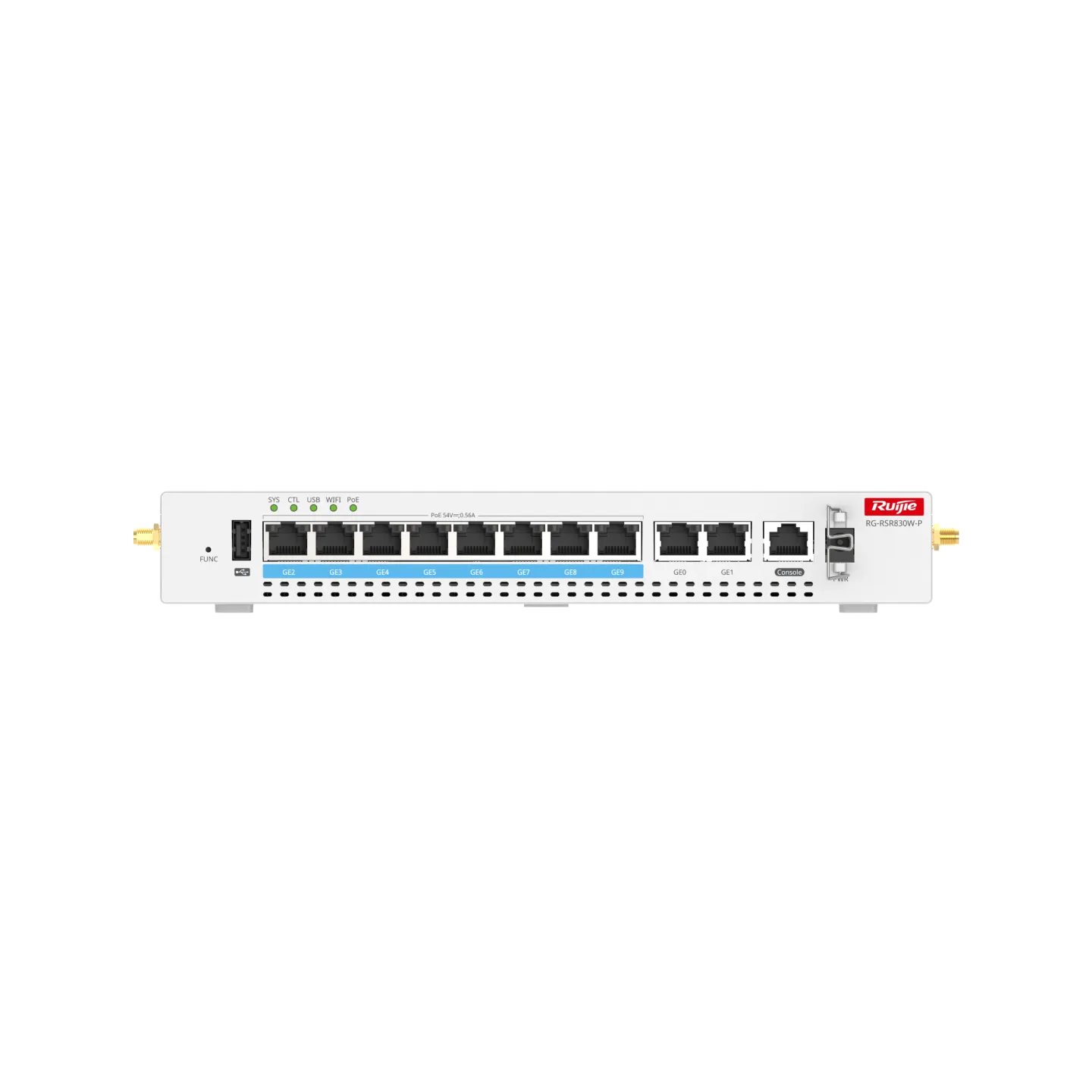

RG-RSR830W-P, 10-Port Mobile Router
- The router integrates routing, switching, wireless, and other network functions,
- applicable to customers with multiple branches, such as retail stores, chain stores, logistics, and offices.
Specifications
Hardware Specifications
| Hardware Specifications | RG-RSR830 | RG-RSR830W | RG-RSR830-P | RG-RSR830W-P | |
| Forwarding performance | 0.5 Mpps | 0.5 Mpps | 0.5 Mpps | 0.5 Mpps | |
| Fixed service port | Uplink WAN ports:
2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports
|
Uplink WAN ports:
2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports |
Uplink WAN ports:
2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports LAN ports 2 to 9 support PoE/PoE+ |
Uplink WAN ports:
2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports LAN ports 2 to 9 support PoE/PoE+ |
|
| Fixed management port | 1 x RJ45 console port | 1 x RJ45 console port | 1 x RJ45 console port | 1 x RJ45 console port | |
| USB | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive | |
| Memory | 2 GB | 2 GB | 2 GB | 2 GB | |
| Flash Memory | 4 GB | 4 GB | 4 GB | 4 GB | |
| VPN performance (256- bit AES encryption) | 400 Mbps | 400 Mbps | 400 Mbps | 400 Mbps | |
| Number of IPsec VPN Tunnels | 100 | 100 | 100 | 100 | |

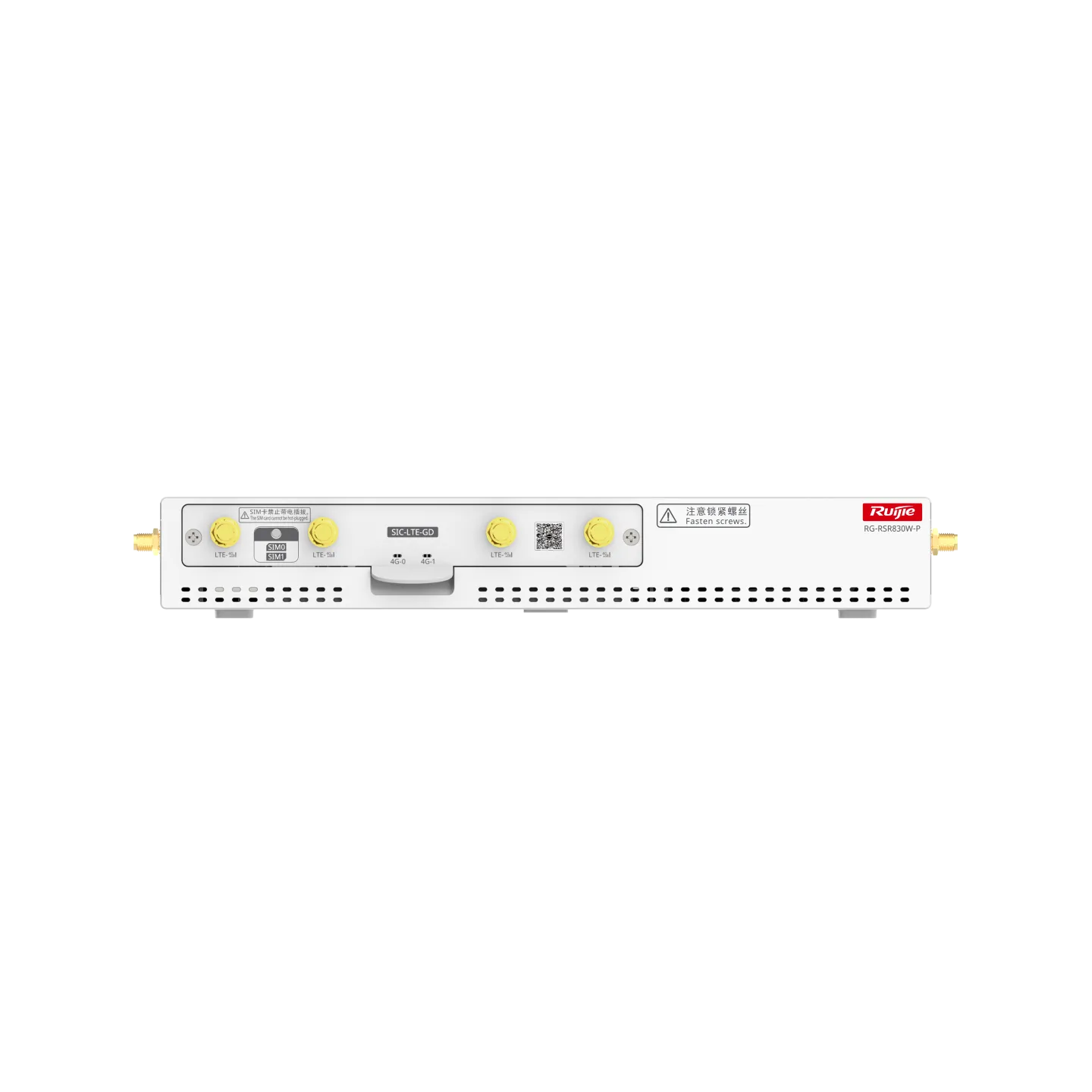

| Expansion Module | ● SIC-LTE-GS
LTE card (Cat-6, 2 x SIM, active-standby) ● SIC-LTE-GD LTE card (Cat-6, 2 x SIM, active-active) ● SIC-5G-G 5G NR in global bands single card, small plug-in card ● SIC-2SFP Expansion gigabit optical module plug-in card |
||||
| Wi-Fi Port | N/A | 802.11 b/g/n/ac/ax | N/A | 802.11 b/g/n/ac/ax | |
| Unit Dimensions (W x D x H) | 260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) | Without external antennas: 278 mm x 171 mm x 38 mm (10.94 in. x 6.73 in. x 1.50 in.)
With external antennas: 350 mm x 171 mm x 88 mm (13.78 in. x 6.73 in. x 3.46 in.) |
260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) | Without external antennas: 278 mm x 171 mm x 38 mm (10.94 in. X 6.73 in. X 1.50 in.)
With external antennas: 350 mm x 171 mm x 88 mm (13.78 in. x 6.73 in. x 3.46 in.) |
|
| Unit weight | 0.95 kg (2.09 lbs) | 1.04 kg (2.29 lbs) | 1.05 kg (2.31 lbs) | 1.14 kg (2.51 lbs) | |
| Maximum Power Consumption | 36 W (including module power) | 36 W (including module power) | 150 W (including PoE power and module power) | 150 W (including PoE power and module power) | |
| Input power supply | 36 W Power Adapter:
● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 0.9 A max. ● Output: 12 V DC, 3 A max, 36 W |
36 W Power Adapter:
● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 0.9 A max. ● Output: 12 V DC, 3 A max, 36 W |
150 W Power Adapter:
● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 2 A max. ● Output: 56 V DC, 2.68 A, 150 W |
150 W Power Adapter:
● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 2 A max. ● Output: 56 V DC, 2.68 A, 150 W |
|
| Recommended number of user | 300 | 300 | 300 | 300 | |
| External Power Supply | N/A | N/A | Each port provides up to 30 W of power. The device provides up to 110 W of power. | Each port provides up to 30 W of power. The device provides up to 110 W of power. | |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) |
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) |
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) |
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) |
|
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
|
| Altitude | Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.)
Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) |
Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.)
Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) |
Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.)
Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) |
Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.)
Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) |
|
| IP rating | IP30 | IP30 | IP30 | IP30 | |
Software Specifications
| Software Specifications | RG- RSR830 Series |
| Ethernet | Jumbo frame forwarding (max. size: 1974)
Frame format: Ethernet II Change of the MTUs (link MTU and IP MTU) in the forwarding plane Forcibly converting the 1000M optical port into the electrical port in auto-negotiation mode (100M/1000M) LAN/WAN switching Interface auto-negotiation factor Interface WAN/LAN mode switching |
| ACL and QoS | IP standard ACL IP extended ACL
Association with the egress ACL based on a Layer 3 interface (SVI/routed port/L3 AP) HQoS: DSCP/IP-PRE/COS HQoS: PQ\WFQ\LPQ methods of congestion scheduling |
| IPv4 application protocol features | DHCP client
Option 43/52/138 |
| DHCP server
Option 138 Option 43 Option 82 Large address pool Alarm (Syslog) |
|
| Configuring DHCP snooping in a VLAN
Configuring DHCP snooping on a logical interface (including the physical interface and aggregate interface) Trusted interface |
|
| DNS
DNS client |
|
| PPPoE client | |
| FTP client | |
| NTP client
NTP server TFTP client TFTP server |
|
| IPv6 application protocol features | DHCPv6 client
Option 18 Option 37 |
| DHCPv6 server
Option 52 DHCPv6 Snooping ND Snooping |
|
| FTP server
TFTP server TFTP client NTP server NTP client |
| Layer 2 features | LLDP |
| MAC address filter
Interface-based MAC address learning Static MAC address Global MAC address learning Enforcing deletion of a MAC address using a command MAC address aging time Port based VLAN 802.1QVLANTagging PPTP/L2TP Spanning Tree Protocol |
|
| Layer 3 features | Proxy ARP
ARP entry aging |
| Ping
Traceroute |
|
| GRE tunnel
PBR/ACL/QoS/NAT for IPv4 & IPv6 services on a GRE interface Inner and outer VRF configuration |
|
| IPv4 & IPv6 VRF | |
| Static IP BGP4/BGP4+IS-IS v4/v6 OSPF v2/v3 RIP v1/v2 PBR |
|
| NAT features | NAT sessions：75000 NAT Throughtput ：up to 940 Mbps (1500Bytes) |
| VAG | Intelligent routing
Load balancing Active/Standby scheduling for undefined applications Controller management Disaster recovery |
| WLAN features | WLAN services:
SSID configuration SSID-based VLAN configuration UTF8 SSID |
| Wireless security: WPA3
User isolation: Layer 2 isolation |
|
| RF resources:
Channel configuration Channel width configuration Power configuration Automatic RF optimization (channel, channel width) WMM configuration 802.11 b/g/n/ac/ax |
|
| WLAN details: Dual Radio, 4 spatial streams Radio 1: 2.4GHz, 2 streams: 2×2, MU-MIMO Radio 2: 5GHz, 2 streams: 2×2, MU-MIMO Operating Frequency Bands: Radio 1: 802.11b/g/n/ax, 2.400GHz ~ 2.483GHz Radio 2: 802.11a/n/ac/ax, 5.150GHz～5.350GHz, 5.725GHz～5.850GHz Maximum Access Rate: Radio 1: 2.4GHz, 575Mbps Radio 2: 5GHz, 1.2Gbps Modulation Types: 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
|
| Security features | AAA and web authentication |
| EXEC authorization, RADIUS, interworking with the SAM/SMP/ACS server, and specifying the source IP address (through the source interface) | |
| Account allocation by user and login authentication (password, none) | |
| Encrypted transmission and storage of static passwords, password lifetime check, and reuse limitation | |
| Application identification，url Filtering, IDS/IPS, blacklist and whitelist | |
| IPSecVPN function(AES-128, AES-256) | |
| CPP and NFPP | |
| VPN features | PPTP,IPSEC,L2TP,L2TP over IPSEC |
| Management features | gRPC framework |
| NETCONF | |
| TACACS | |
| SNMP v1/v2/v3 | |
| SSH | |
| Syslog | |
| IPv4 supported by the Telnet server | |
| HTTP server V1.1
HTTPS server Out-of-the-box web management |
|
| Eweb 2.0 | |
| Hostname configuration
YANG model |
|
| USB-based deployment | |
| Obtaining device information through gRPC |
Order Information
Chassis
| Model | Description |
| RG-RSR830 | 2x GE WAN ports, 8 x GE RJ45 LAN ports |
| RG-RSR830W | 2x GE WAN ports, 8 x GE RJ45 LAN ports, supporting 802.11 b/g/n/ac/ax WIFI |
|
RG-RSR830-P |
2x GE WAN ports, 8 x GE RJ45 LAN ports, supporting PoE power supply, and maximum PoE output power of 110 W |
|
RG-RSR830W-P |
2x GE WAN ports, 8 x GE RJ45 LAN ports, supporting 802.11 b/g/n/ac/ax WIFI, supporting PoE power supply, and maximum PoE output power of 110 W |
Expansion Module
| Model | Description |
| SIC-5G-G | 5G NR small-sized card, supporting dual SIM single standby, 4 x SMA-K antenna interfaces |
| SIC-LTE-GD | 4G LTE small-sized card, supporting dual SIM dual standby and global D band (double) |
| SIC-LTE-GS | 4G LTE small-sized card, supporting dual SIM single standby and global S band (single) |
| SIC-2SFP | GE expansion card of optical modules, 2 x 1GE SFP ports |
