Key Specification
| Forwarding performance | 1Gbps | Fixed interfaces | WAN: GE * 2, LAN: GE * 8 |
| PoE ports | Ports 2-9 support PoE/PoE+ | Wi-Fi | 802.11 b/g/n/ac/ax |
| Dimensions (W × D × H) | 260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) | Power consumption | < 150 W (including PoE power and module power) |
| IP protection | IP30 | Operating temperature | 0°C to 45°C (32°F to 113°F) |
Features

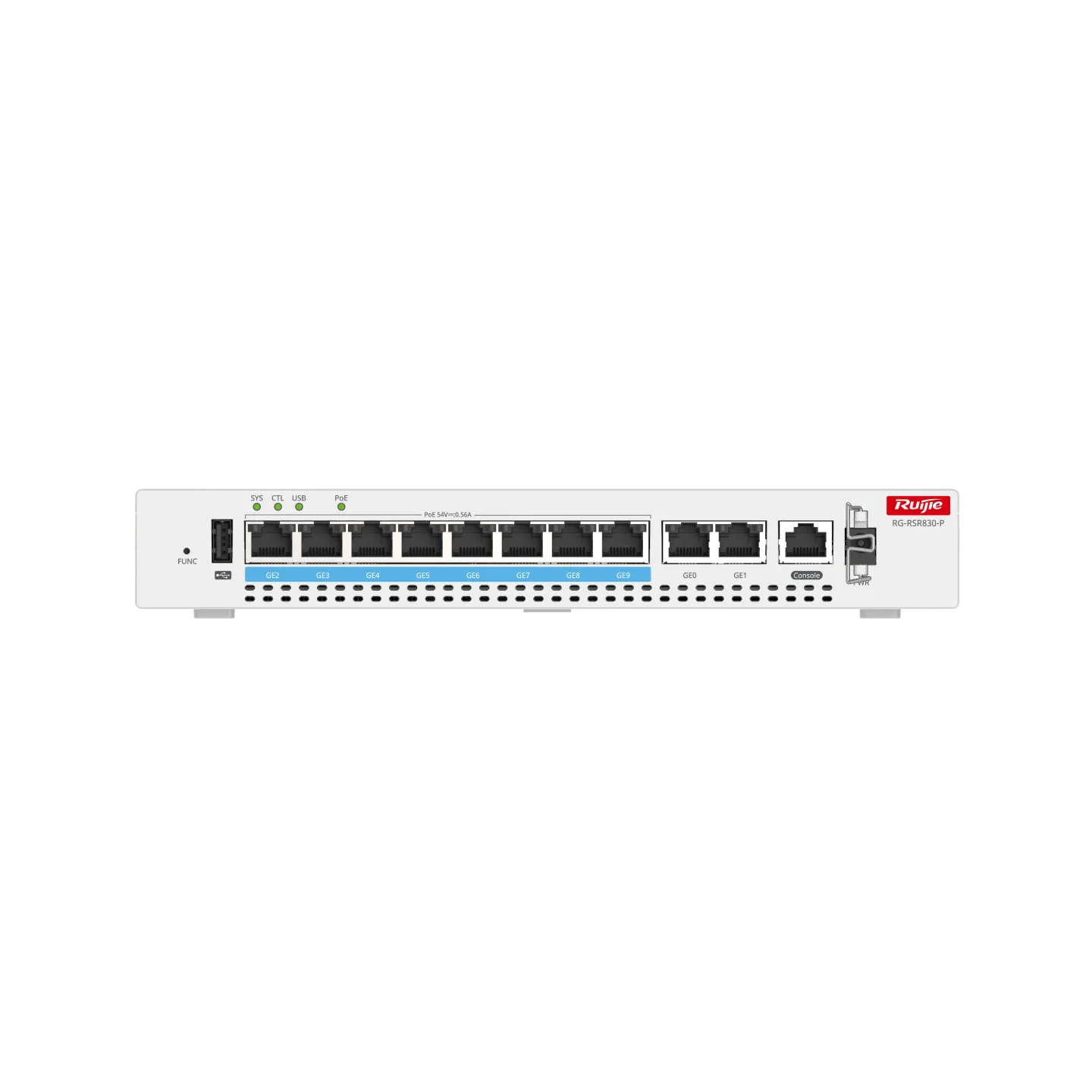

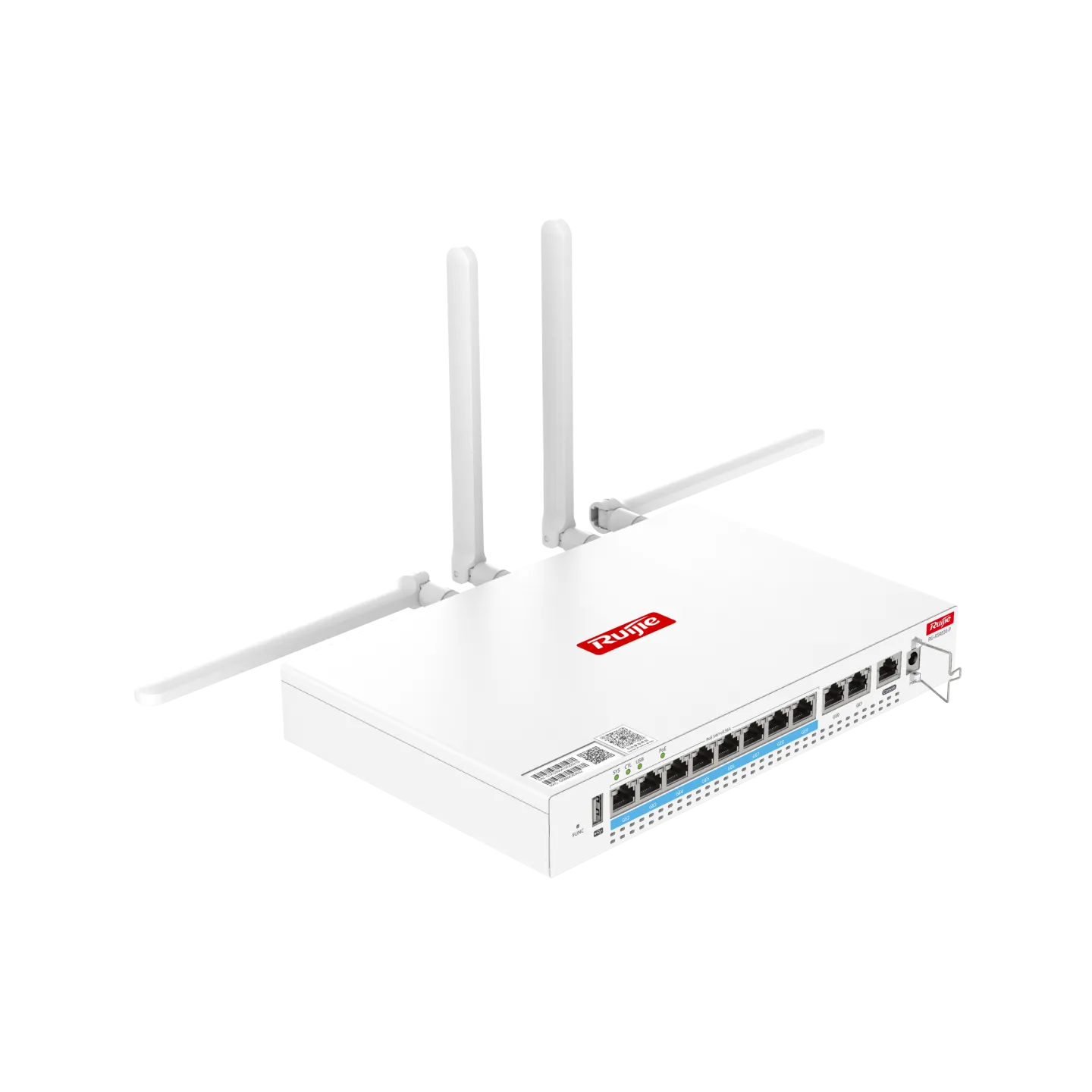

RG-RSR830W-P, 10-Port Mobile Router
- The router integrates routing, switching, wireless, and other network functions, supports PoE and Wi-Fi 6, and is applicable to customers with multiple branches, such as retail stores, chain stores, logistics, and offices.
RG-RSR830W-P, 10-Port Mobile Router
- The router integrates routing, switching, wireless, and other network functions, supports PoE and Wi-Fi 6, and is applicable to customers with multiple branches, such as retail stores, chain stores, logistics, and offices.
Efficient Traffic Management for Enhanced Work Efficiency and Optimal User Experience
- Accurate identification of various applications allows for tailored traffic scheduling and intelligent routing, prioritizing critical business traffic to enhance office productivity and optimize user network experience.
Safeguarding Network Security through Comprehensive Security Measures
-
- URL filtering and application blocking are supported to control user online behaviors and reduce security risks. IDS/IPS can detect threats and block malicious traffic and attacks, protecting network security.
- Simplifying O&M with Cloud Management
Support both local and cloud-based deployment, enabling centralized management of LAN/WAN networks. Remote operation anytime and anywhere, enabling you to take full control of your network with ease.
Specifications
Hardware Specifications
| Hardware Specifications | RG-RSR830 | RG-RSR830W | RG-RSR830-P | RG-RSR830W-P | |
| Forwarding performance | 0.5 Mpps | 0.5 Mpps | 0.5 Mpps | 0.5 Mpps | |
| Fixed service port | Uplink WAN ports:
2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports
|
Uplink WAN ports:
2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports |
Uplink WAN ports:
2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports LAN ports 2 to 9 support PoE/PoE+ |
Uplink WAN ports:
2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports LAN ports 2 to 9 support PoE/PoE+ |
|
| Fixed management port | 1 x RJ45 console port | 1 x RJ45 console port | 1 x RJ45 console port | 1 x RJ45 console port | |
| USB | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive | |
| Memory | 2 GB | 2 GB | 2 GB | 2 GB | |
| Flash Memory | 4 GB | 4 GB | 4 GB | 4 GB | |
| VPN performance (256- bit AES encryption) | 400 Mbps | 400 Mbps | 400 Mbps | 400 Mbps | |
| Number of IPsec VPN Tunnels | 100 | 100 | 100 | 100 | |

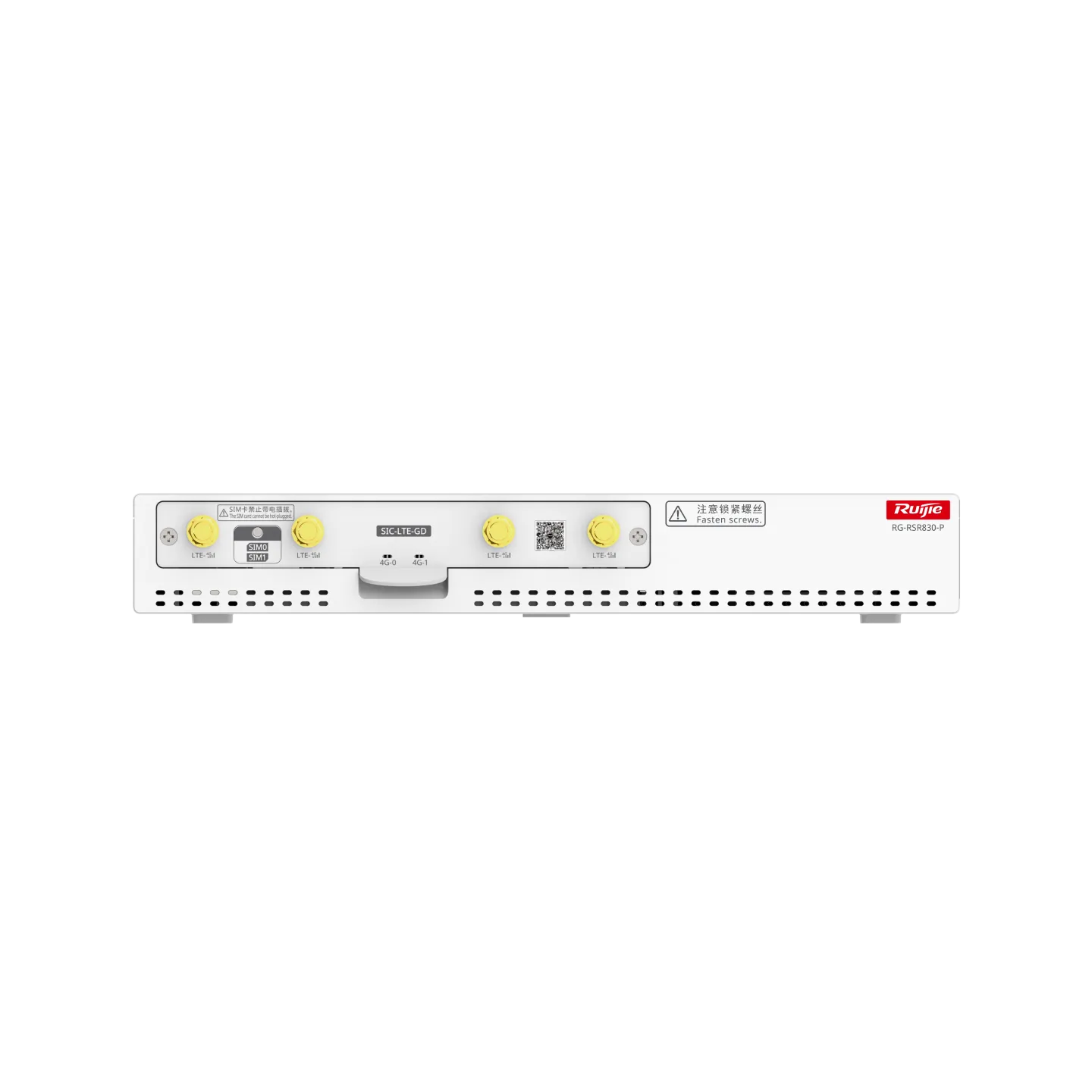

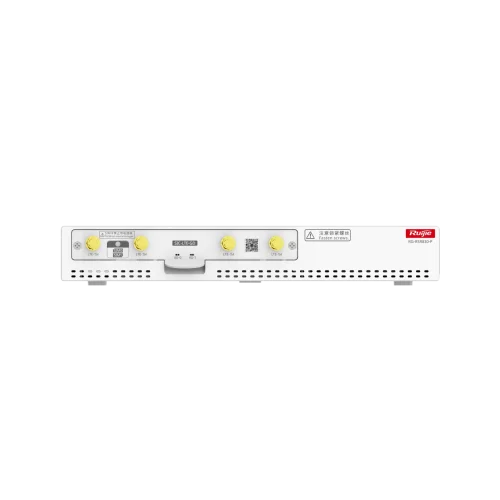

| Expansion Module | ● SIC-LTE-GS
LTE card (Cat-6, 2 x SIM, active-standby) ● SIC-LTE-GD LTE card (Cat-6, 2 x SIM, active-active) ● SIC-5G-G 5G NR in global bands single card, small plug-in card ● SIC-2SFP Expansion gigabit optical module plug-in card |
||||
| Wi-Fi Port | N/A | 802.11 b/g/n/ac/ax | N/A | 802.11 b/g/n/ac/ax | |
| Unit Dimensions (W x D x H) | 260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) | Without external antennas: 278 mm x 171 mm x 38 mm (10.94 in. x 6.73 in. x 1.50 in.)
With external antennas: 350 mm x 171 mm x 88 mm (13.78 in. x 6.73 in. x 3.46 in.) |
260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) | Without external antennas: 278 mm x 171 mm x 38 mm (10.94 in. X 6.73 in. X 1.50 in.)
With external antennas: 350 mm x 171 mm x 88 mm (13.78 in. x 6.73 in. x 3.46 in.) |
|
| Unit weight | 0.95 kg (2.09 lbs) | 1.04 kg (2.29 lbs) | 1.05 kg (2.31 lbs) | 1.14 kg (2.51 lbs) | |
| Maximum Power Consumption | 36 W (including module power) | 36 W (including module power) | 150 W (including PoE power and module power) | 150 W (including PoE power and module power) | |
| Input power supply | 36 W Power Adapter:
● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 0.9 A max. ● Output: 12 V DC, 3 A max, 36 W |
36 W Power Adapter:
● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 0.9 A max. ● Output: 12 V DC, 3 A max, 36 W |
150 W Power Adapter:
● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 2 A max. ● Output: 56 V DC, 2.68 A, 150 W |
150 W Power Adapter:
● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 2 A max. ● Output: 56 V DC, 2.68 A, 150 W |
|
| Recommended number of user | 300 | 300 | 300 | 300 | |
| External Power Supply | N/A | N/A | Each port provides up to 30 W of power. The device provides up to 110 W of power. | Each port provides up to 30 W of power. The device provides up to 110 W of power. | |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) |
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) |
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) |
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) |
|
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
|
| Altitude | Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.)
Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) |
Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.)
Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) |
Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.)
Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) |
Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.)
Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) |
|
| IP rating | IP30 | IP30 | IP30 | IP30 | |
Software Specifications
| Software Specifications | RG- RSR830 Series |
| Ethernet | Jumbo frame forwarding (max. size: 1974)
Frame format: Ethernet II Change of the MTUs (link MTU and IP MTU) in the forwarding plane Forcibly converting the 1000M optical port into the electrical port in auto-negotiation mode (100M/1000M) LAN/WAN switching Interface auto-negotiation factor Interface WAN/LAN mode switching |
| ACL and QoS | IP standard ACL IP extended ACL
Association with the egress ACL based on a Layer 3 interface (SVI/routed port/L3 AP) HQoS: DSCP/IP-PRE/COS HQoS: PQ\WFQ\LPQ methods of congestion scheduling |
| IPv4 application protocol features | DHCP client
Option 43/52/138 |
| DHCP server
Option 138 Option 43 Option 82 Large address pool Alarm (Syslog) |
|
| Configuring DHCP snooping in a VLAN
Configuring DHCP snooping on a logical interface (including the physical interface and aggregate interface) Trusted interface |
|
| DNS
DNS client |
|
| PPPoE client | |
| FTP client | |
| NTP client
NTP server TFTP client TFTP server |
|
| IPv6 application protocol features | DHCPv6 client
Option 18 Option 37 |
| DHCPv6 server
Option 52 DHCPv6 Snooping ND Snooping |
|
| FTP server
TFTP server TFTP client NTP server NTP client |
| Layer 2 features | LLDP |
| MAC address filter
Interface-based MAC address learning Static MAC address Global MAC address learning Enforcing deletion of a MAC address using a command MAC address aging time Port based VLAN 802.1QVLANTagging PPTP/L2TP Spanning Tree Protocol |
|
| Layer 3 features | Proxy ARP
ARP entry aging |
| Ping
Traceroute |
|
| GRE tunnel
PBR/ACL/QoS/NAT for IPv4 & IPv6 services on a GRE interface Inner and outer VRF configuration |
|
| IPv4 & IPv6 VRF | |
| Static IP BGP4/BGP4+IS-IS v4/v6OSPF v2/v3RIP v1/v2 PBR |
|
| NAT features | NAT sessions：75000 NAT Throughtput ：up to 940 Mbps (1500Bytes) |
| VAG | Intelligent routing
Load balancing Active/Standby scheduling for undefined applications Controller management Disaster recovery |
| WLAN features | WLAN services:
SSID configuration SSID-based VLAN configuration UTF8 SSID |
| Wireless security: WPA3
User isolation: Layer 2 isolation |
|
| RF resources:
Channel configuration Channel width configuration Power configuration Automatic RF optimization (channel, channel width) WMM configuration 802.11 b/g/n/ac/ax |
|
| WLAN details: Dual Radio, 4 spatial streams Radio 1: 2.4GHz, 2 streams: 2×2, MU-MIMO Radio 2: 5GHz, 2 streams: 2×2, MU-MIMO Operating Frequency Bands: Radio 1: 802.11b/g/n/ax, 2.400GHz ~ 2.483GHz Radio 2: 802.11a/n/ac/ax, 5.150GHz～5.350GHz, 5.725GHz～5.850GHz Maximum Access Rate: Radio 1: 2.4GHz, 575Mbps Radio 2: 5GHz, 1.2Gbps Modulation Types: 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
|
| Security features | AAA and web authentication |
| EXEC authorization, RADIUS, interworking with the SAM/SMP/ACS server, and specifying the source IP address (through the source interface) | |
| Account allocation by user and login authentication (password, none) | |
| Encrypted transmission and storage of static passwords, password lifetime check, and reuse limitation | |
| Application identification，url Filtering, IDS/IPS, blacklist and whitelist | |
| IPSecVPN function(AES-128, AES-256) | |
| CPP and NFPP | |
| VPN features | PPTP,IPSEC,L2TP,L2TP over IPSEC |
| Management features | gRPC framework |
| NETCONF | |
| TACACS | |
| SNMP v1/v2/v3 | |
| SSH | |
| Syslog | |
| IPv4 supported by the Telnet server | |
| HTTP server V1.1
HTTPS server Out-of-the-box web management |
|
| Eweb 2.0 | |
| Hostname configuration
YANG model |
|
| USB-based deployment | |
| Obtaining device information through gRPC |
Order Information
Chassis
| Model | Description |
| RG-RSR830 | 2x GE WAN ports, 8 x GE RJ45 LAN ports |
| RG-RSR830W | 2x GE WAN ports, 8 x GE RJ45 LAN ports, supporting 802.11 b/g/n/ac/ax WIFI |
|
RG-RSR830-P |
2x GE WAN ports, 8 x GE RJ45 LAN ports, supporting PoE power supply, and maximum PoE output power of 110 W |
|
RG-RSR830W-P |
2x GE WAN ports, 8 x GE RJ45 LAN ports, supporting 802.11 b/g/n/ac/ax WIFI, supporting PoE power supply, and maximum PoE output power of 110 W |
Expansion Module
| Model | Description |
| SIC-5G-G | 5G NR small-sized card, supporting dual SIM single standby, 4 x SMA-K antenna interfaces |
| SIC-LTE-GD | 4G LTE small-sized card, supporting dual SIM dual standby and global D band (double) |
| SIC-LTE-GS | 4G LTE small-sized card, supporting dual SIM single standby and global S band (single) |
| SIC-2SFP | GE expansion card of optical modules, 2 x 1GE SFP ports |
