Product Overview

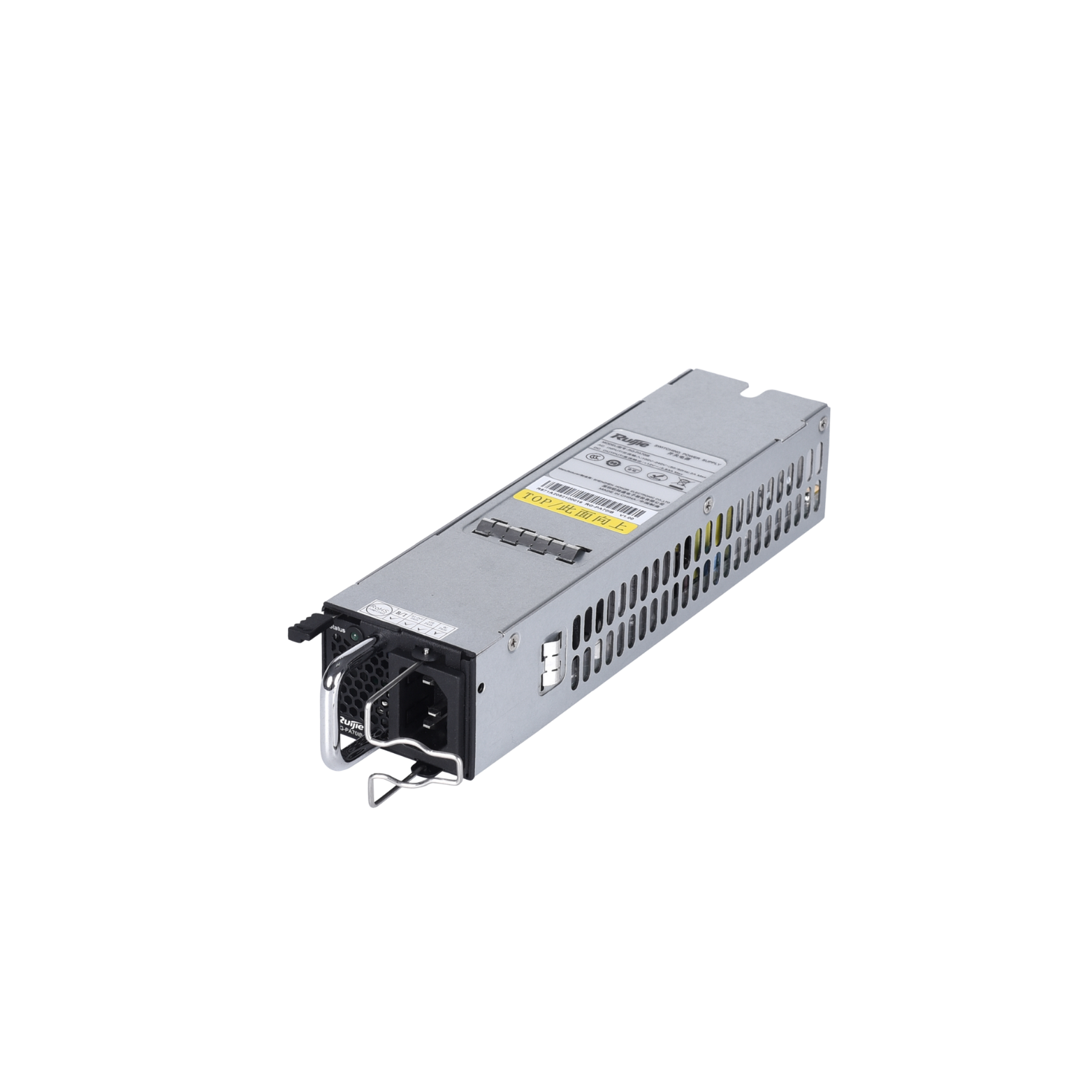

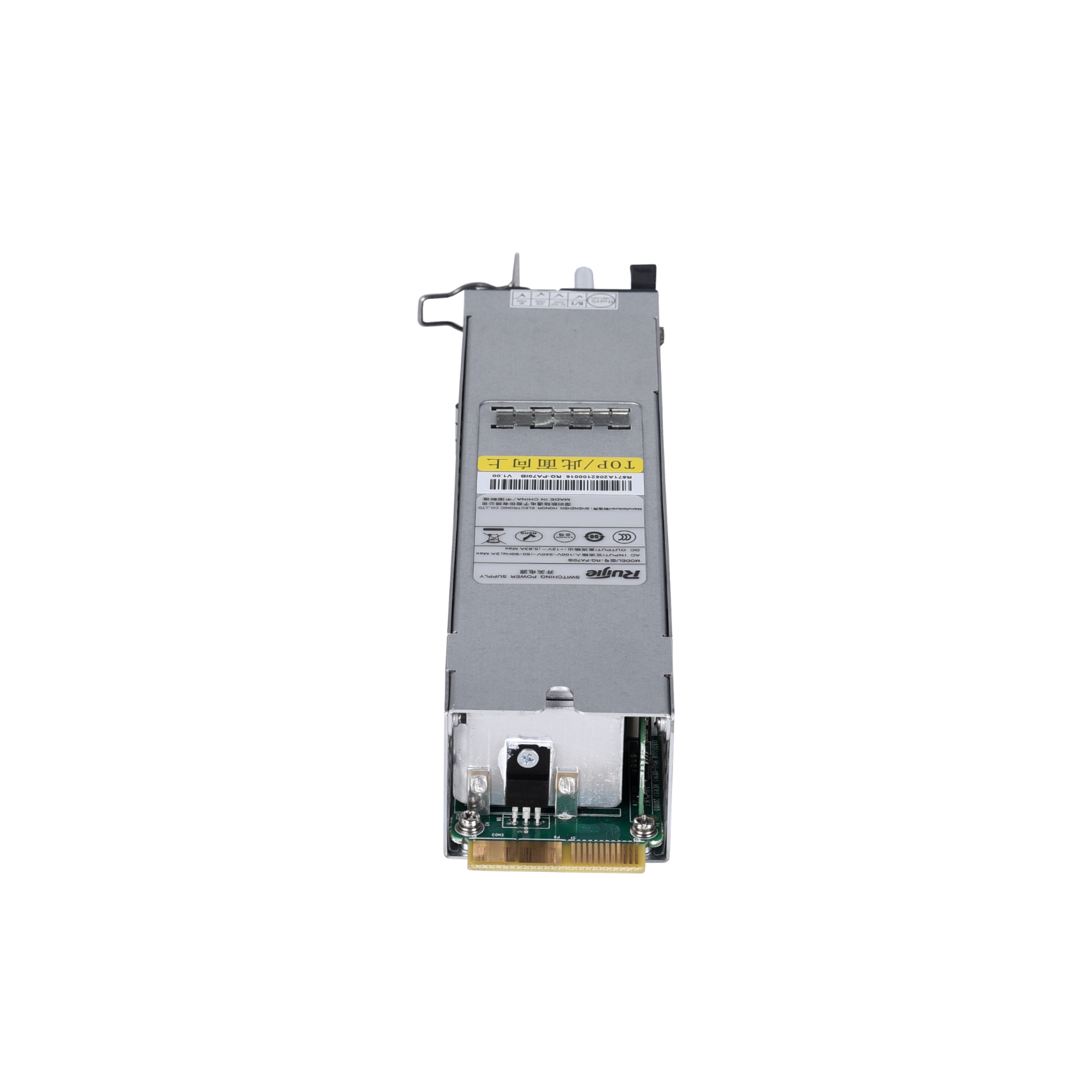

The RG-PA70IB and RG-PA70I are AC modules (AC/HVDC input and DC output) providing an output voltage of 12 V and an output power of up to 70 W.
Feature
Power Supply Redundancy
The RG-PA70 series power modules supports power redundancy. Dual power supply modules are connected in parallel for current sharing.
Hot Swapping
In the power redundancy mode, the RG-PA70 series power modules supports to disconnect one redundant power supply module from the outside power supply system, plug and unplug power supply modules while the device is powered on.
Security Protection Policies
The RG-PA70 series power modules provides undervoltage protection, output overcurrent protection, output overvoltage protection and output short circuit protection.
Conformal Coating
Protects circuits against moisture, frog, mold, electrical shock and leakage, and so on.
I2C Communication
Allows the host to communicate with the power supply module by I2C.
Power Supply Alarm
The RG-PA70 series supports power supply alarm. When a power fault occurs, the output status LED turns off.
Specification
Technical Specification
| Power Model | RG-PA70IB | RG-PA70I |
| Rated input voltage | AC input: 100 V AC to 240 V AC; 50 to 60 Hz HVDC input: 240 V DC | AC input: 100 V AC to 240 V AC; 50 to 60 Hz HVDC input: 240 V DC |
| Power Model | RG-PA70IB | RG-PA70I |
| Maximum input voltage | AC input: 90 V AC to 290 V AC; 47 to 63 Hz HVDC input: 192 V DC to 288 V DC | AC input: 90 V AC to 290 V AC; 47 to 63 Hz HVDC input: 192 V DC to 288 V DC |
| Maximum input current | 2 A | 2 A |
| Input leakage current | ≤ 1.75 mA | ≤ 1.75 mA |
| Output Specifications | ||
| Output voltage | 12 V | 12 V |
| Maximum output current | 5.83 A | 5.83 A |
| Maximum output power | 70 W | 70 W |
| Dimensions and Weight | ||
| Dimensions (W x D x H) | 196 mm x 50.5 mm x 40mm (7.72 in. x 1.99 in. x 1.57 in.) | 156 mm x 50.5 mm x 38 mm(6.14 in. x 1.99 in. x 1.50 in.) |
| Weight | Net weight: 0.4 kg (0.88 lbs.) | Net weight: 0.4 kg (0.88 lbs.) |
| Environmental Specifications | ||
| Primary airflow | Natural cooling | Natural cooling |
| Operating temperature | -10°C to +55°C (14°F to +131°F) | -10°C to +50°C (14°F to +122°F) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | 40°C to +70°C (-40°F to +158°F) |
| Operating humidity | 5% to 95% (non-condensing) | 10% to 90% (non-condensing) |
| Storage humidity | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) |
| Operating altitude | 0 m to 5,000 m (0 ft. to 16404.20 ft.) | 0 m to 5,000 m (0 ft. to 16404.20 ft.) |
| Other Specifications | ||
| Power cord requirement | 10 A power cord | 10 A power cord |
Ordering Information
| Model | Description |
| RG-PA70IB | 70 W AC power supply module (supports HVDC input) |
| RG-PA70I | 70 W AC power supply module (supports HVDC input) |
Applicable switches for the RG-PA70IB:
| Series | Model |
| RG-S5310-E series | RG-S5310-24GT4XS-E |
| RG-S5310-48GT4XS-E | |
| RG-S5310-24SFP4XS-E | |
| RG-S5760C-X series | RG-S5760C-48GT4XS-X (later versions of 12.5(4)B0701) |
| RG-S5760C-24GT8XS-X (later versions of 12.5(4)B0701) |
Applicable switches for the RG-PA70I:
| Series | Model |
| RG-S5750-H series | RG-S5750C-28GT4XS-H |
| RG-S5750C-28SFP4XS-H | |
| RG-S5750C-48GT4XS-H |
