Product Overview

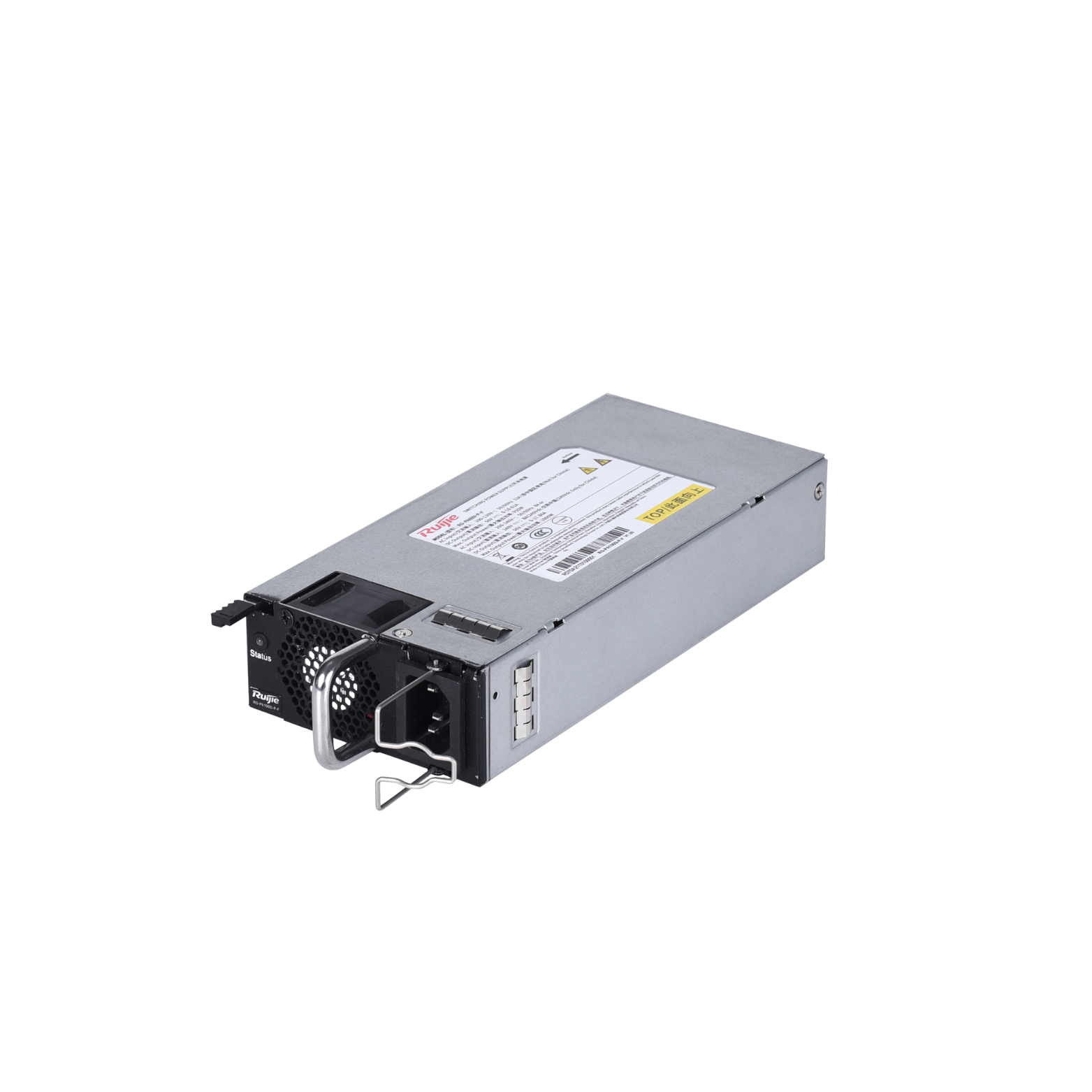

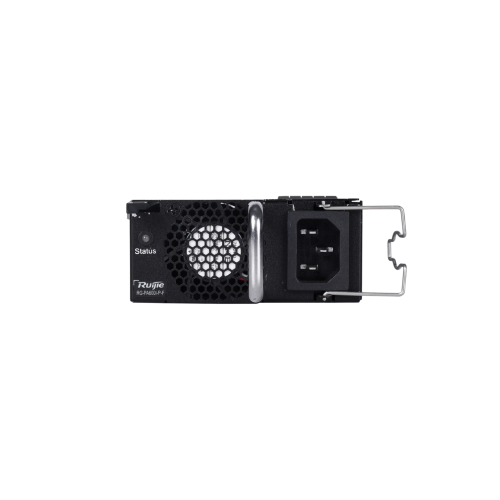

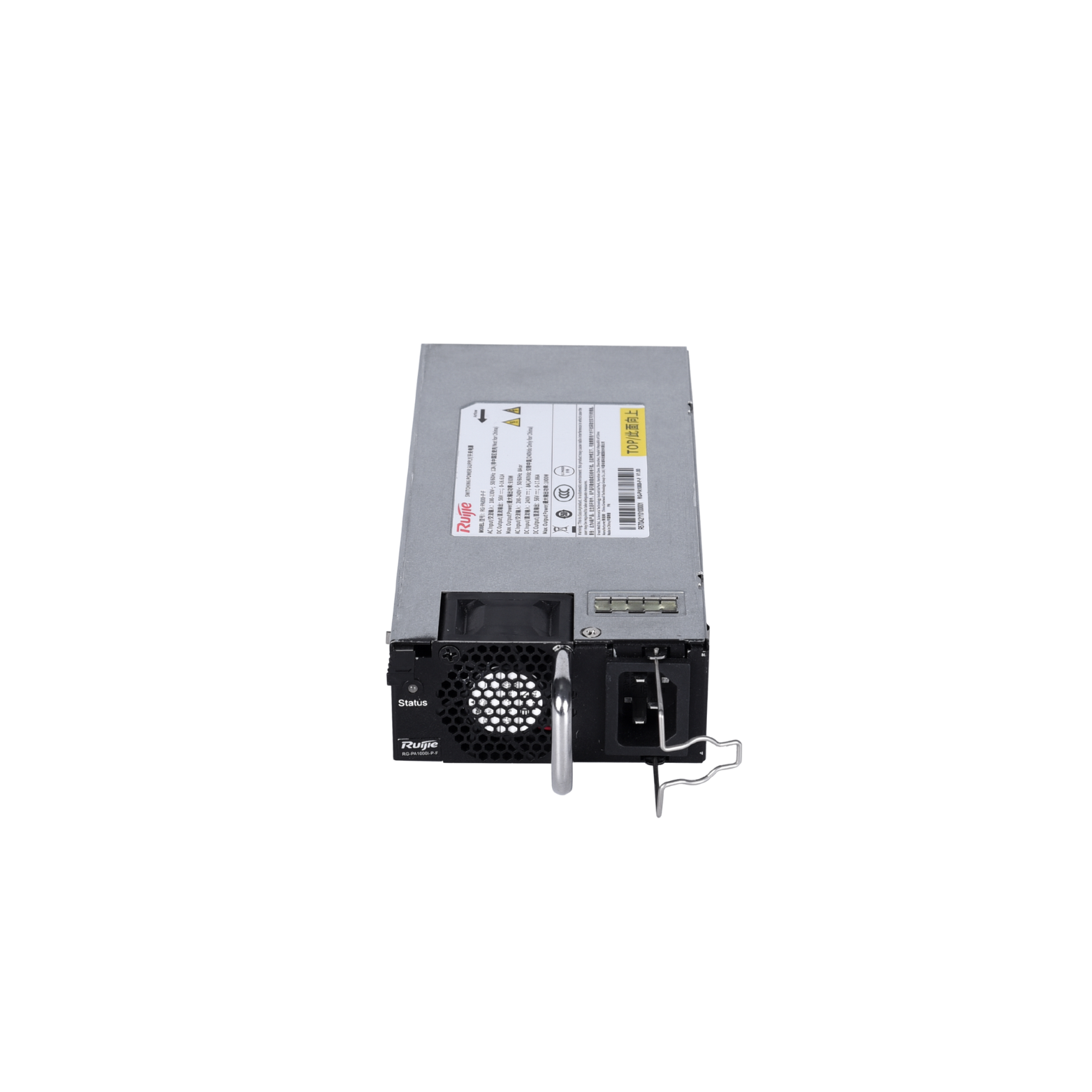

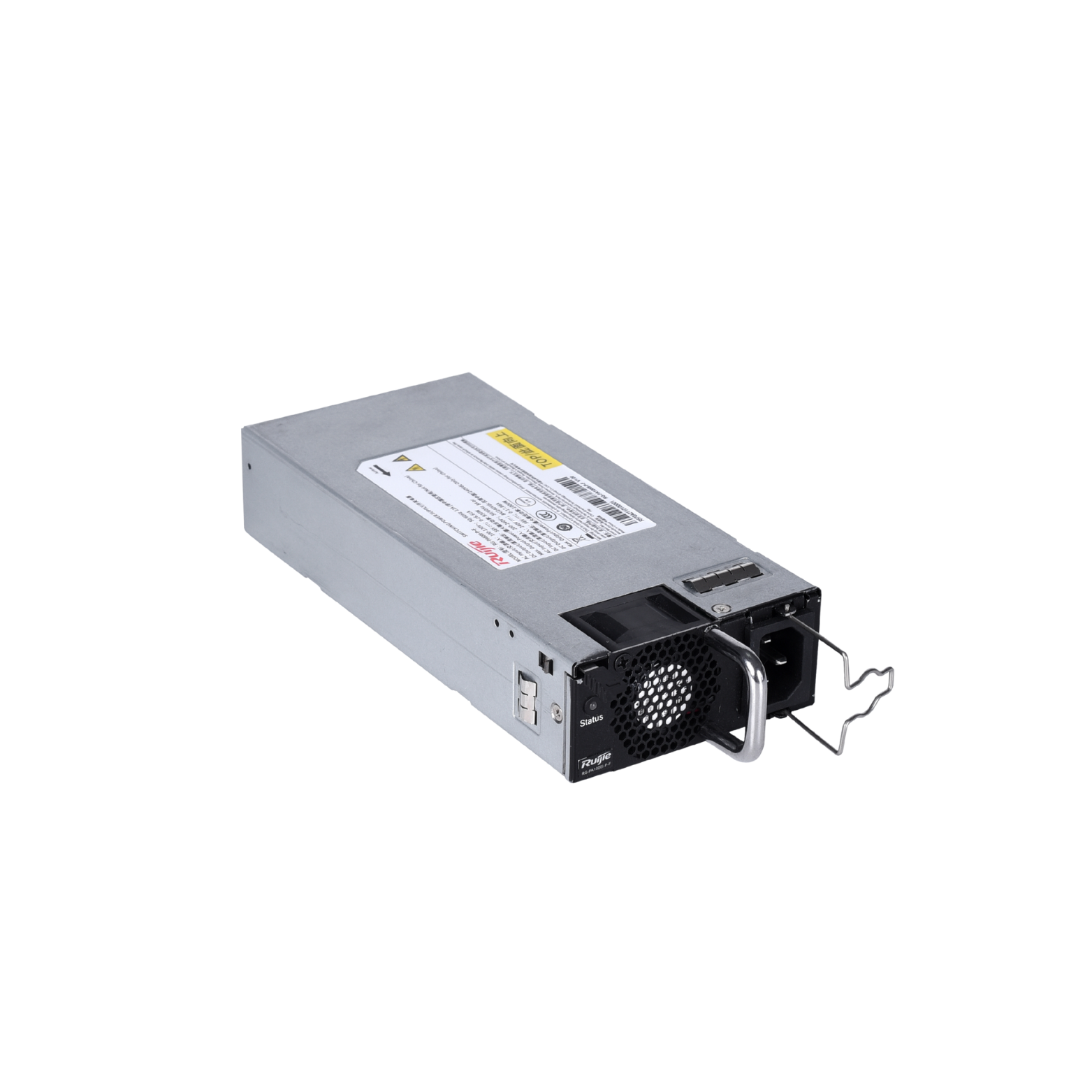

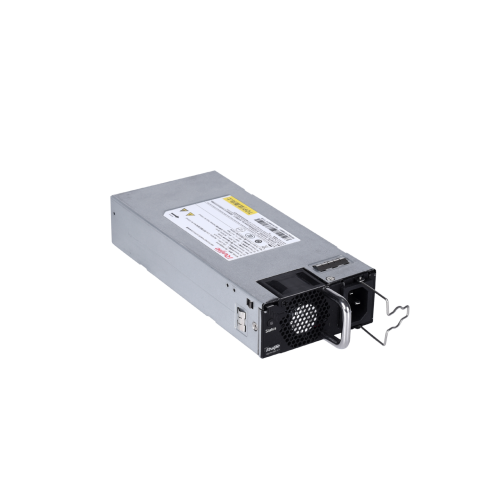

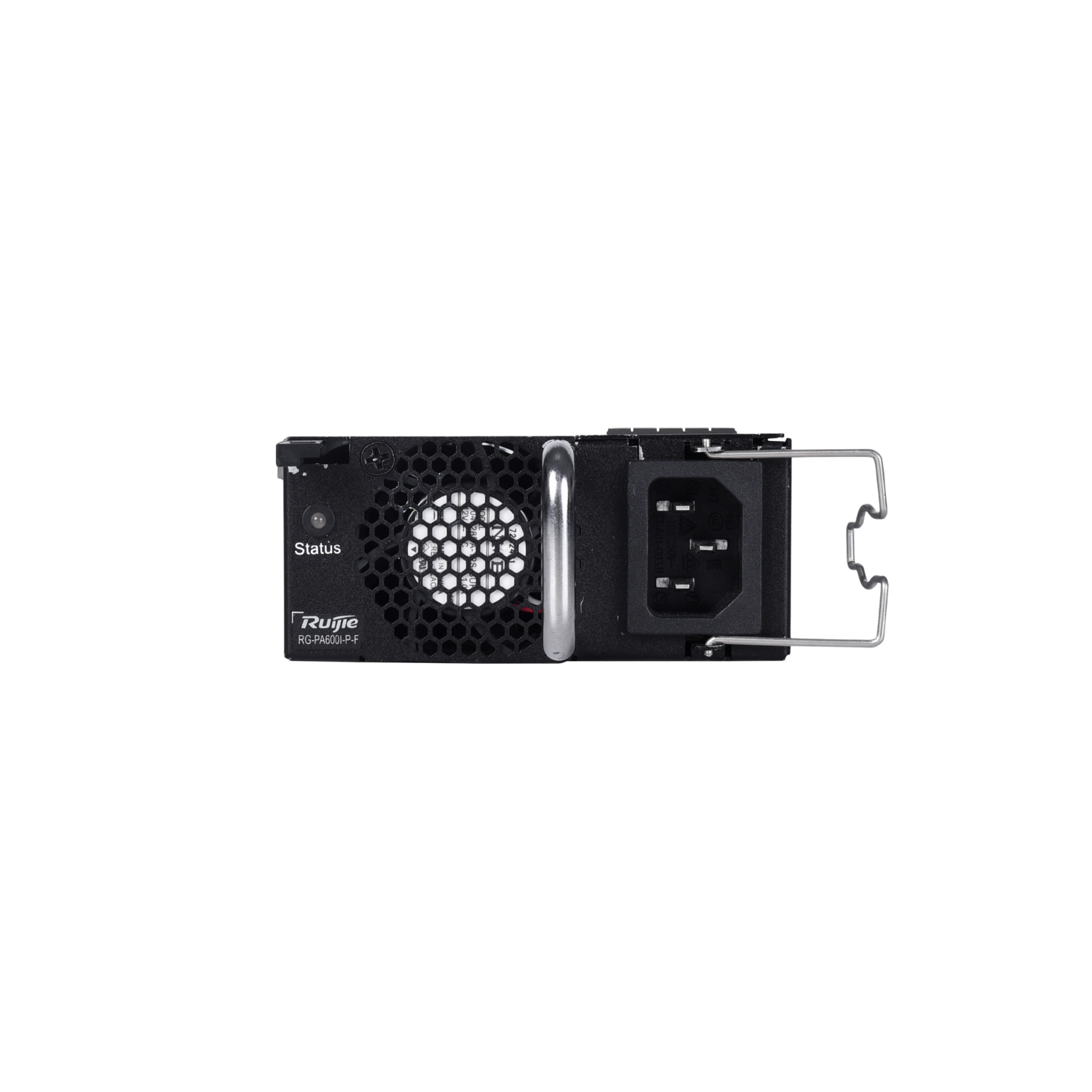

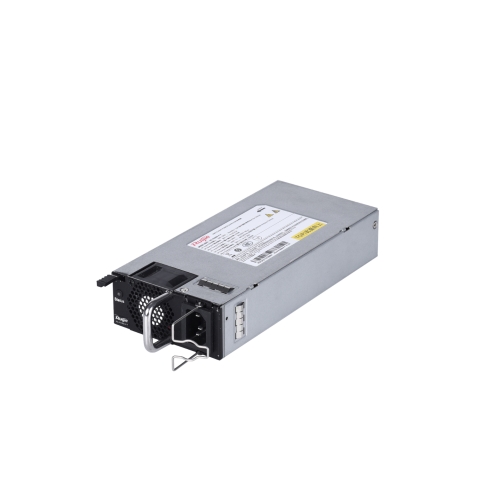

The RG-PA600I-P-F is an AC module (AC/HVDC input and DC output) providing an output voltage of 56 V and an output power of up to 600 W (PoE power: less than 600 W). The RG-PD600I-P-F is a DC module (DC input and DC output) providing an output voltage of 56 V and an output power of up to 600 W (PoE power: less than 600 W).
Product Feature
Power Supply Redundancy
The RG-PA600I-P-F and RG-PD600I-P-F support power redundancy when the PoE power consumption is less than 370 W. Dual power supply modules are connected in parallel for current sharing.
Hot Swapping
The RG-PA600I-P-F and RG-PD600I-P-F support to disconnect one redundant power supply module from the outside power supply system, plug and unplug power supply modules while the device is powered on.
Security Protection Policies
The RG-PA600I-P-F and RG-PD600I-P-F provide undervoltage protection, output overcurrent protection, output overvoltage protection and output short circuit protection. Conformal Coating
Protects circuits against moisture, frog, mold, electrical shock and leakage, and so on.
I2C Communication
Allows the host to communicate with the power supply module by I2C.
Power Supply Alarm
The RG-PA600I-P-F and RG-PD600I-P-F support power supply alarm. When a power fault occurs, the output status LED turns off.
Product Specification
Technical Specification
| Power Model | RG-PA600I-P-F | RG-PD600I-P-F |
| Input Specifications | ||
| Rated input voltage | AC input: 100 V AC to 240 V AC; 50 to 60 Hz
HVDC input: 240 V DC |
DC Input: -48 V DC to -60 V DC |
| Power Model | RG-PA600I-P-F | RG-PD600I-P-F |
| Maximum input voltage | AC input: 90 V AC to 290 V AC; 47 to 63 Hz
HVDC input: 192 V DC to 290 V DC |
DC Input: -38 V DC to -75 V DC |
| Maximum input current | AC input: 8 A
HVDC input: 4 A |
20 A |
| Input leakage current | ≤1.75 mA | \ |
| Output Specifications | ||
| Output voltage | 56 V | 56 V |
| Maximum output current | 10.72 A | 10.72 A |
| Maximum output power | 600 W | 600 W |
| PoE output power | ＜ 600 W | ＜ 600 W |
| Dimensions and Weight | ||
| Dimensions (W x D x H) | 196 mm x 90 mm x 40mm (7.72 in. x 3.54 in. x 1.57 in.) | 196 mm x 90 mm x 40mm (7.72 in. x 3.54 in. x 1.57 in.) |
| Weight | Net weight: 0.9 kg (1.98 lbs.) | Net weight: 0.9 kg (1.98 lbs.) |
| Environmental Specifications | ||
| Primary airflow | Rear-to-front: Air intake from the connector and air outlet from the front panel | Rear-to-front: Air intake from the connector and air outlet from the front panel |
| Operating temperature | -10°C to +55°C (14°F to 131°F) | -10°C to +55°C (14°F to 131°F) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | -40°C to +70°C (-40°F to +158°F) |
| Operating humidity | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) |
| Storage humidity | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) |
| Operating altitude | -500 m to +5,000 m (-1640.42 ft. to 16404.20 ft.) | -500 m to +5,000 m (-1640.42 ft. to 16404.20 ft.) |
| Other Specifications | ||
| Power cord requirement | 10 A power cord | DC power cord equal to or greater than 2.5 mm2 |
Ordering Information
| Model | Description |
| RG-PA600I-P-F | 600 W AC PoE module (supports HVDC input) |
| RG-PD600I-P-F | 600 W DC PoE module |
Applicable switches for the RG-PA600I-P-F:
| Series | Model |
| RG-S5310-E Series | RG-S5310-24GT4XS-P-E |
| RG-S5310-48GT4XS-P-E | |
| RG-S5760C-X Series | RG-S5760C-48GT4XS-HP-X |
| RG-S6100 Series Multi-GE | RG-S6110-48MG4VS2QXS-UP |
| RG-S6120-24XMG4XS4VS-UP-H | |
| RG-S6120-48XMG4VS2QXS-UP-H | |
| RG-CS85 Series | RG-CS85-48GT4XS-HPD |
| RG-CS83-PD Series | RG-CS83-24GT4XS-PD |
| RG-CS83-48GT4XS-PD | |
| RG-CS86 Series | RG-CS86-48MG4VS2QXS-UPD |
| RG-CS86-24XMG4XS4VS-UPD |
Applicable switches for the RG-PD600I-P-F:
| Series | Model |
| RG-S5310-E Series | RG-S5310-24GT4XS-P-E |
| RG-S5310-48GT4XS-P-E | |
| RG-S5760C-X Series | RG-S5760C-48GT4XS-HP-X |
