Thông số chính
| Switching capacity | 645 Tbps/1,935 Tbps | Packet forwarding rate | 345,600 Mpps | |
| Module slot | 2 x supervisor module slots8 x line card slots
8 x switch fabric module slots 10 x power module slots 3 x fan module slots |
Dimensions (W × D × H) | 442 mm x 896 mm x 708 mm (17.40 in. X 35.28 in. X 27.87 in.), without the cable management bracket;
442 mm x 935 mm x 708 mm (17.40 in. x 36.81 in. X 27.87 in.), with the cable management bracket. |
|
| Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) | Operating Humidity | 10% RH to 90% RH (non-condensing) | |
Thông số kỹ thuật
Hardware Specifications

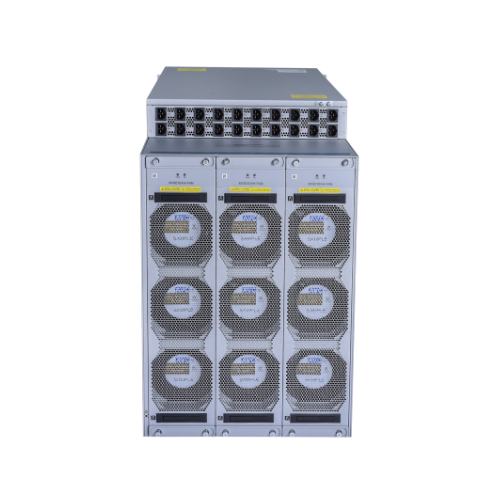

| Item | RG-N18018-XH | RG-N18010-XH |
| Dimensions (W x D x H) | 442 mm x 1052 mm x 1345 mm (17.40 in. x 41.42 in. x 52.95 in.), without the cable management bracket;
442 mm x 1091 mm x 1345 mm (17.40 in. x 42.95 in. x 52.95 in.), with the cable management bracket. |
442 mm x 896 mm x 708 mm (17.40 in. X 35.28 in. X 27.87 in.), without the cable management bracket;
442 mm x 935 mm x 708 mm (17.40 in. x 36.81 in. X 27.87 in.), with the cable management bracket. |
| Rack height | 31 RU | 16 RU |
| Unit weight | 205 kg (451.95 lbs.), with M18018XH-FAN fan modules;
186 kg (410.06 lbs.), with M18018XH-FAN III fan modules. |
96.4 kg (212.53 lbs.) (Chassis that supports the M18000XH-CM supervisor module)
99 kg (218.26 lbs.) (Chassis that supports the M18000XH-CM II supervisor module) |
| Switching capacity | 1,290 Tbps/3,870 Tbps | 645 Tbps/1,935 Tbps |
| Packet forwarding rate | 691,200 Mpps | 345,600 Mpps |
| Module slot | 2 x supervisor module slots
16 x line card slots 8 x switch fabric module slots 20 x power module slots 3 x fan module slots |
2 x supervisor module slots
8 x line card slots 8 x switch fabric module slots 10 x power module slots 3 x fan module slots |
| Power consumption | Maximum power consumption (with the M18018XH-FAN fan module): 38,900 W
Maximum power consumption (with the M18018XH-FAN III fan module): 18,000 W |
Maximum power consumption (with the M18010XH-FAN fan module): 187,600 W
Maximum power consumption (with the M18010XH-FAN III fan module): 9000 W |
| Power input | RG-PAH3000I-F (AC input):
Rated input voltage: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 290 V AC, 45 Hz to 65 Hz Rated input current: 16 A Power port type: C20
RG-PAH3000I-F (HVDC input): Rated input voltage: 240 V DC to 380 V DC Maximum input voltage: 188 V DC to 400 V DC Rated input current: 14 A Power port type: C20 Note: When the switch is equipped with the high-voltage DC power supply, a PDU that supports high-voltage DC power supply must be used. To ensure safety, connect the external power supply to the power cord first and then to the PDU. The switch can only connect to a specific power system (UPS) but not to the DC power grid. The DC voltage tolerance range is from 188 V DC to 400 V DC.
PD2200II-F (DC input): Rated input voltage: –48 V DC to –60 V DC Maximum input voltage: –38 V DC to –72 V DC Rated input current: 50 A Power port type: Rectangular non-metallic locking plug |
RG-PAH3000I-F (AC input):
Rated input voltage: 100 V to 130 VAC, 200 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 290 V AC, 45 Hz to 65 Hz Rated input current: 16 A Power port type: C20
RG-PAH3000I-F (HVDC input): Rated input voltage: 240 V DC to 380 V DC Maximum input voltage: 188 V DC to 400 V DC Rated input current: 14 A Power port type: C20 Note: When the switch is equipped with the high-voltage DC power supply, a PDU that supports high-voltage DC power supply must be used. To ensure safety, connect the external power supply to the power cord first and then to the PDU. The switch can only connect to a specific power system (UPS) but not to the DC power grid. The DC voltage tolerance range is from 188 V DC to 400 V DC.
PD2200II-F (DC input): Rated input voltage: –48 V DC to –60 V DC Maximum input voltage: –38 V DC to –72 V DC Rated input current: 50 A Power port type: Rectangular non-metallic locking plug |
| Temperature | Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 1800 m (5,905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
|
| Humidity | Operating humidity: 10% RH to 90% RH (non-condensing) | |
| Altitude | Operating altitude: ≤ 5,000 m (16,404.20 ft.)
Storage altitude: ≤ 5000 m (16,404.20 ft.) |
|
| Cooling | Air cooling, front-to-rear airflow (port-side air intake) | |
Software Specifications
| Item | RG-N18018-XH | RG-N18010-XH |
| Traffic analysis | sFlow
IPFIX |
|
| Layer 2 features | Jumbo frame
IEEE 802.3ad (static link aggregation, LACP, cross-module link aggregation, and M-LAG) IEEE 802.1Q STP, RSTP, and MSTP GVRP QinQ LLDP Static MAC addresses, address filtering, and limit on the number of MAC addresses |
|
| IPv4 features | Static routing, BGP4, OSPF, IS-IS, and RIP
VRRP ECMP Policy-based routing IP fragmentation and reassembly Manual tunnel and GRE tunnel |
|
| IPv6 features | Static routing, BGP4+, OSPFv3, IS-ISv6, and RIPng
VRRPv3 ECMP Policy-based routing Path MTU discovery IP fragmentation and reassembly Manual tunnel and GRE tunnel Pingv6, Traceroutev6, Telnetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6 |
|
| Multicast | IGMP v1/v2/v3
IGMP Snooping v1/v2 IGMP proxy PIM-DM, PIM-SM, PIM-SSM, and PIM-SM v6 MLDv1, MLDv2 Static multi cast route Fast leave |
|
| MPLS | MPLS L3VPN
MPLS LDP SR MPLS (Segment Routing) SR-TE |
|
| ACL | Standard, extended (Layer 2 to layer 4), and expert ACL
Global ACL Ingress and egress ACL IPv6 ACL |
|
| QoS | IEEE 802.1p, ToS, and DSCP priority mapping
Priority marking and remarking SP(PQ), DRR, SP(PQ)+DRR, WFQ, SP(PQ)+WFQ, WRR, SP(PQ)+WRR and other queue scheduling mechanisms Congestion avoidance mechanisms such as RED and WRED ACL Egress/ingress port-based rate limit and CAR #MPLS QoS |
|
| Data center features | #SRv6
VXLAN bridge VXLAN gateway BGP-EVPN VXLAN VXLAN mapping VXLAN over IPv4 VXLAN over IPv6 M-LAG RDMA |
|
| SDN | OpenFlow 1.3 | |
| Reliability | Independent switch fabric modules and independent supervisor modules to implement thorough separation of the forwarding plane from the control plane
1+1 redundancy for supervisor modules N+M redundancy for switch fabric modules N+M redundancy for power modules and fan modules Midplane-free design to avoid single point of failures Hot swapping of components Hot patching for online patch upgrade BPDU Guard/Loop Guard/Root guard NSR DLDP FRR GR for OSPF/IS-IS/BGP BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/Static routing |
|
| Virtualization | Virtual switching unit (VSU) | |
| Security | #MACSec
Network foundation protection protocol (NFPP) and CPU Protection Policy (CPP) DDoS attack defense, ARP attack defense, and ICMP attack defense DAI, port security, IP source guard, and port protection uRPF RADIUS and TACACS authentication, password security, hierarchical user management, and password protection Source IP address restriction Configuring the device not to send unknown multicast packets to the CPU Suppression of unknown unicast, broadcast, and multicast packets SSHv2, providing secure encrypted channels for user login MAC address flapping protection policy Clear text and MD5 authentication for BGP4, BGP4+, OSPF, OSPFv3, IS-IS, IS-ISv6, and RIPv2 packets |
|
| Management | Console/AUX Modem/Telnet/SSHv2 CLI configuration
FTP, TFTP, Xmodem, and SFTP SNMP v1/v2c/v3 Netconf RMON NTP clock Fault alarm and auto-recovery System operation log Traffic analysis Zero-Touch provisioning (ZTP) Reliable network service (RNS), which probes specific services provided by the peer device to monitor the service availability Telemetry Buffer status monitoring and traffic microburst identification Supported VXLAN OAM: VXLAN ping VXLAN tracert Port mirroring, traffic mirroring, and ERSPAN Physical ports on all line cards support routing mode and can be configured with IP addresses independently Fan and power module monitoring |
|
Thông tin đặt hàng
Chassis and Supervisor Modules
| Model | Description |
| RG-N18018-XH | RG- N18018-XH switch, fully equipped with fan modules, without power modules |
| RG-N18010-XH | RG-N18010-XH chassis, fully equipped with fan modules, without power modules |
| M18000XH-CM | M18000XH-CM supervisor module, used with Type E switch fabric modules and CE line cards |
| M18000XH-CM II | M18000XH-CM II supervisor module, used with Type D switch fabric modules and DB line cards |
Power Module
| Model | Description |
| RG-PAH3000I-F | 3000 W AC power module (supporting AC and 240 V to 380 V HVDC) |
| PD2200II-F | 2200 W DC power module (supporting 54 V DC), applicable to RG-N18018-XH and RG-N18010-XH |
Switch Fabric Module
| Model | Description |
| M18018XH-FE-E IV | Type E series switch fabric module of RG-N18018-XH, used with CE line cards |
| M18018XH-FE-D II | Type D switch fabric module of RG-N18018-XH, used with DB line cards |
| M18010XH-FE-E II | Type E series switch fabric module of RG-N18010-XH, used with CE line cards |
| M18010XH-FE-D II | Type D switch fabric module of RG-N18010-XH, used with DB line cards |
| M18006XH-FE-D I | Type D switch fabric module of RG-N18006-XH, used with DB line cards |
Line Cards and Function Modules
| Model | Description |
| M18000XH-36QC-CES | 36-port 400G (QSFP-DD) Ethernet optical interface card, CE line card, used together with Type E switch fabric modules |
| M18000XH-48CQ-CES | 48-port 100G QSFP28 Ethernet optical interface card, CE line card, used with Type E series switch fabric modules |
| M18000XH-36CQ-DB | 36-port 100G QSFP28 Ethernet optical interface card, DB line card, used with Type D switch fabric modules |
| M18000XH-18CQ-DB | 18-port 100G QSFP28 Ethernet optical interface card, DB line card, used with Type D switch fabric modules |
| M18000XH-36QXS-DB | 36-port 40G QSFP+ Ethernet optical interface card, DB line card, used with Type D switch fabric modules |
| M18000XH-48XS-DB | 48-port 10G SFP+ Ethernet optical interface card, DB line card, used with Type D switch fabric modules |
25G Optical Transceivers
| Model | Description |
| VG-SFP-AOC5M | 25G active optical cable (AOC), SFP28 form factor, 5 m (16.40 ft.) |
| VG-SFP-SR-SM850 | 25G SR optical transceiver, SFP28 form factor, LC interface, 850 nm, 100 m (328.08 ft.) over multimode fiber (MMF) |
| VG-SFP-LR-SM1310 | 25G LR4 optical transceiver, SFP28 form factor, LC interface, 1310 nm, 10 km (32,808.40 ft.) over single-mode fiber (SMF) |
40G Optical Transceivers
| Model | Description |
| 40G-QSFP-LX4-SM1310 | 40G LX4 optical transceiver, QSFP+ form factor, Duplex LC, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF |
| 40G-QSFP-LR4-SM1310 | 40G LR4 optical transceiver, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF |
| 40G-QSFP-iLR4-SM1310 | 40G iLR4 optical transceiver, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF |
| 40G-QSFP-LSR-MM850 | 40G SR optical transceiver, QSFP+ form factor, MPO interface, 400 m (1,312.34 ft.) over MMF |
| 40G-QSFP-SR-MM850 | 40G SR optical transceiver, QSFP+ form factor, MPO interface, 150 m (492.13 ft.) over MMF |
| 40G-AOC-30M | 40G QSFP+ AOC, 30 m (98.43 ft.) |
| 40G-AOC-5M | 40G QSFP+ AOC, 5 m (16.40 ft.) |
100G Optical Transceivers
| Model | Description |
| 100G-QSFP-LR4-SM1310 | 100G LR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-ER4-SM1310 | 100G ER4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.60 ft.) over SMF |
| 100G-QSFP-SR-MM850 | 100GSR optical transceiver, QSFP28 form factor, MPO interface, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-AOC-5M | 100G AOC, QSFP28 form factor, 5 m (16.40 ft.) |
| 100G-AOC-10M | 100G AOC, QSFP28 form factor, 10 m (32.81 ft.) |
400G Optical Transceivers
| Model | Description |
| 400G-QDD-DR4-SM1310 | 400G optical transceiver, QSFP-DD form factor, MPO-12 APC, 1310 nm, 500 m (1,640.42 ft.) over SMF |
| 400G-QDD-FR4-SM1310 | 400G FR4 optical transceiver, QSFP-DD form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 400G-QDD-ZR-SM1550 | 400G ZR optical transceiver, QSFP-DD form factor, Duplex LC, 1550 nm, 80 km (262,467.19 ft.) over SMF |
| 400G-QDD-SR8-MM850 | 400G optical transceiver, QSFP-DD form factor, MPO-16 APC, 850 nm, 100 m (328.08 ft.) over MMF |
