Key Specification
| Supervisor module slot | 2 | Line card slot | 8 |
| Switch fabric module slot | 4 | Fan module | 2 |
| System packet forwarding rate | 14,200 Mpps | System switching capacity | 19.2Tbps |
| Unit dimensions (W x D x H) | 442.0 mm x 561.0 mm x 442.5 mm (17.40 in. x 22.09 in. x 17.42 in.）cable management bracket excluded | Unit weight | 43.6 kg (96.12 lbs, empty chassis with 2 fan modules) |
Features

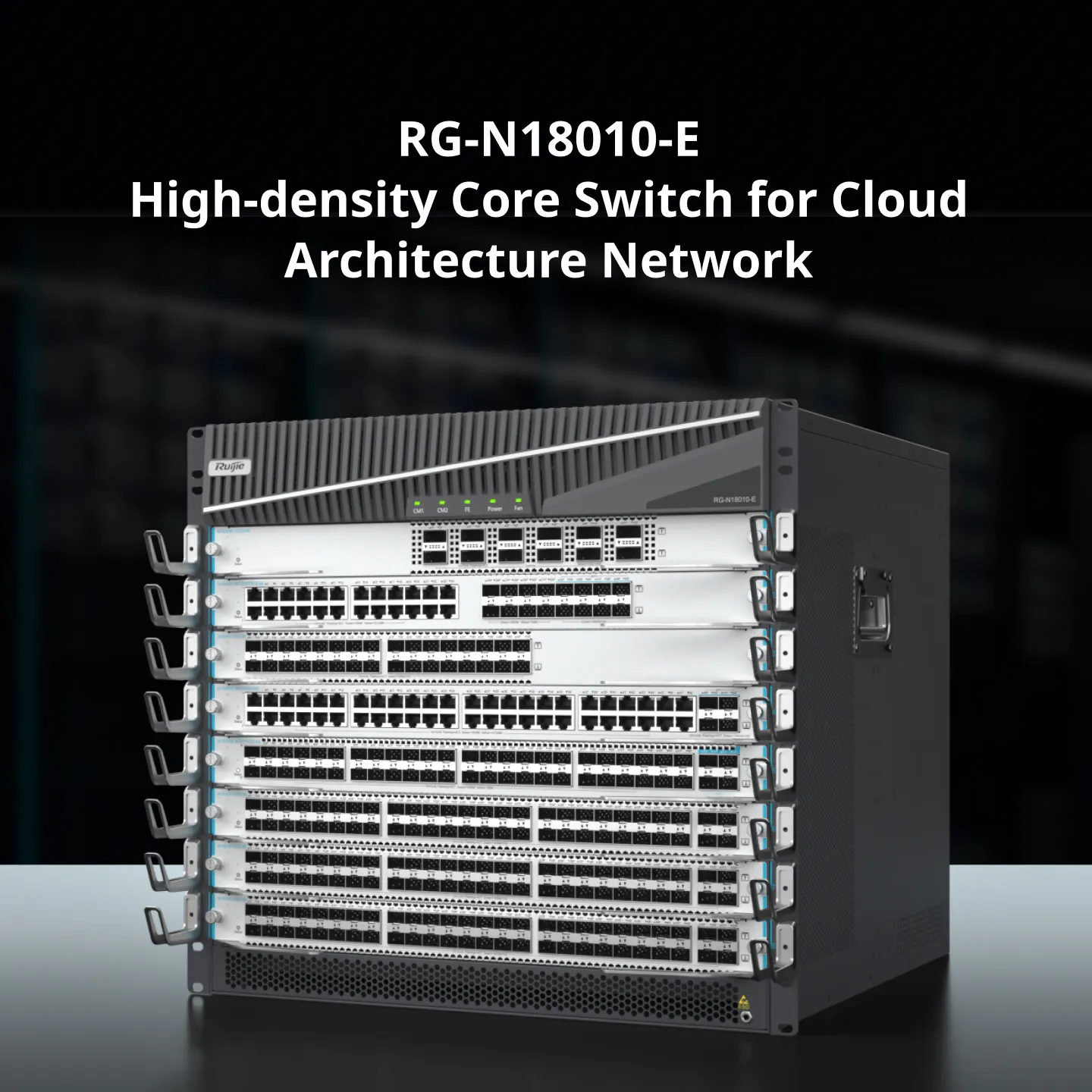

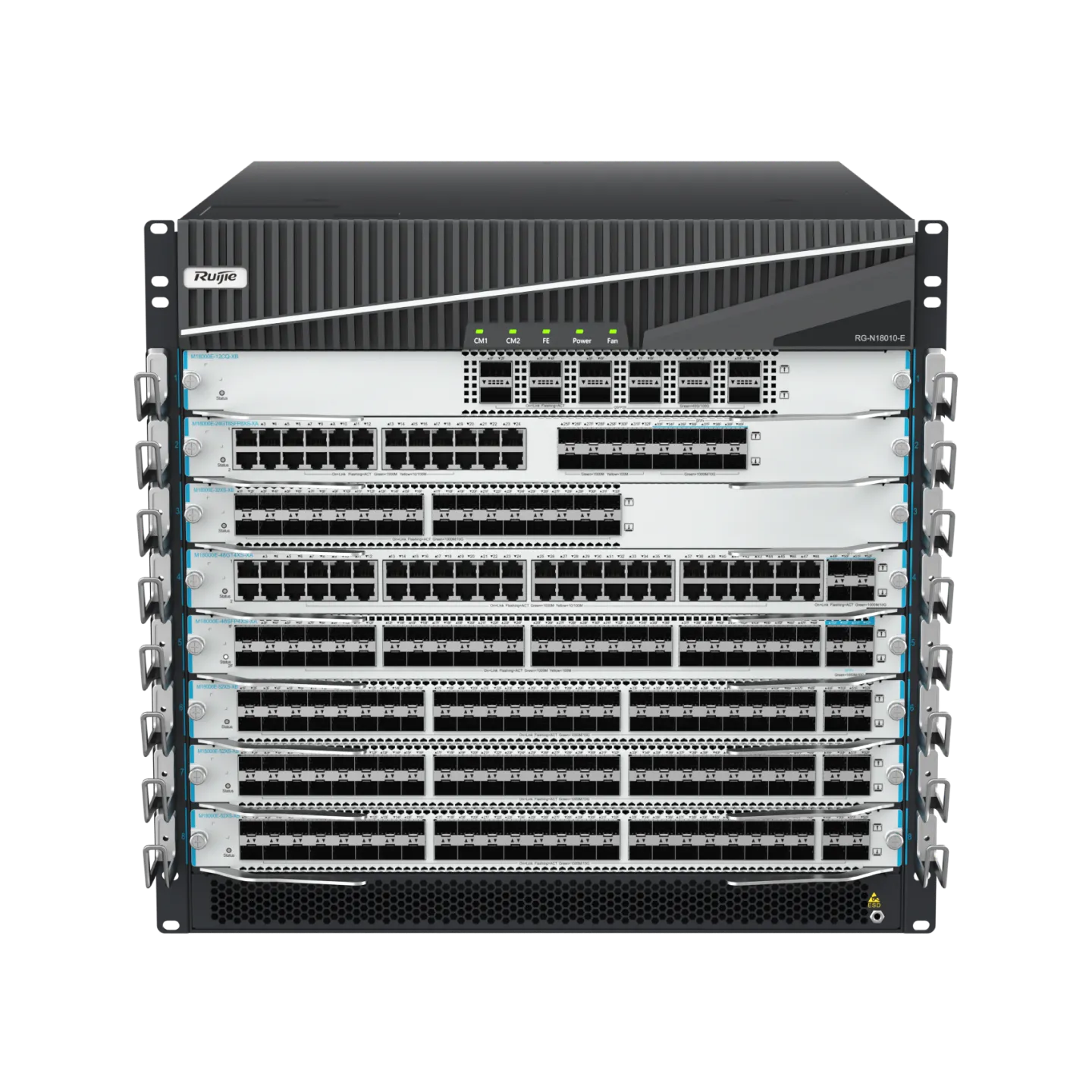

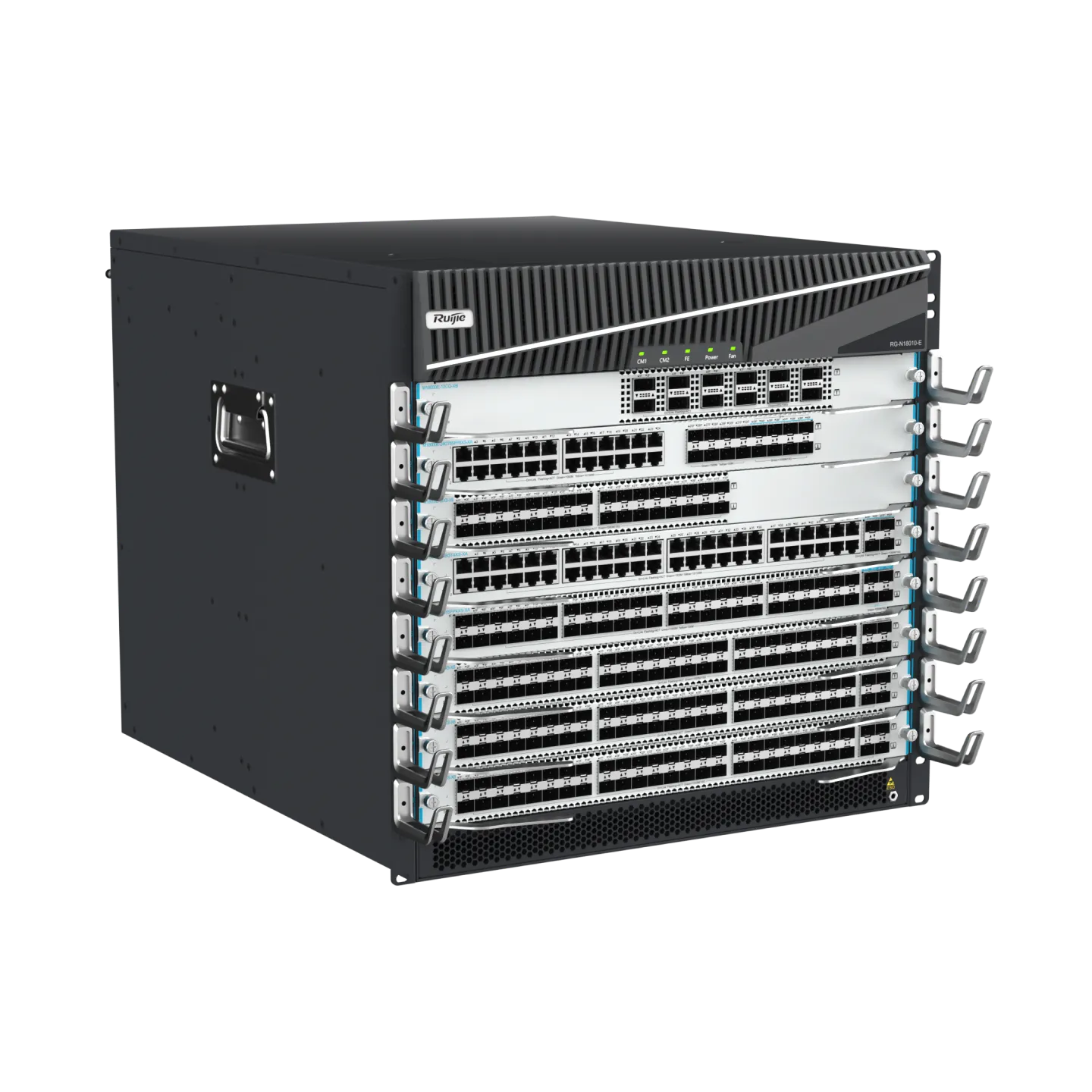

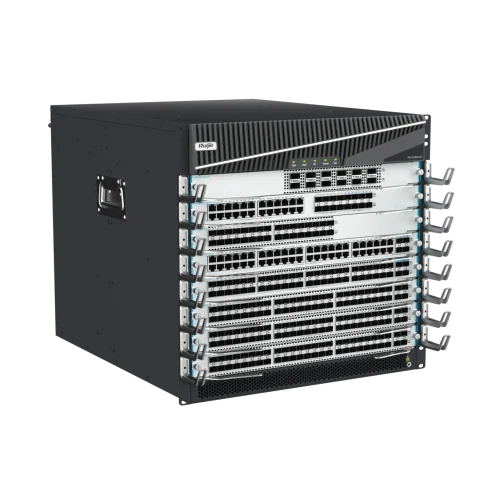

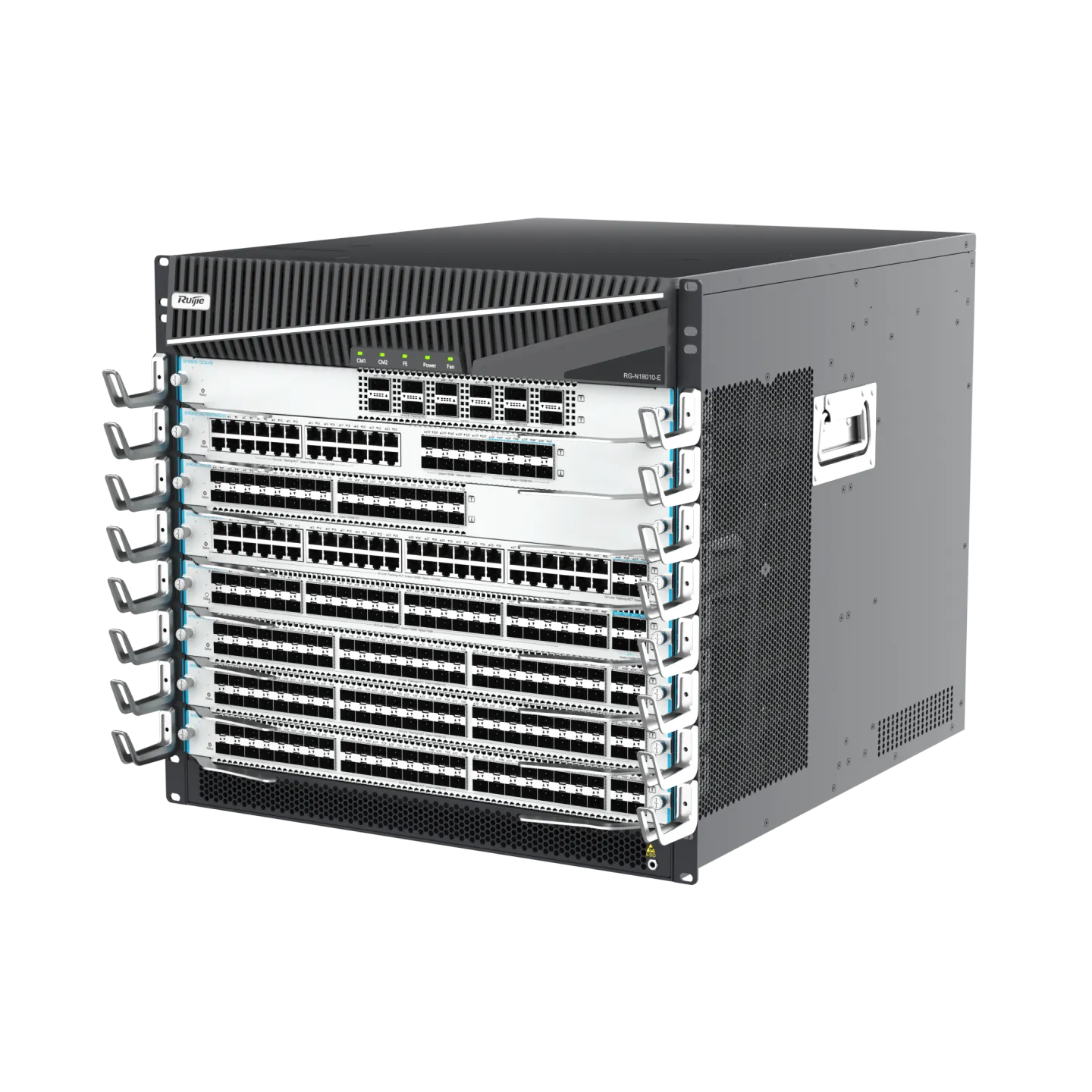

RG-N18010-E High-density Core Switch for Cloud Architecture Network
Up to 52 x 10GE ports and 12 x 100GE ports per line card, and up to 416 x 10GE ports and 96 x 100GE ports per switch
Fit for data centers, MANs, campus networks, and scenarios with data centers and campus networks

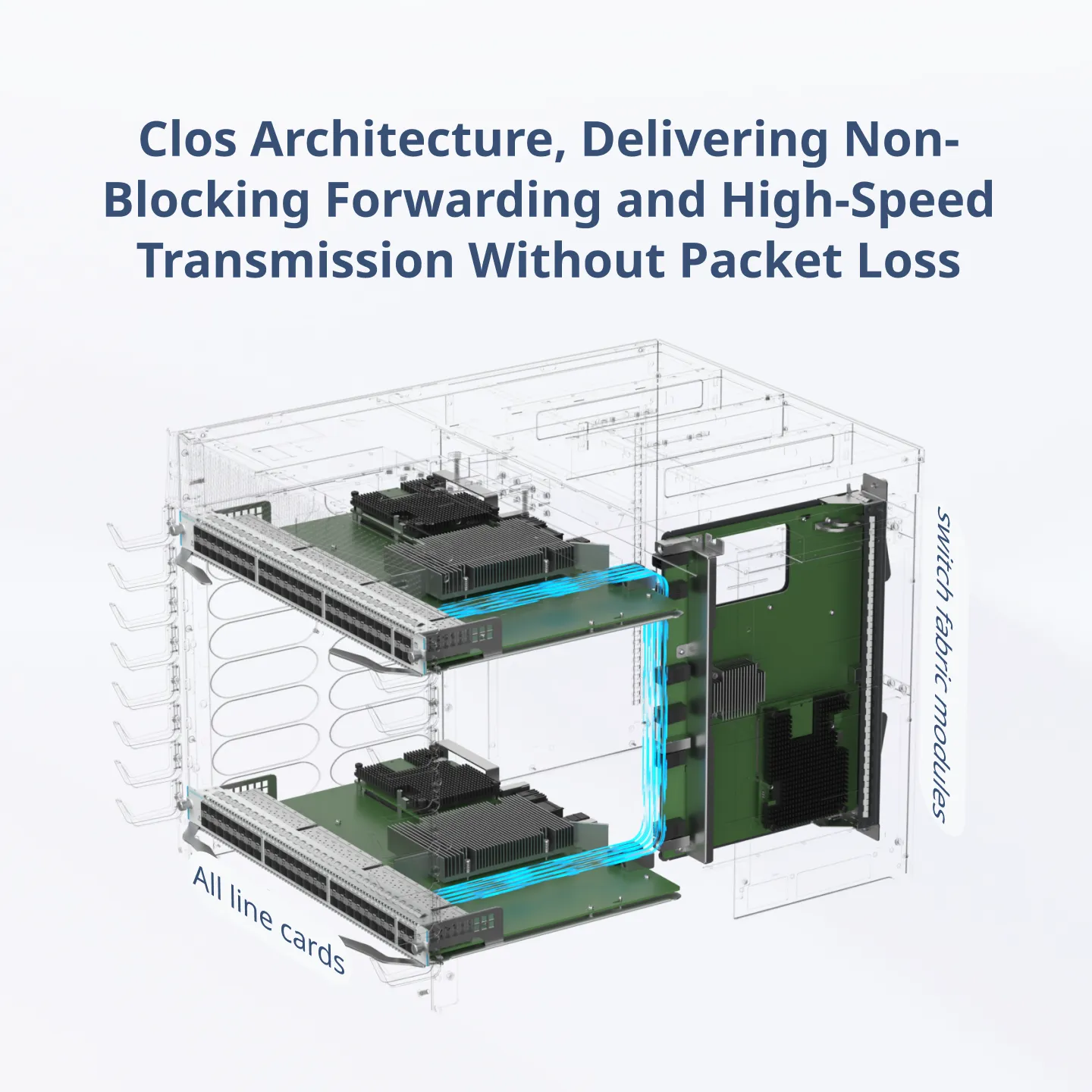

Clos Architecture, Delivering Non-Blocking Forwarding and High-Speed Transmission Without Packet Loss
All line cards and switch fabric modules adopt the orthogonal architecture. Cross-line card traffic is transmitted to switch fabric modules through orthogonal connectors, with low transmission loss. This greatly reduces signal attenuation and improves service traffic transmission efficiency.

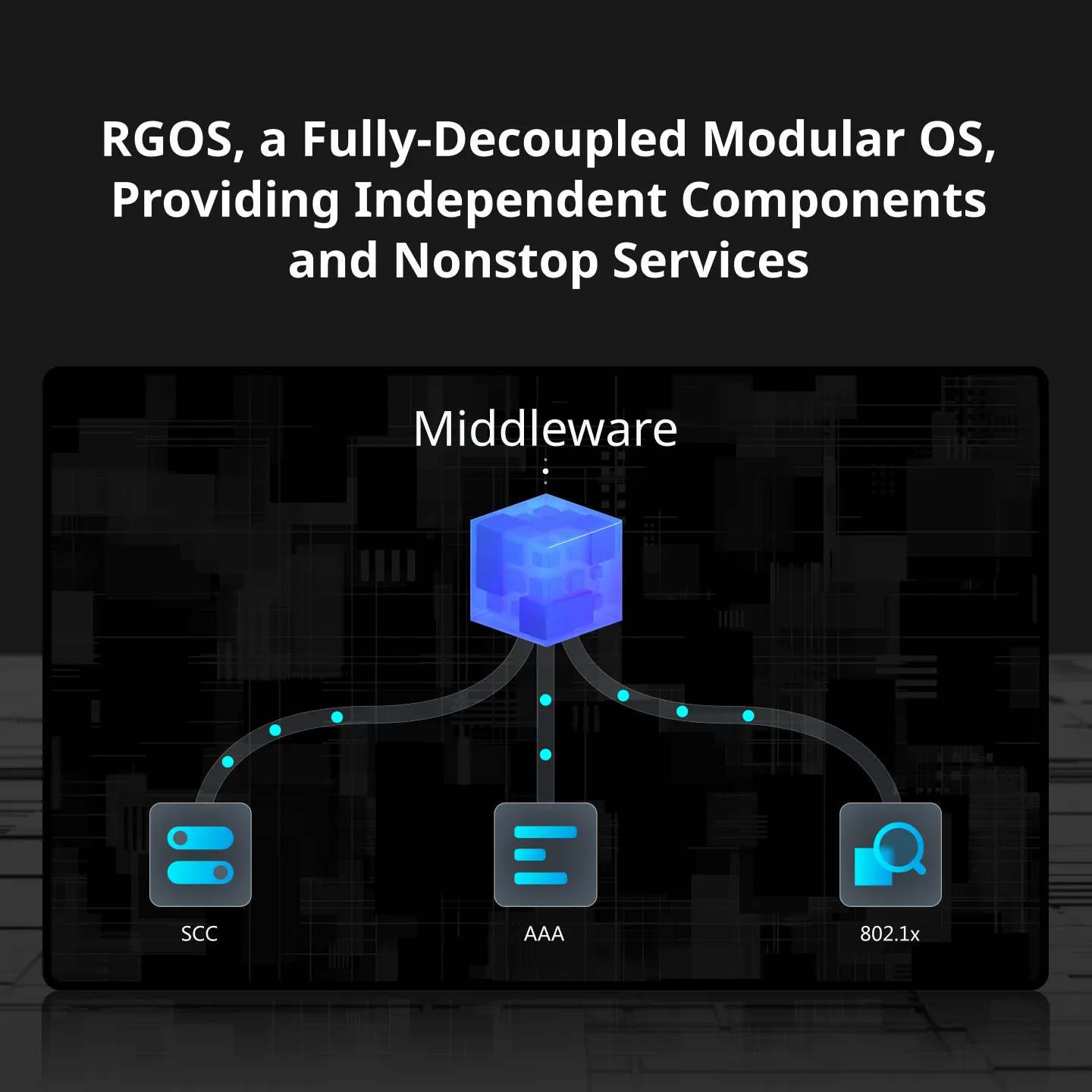

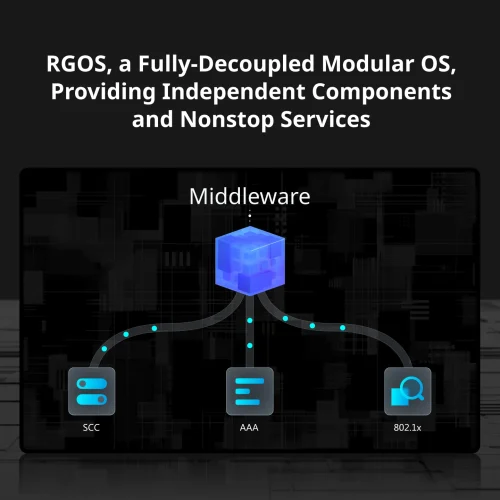

RGOS, a Fully-Decoupled Modular OS, Providing Independent Components and Nonstop Services
Completely decoupled service components, allowing automatic recovery upon component failures and ensuring high availability of the system
Live upgrade of service component functions, ensuring uninterrupted network for online function expansion

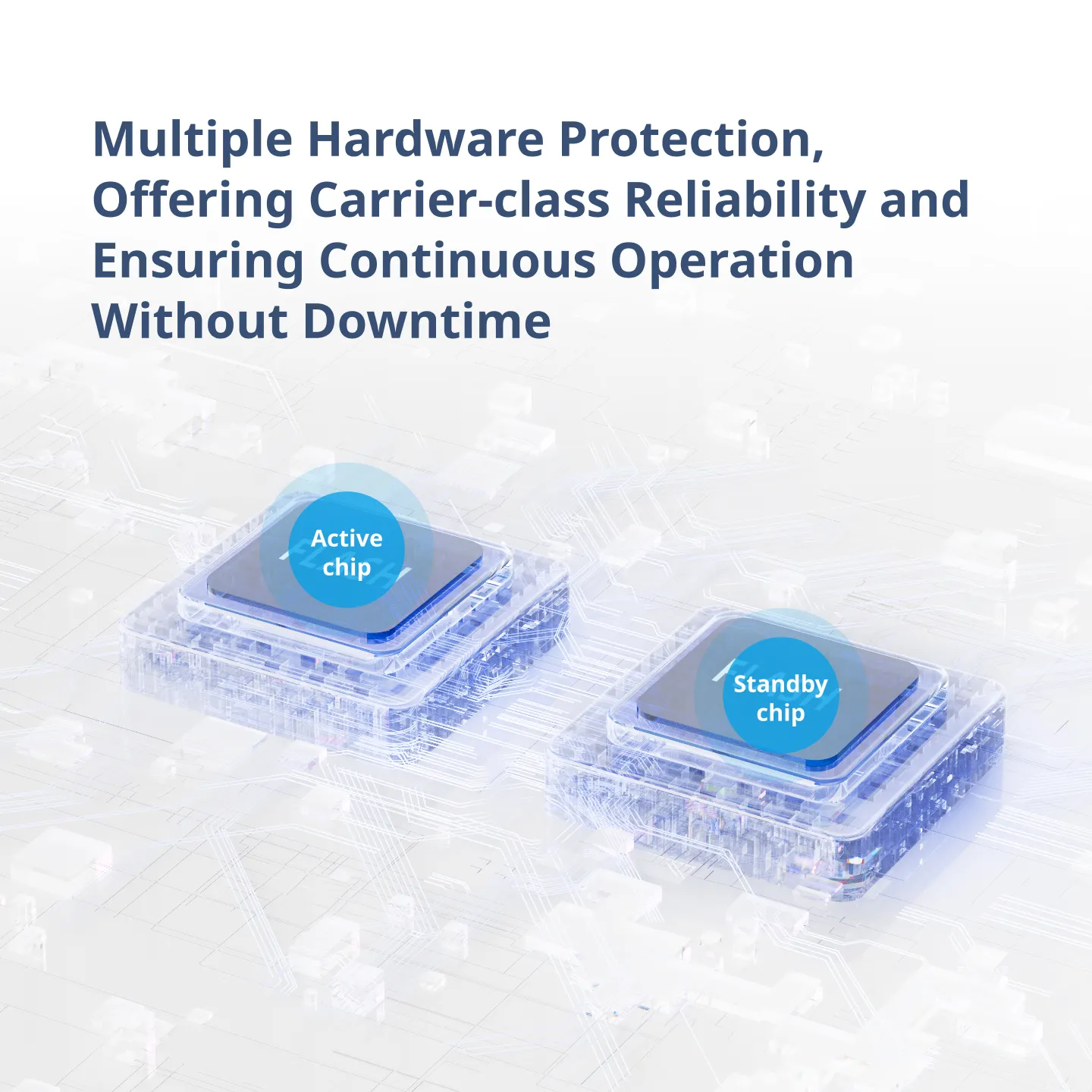

Multiple Hardware Protection, Offering Carrier-class Reliability and Ensuring Continuous Operation Without Downtime
Hardware-level Dual Redundancy
Dual-boot at the hardware level
Two flash chips used to store boot software to achieve hardware-level boot redundancy, avoiding switch boot failures due to flash chip faults
Faulty Optical Port Isolation
Special optical port protection and separate optical port power supply design, isolating a faulty module without affecting services on other ports
Rapid service restartion on the corresponding port after the faulty module is replaced

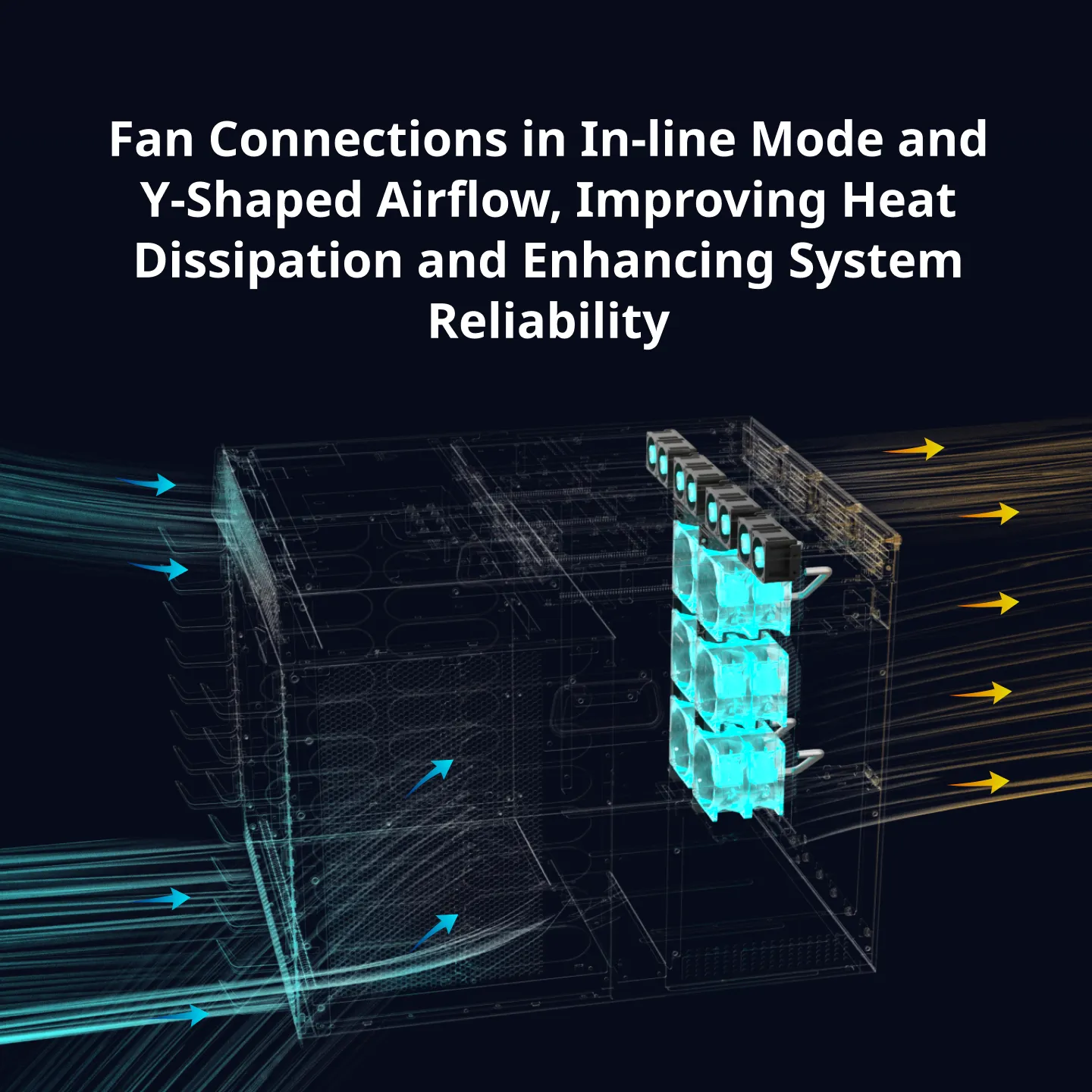

Fan Connections in In-line Mode and Y-Shaped Airflow, Improving Heat Dissipation and Enhancing System Reliability
Compared with the conventional single fan, fans connected in in-line mode improve the performance by 50% and provide better airflow. Y-shaped airflow design with front and right air inlets and rear air outlets forms a three-dimensional heat dissipation channel, improving heat dissipation efficiency. The airflow of line cards and switch fabric modules is separated from each other, enhancing system reliability.

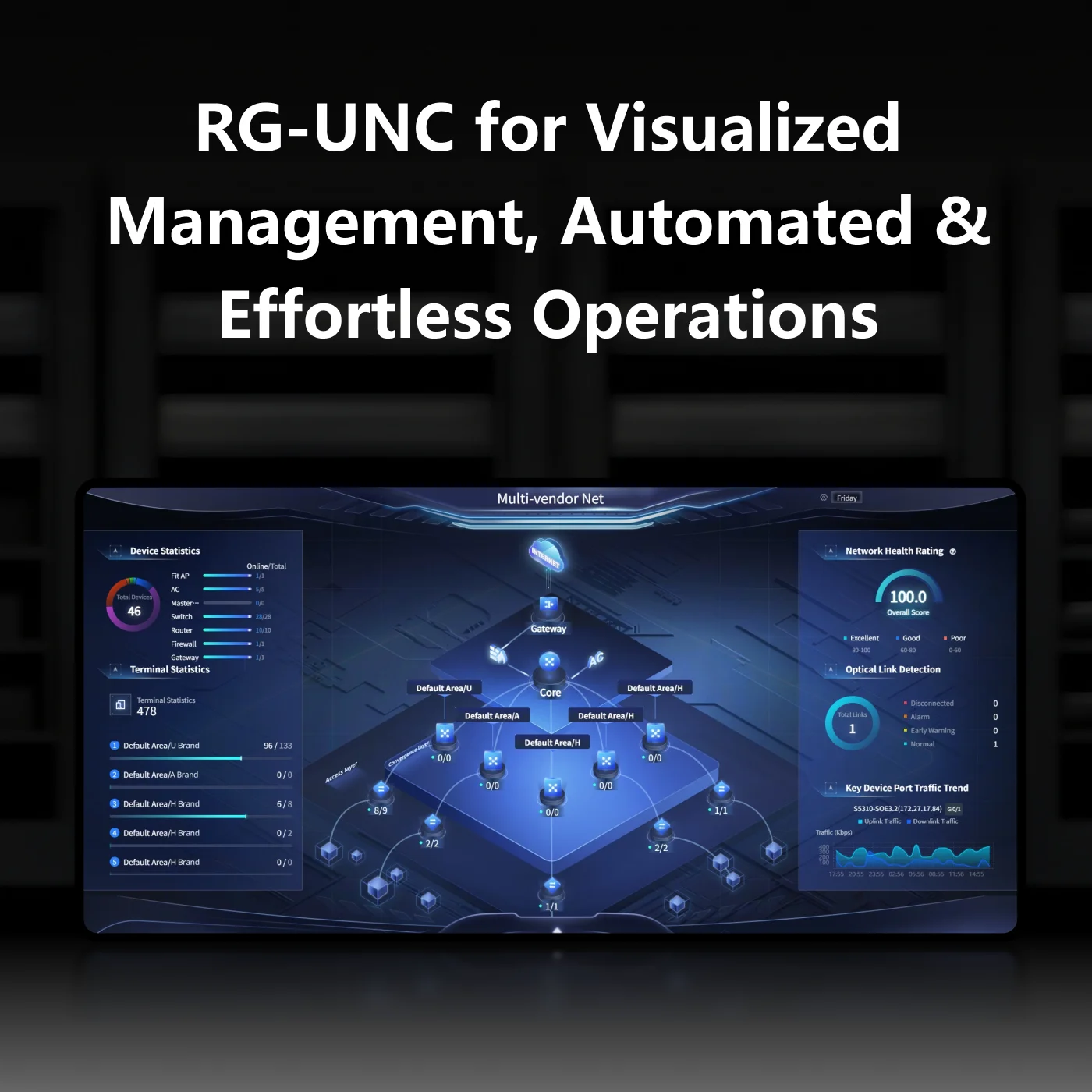

Ruijie Unified Networking Central (RG-UNC) Visualized Management, Automated and Effortless Operations
RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.
Specifications
Hardware Specifications
| Port Specifications | RG-N18010-E | RG-N18014-E |
| Module slot | 2 x supervisor module slots
8 x line card slots 4 x switch fabric module slots 4 x power module slots 2 x fan module slots |
2 x supervisor module slots
12 x line card slots 4 x switch fabric module slots 4 x power module slots 2 x fan module slots |
| Supervisor module | M18000E-CM
M18000E-CM II Note: The supervisor modules of the M18000E-CM and M18000E-CM II are incompatible with each other. Do not insert them into the same chassis. The main program versions of the two supervisor modules are independent. |
|
| Switch fabric module | M18010E-FE-X I
M18000E-FE-X II |
M18000E-FE-X II |
| Line card | M18000E-48GT4XS-XA
M18000E-48SFP4XS-XA M18000E-24GT8SFP8XS-XA M18000E-32XS-XB M18000E-52XS-XB M18000E-12CQ-XB M18000E-8SFG M18000E-8SFX M18000E-HCA (modular line card) ● HCA-4CQ (modular port adapter) ● HCA-20XS (modular port adapter) |
|
| Power module | RG-PA600I
RG-PA1600I |
|
| Fan module | M10C-FAN (pre-installed 2) | M14FAN-F (pre-installed 2) |
| Module management port | Supervisor module:
● 1 x RJ45 console port ● 1 x RJ45 MGMT port Switch fabric module: ● 1 x RJ45 console port |
|
| USB | Supervisor module: 1 x USB 2.0 port (no capacity limit, 2G/4G/8G/16G/32G capacity tested) | |
| System Specifications | RG-N18010-E | RG-N18014-E |
| System packet forwarding rate *1 | 14,200 Mpps | 21,000 Mpps |
| System switching capacity *2 | 19.2 Tbps | 28.8 Tbps |
| CPU | Supervisor module:
● M18000E-CM: quad-core CPU, each core with the clock speed of 2.2 GHz ● M18000E-CM II: octa-core CPU, each core with the clock speed of 2.2 GHz Switch fabric module: ● Quad-core CPU, each core with the clock speed of 2.2 GHz Line card: ● M18000E-XA/XB/CWDM card: quad-core CPU, each core with the clock speed of 2.2 GHz ● M18000E-HCA: octa-core CPU, each core with the clock speed of 2.2 GHz |
|
| Real-time clock (RTC) | M18000E-CM/CM II: supported | |
| BootROM | M18000E-CM/CM II: 16 MB
XA/XB/CWDM/FE card: 16 MB M18000E-HCA: 16 MB |
|
| Flash memory | M18000E-CM: 8 GB
M18000E-CM II: 16 GB XA/XB/CWDM/FE card: 8 GB M18000E-HCA: 16 GB |
|
| Memory | M18000E-CM: 4 GB DDR4
M18000E-CM II: 16 GB DDR4 XA/XB/CWDM/FE card: 4 GB DDR4 M18000E-HCA: 16 GB DDR4 |
|
| Switch buffer | XA card: 4 MB
XB/CWDM/HCA card: 35 MB |
|
| Number of MAC address | Number of static MAC addresses
● XA card: 4,000 ● XB card: 10,000 ● HCA card: 10,000 Number of global MAC addresses ● XA card: 96,000 (installed without the HCA card); 150,000 (installed with the HCA card) ● XB card: 256,000 (installed without the HCA card); 512,000 (installed with the HCA card) ● HCA card: 512,000 |
|
| ARP table size | XA card: 40,000 (installed without the HCA card); 64,000 (installed with the HCA card)
XB card: 96,000 HCA card: 96,000 |
|
| Number of IPv4 unicast routes | XA card: 64,000 (shared with IPv6 routes, installed without the HCA card); 1,500,000 (installed with the HCA card)
XB card: 350,000 (shared with IPv6 routes, installed without the HCA card); 1,500,000 (installed with the HCA card) HCA card: 1,500,000 (shared with IPv6 routes) |
|
| Number of IPv4 multicast routes | XA card: 4,000
XB card: 4,000 HCA card: 4,000 |
|
| Number of IPv6 unicast routes | XA card: 15,000 (≤ 64 bytes, shared with IPv4 routes, installed without the HCA card); 1,000,000 (installed with the HCA card)
XB card: 65,000 (installed without the HCA card); 1,000,000 (installed with the HCA card) HCA card: 1,000,000 |
|
| Number of IPv6 multicast routes | XA card: 2,000
XB card: 2,000 HCA card: 2,000 |
|
| Number of ACEs | XA card:
● Ingress: 7,000 ● Egress: 1,500 XB card: ● Ingress: 28,000 (installed without the HCA card); 24,000 (installed with the HCA card) ● Egress: 4,000 HCA card: ● Ingress: 24,000 ● Egress: 4,000 |
|
| Number of VSU members | 2 | |
* 1 means the system’s packet forwarding rate.
* 2 means the system’s switching capacity.
| Power Supply and Consumption | RG-N18010-E | RG-N18014-E |
| Power supply | 4 x pluggable power modules | |
| Power input | RG-PA600I (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 10 A RG-PA1600I (AC input): ● Rated input voltage: 100 V AC to 240 V AC; 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC; 47 Hz to 63 Hz ● Maximum input current: 16 A |
|
| Maximum output power | RG-PA600I: 600 W
RG-PA1600I: ● 100 V AC to 176 V AC: 1200 W ● 176 V AC to 240 V AC: 1600 W |
|
| Module power consumption | Supervisor module:
● M18000E-CM: < 60 W ● M18000E-CM II: < 70 W Switch fabric module: ● M18000E-FE-X II: < 160 W Line card: ● M18000E-48GT4XS-XA: < 85 W ● M18000E-48SFP4XS-XA: < 117 W ● M18000E-24GT8SFP8XS-XA: < 95 W ● M18000E-32XS-XB: < 149 W ● M18000E-52XS-XB: < 250 W ● M18000E-12CQ-XB: < 240 W ● M18000E-8SFG: < 250 W ● M18000E-8SFX: < 250 W ● M18000E-HCA: < 280 W ● HCA-20XS: < 30 W ● HCA-4CQ: < 20 W |
|
| Switch fabric module:
● M18000E-FE-X I: < 50 W Fan module: ● M10C-FAN: < 216 W |
Fan module:
● M14FAN-F: < 360 W |
|
| Dimensions and Weight | RG-N18010-E | RG-N18014-E | |
| Unit dimensions (W x D x H) | 442.0 mm x 561.0 mm x 442.5 mm (17.40 in. x 22.09 in. x 17.42 in., cable management bracket excluded)
442.0 mm x 670.1 mm x 442.5 mm (17.40 in. x 26.38 in. x 17.42 in., cable management bracket included) |
442.0 mm x 561.0 mm x 605.1 mm (17.40 in. x 22.09 in. x 23.82 in., cable management bracket excluded)442.0 mm x 670.1 mm x 605.1 mm (17.40 in. x 26.38 in. x 23.82 in., cable management bracket included) |
|
| Shipping dimensions (W x D x H) | 845.0 mm x 685.0 mm x 770.0 mm (33.27 in. x 26.97 in. x 30.31 in.) |
860.0 mm x 670.0 mm x 887.0 mm (33.86 in. x 26.38 in. x 34.92 in.) |
|
| Rack height | 10 RU | 14 RU | |
| Unit weight | 43.6 kg (96.12 lbs, empty chassis with 2 fan modules) | 68.3 kg (150.58 lbs, empty chassis with 2 fan modules) | |
| Shipping weight | 68.3 kg (150.58 lbs) | 82.5 kg (181.88 lbs) | |
| Environment and Reliability | RG-N18010-E | RG-N18014-E |
| Temperature | Operating temperature: 0°C to 50°C (32°F to 122°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude between 3,000 m (9,842.52 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
|
| Humidity | Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
|
| Altitude | Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
|
| Mean time between failure (MTBF) | 342,000 hours (about 39 years) | |
| Fan | 2 x pluggable fan modules (pre-installed) | |
| Heat dissipation | Supervisor module and switch fabric module: front-to-rear airflow
Line card: right-to-rear airflow |
|
| Acoustic noise | 35°C (95°F): 55.9 dB
50°C (122°F): 73.4 dB |
|
| Supervisor module redundancy | 1+1 redundancy | |
| Switch fabric module redundancy | 1+N redundancy | |
| Power module redundancy | N+M redundancy (same model) | |
| Fan redundancy | 1+1 redundancy | |
| Module hot swapping | Supported | |
| Power module hot swapping | Supported | |
| Fan module hot swapping | Supported | |
| Cable hot swapping | All ports on line cards support hot swapping of cables.
The switch-mode power supply supports hot swapping of power cords. |
|
| Power supply monitoring | Monitoring of the model, temperature, power, and voltage of the power module
Power supply failure alarming Control of line card power-on based on the power supply status |
|
| Fan monitoring | Fan speed adjustment: 256 levels
Fan failure alarming |
|
| Temperature monitoring | Over-temperature alarming | |
| ESD | ESD contact/air discharge: 6 kV/8 kV
ESD susceptibility contact/air discharge: 8 kV/15 kV |
|
| Surge protection | MGMT port: 4 kV
Service port: 4 kV Power port: common mode 6 kV, differential mode 6 kV |
|
| Certifications and regulatory compliance | RG-N18010-E | RG-N18014-E |
| Safety regulation | IEC 62368-1 | |
| EMC regulation | EN 300386, EN 55032 Class A, EN 55035,
EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
|
| RoHS | European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863 | |
Software Specifications
| Feature | RG-N18000-E Series |
| Ethernet Switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.3az EEE | |
| IEEE 802.1Q (supporting 4K VLANs) | |
| Voice VLAN | |
| Super-VLAN and private VLAN | |
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
| GVRP | |
| Basic QinQ and selective QinQ | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED | |
| IP Service | Static and dynamic ARP |
| DHCP client | |
| DHCP relay | |
| DHCP server | |
| DHCP snooping | |
| DNS | |
| DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping | |
| Neighbor Discovery (ND) and ND snooping | |
| IPv4 and IPv6 GRE tunnel | |
| IPv6 manual tunnel, IPv6 automatic tunnel, and IPv6 ISATAP tunnel | |
| IP Routing | Static routing |
| RIP and RIPng | |
| OSPFv2 and OSPFv3 | |
| GR | |
| IS-ISv4 and IS-ISv6 | |
| BGP4 and BGP4+ | |
| IPv4/IPv6 VRF | |
| IPv4/IPv6 PBR | |
| Multicast | IGMPv1/v2/v3 |
| IGMPv1/v2 snooping | |
| IGMP proxy | |
| IGMP fast leave | |
| PIM-DM, PIM-SM, PIM-SSM, and other multicast routing protocols | |
| Multicast static routing | |
| PIM-SM, PIM-SSM, PIM-SMv6, and PIM-SSMv6 | |
| MSDP for inter-domain multicast | |
| MLDv1/v2 | |
| MLDv1 snooping | |
| Multicast source IP address check
Multicast source port check Validity check of IGMP packets |
|
| Multicast querier | |
| MPLS | MPLS L3VPN |
| MPLS 6VPE and MPLS 6PE | |
| MPLS IPv6 | |
| MPLS MIB (RFC 1273, 4265, 4382) | |
| ACL and QoS | Standard IP ACLs (hardware ACLs based on IP addresses) |
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | |
| Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) | |
| Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| ACL80 and IPv6 ACL | |
| Applying ACLs globally (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| ACL redirection | |
| Port traffic identification | |
| Port traffic rate limiting | |
| IEEE 802.1p | |
| Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, SP+WFR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| Rate limiting based on the inbound or outbound interface | |
| Eight queues on each port | |
| Security | Multi-AAA |
| RADIUS authentication, authorization, and accounting | |
| TACACS+ | |
| IEEE 802.1X | |
| IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| ICMP (discarding ICMP packets of which the rate exceeds the threshold on an interface) | |
| Port security | |
| IP source guard | |
| SAVI | |
| ARP spoofing prevention | |
| CPP and NFPP | |
| Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types | |
| Loose and strict RPF
uRPF ignoring default routes |
|
| Reliability | REUP |
| Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control | |
| Data Link Detection Protocol (DLDP) | |
| IPv4/IPv6 ECMP | |
| IPv4 VRRP v2/v3 and IPv6 VRRP v3 | |
| BFD | |
| Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM) | |
| 1+1 redundancy for supervisor modules | |
| 1+N redundancy for switch fabric modules | |
| N+M redundancy for power modules | |
| 1+1 redundancy for fan modules. | |
| Hot patching for online patch upgrade | |
| GR for OSPF/IS-IS/BGP | |
| BFD for VRRP/OSPF/BGP4/IS-IS/IS-ISv6/static routing | |
| Hot swapping of supervisor modules, switch fabric modules, power modules, and fan modules | |
| Device Virtualization | VSU |
| NMS and Maintenance | SPAN, RSPAN, and ERSPAN |
| sFlow (network detection technology based on packet sampling, which is mainly used for traffic statistics and analysis in heavy-traffic scenarios) | |
| N:1 mirroring, 1:N mirroring, and flow-based mirroring
VLAN mirroring |
|
| NTP and SNTP | |
| FTP, SFTP, TFTP, and Xmodem | |
| SNMP v1/v2/c3 | |
| RMON (1, 2, 3, 9) | |
| Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups
RMON used to implement Ethernet statistics, historical statistics, and alarm functions |
|
| NETCONF | |
| CWMP | |
| gRPC | |
| OpenFlow Special 1.3 | |
| Flow table analysis defined by all protocols
Transmission of specified packets to the controller Configuring the controller’s IP address and port Notifying port status changes to the controller |
|
| Web-based NMS | |
| VXLAN | EVPN VXLAN tunnel establishment
LAN access to VXLAN IPv4 over IPv4 Distributed gateway IPv6 over IPv6 Using an SVI to connect to the VXLAN network Using a routed interface to connect to the VXLAN network Proxy ARP (replying with the actual MAC address)) ND proxy (replying with the actual MAC address) ND reply (replying with the actual MAC address) VXLAN static route Anycast gateway VXLAN bridging mode VXLAN routing mode Proxy ARP (replying with the gateway MAC address) Configuring the UDP port number in VXLAN packets Static VXLAN tunnel creation Layer 2 VXLAN bridge Layer 3 VXLAN gateway EVPN VXLAN |
Order Information
Switches and Supervisor Modules
| Model | Description |

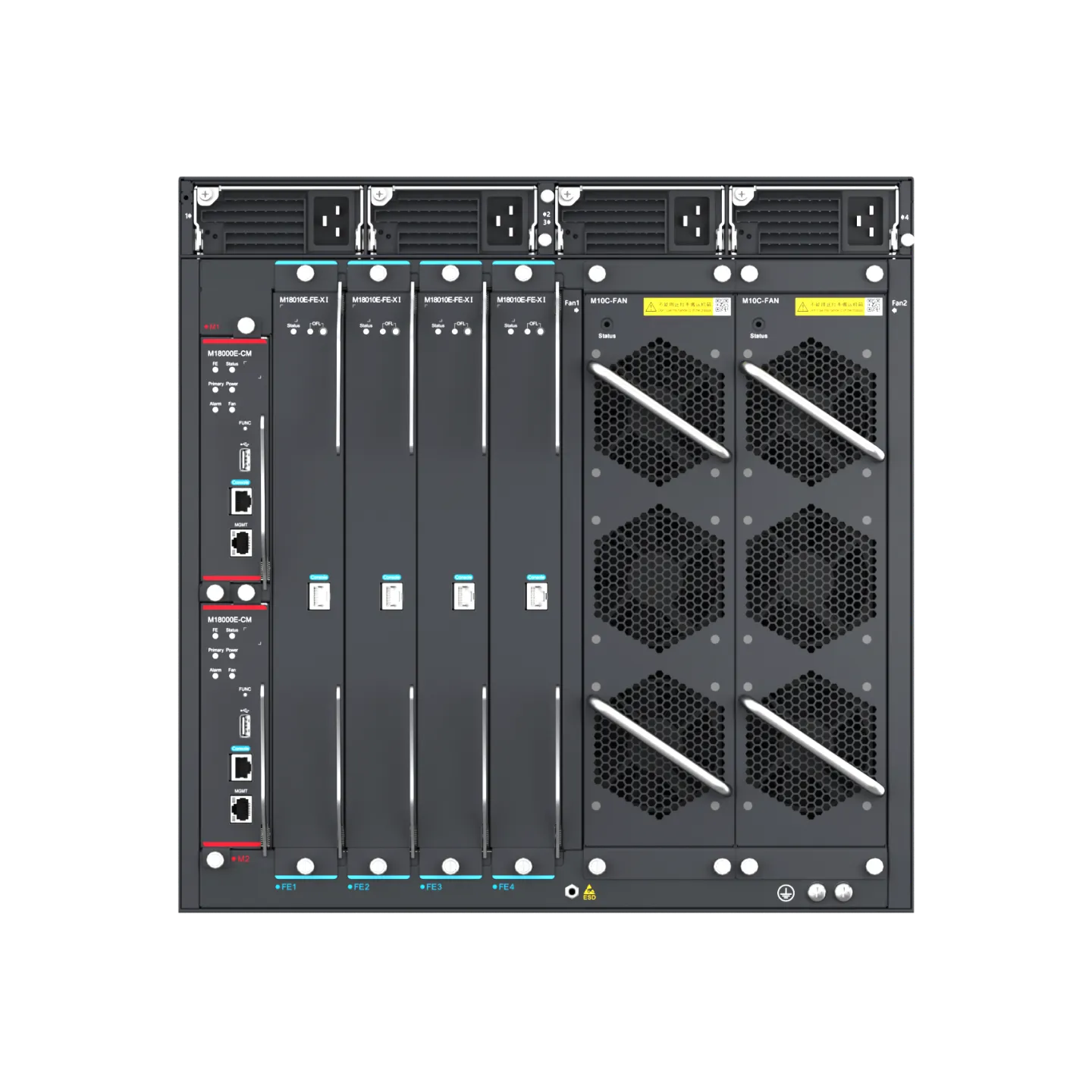

| RG-N18010-E | RG-N18010-E chassis, eight line cards, two supervisor modules, and four SFUs |
| RG-N18014-E | RG-N18014-E chassis, 12 line cards, two supervisor modules, and four SFUs |
| M18000E-CM | RG-N18000-E high-performance supervisor module |
| M18000E-CM II | RG-N18000-E 2nd high-performance supervisor module |
Power Modules and Fan Modules
| Model | Description |
| RG-PA600I | 600W AC power module, supporting redundancy |
| RG-PA1600I | 1600 W AC power module, supporting redundancy |
SFUs
| Model | Description |
| M18010E-FE-X I | RG-N18010-E first-generation SFU |
| M18000E-FE-X II | RG-N18000-E second-generation SFU |
Line Cards
| Model | Description |
| M18000E-32XS-XB | 32 x 1GE/10GE SFP+ ports (LC) |
| M18000E-52XS-XB | 52 x 1GE/10GE SFP+ ports (LC) |
| M18000E-12CQ-XB | 12 x 40GE/100GE QSFP28 ports (LC/MPO) |
| M18000E-24GT8SFP8XS-XA | 24 x 10/100/1000BASE-T ports, 8 x 1GE SFP ports (LC), 8 x 1GE/10GE SFP+ ports (LC) |
| M18000E-48GT4XS-XA | 48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports (LC) |
| M18000E-48SFP4XS-XA | 48 x 1GE SFP ports (LC), 4 x 1GE/10GE SFP+ ports (LC) |
| M18000E-8SFX | CWDM line card for RG-N18000-E series core switches, providing 8 x SFX ports (64 x 10GE logical channels).
The ports are backward compatible with a data rate of 1000 Mbps. |
| M18000E-8SFG | CWDM line card for RG-N18000-E series core switches, providing 8 x SFG ports (64 x 1GE logical channels) |
| M18000E-HCA | High-capacity line card for centralized authentication of the RG-N18000-E, supporting two HCA cards |
| HCA-20XS | 20 x 1GE/10GE SFP ports (LC)
The line card must be used with the M18000E-HCA card. |
| HCA-4CQ | 4 x 40GE/100GE QSFP28 ports (LC/MPO)
The line card must be used with the M18000E-HCA card. |
Note:
- 1GE/10GE SFP+ ports support 1GE SFP transceivers and 10GE SFP+ transceivers.
- 40GE/100GE QSFP28 ports support 40GE QSFP+ transceivers and 100GE QSFP28 transceivers.
Optical Transceivers and Cables
1GE
| Model | Description |
| Mini-GBIC-GT | 1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation |
| MINI-GBIC-SX-MM850 | 1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF |
| GE-SFP-LX20-SM1310-BIDI | 1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF |
| GE-SFP-LX20-SM1550-BIDI | 1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF |
| GE-SFP-LH40-SM1310-BIDI | 1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF |
| GE-SFP-LH40-SM1550-BIDI | 1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF |
| GE-SFP-LX03-SM1310-BIDI-I | 1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF |
| GE-SFP-LX03-SM1550-BIDI-I | 1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF |
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
10GE
| Model | Description |
| XG-SFP-SR-MM850 | 10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF |
| XG-SFP-LR-SM1310 | 10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF |
| XG-SFP-ER-SM1550 | 10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF |
| XG-SFP-ZR-SM1550 | 10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF |
| XG-SFP-LR10-SM1270-BIDI-I | 10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF |
| XG-SFP-LR10-SM1330-BIDI-I | 10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF |
| XG-SFP-AOC1M | 10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers |
| XG-SFP-AOC3M | 10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers |
| XG-SFP-AOC5M | 10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers |
Note: BiDi transceivers must be used in pairs. If one end uses XG-SFP-LR10-SM1270-BIDI-I, the other end must use XG-SFP-LR10-SM1330-BIDI-I.
40GE
| Model | Description |
| 40G-QSFP-LSR-MM850 | 40GBASE-LSR, QSFP+ transceiver, 850 nm, MPO 1 x 12, 400 m over OM4 MMF, 300 m over OM3 MMF |
| 40G-QSFP-LR4-SM1310 | 40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| 40G-QSFP-iLR4-SM1310 | 40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF |
| 40G-QSFP-LX4-SM1310 | 40GBASE-LX4, QSFP+ transceiver, 1310 nm, Duplex LC, 150 m over OM3/OM4 MMF, 2 km over SMF |
| 40G-AOC-5M | 40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers |
100GE
| Model | Description |
| 100G-QSFP-SR-MM850 | 100GBASE-SR, QSFP28 transceiver, 850 nm, MPO 1 x 12, 100 m over OM4 MMF, 70 m over OM3 MMF |
| 100G-QSFP-LR4-SM1310 | 100GBASE-LR4, QSFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| 100G-AOC-10M | 100GBASE, QSFP28 active optical cable (AOC), 10 m, including one cable and two optical transceivers |
CWDM Transceiver
| Model | Description |
| SFG-LR-SM | 1GBASE-LR, core switch-side SFG CWDM transceiver, integration of 8 different wavelengths, BiDi LC, 10 km over SMF |
| SFM-LR-SM | 2.5GBASE-LR, core switch-side SFM CWDM transceiver, integration of 8 different wavelengths, BiDi LC, 10 km over SMF |
| SFX-LR-SM | 10GBASE-LR, core switch-side SFX CWDM transceiver, integration of 8 different wavelengths, BiDi LC, 10 km over SMF |
