Features

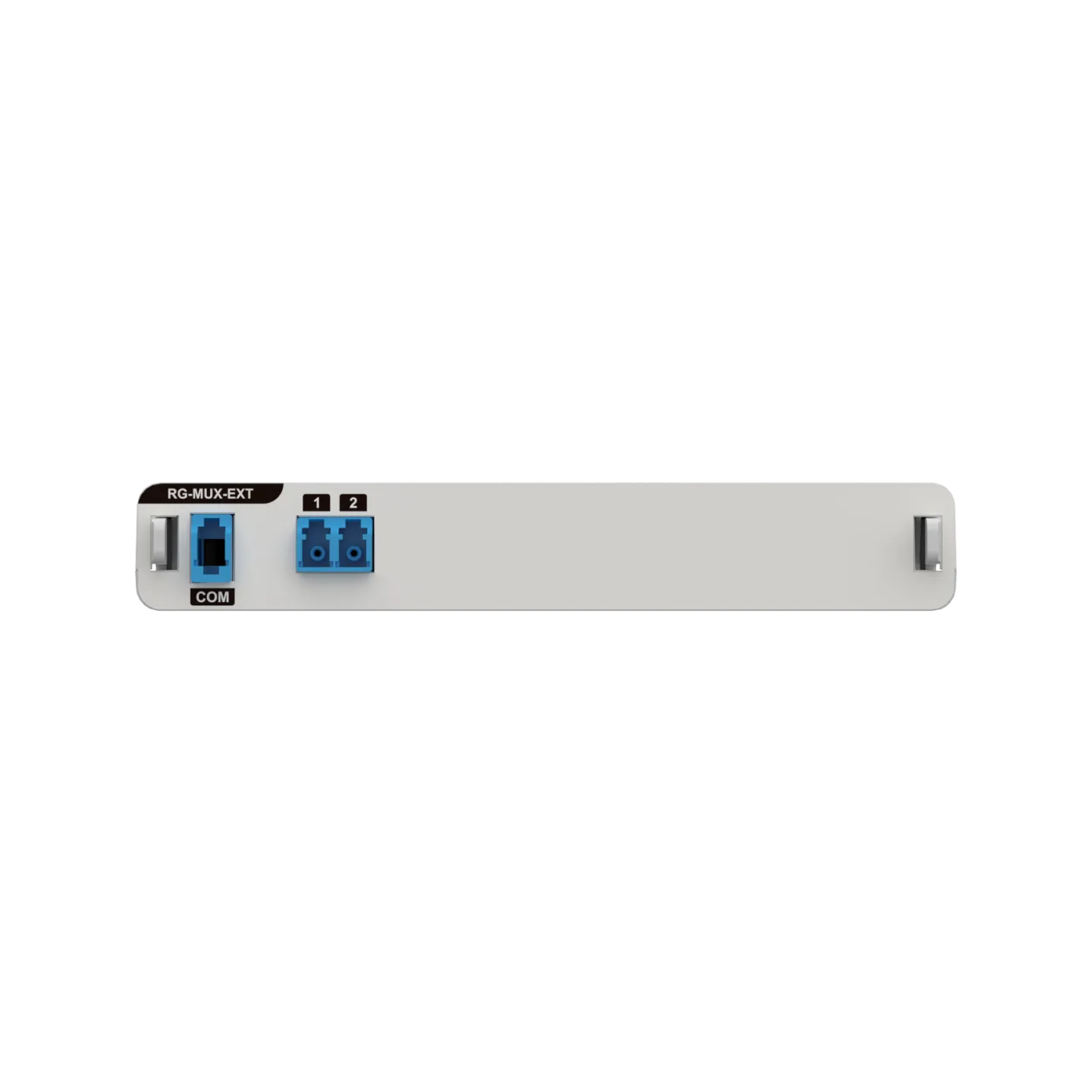

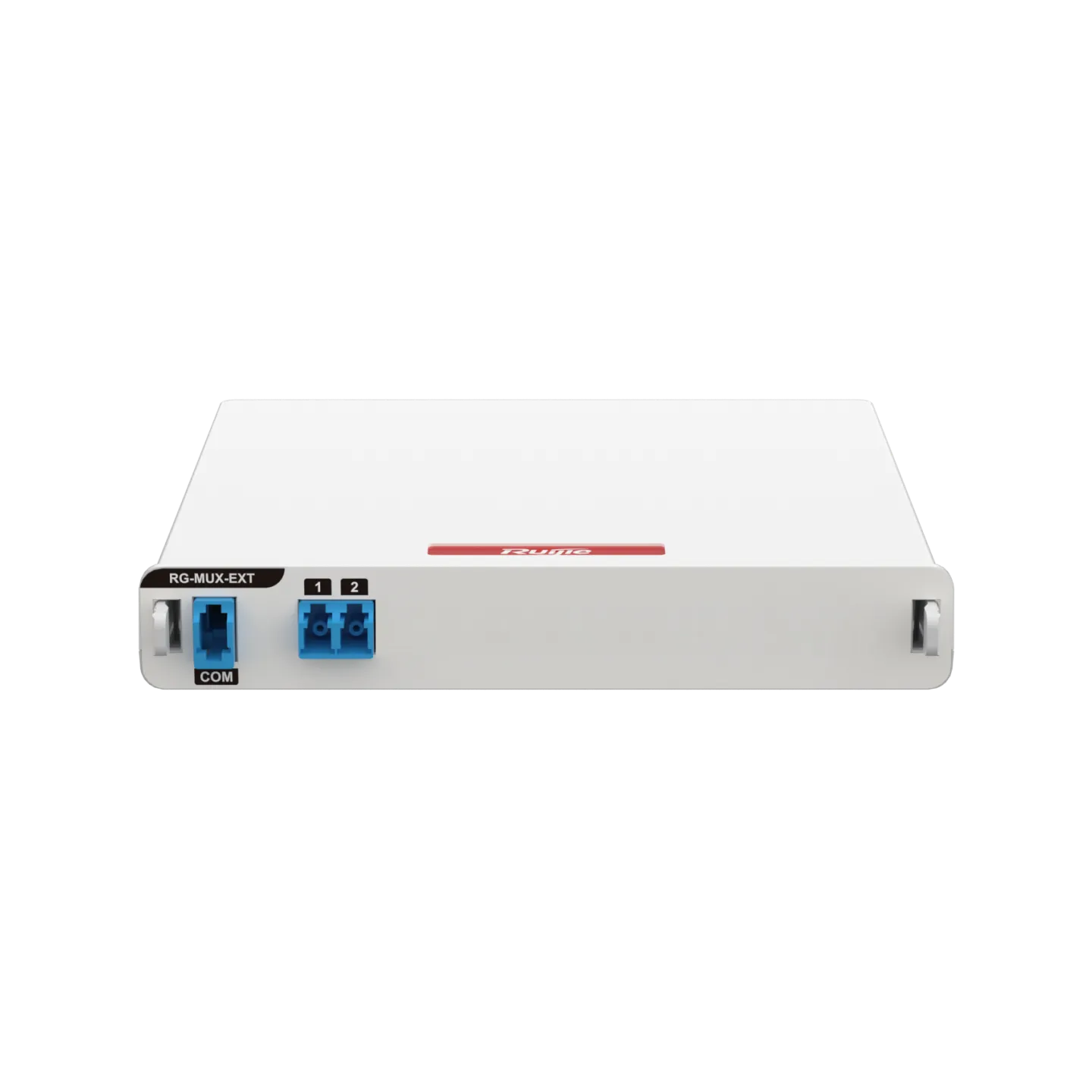

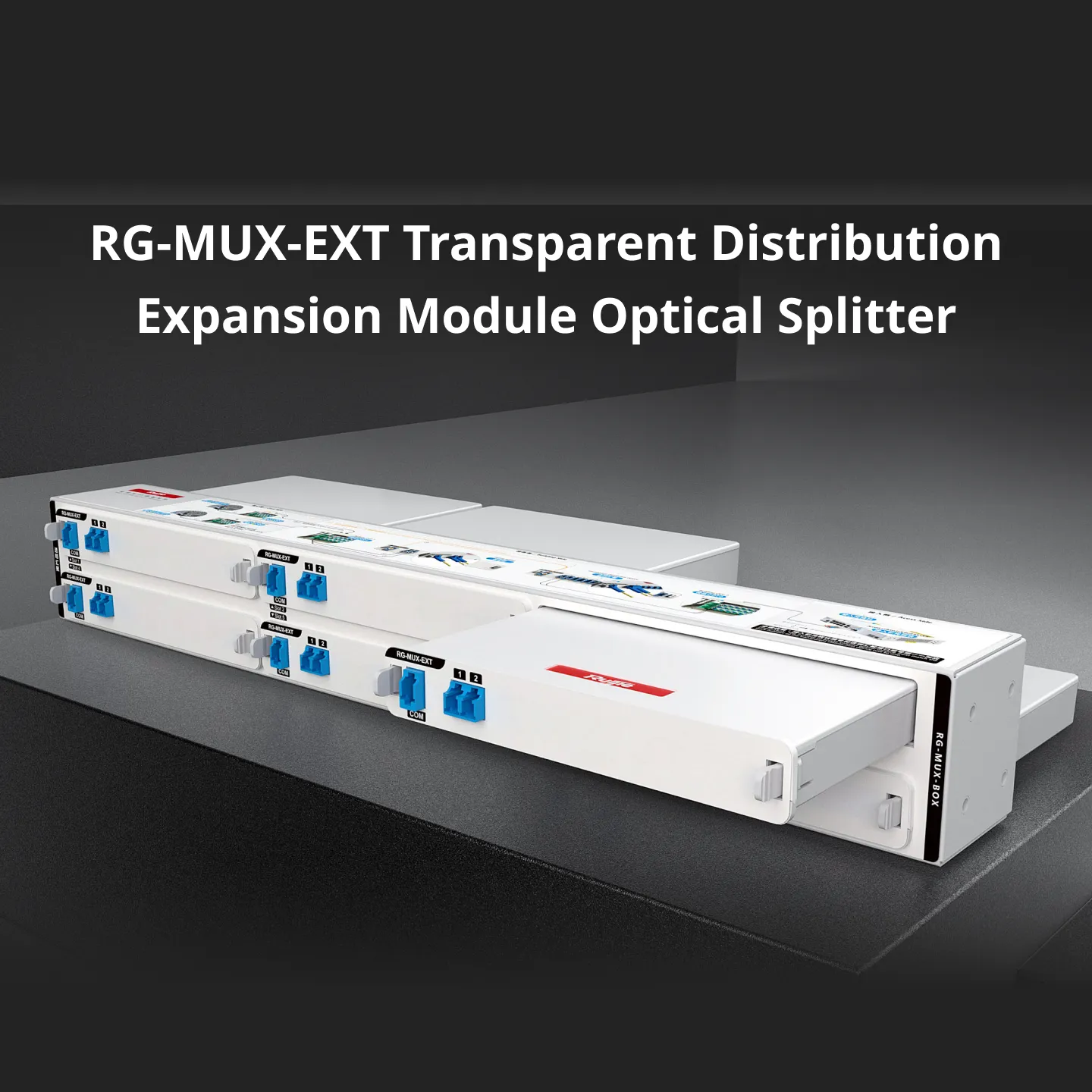

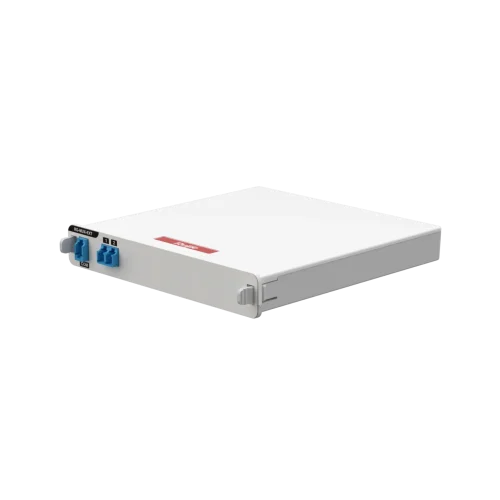

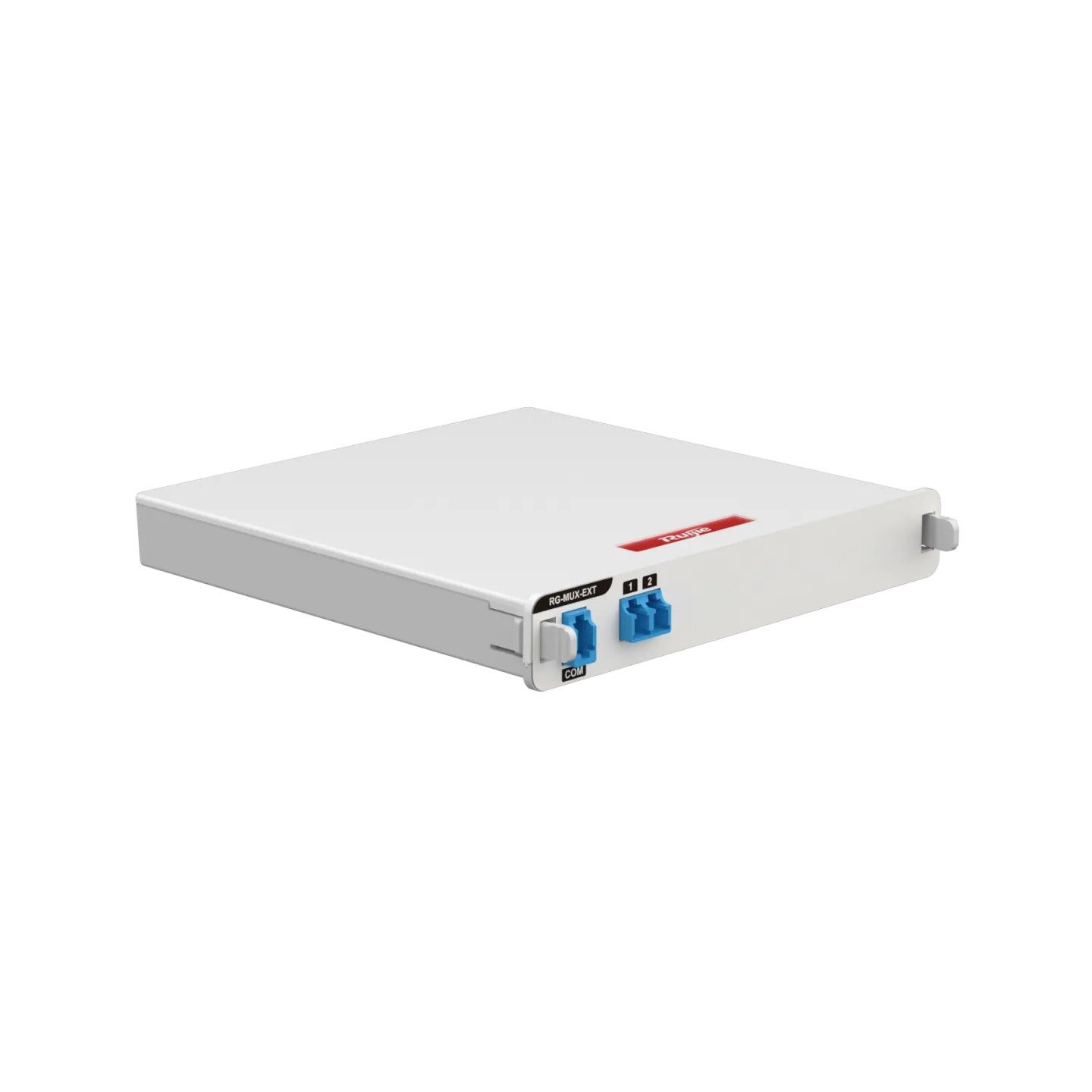

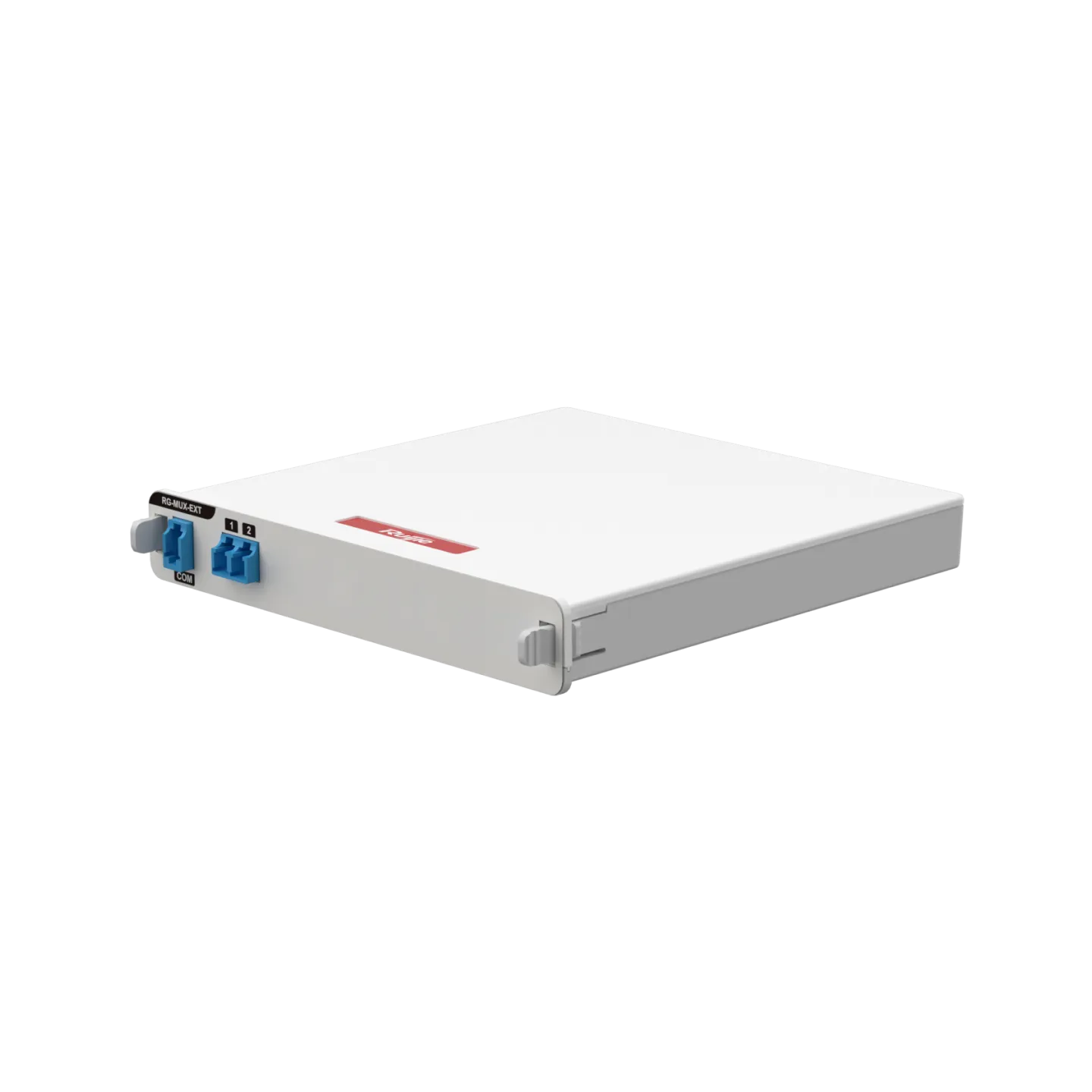

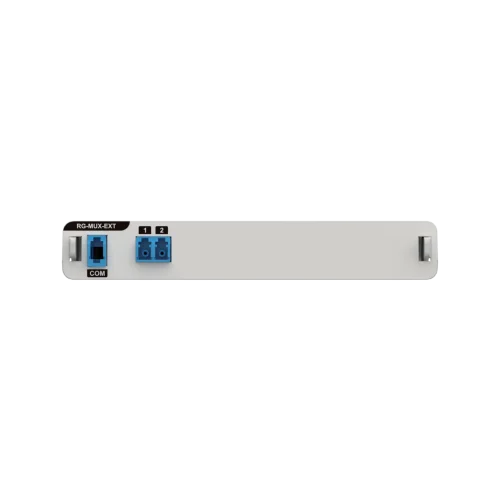

RG-MUX-EXT Transparent Distribution All-Optical Network Passive Device
- Transparent distribution expansion module on the building side. The optical splitter works together with RG-MUX-8LC/LC-H and provides short fibers and two uplink splitting ports, making it suitable for VSU networking scenarios.

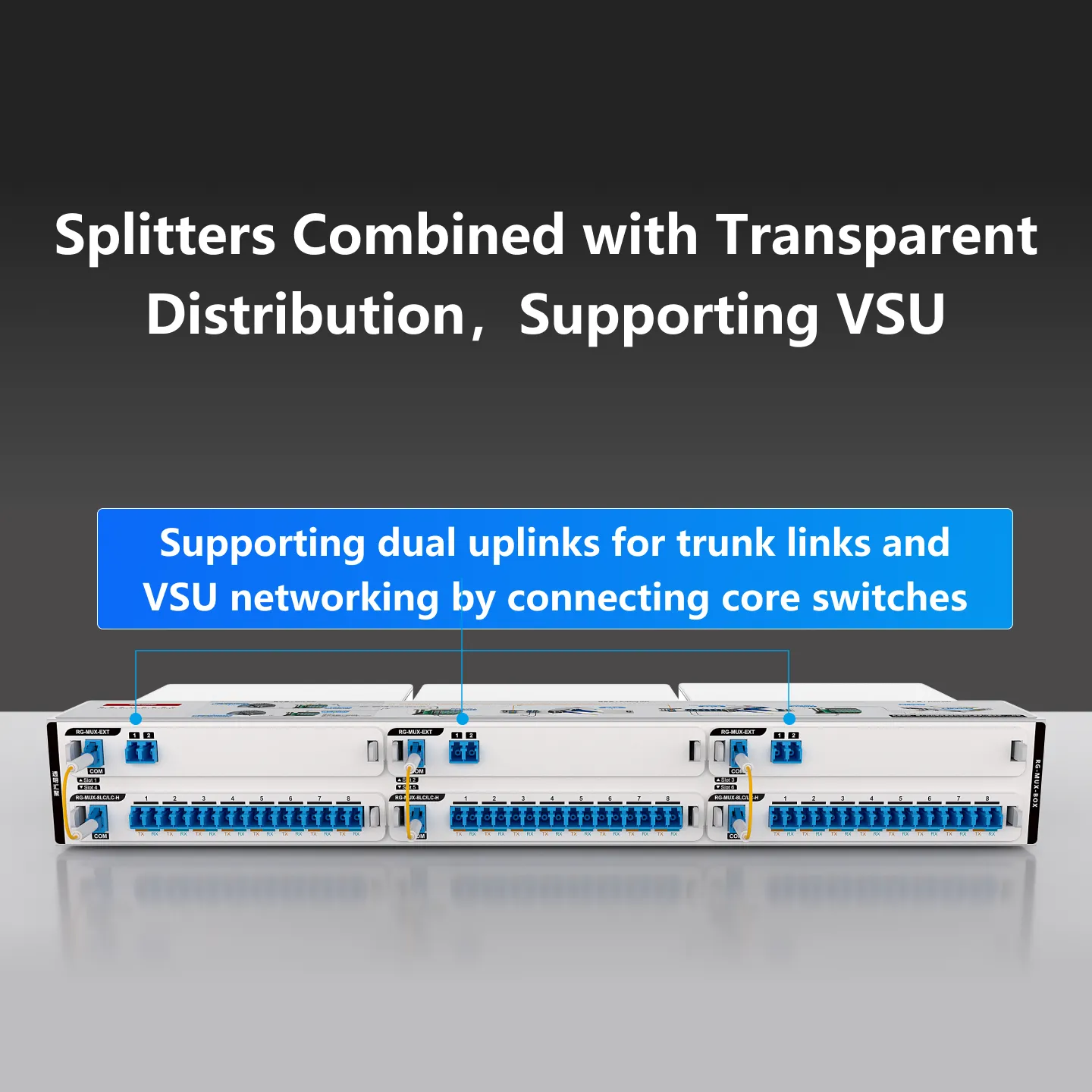

Combination of Splitters and Transparent Distribution Devices Achieving Dual Uplinks for All-Optical Links, Improving Link Reliability Between the Core Network and Building
- The 8-port modular transparent distribution device together with splitters evenly distributes the optical power in a 50:50 ratio to two separate links. This setup allows for dual-uplink networks, effectively enhancing the reliability of the links between the core side and access side.
Specifications
| Product Specifications | RG-MUX-8LC/LC | RG-MUX-8LC/LC-H | RG-MUX-EXT |
| Fixed service port | 8 x demultiplexing ports, supporting 1GE/2.5GE/10GE
1 x multiplexing port |
8 x demultiplexing ports, supporting 1GE/2.5GE/10GE
1 x multiplexing port, supporting connection to a dual-uplink splitter |
1 x multiplexing port
2 x uplink ports for optical splitting |
| Wavelength range | 1271 nm to 1571 nm (CWDM) | 1271 nm to 1571 nm (CWDM) | 1271 nm to 1571 nm (CWDM) |
| Channel spacing | 20 nm | 20 nm | 20 nm |
| Channel bandwidth | ±6 nm | ±6 nm | ±6 nm |
| Insertion loss | < 3.7 dB | < 2.6 dB | < 4.2 dB |
| Return loss | > 45 dB | > 45 dB | > 45 dB |
| Polarization loss | < 0.3 dB | < 0.3 dB | < 0.3 dB |
| Adjacent channel isolation | > 25 dB | > 25 dB | / |
| Non-adjacent channel isolation | > 35 dB | > 35 dB | / |
| Connector type | LC/UPC | LC/UPC | LC/UPC |
| Unit dimensions (W x D x H) | 149.0 mm x 140.5 mm x 22.0 mm (5.87 in. x 5.53 in. x 0.87 in.) | ||
| Shipping dimensions (W x D x H) | 405 mm x 378 mm x 425 mm (15.94 in. x 14.88 in. x 16.73 in.) | ||
| Unit weight | 0.25 kg (0.55 lbs) | 0.25 kg (0.55 lbs) | 0.15 kg (0.33 lbs) |
| Shipping weight | 4.53 kg (9.99 lbs) | ||
| Mounting | Mounting on a wall or in a rack (cabinet) | ||
| Temperature | Operating temperature: 0°C to 55°C (32°F to 131°F)
Storage temperature: –40°C to +85°C (–40°F to +185°F) |
||
| Humidity | Operating humidity: 5% to 95% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
||
| Altitude | Same as the specification of the SOE switch | ||
| Communication standard | GR-1221-Core and GR-1209-Core | ||
| Product Specifications | RG-MUX-BOX |
| Module slot | 6 x transparent distribution device/dual-uplink splitter slots |
| Unit dimensions (W x D x H) | 442 mm x 50 mm x 58 mm (17.4 in. x 1.97 in. x 2.28 in.) |
| Shipping dimensions (W x D x H) | 557 mm x 358 mm x 271 mm (21.93 in. x 14.09 in. x 10.67 in.) |
| Unit weight | 0.9 kg (1.98 lbs) |
| Shipping weight | 11.5 kg (25.35 lbs) |
| Mounting | Mounting on a wall or in a rack (cabinet) |
| Temperature | Operating temperature: –40°C to +85°C (–40°F to +185°F)
Storage temperature: –40°C to +85°C (–40°F to +185°F) |
| Humidity | Operating humidity: 5% to 95% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
| Altitude | Same as the specification of the SOE switch |
Order Information
Chassis
| Model | Description |
| RG-MUX-8LC/LC | Building-side 8-port transparent distribution device, 8 x 1GE/2.5GE/10GE demultiplexing ports, 1 x multiplexing port |
| RG-MUX-8LC/LC-H | Building-side 8-port transparent distribution device (high-end version with low insertion loss), 8 x 1GE/2.5GE/10GE demultiplexing ports, 1 x multiplexing port, supporting connection to a dual-uplink splitter |
| RG-MUX-EXT | Building-side transparent distribution device’s expansion module, or optical dual-uplink splitter (delivered with short fiber jumpers), which connects to the transparent distribution device and provides 1-to-2 optical signal splitting to realize dual-uplink networking; 1 x multiplexing port, 2 x uplink ports for optical splitting |
| RG-MUX-BOX | Building-side transparent distribution device subrack, 6 x transparent distribution device/dual-uplink splitter slots |
CWDM Transceiver
Note: The CWDM transceiver module is not installed on the transparent distribution device.
- CWDM transceivers are installed on core switches in the core equipment room, and are connected to the multiplexing port of the transparent distribution device through fiber trunk cables.
- The access-side CWDM transceiver is installed on the access switch in the building’s ELV room, and is interconnected with the demultiplexing port of the transparent distribution device through a short fiber.
| Model | Description |
| SFG-LR-SM | Core switch side, 1G BASE-LR,SFG Transceiver, 8 different wavelengths (10 km, LC) |
| SFX-LR-SM | Core switch side, 10G BASE-LR, SFP+ Transceiver, 8 different wavelengths (10 km, LC) |
| GE-SFP-LR(A1-8)-H | Access switch side, 1G BASE-LR, SFG Transceiver, 8 different wavelengths (10 km, LC), used in dual uplink scenarios |
| XG-SFP-LR(A1-8)-H | Access switch side, 10G BASE-LR, SFP+ Transceiver, 8 different wavelengths (10 km, LC), used in dual uplink scenarios |
