Features

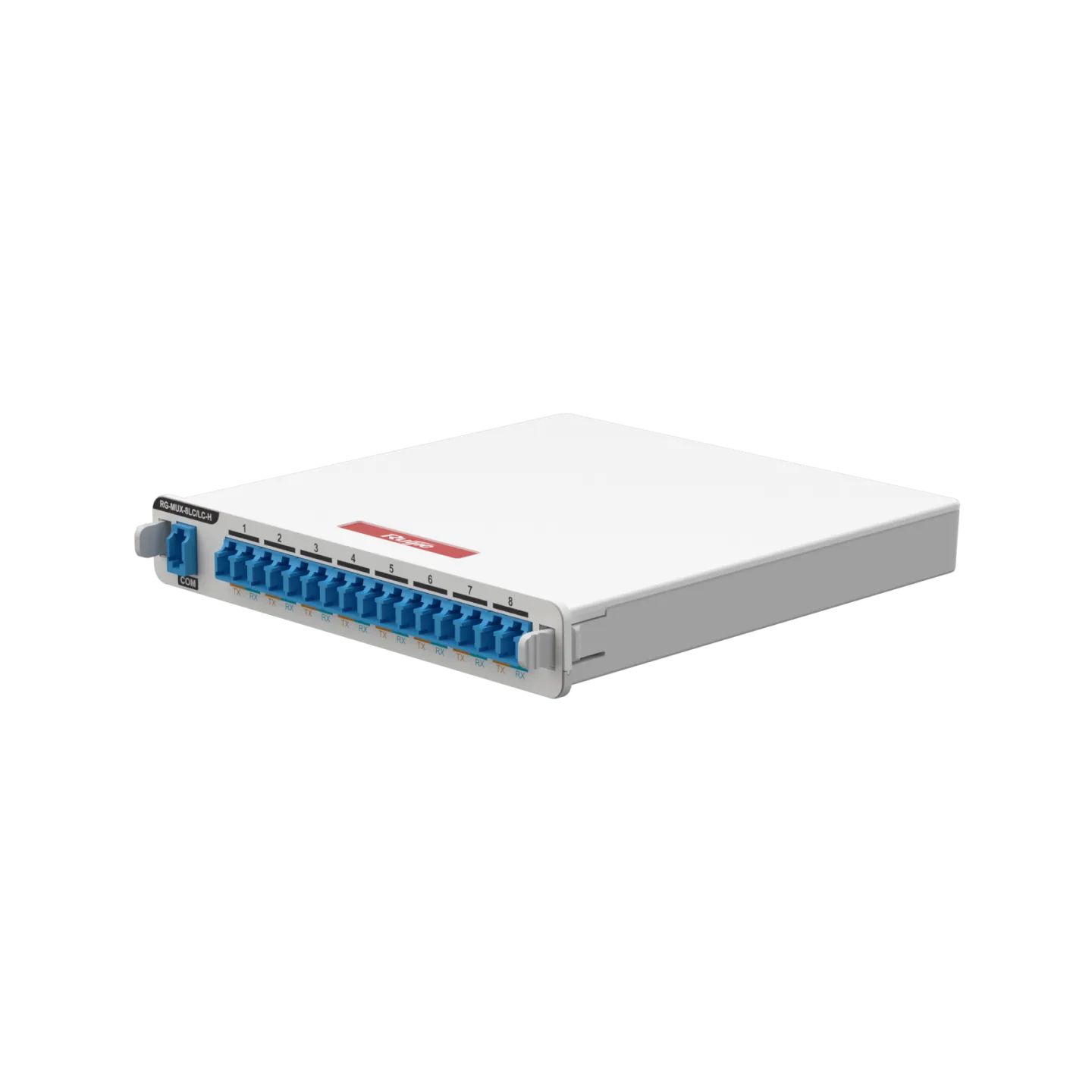

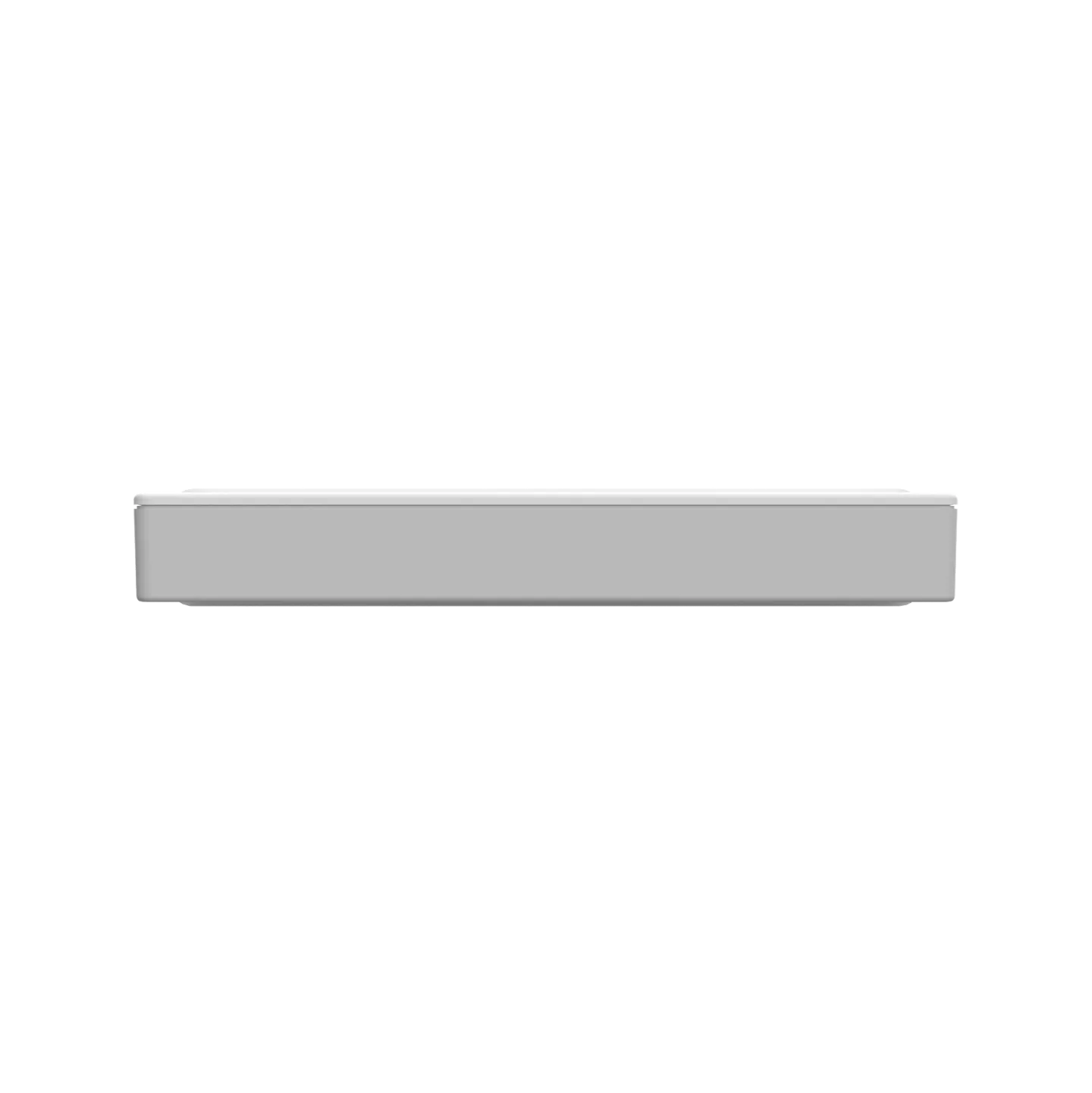

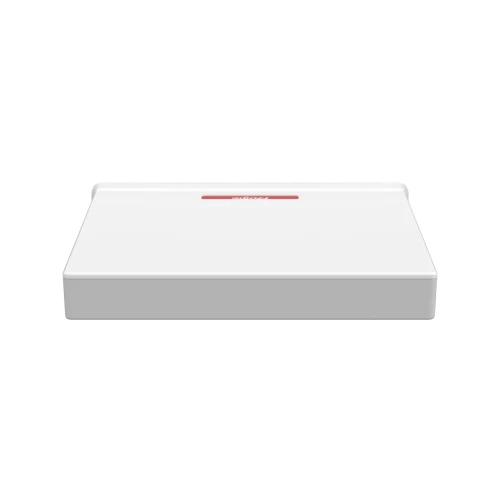

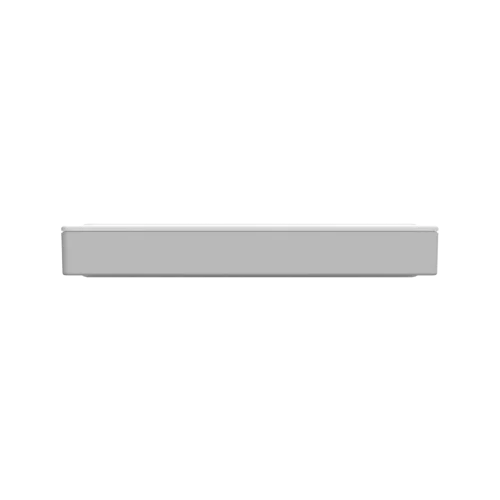

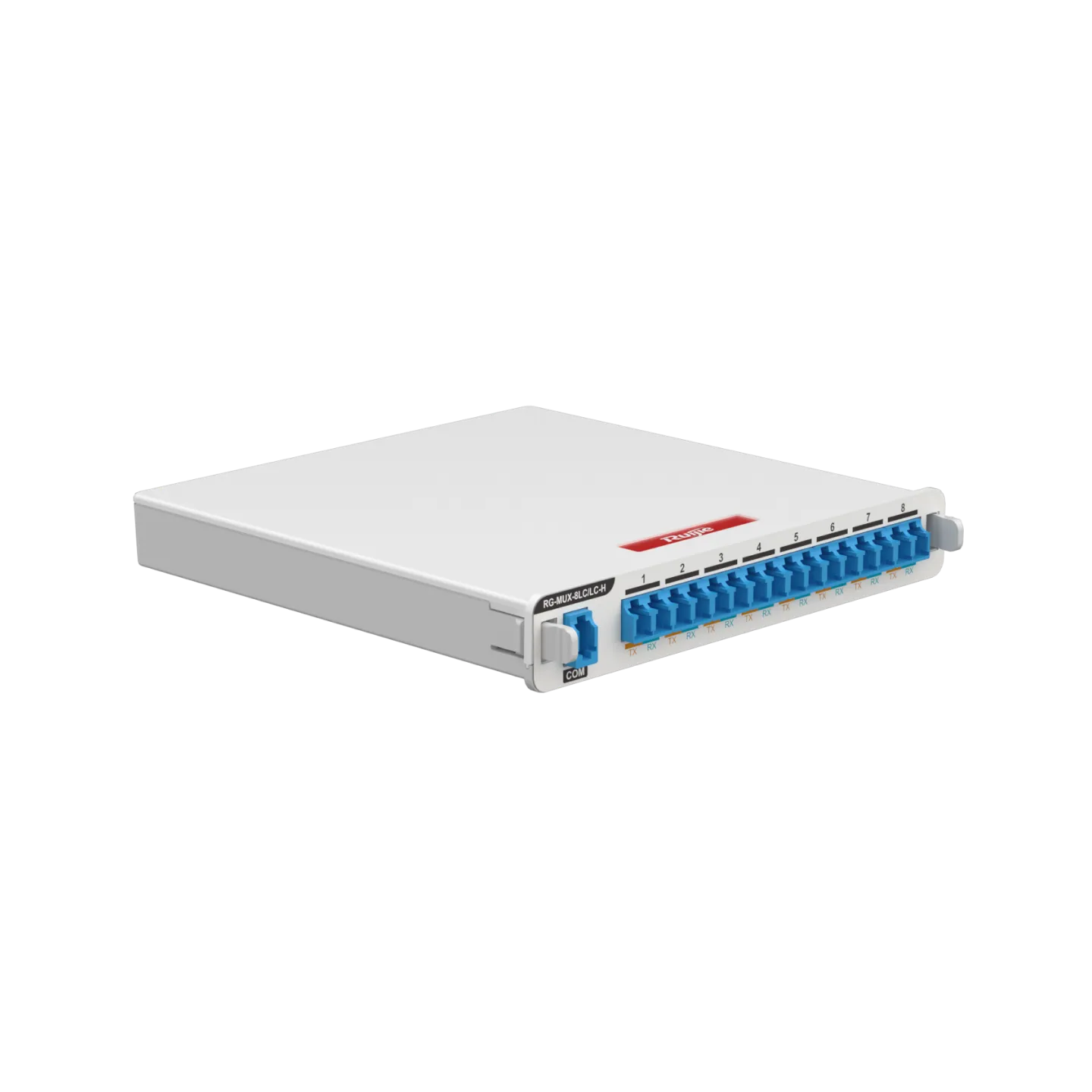

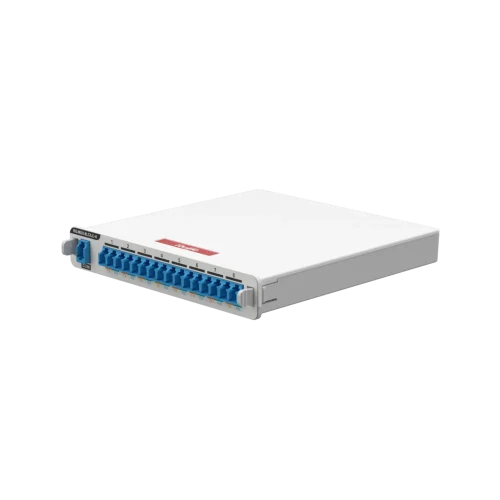

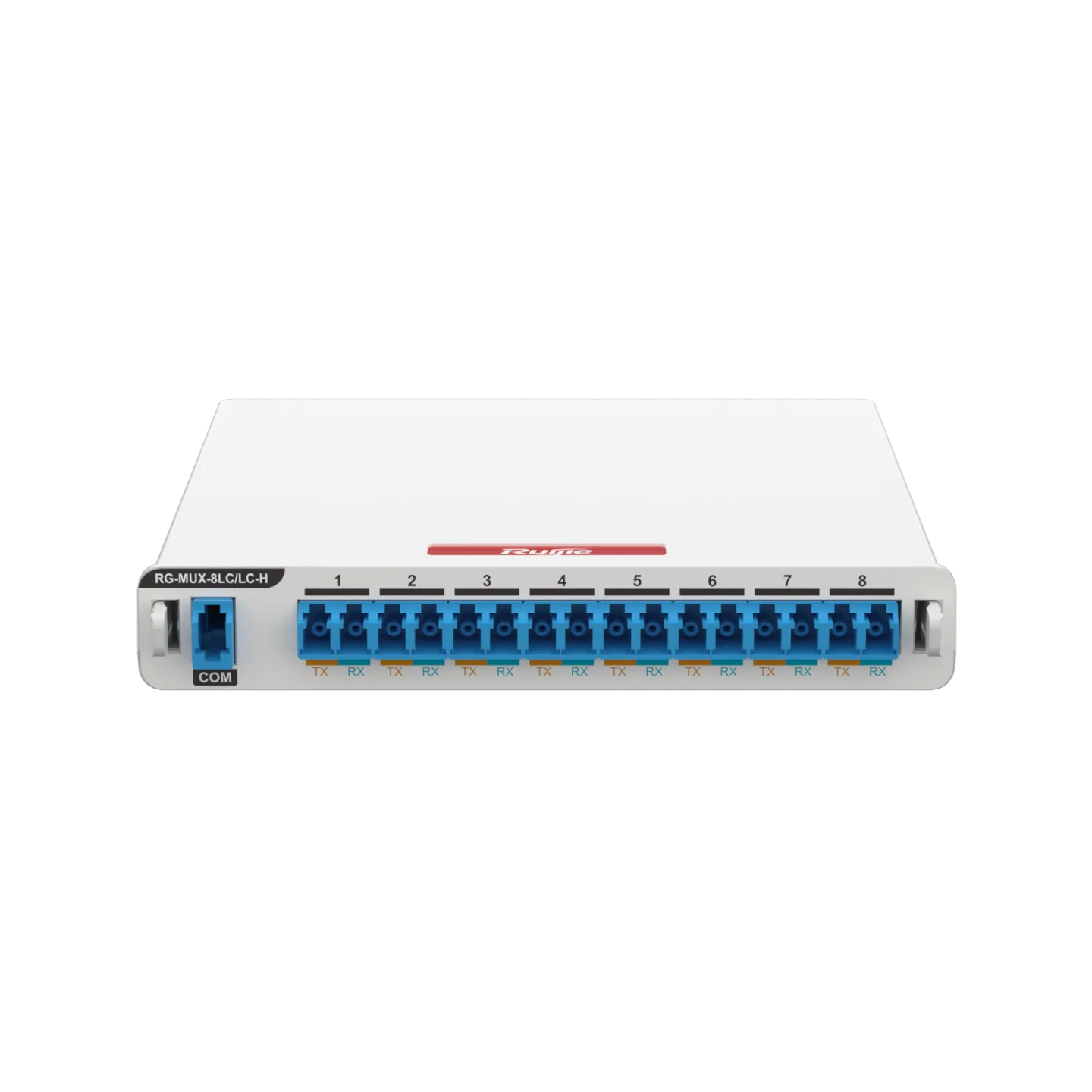

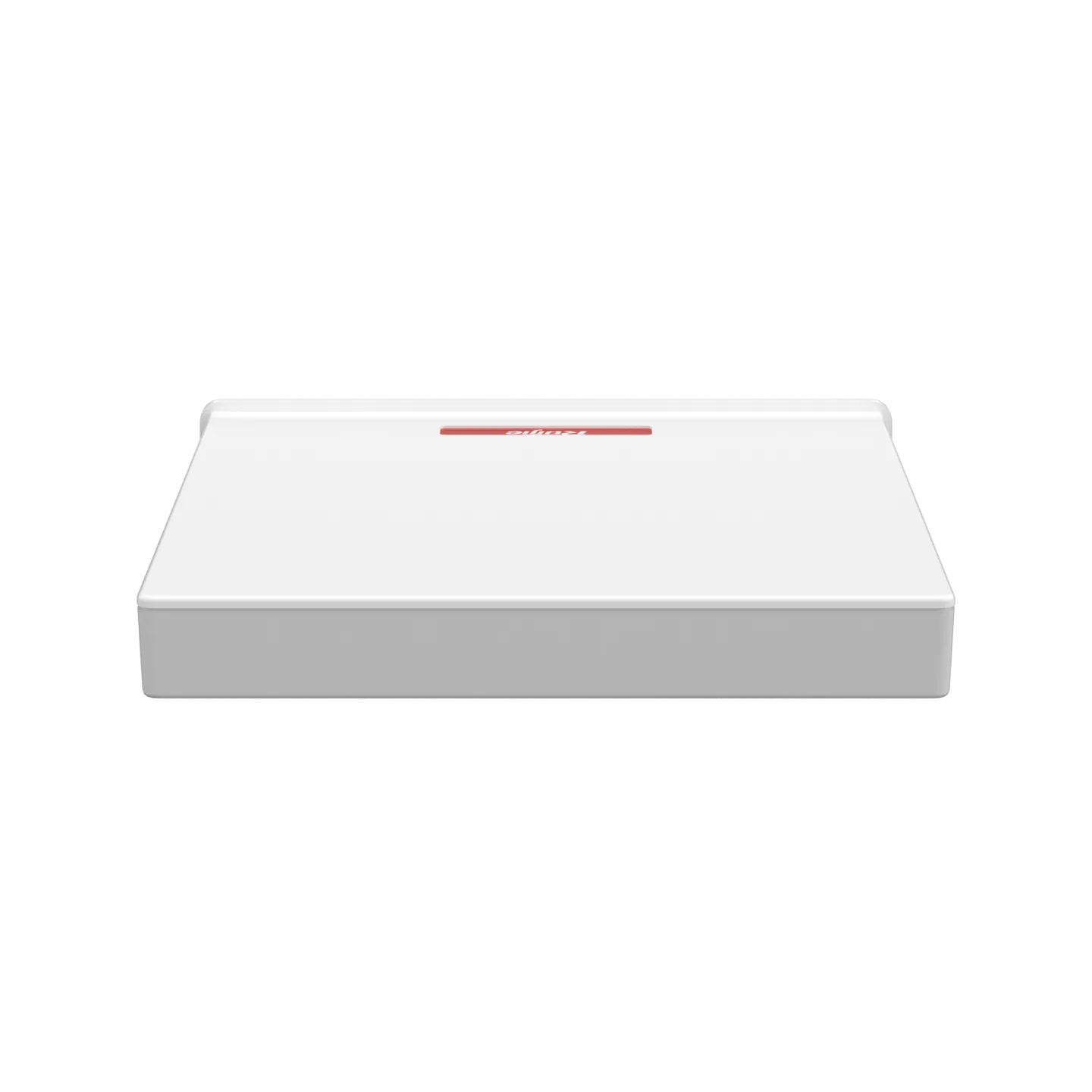

RG-MUX-8LCI/LC-H 8-Port Transparent Distribution All-Optical Network Passive Device
- An 8-port transparent distribution device on the building side supports both 10 Gbps and 1 Gbps per port, and can accommodate up to 48 ports when fully loaded. The device integrates WDM technology, which allows for a network architecture reduced from three layers to two layers. With WDM, services from the core side to the access side are transparently transmitted, realizing passive distribution nodes.
Combination of Splitters and Transparent Distribution Devices Achieving Dual Uplinks for All-Optical Links, Improving Link Reliability Between the Core Network and Building
- The 8-port modular transparent distribution device together with splitters evenly distributes the optical power in a 50:50 ratio to two separate links. This setup allows for dual-uplink networks, effectively enhancing the reliability of the links between the core side and access side.
CWDM Technology with Zero Fiber Splitting, Providing Exclusive Indoor Bandwidth of 10 Gbps/1 Gbps
- The transparent distribution device enabled with WDM technology allows transparent transmission of services from the core side to the access side, ensuring 1:1 dedicated access to the bandwidth of 10 Gbps. This offering effectively meets high bandwidth requirements of device connections and networking needs of various terminals.
Fully Passive All-Optical Network Devices, Making Passive Distribution Nodes Possible and Solving Challenges of ELV Rooms
- By replacing active devices with passive ones, such as optical fibers and transparent distribution devices, connections between the core network and the building side can be established without the ELV room and power supply. This significantly simplifies deployment and lowers the failure rate of external devices, without management and maintenance in ELV rooms.
All-Optical Deployment, Easy to Upgrade, and Flexible Extension of Ethernet Networks
- Bandwidth can be upgraded from 1 Gbps to 10 Gbps without need to change the backbone cabling area. Switches of different rates can be replaced or added as needed. Transparent distribution devices are plug-and-play, allowing for easy deployment and rapid capacity expansion.
Specifications
| Product Specifications | RG-MUX-8LC/LC | RG-MUX-8LC/LC-H | RG-MUX-EXT |

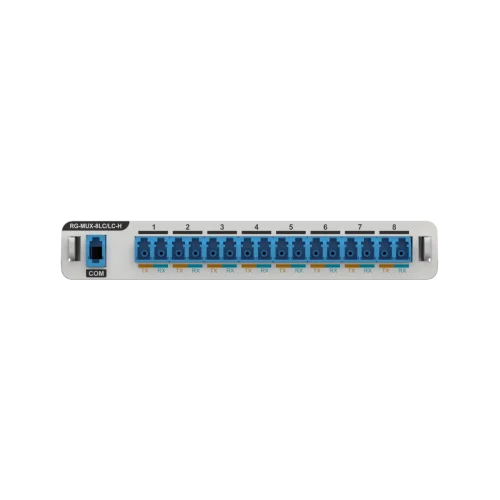

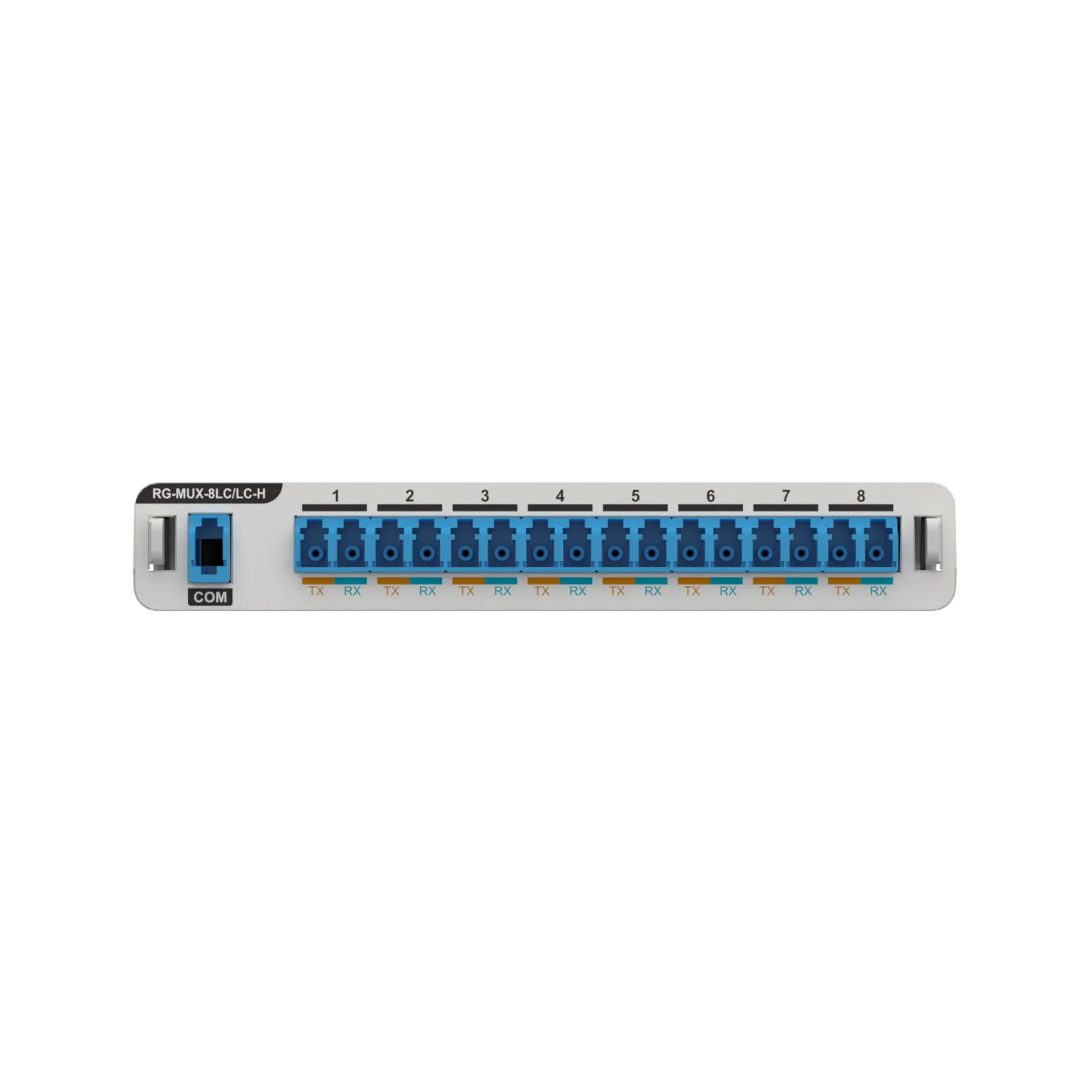

| Fixed service port | 8 x demultiplexing ports, supporting 1GE/2.5GE/10GE
1 x multiplexing port |
8 x demultiplexing ports, supporting 1GE/2.5GE/10GE
1 x multiplexing port, supporting connection to a dual-uplink splitter |
1 x multiplexing port
2 x uplink ports for optical splitting |
| Wavelength range | 1271 nm to 1571 nm (CWDM) | 1271 nm to 1571 nm (CWDM) | 1271 nm to 1571 nm (CWDM) |
| Channel spacing | 20 nm | 20 nm | 20 nm |
| Channel bandwidth | ±6 nm | ±6 nm | ±6 nm |
| Insertion loss | < 3.7 dB | < 2.6 dB | < 4.2 dB |
| Return loss | > 45 dB | > 45 dB | > 45 dB |
| Polarization loss | < 0.3 dB | < 0.3 dB | < 0.3 dB |
| Adjacent channel isolation | > 25 dB | > 25 dB | / |
| Non-adjacent channel isolation | > 35 dB | > 35 dB | / |
| Connector type | LC/UPC | LC/UPC | LC/UPC |
| Unit dimensions (W x D x H) | 149.0 mm x 140.5 mm x 22.0 mm (5.87 in. x 5.53 in. x 0.87 in.) | ||
| Shipping dimensions (W x D x H) | 405 mm x 378 mm x 425 mm (15.94 in. x 14.88 in. x 16.73 in.) | ||
| Unit weight | 0.25 kg (0.55 lbs) | 0.25 kg (0.55 lbs) | 0.15 kg (0.33 lbs) |
| Shipping weight | 4.53 kg (9.99 lbs) | ||
| Mounting | Mounting on a wall or in a rack (cabinet) | ||
| Temperature | Operating temperature: 0°C to 55°C (32°F to 131°F)
Storage temperature: –40°C to +85°C (–40°F to +185°F) |
||
| Humidity | Operating humidity: 5% to 95% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
||
| Altitude | Same as the specification of the SOE switch | ||
| Communication standard | GR-1221-Core and GR-1209-Core | ||
| Product Specifications | RG-MUX-BOX |
| Module slot | 6 x transparent distribution device/dual-uplink splitter slots |
| Unit dimensions (W x D x H) | 442 mm x 50 mm x 58 mm (17.4 in. x 1.97 in. x 2.28 in.) |
| Shipping dimensions (W x D x H) | 557 mm x 358 mm x 271 mm (21.93 in. x 14.09 in. x 10.67 in.) |
| Unit weight | 0.9 kg (1.98 lbs) |
| Shipping weight | 11.5 kg (25.35 lbs) |
| Mounting | Mounting on a wall or in a rack (cabinet) |
| Temperature | Operating temperature: –40°C to +85°C (–40°F to +185°F)
Storage temperature: –40°C to +85°C (–40°F to +185°F) |
| Humidity | Operating humidity: 5% to 95% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
| Altitude | Same as the specification of the SOE switch |
Order Information
Chassis
| Model | Description |
| RG-MUX-8LC/LC | Building-side 8-port transparent distribution device, 8 x 1GE/2.5GE/10GE demultiplexing ports, 1 x multiplexing port |
| RG-MUX-8LC/LC-H | Building-side 8-port transparent distribution device (high-end version with low insertion loss), 8 x 1GE/2.5GE/10GE demultiplexing ports, 1 x multiplexing port, supporting connection to a dual-uplink splitter |
| RG-MUX-EXT | Building-side transparent distribution device’s expansion module, or optical dual-uplink splitter (delivered with short fiber jumpers), which connects to the transparent distribution device and provides 1-to-2 optical signal splitting to realize dual-uplink networking; 1 x multiplexing port, 2 x uplink ports for optical splitting |
| RG-MUX-BOX | Building-side transparent distribution device subrack, 6 x transparent distribution device/dual-uplink splitter slots |
CWDM Transceiver
Note: The CWDM transceiver module is not installed on the transparent distribution device.
- CWDM transceivers are installed on core switches in the core equipment room, and are connected to the multiplexing port of the transparent distribution device through fiber trunk cables.
- The access-side CWDM transceiver is installed on the access switch in the building’s ELV room, and is interconnected with the demultiplexing port of the transparent distribution device through a short fiber.
| Model | Description |
| SFG-LR-SM | Core switch side, 1G BASE-LR,SFG Transceiver, 8 different wavelengths (10 km, LC) |
| SFX-LR-SM | Core switch side, 10G BASE-LR, SFP+ Transceiver, 8 different wavelengths (10 km, LC) |
| GE-SFP-LR(A1-8)-H | Access switch side, 1G BASE-LR, SFG Transceiver, 8 different wavelengths (10 km, LC), used in dual uplink scenarios |
| XG-SFP-LR(A1-8)-H | Access switch side, 10G BASE-LR, SFP+ Transceiver, 8 different wavelengths (10 km, LC), used in dual uplink scenarios |
