Key Specification
| Wireless Protocols | 802.11a/b/g/n/ac/ax | Radio Design | Dual-radio: 2.4 GHz (2×2), 5 GHz (2×2) up to 4 spatial streams | |
| Data Rate | Combined peak data rate: 2.4 GHz + 5 GHz, 2.976 Gbps | Antenna Type | Built-in omnidirectional antennas | |
| Fixed Service Port | 1 x 100/1000Base-T Ethernet port 1 x 2.5GE SFP port | Bluetooth | Bluetooth 5.0 | |
| Input Power Supply | 48 V DC/0.35 A power supply PoE/PoE+ (802.3af/at) | Max. Power Consumption | 12.95 W | |
| External Power Supply | No | Operating Temperature | –40°C to +65°C (-40°F to +149°F) | |
| IP Rating | IP68 | Dimensions (W x D x H) | 251 mm x 168 mm x 64 mm (9.9 in x 6.6 in x 2.5 in) | |
| Mounting | Ceiling/Wall/Pole-mount | Warranty | 3 Years | |
Specifications
| Hardware Specifications | RG-AP680-O(V3) |
| 802.11n | Four spatial streams
● Radio 1 – 2.4 GHz: 2×2 MIMO, two spatial streams ● Radio 2 – 5 GHz: 2×2 MIMO, two spatial streams Channels: ● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz ● Radio 2 – 5 GHz: 20 MHz and 40 MHz Combined peak data rate: 600Mbps ● Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ) ● Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15) Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM) Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Packet aggregation: ● Aggregate MAC Protocol Data Unit (A-MPDU) ● Aggregate MAC Service Data Unit (A-MSDU) Dynamic Frequency Selection (DFS) Cyclic Delay/Shift Diversity (CDD/CSD) Maximum Ratio Combining (MRC) Space-Time Block Coding (STBC) Low-Density Parity Check (LDPC) Transmit beam-forming (TxBF) |
| 802.11ac | Two spatial streams
● Radio 2 – 5 GHz: 2×2 MIMO, two spatial streams Channels: ● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz Combined peak data rate: 1.733 Gbps ● Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9) Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM) Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Packet aggregation: ● Aggregate MAC Protocol Data Unit (A-MPDU) ● Aggregate MAC Service Data Unit (A-MSDU) Dynamic Frequency Selection (DFS) Cyclic Delay/Shift Diversity (CDD/CSD) Maximum Ratio Combining (MRC) Space-Time Block Coding (STBC) Low-Density Parity Check (LDPC) Transmit beam-forming (TxBF) |
| 802.11ax | Four spatial streams
● Radio 1 – 2.4 GHz: 2×2 uplink/downlink MU-MIMO, two spatial streams ● Radio 2 – 5 GHz: 2×2 uplink/downlink MU-MIMO, two spatial streams Channels: ● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz ● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz Combined peak data rate: 2.976 Gbps ● Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11) ● Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11) Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA) Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Packet aggregation: ● Aggregate MAC Protocol Data Unit (A-MPDU) ● Aggregate MAC Service Data Unit (A-MSDU) Dynamic Frequency Selection (DFS) Cyclic Delay/Shift Diversity (CDD/CSD) Maximum Ratio Combining (MRC) Space-Time Block Coding (STBC) Low-Density Parity Check (LDPC) Transmit beam-forming (TxBF) WPA3 |
| Antenna | Wi-Fi
● 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 4 dBi. ● 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 6 dBi. Bluetooth ● One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 5 dBi. |
| Port | 1 x 100/1000Base-T port
1 x 2.5GE SFP port, compatibility with 1GE modules, supporting auto-negotiation 1 x RJ45 console port (serial console port) 1 x Bluetooth 5.0 |
| Status LED | 1 x multi-color system status LED
● AP power-on status ● Software initialization status and upgrade status ● Uplink service interface status ● Wireless user online status ● CAPWAP tunnel timeout ● Specific AP locating Three single-color signal strength LEDs: ● Whether bridging is enabled ● Whether bridging is successful ● Wireless signal strength after successful bridging |
| Button | 1 x Reset button
● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Dimensions (W x D x H) | Main unit: 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.)
Shipping: 405 mm x 232 mm x 325 mm (15.94 in. x 9.13 in. x 12.80 in.) |
| Weight | Main unit: 1.0 kg (2.2 lbs)
Mounting bracket: 0.9 kg (1.98 lbs) Shipping: 3.15 kg (6.94 lbs) |
| Mounting | Ceiling/Wall/Pole-mount (a mounting bracket is delivered with the main unit) |
| Input power supply | The AP supports the following two power supply modes:
● 48 V DC/0.35 A power input over DC connector: The DC connector accepts the center-positive circular plug with the inner diameter of 2.0 mm (0.08 in.) or outer diameter of 6.3 mm (0.25 in.) and the length of 9.8 mm (0.39 in.). A DC power supply needs to be purchased independently. ● PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+). Note: If both DC power and PoE are available, DC power is preferred. |
| Maximum power consumption | Maximum power consumption: 12.95 W
● DC power: 12.95 W ● 802.3at (PoE+): 12.95 W ● 802.3af (PoE): 12.95 W ● Idle mode: 6.0 W |
| Environment | Storage temperature: –40°C to +85°C (–40°F to +185°F)
Storage humidity: 0% RH to 100% RH (non-condensing) Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.) Operating temperature: –40°C to +65°C (-40°F to +149°F) Operating humidity: 0% RH to 100% RH (non-condensing) Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.) Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
| IP Rating | IP68 |
| Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| System memory | 512 MB DRAM, 128 MB flash |
| Transmit power | 2.4 GHz
● Maximum transmit power: 28 dBm (630.96 mW) ● Minimum transmit power: 10 dBm (10 mW) 5 GHz ● Maximum transmit power: 28 dBm (630.96 mW) ● Minimum transmit power: 10 dBm (10 mW) Note: ● The transmit power adjusted in percentage. ● The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. |
The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.
| Radio Frequency Performance | RG-AP680-O(V3) | ||
| Frequency Band and Protocol | Data Rate | Maximum Transmit Power per Transmit Chain | Maximum Receive Sensitivity per Receive Chain |
| 2.4 GHz, 802.11b | 1 Mbps | 25 dBm | –92 dBm |
| 2 Mbps | 25 dBm | –82 dBm | |
| 5.5 Mbps | 25 dBm | –84 dBm | |
| 11 Mbps | 25 dBm | –78 dBm | |
| 2.4 GHz, 802.11g | 6 Mbps | 25 dBm | –84 dBm |
| 24 Mbps | 23 dBm | –74 dBm | |
| 36 Mbps | 23 dBm | –72 dBm | |
| 54 Mbps | 20 dBm | –67 dBm | |
| 2.4 GHz, 802.11n (HT20) | MCS0 | 25 dBm | –84 dBm |
| MCS7 | 20 dBm | –66 dBm | |
| 2.4 GHz, 802.11n (HT40) | MCS0 | 25 dBm | –79 dBm |
| MCS7 | 20 dBm | –63 dBm | |
| 2.4 GHz, 802.11ax (HE20) | MCS0 | 25 dBm | –84dBm |
| MCS11 | 18 dBm | –54 dBm | |
| 2.4 GHz, 802.11ax (HE40) | MCS0 | 25 dBm | –80 dBm |
| MCS11 | 18 dBm | –51 dBm | |
| 5 GHz, 802.11a | 6 Mbps | 25 dBm | –84 dBm |
| 24 Mbps | 23 dBm | –74 dBm | |
| 36 Mbps | 23 dBm | –72 dBm | |
| 54 Mbps | 20 dBm | –67 dBm | |
| 5 GHz, 802.11n (HT20) | MCS0 | 25 dBm | –84 dBm |
| MCS7 | 20 dBm | –66 dBm | |
| 5 GHz, 802.11n (HT40) | MCS0 | 25 dBm | –81 dBm |
| MCS7 | 20 dBm | –63 dBm | |
| 5 GHz, 802.11ac (VHT20) | MCS0 | 25dBm | –84 dBm |
| MCS9 | 19 dBm | –61 dBm | |
| 5 GHz, 802.11ac (VHT40) | MCS0 | 25 dBm | –81 dBm |
| MCS9 | 19 dBm | –56 dBm | |
| 5 GHz, 802.11ac (VHT80) | MCS0 | 25 dBm | –78 dBm |
| MCS9 | 19 dBm | –53 dBm | |
| 5 GHz, 802.11ax (HE20) | MCS0 | 25 dBm | –84 dBm |
| MCS11 | 18 dBm | –54 dBm | |
| 5 GHz, 802.11ax (HE40) | MCS0 | 25 dBm | –81 dBm |
| MCS11 | 18 dBm | –51 dBm | |
| 5 GHz, 802.11ax (HE80) | MCS0 | 25 dBm | –78 dBm |
| MCS11 | 18 dBm | –48 dBm | |
| 5 GHz, 802.11ax (HE160) | MCS0 | 25 dBm | –73 dBm |
| MCS11 | 18 dBm | –43 dBm | |
Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance.
| Software Specifications | RG-AP680-O(V3) |
| Basic Function | |
| Applicable software version | RGOS11.9(6)W2B4 or later |
| WLAN | |
| Maximum number of associated STAs | 1,024 (up to 512 STAs per radio) |
| Practical maximum client count indication (per device) | 128 |
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| Maximum number of WLAN IDs | 16 |
| STA management | SSID hiding
Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Remote Intelligent Perception Technology (RIPT) Intelligent STA identification Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting
Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| CAPWAP | IPv4/IPv6 CAPWAP
Layer 2 and Layer 3 topology between an AP and an AC An AP can automatically discover the accessible AC. An AP can be automatically upgraded through the AC. An AP can automatically download the configuration file from the AC. CAPWAP through NAT |
| Data forwarding | Centralized and local forwarding |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Wireless locating | MU and TAG device locating |
| Application management | Application identification |
| Security and Authentication | |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS)
PSK, UPSK and web authentication QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal (SAE, WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP) |
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| WIDS | Rogue device discovery
Optimization of rogue AP containment for all STA types Fuzzy containment SSID-based blocklist DDoS attack identification Automatic detection of STA attacks, and adding STAs to the blocklist when ICMP attacks or TCP SYN attacks are detected STA isolation |
| Dynamic Policy | IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL
IPv6 ACL Time range-based ACL ACL based on a Layer 2 interface ACL based on a Layer 3 interface Ingress ACL based on a wireless interface Dynamic ACL assignment based on 802.1X authentication (used with the AC) CoA/DM |
| CPP | CPU Protect Policy (CPP) |
| NFPP | Network Foundation Protection Policy (NFPP) |
| Routing and Switching | |
| MAC | Static and filtered MAC addresses
MAC address table size: 1,024 Maximum number of static MAC addresses: 1,024 Maximum number of filtered MAC addresses: 1,024 |
| Ethernet | Jumbo frame length: 1,518
Ethernet II 1000M SFP ports modules 2.5G ports |
| VLAN | Interface-based VLAN assignment
Layer 2 isolation of wired interfaces (including aggregate interfaces) within VLANs Maximum number of SVIs: 191 Maximum number of VLANs: 4,094 VLAN ID range: 1–4,094 |
| ARP | ARP entry aging, gratuitous ARP learning, and proxy ARP
Maximum number of ARP entries: 1,024 Detection of IP address conflicts among downlink hosts ARP check |
| IPv4 services | Static and DHCP-assigned IPv4 addresses
NAT, FTP ALG and DNS ALG |
| IPv6 services | IPv6 addressing, Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, IPv6 ping
IPv6 DHCP client |
| IP routing | IPv4/IPv6 static route
Maximum number of static IPv4 routes: 1,024 Maximum number of static IPv6 routes: 1,000 |
| Multicast | Multicast-to-unicast conversion |
| VPN | PPPoE client
IPsec VPN |
| Network Management and Monitoring | |
| Network management | NTP server and NTP client
SNTP client SNMPv1/v2c/v3 Fault detection and alarm Information statistics and logging |
| Network management platform | Web management (Eweb) |
| User access management | Telnet, SSH, FTP client, FTP server, and TFTP client |
| Switchover among Fat, Fit, and cloud modes | When the AP works in Fit mode, it can be switched to Fat mode through an AC.
When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode. When the AP works in cloud mode, it can be managed through WIS Cloud. |
The following value-added software functions can be achieved with the WIS solution (used with RG-iData-WIS and wireless controller).
| Value-added Software | RG-AP680-O(V3) |
| Intelligent O&M | |
| Experience | Network operation analysis, such as device stability and signal coverage
Measuring users’ network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters VIP monitoring and alarm, and custom alarm thresholds STA global experience map and experience coverage evaluation based on the time range STA access protocol replay and fine-grained STA fault diagnosis Note: To support the preceding functions, ensure that the AP works in Fit mode. |
| Network optimization | Network performance optimization, including one-click network optimization and scenario-based optimization
Client steering to cope with roaming stickiness, and experience indicator comparison Client steering to cope with remote association, and experience indicator comparison One-click diagnosis – analyzing problems and providing suggestions |
| Big data | Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes
Time capsule – analyzing the device version and configuration change history |
| Regional analysis | Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions |
| One-click report | One-click health report – generating a report on the overall operation of a network |
| Security radar | Unauthorized Wi-Fi signal location, presentation by category, and containment |
| Cloud Management | |
| Management and maintenance | Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions
Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates One-click discovery of the wired and wireless network topology and topology generation |
| Cloud Authentication | |
| Authentication mode | SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes
Authentication implemented in the cloud, without the need to deploy the local authentication server |
| Customized portal | Customized Portal authentication page for mobile phones and PCs |
| SMS gateway | Interconnection with SMS gateways of GUODULINK and Alibaba Cloud |
| Platform Capabilities | |
| Big data capabilities | Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities
Spark-based big data computing capabilities Data warehouse building based on Hive, and data model conversion, integration, and other functions |
| Hierarchy and decentralization | Authorizing different applications for different users to meet service needs of different departments
Granting operation permissions to administrators in different scenarios |
| System management | Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions |
Note: For details, refer to the latest hybrid cloud management solution.
| Regulatory Compliance | RG-AP680-O(V3) |
| Regulatory compliance | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, FCC Part 15, EN 62311, EN IEC 62311, EN 50665, IEC 62368-1, EN 62368-1, IEC 60950-22, EN 18031-1, and EN 18031-2 |
* For more country-specific regulatory information and approvals, contact your local sales agency.
Note：
- EU simplified DoC: Hereby, [Ruijie Networks Co., Ltd.] declares that the radio equipment type [RG-AP680-O(V3)] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.ruijie.com/.
- UK simplified DoC: Hereby, [Ruijie Networks Co., Ltd.] declares that the radio equipment type [RG-AP680-O(V3)] is in compliance with UK Radio Equipment Regulation 2017. The full text of the UK declaration of conformity is available at the following internet address: https://www.ruijie.com/.
- The functions of Wireless Access Systems including Radio Local Area Networks(WAS/RLANs) within the band 5150-5350 MHz for this device are restricted to indoor use only within all European Union countries (BE/BG/CZ/DK/DE/EE/IE/EL/ES/FR/HR/IT/CY/LV/LT/LU/HU/MT/NL/ AT/PL/PT/RO/SI/SK/FI/SE/TR/NO/CH/IS/LI/UK(NI)
- Ruijie wireless products provide only secure and reliable network protocols and communication ports by default. For details, seeRuijie Default Protocols and Ports for Wireless Products. Proper firewall and security policies can be implemented based on this document to ensure the normal operation of wireless services.
Order Information
| Model | Description |

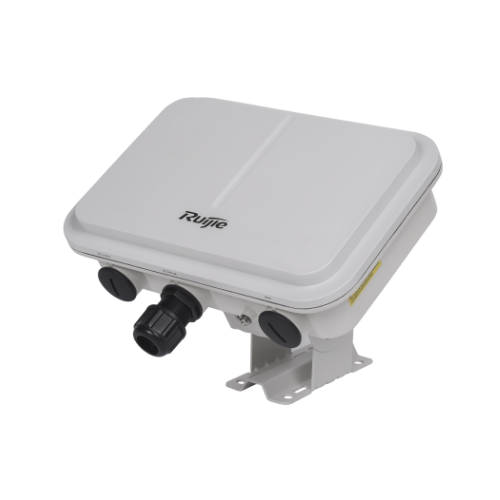

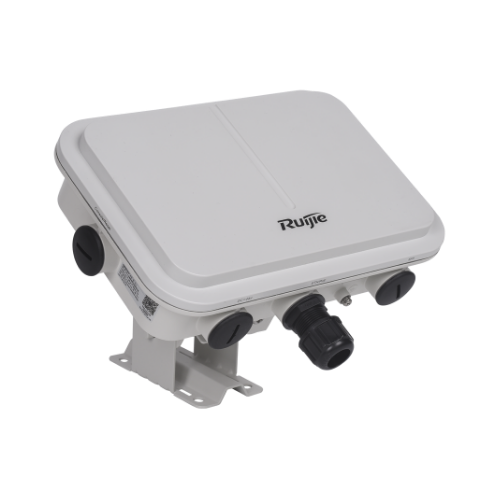

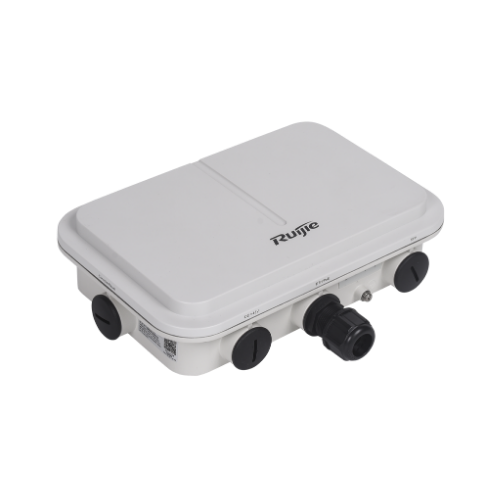

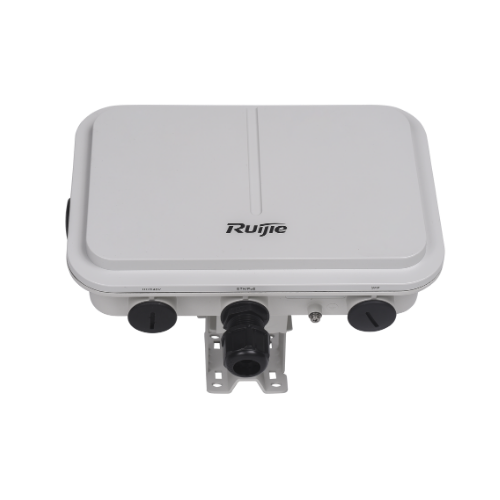

| RG-AP680-O(V3) | Wi-Fi 6 (802.11ax-compliant) outdoor high-density wireless access point
Dual radios, four spatial streams, peak data rate of 2.976 Gbps ● Radio 1: 2.4 GHz: two spatial streams, 2×2 MU-MIMO, peak data rate of 574 Mbps ● Radio 2: 5 GHz: two spatial streams, 2×2 MU-MIMO, peak data rate of 2.402 Gbps 802.11a/b/g/n/ac/ax, switching between Fat, Fit, and cloud modes, and 802.3at/at PoE and local DC power supply Note: ● The power source equipment (PSE) needs to be purchased separately. ● The DC power supply needs to be purchased separately, and the output voltage/current must be 48 V/0.35 A. |
