IPA60

Highlight Features

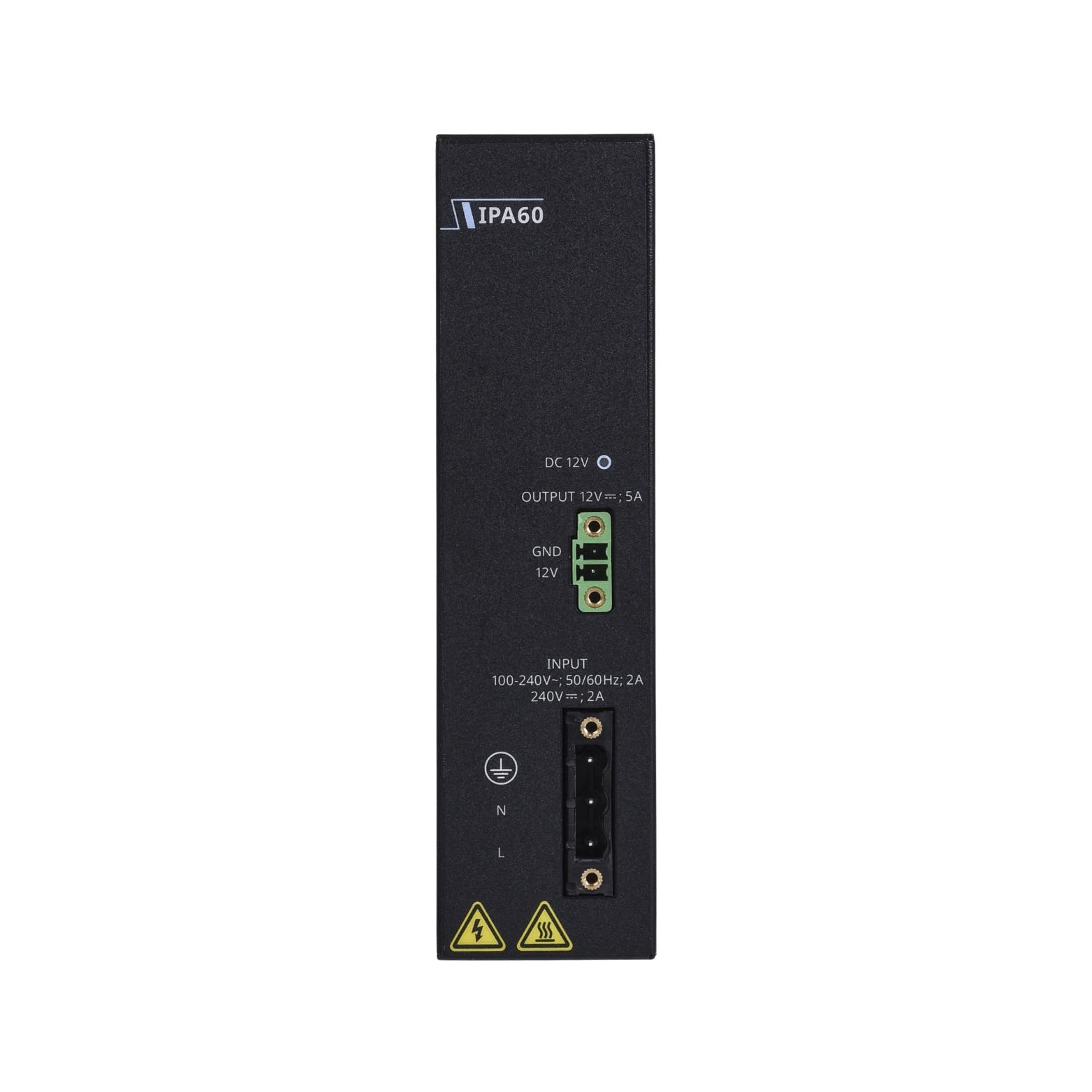

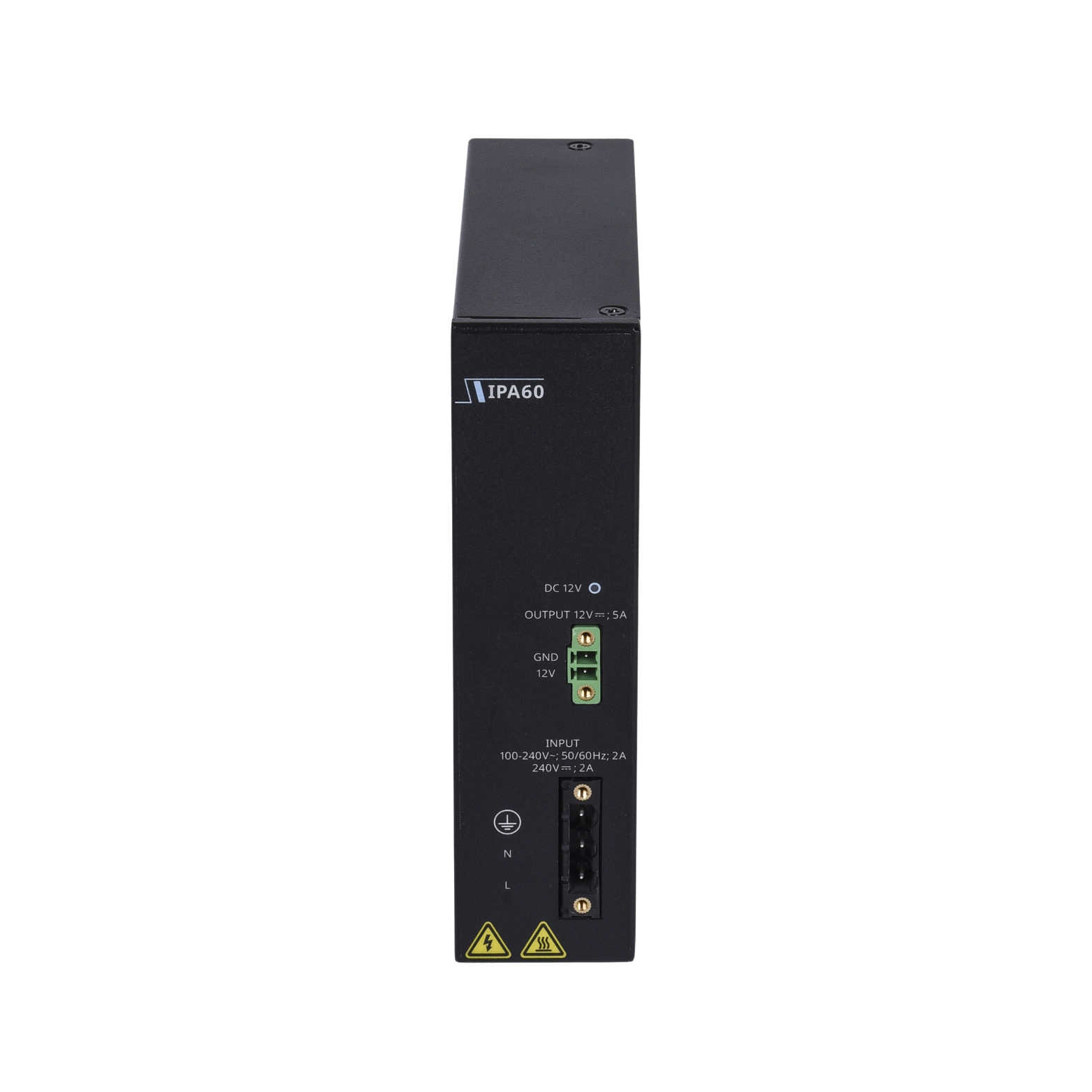

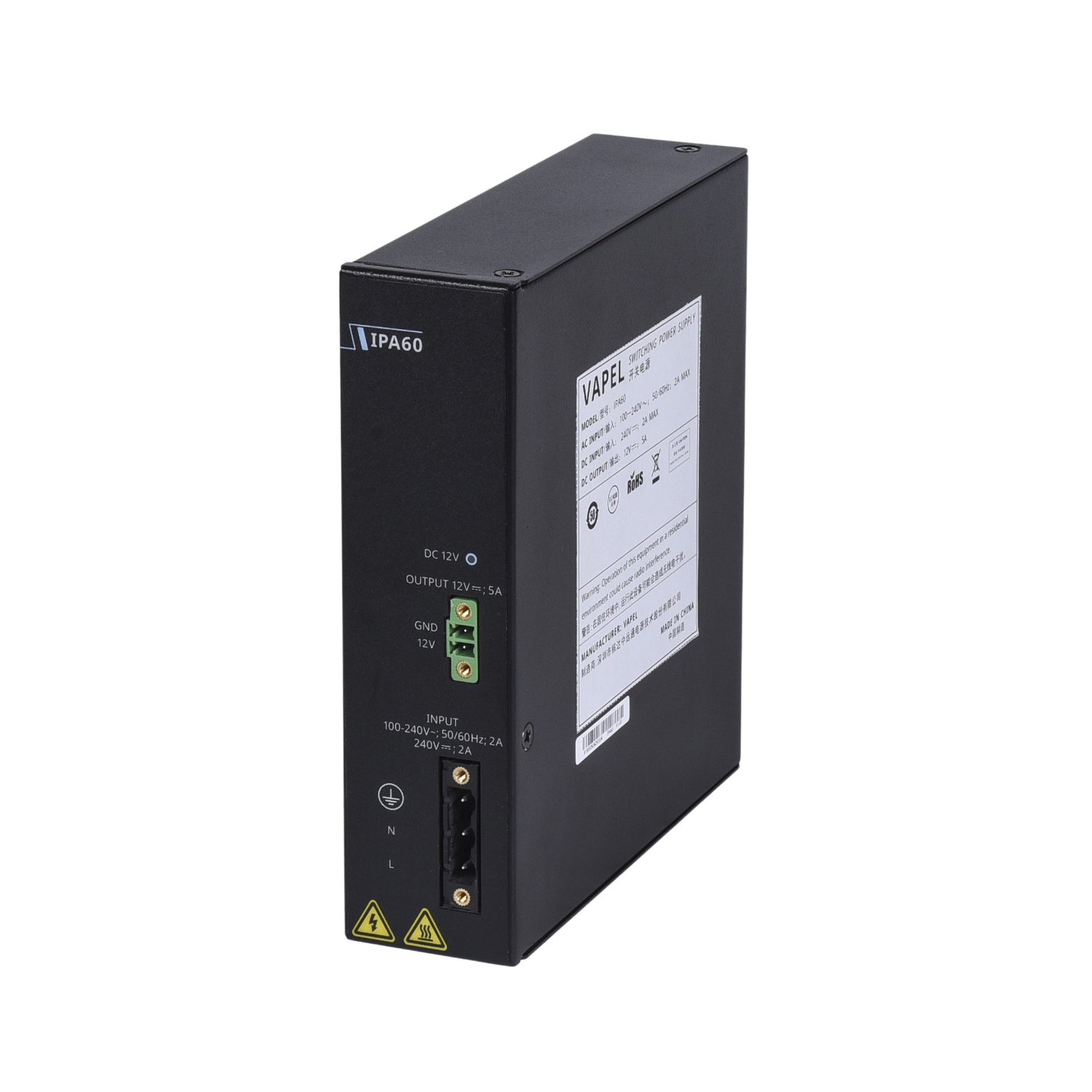

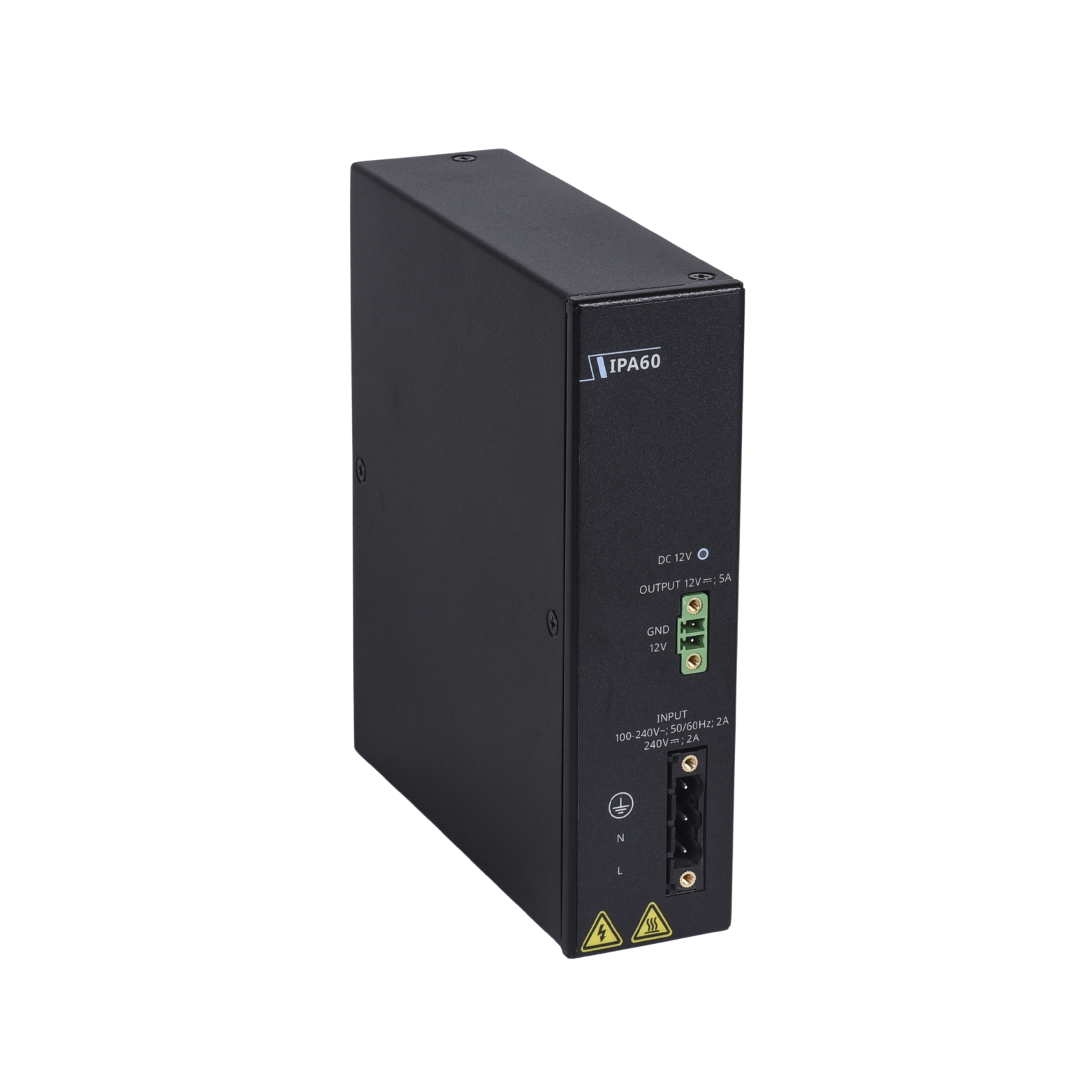

  • The IPA60 is a power module (AC input and DC output), providing an output voltage of 12 V and an output power of up to 60 W.

Specifications

Model  IPA60
Applicable Switch  RG-IS5200-8GT4XS-DC
RG-IS5200-24GT4XS-UP-DC |
Note:

  • The IPA60 power module is sold separately and is not shipped with the switch. You can purchase it as required.
  • You can also purchase power modules that meet the power supply specifications of the preceding switch models. For power supply requirements for different models of the RG-IS5200 series switches, see Chapter 1.
Rated Input Voltage Range  AC input: 100 V to 240 V, 50/60 Hz
DC input: 240 V
Maximum Input Voltage Range  AC input: 90 V to 264 V, 45/65 Hz
DC input: 88 V to 300 V
Maximum Input Current  AC input: 2 A
DC input: 2 A
Output voltage  12 V
Maximum Output Current  5 A
Maximum Output Power  60 W
Ground Leakage Current  ≤ 3.5 mA
Dimensions (W x D x H)  150 mm x 133 mm x 40 mm (5.91 in. x 5.24 in. x 2.56 in.)
Weight  0.75 kg (1.65 lbs)
Operating Temperature  –40°C to +70°C (–40°F to +158°F)
Storage Temperature  –40°C to +85°C (–40°F to +185°F)
Operating Humidity  5% to 95% RH
Storage Humidity  5% to 95% RH
Operating Altitude  0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Note:

  • At the altitude of 0 m to 3,000 m (0 ft. to 9,842.52 ft.), the power module works at an ambient temperature of 55°C (131°F).
  • At the altitude of 3,000 m (9,842.52 ft.), every time the altitude increases by 220 m (721.79 ft.), the maximum temperature decreases by 1°C (1.8°F).
IP Rating  IP40

Models

IPA60
Series

RG-IS5200 Series
