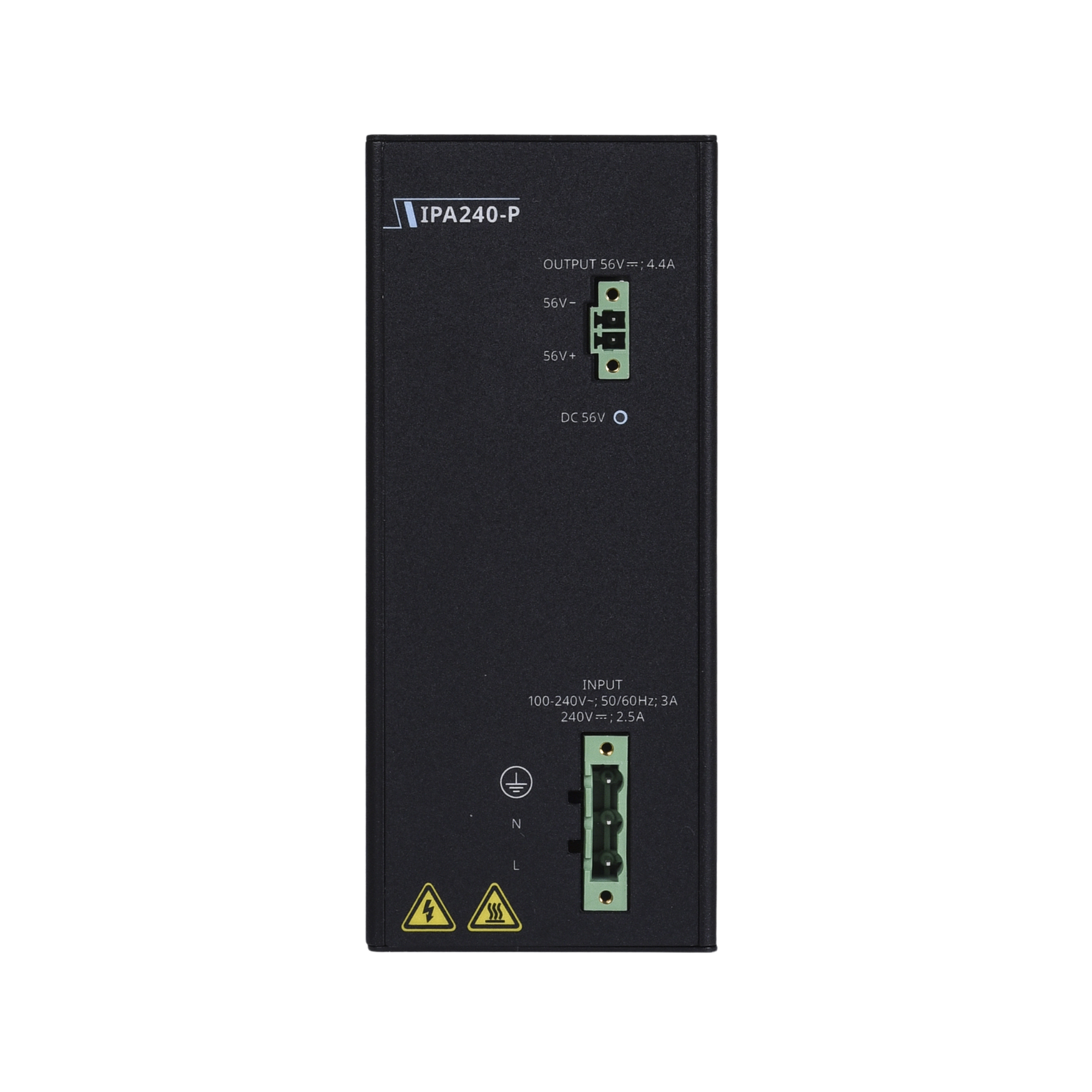

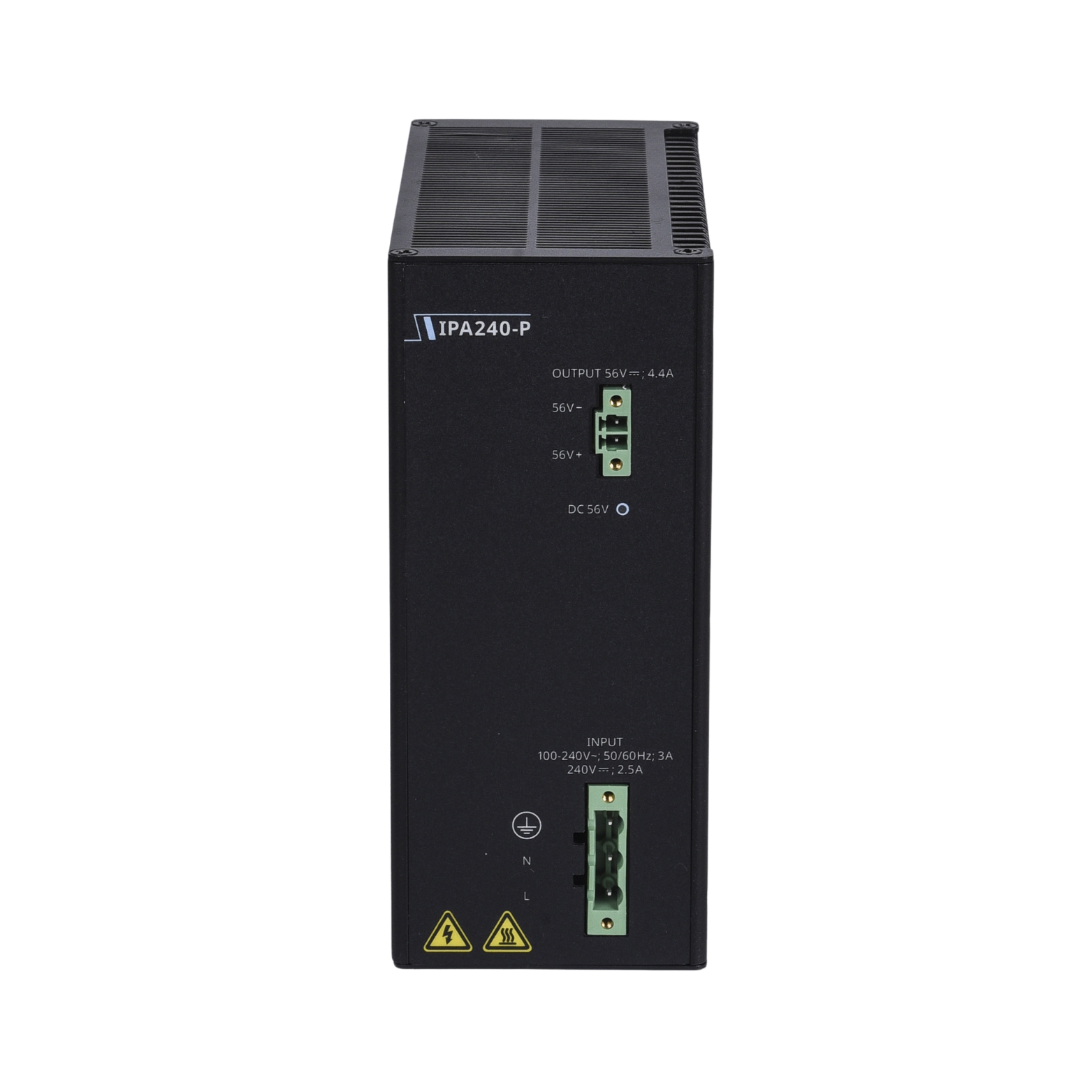

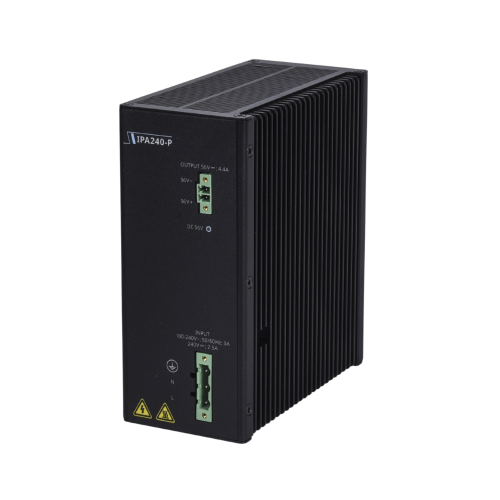

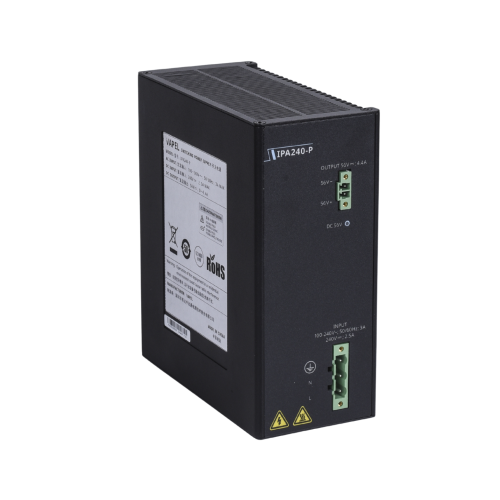

| Model |
IPA240-P |
| Applicable Switch |
RG-IS5200-8GT4XS-UP-DC
RG-IS5200-24GT4XS-UP-DC
Note:
- The IPA240-P power module is sold separately and is not shipped with the switch.
- You can purchase it as required. You can also purchase power modules that meet the power supply specifications of the preceding switch models. For power supply requirements for different models of the RG-IS5200 series switches, see Chapter 1.
|
| Rated Input Voltage Range |
AC input: 100 V to 240 V, 50/60 Hz
DC input: 240 V |
| Maximum Input Voltage Range |
AC input: 90 V to 290 V, 45/65 Hz
DC input: 190 V to 290 V |
| Maximum Input Current |
AC input: 3 A
DC input: 2.5 A |
| Output voltage |
56 V |
| Maximum Output Current |
4.4 A |
| Maximum Output Power |
240 W |
| Ground Leakage Current |
≤ 3.5 mA |
| Dimensions (W x D x H) |
150 mm x 133 mm x 65 mm (5.91 in. x 5.24 in. x 2.56 in.) |
| Weight |
1.25 kg (2.76 lbs) |
| Operating Temperature |
–40°C to +70°C (–40°F to +158°F) (installed in a sealed cabinet)
Note:
- At an ambient temperature within 55°C (131°F), the power module supports 100% of the maximum output power.
- At an ambient temperature within 60°C (140°F), the power module supports 85% of the maximum output power.
- At an ambient temperature within 70°C (158°F), the power module supports 60% of the maximum output power.
|
| Storage Temperature |
–40°C to +85°C (–40°F to +185°F) |
| Operating Humidity |
5% to 95% RH |
| Storage Humidity |
5% to 95% RH |
| Operating Altitude |
0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Note:
- At the altitude of 0 m to 3,000 m (0 ft. to 9,842.52 ft.), the power module works at an ambient temperature of 55°C (131°F).
- At the altitude of 3,000 m (9,842.52 ft.), every time the altitude increases by 220 m (721.79 ft.), the maximum temperature decreases by 1°C (1.8°F).
|
| IP Rating |
IP40 |
